NSN 5310-00-728-5504 MS210775, MS21077-5, NA401054

Product Details | PLATE SELF-LOCKING NUT

5310-00-728-5504 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MS210775, MS21077-5, NA401054, NA401-054 , SNLA0695, SNLA-069-5, FNA401054, FNA401-054, 5310-00-728-5504, 00-728-5504, 5310007285504, 007285504

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1961	00-728-5504	05280 ( NUT, SELF-LOCKING, PLATE )

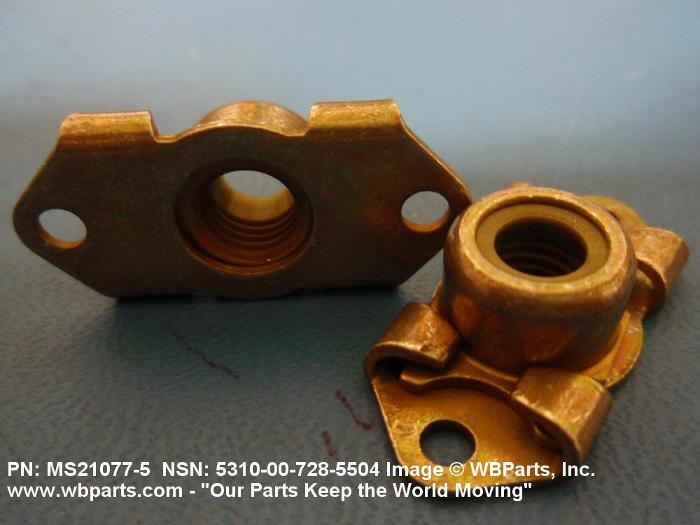

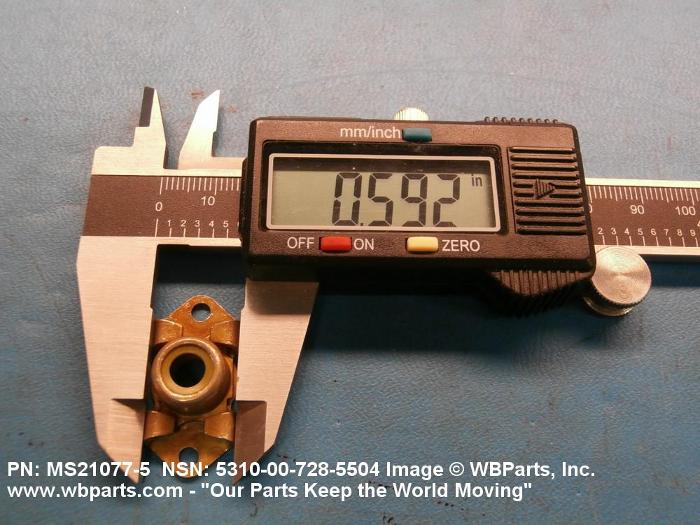

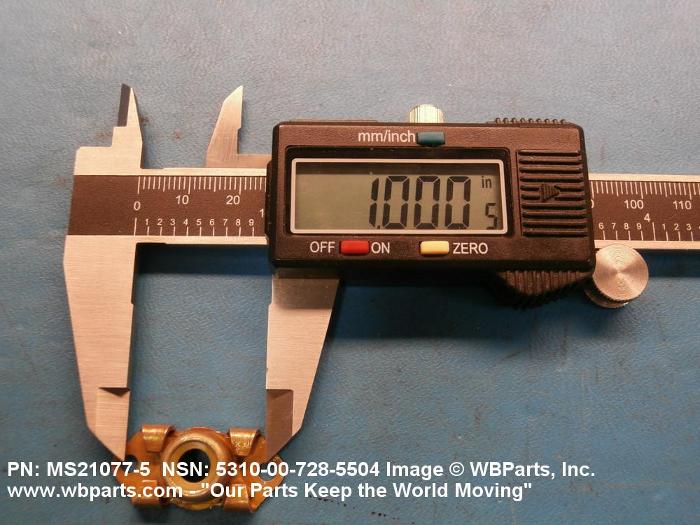

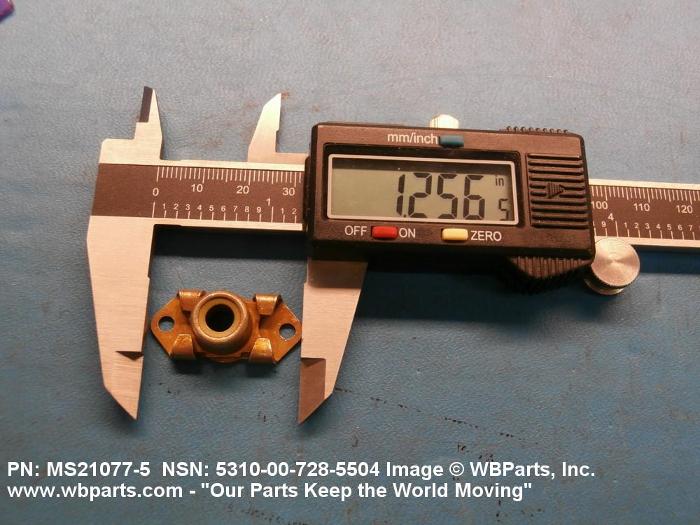

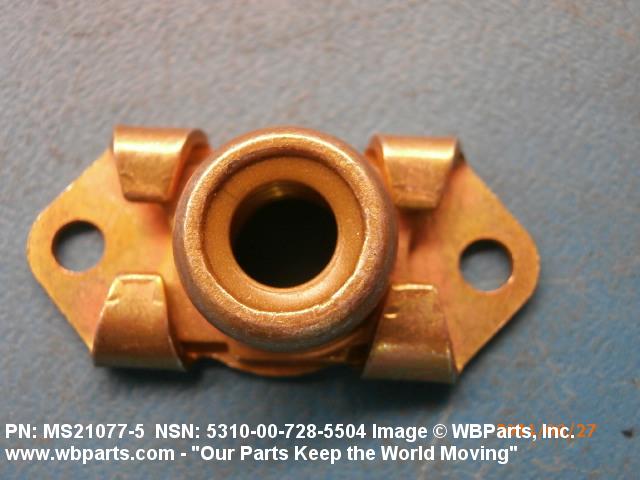

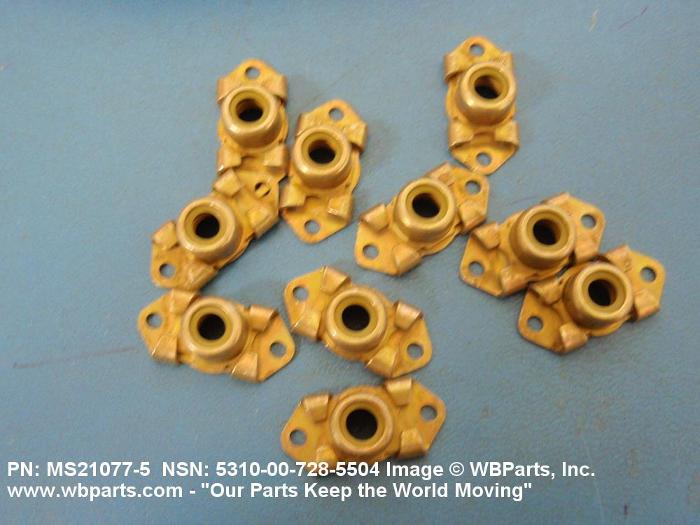

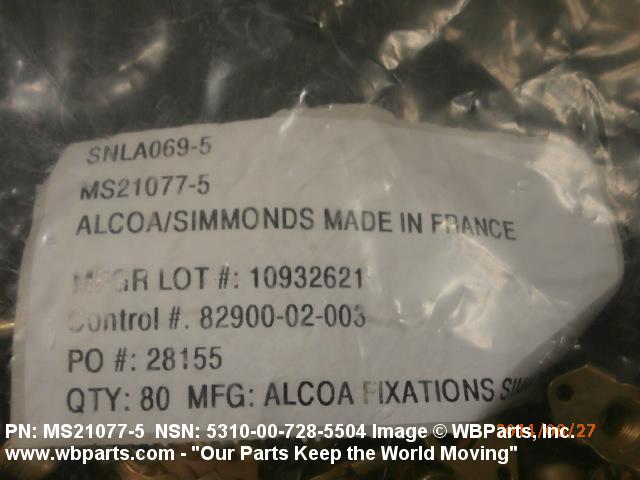

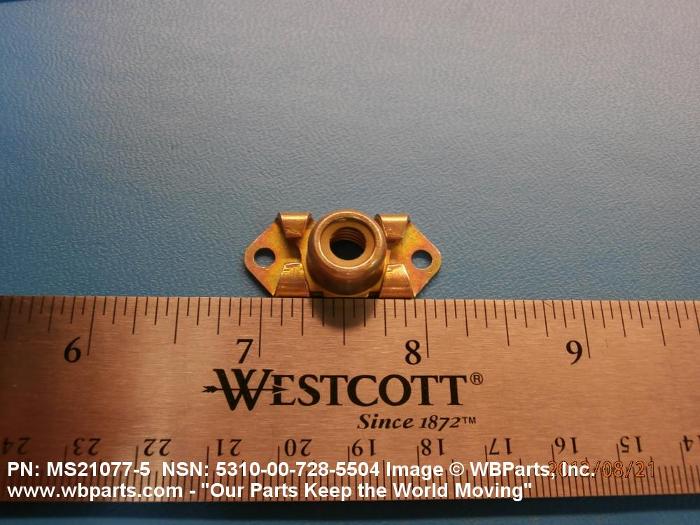

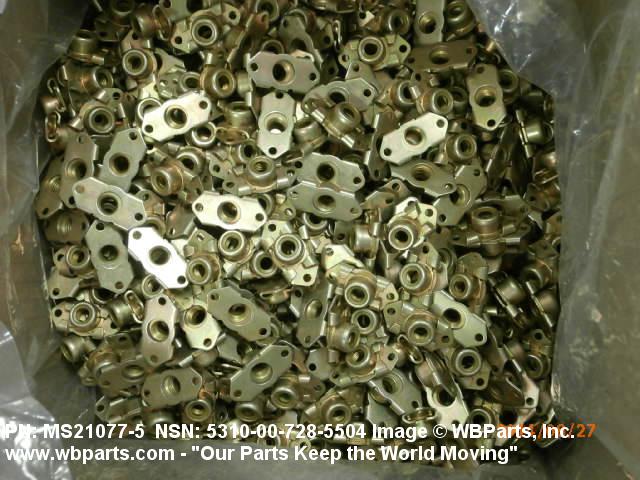

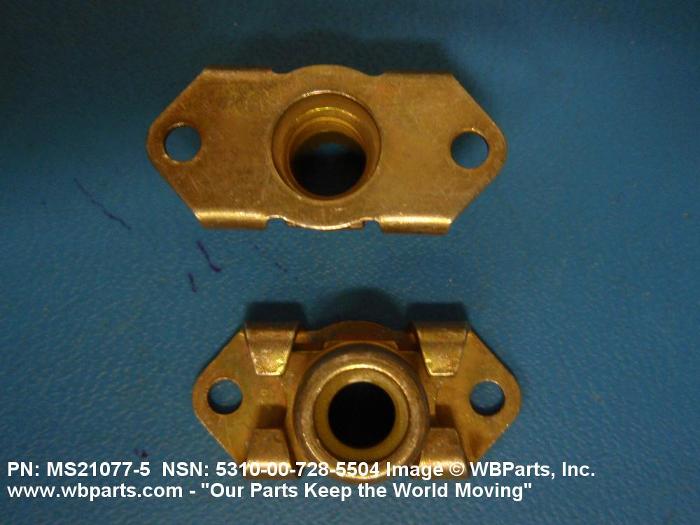

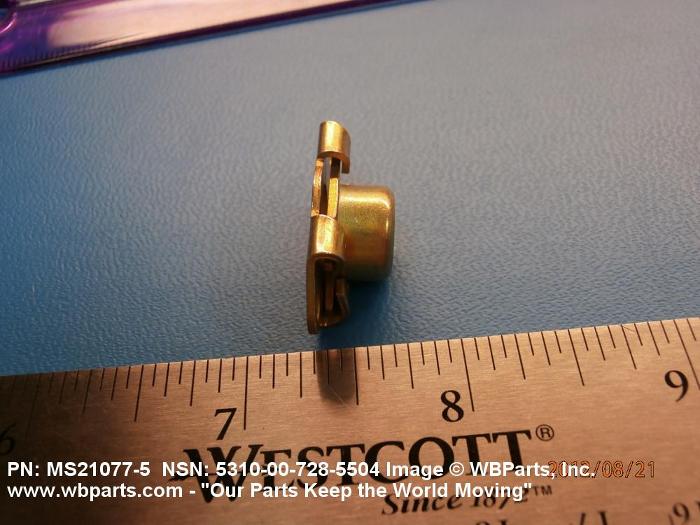

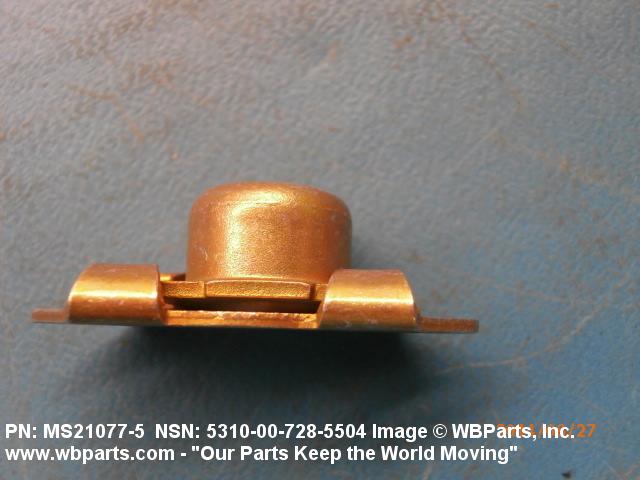

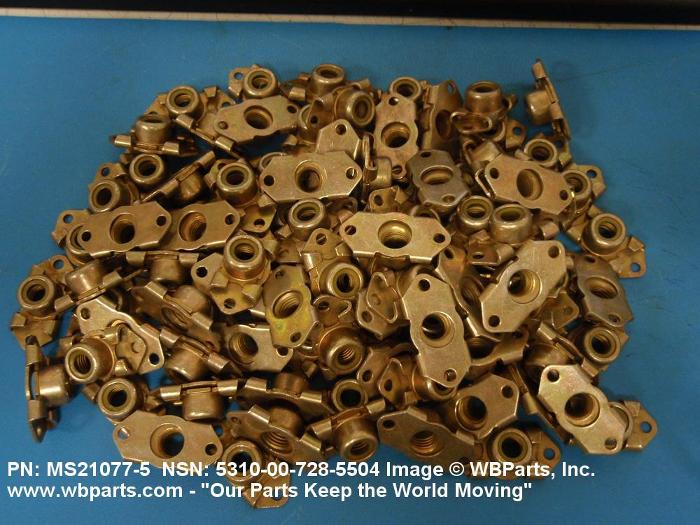

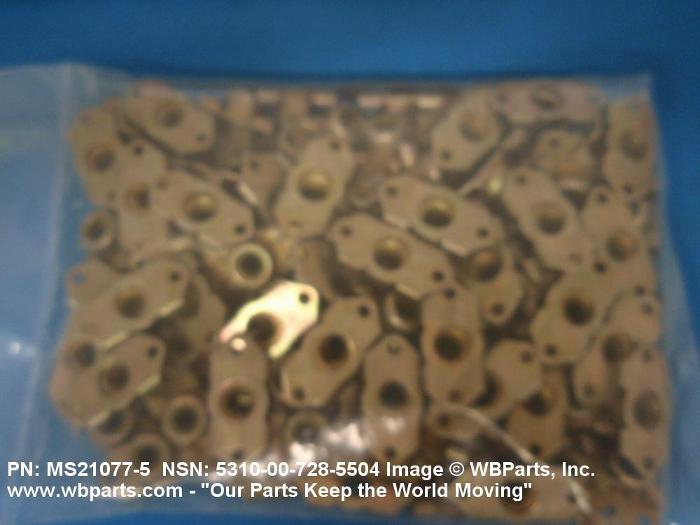

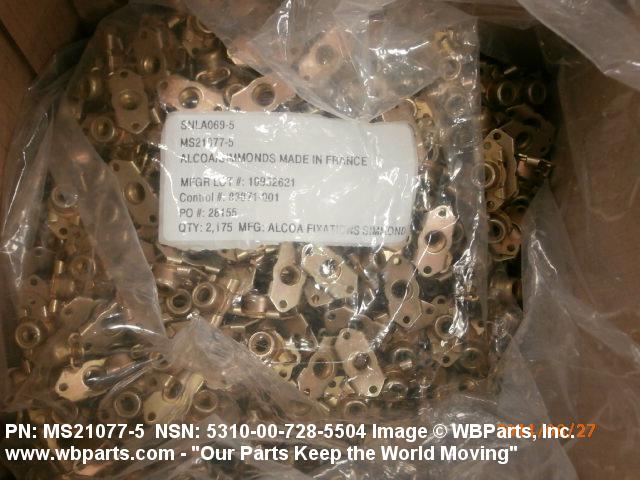

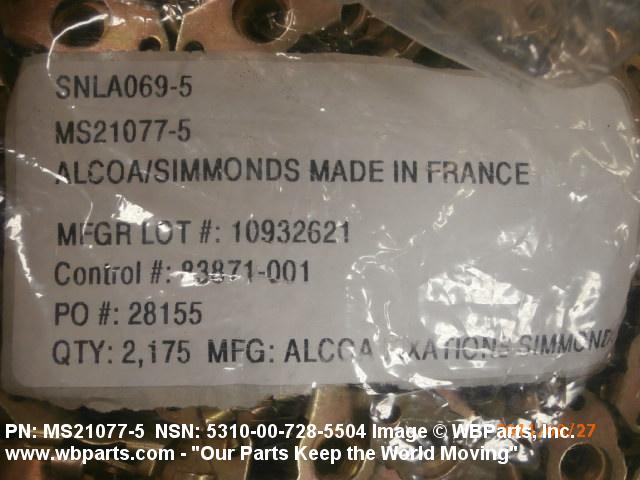

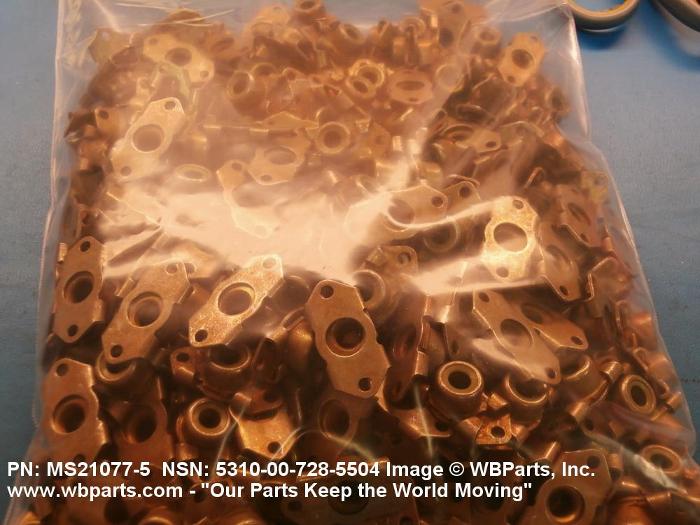

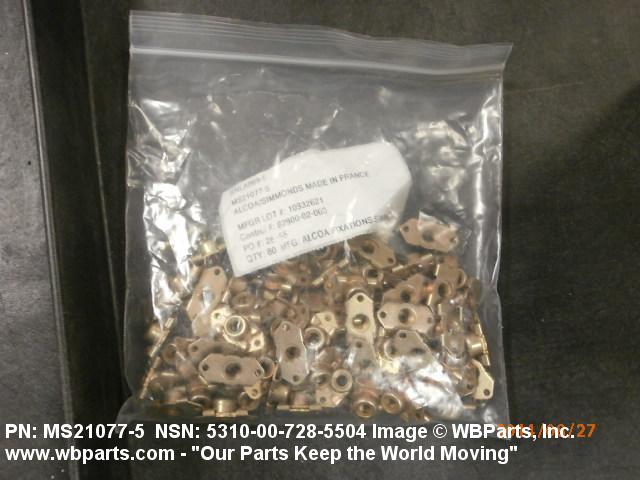

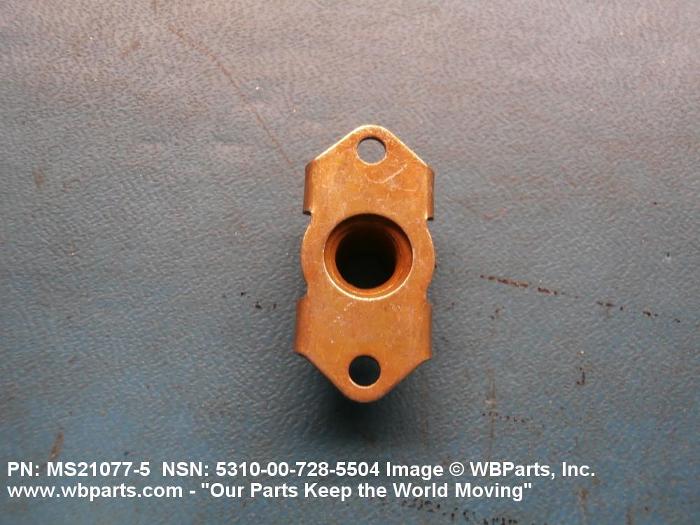

Drawings & Photos | NSN 5310-00-728-5504

Part Number	Request Date	QTY	Origin
5310-00-728-5504	2021-08-228	125	US
5310-00-728-5504	2021-05-145	50	United States
FNA401054	2021-05-145	5	United States
5310-00-728-5504	2021-03-70	2	United States
FNA401054	2021-03-70	2	United States
MS210775	2020-12-350	4000	US
5310-00-728-5504	2020-10-279	1200	US
5310-00-728-5504	2020-10-279	4000	US
5310-00-728-5504	2020-10-279	20000	US
5310-00-728-5504	2020-10-279	40000	US
5310-00-728-5504	2020-10-279	100000	US
5310-00-728-5504	2020-10-279	200000	US
5310-00-728-5504	2020-06-171	20	Turkey
5310-00-728-5504	2019-02-43	10000	Turkey
MS210775	2018-03-75	1600	PK
MS210775	2018-03-75	3500	PK
MS210775	2018-03-61	1000	CN
MS210775	2018-03-61	1000	Singapore
MS210775	2018-02-53	1000	Singapore
MS210775	2018-02-50	1000	US
MS210775	2018-02-45	1000	US
MS210775	2018-02-45	1000	PK
MS210775	2018-02-39	1000	PK
5310-00-728-5504	2017-10-285	359	DIBBS
MS210775	2016-09-253	8000	US
5310-00-728-5504	2015-03-85	2800	US
5310-00-728-5504	2014-09-266	7800	DIBBS
5310-00-728-5504	2014-08-231	1001	DIBBS
MS210775	2014-05-121	15000	US
MS210775	2014-05-121	25000	US
MS210775	2014-03-80	3000	United States
NA401054	2013-04-109	1	us
MS210775	2013-01-29	300	Pakistan
5310-00-728-5504	2012-08-227	200	United States
5310-00-728-5504	2012-04-104	9311	US
MS210775	2011-06-152	150	United States
5310-00-728-5504	2011-05-146	6880	US
5310-00-728-5504	2011-02-34	1	United States
5310-00-728-5504	2011-02-32	100	United States
5310-00-728-5504	2009-09-272	1200	IL
MS210775	2009-08-231	1000	us
MS210775	2009-07-198	1250	IL
5310-00-728-5504	2009-07-197	1250	IL
MS210775	2009-07-187	1200	us
MS210775	2009-07-187	1200	US
5310-00-728-5504	2009-07-187	1200	IL
5310-00-728-5504	2009-07-187	650	India
5310-00-728-5504	2009-04-99	650	India
FNA401054	2008-09-266	4	United States
MS210775	2008-05-128	10000	United States
5310-00-728-5504	2008-02-50	4000	IL
MS210775	2008-02-38	300	US
5310-00-728-5504	2007-11-317	3200	IL
5310-00-728-5504	2007-10-297	2800	US
MS210775	2007-06-176	1	Israel

Cross Reference | NSN 5310-00-728-5504

Part Number	Cage Code	Manufacturer
FNA401-054	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
FNA401-054	72962	HARVARD INDUSTRIES INC
MS21077-5	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21077-5	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NA401-054	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
SNLA-069-5	62554	ALCOA GLOBAL FASTENERS INC. DBA SIMMONDS MECAERO FAS PDTS DIV

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-728-5504

Compare

Related Products | NSN 5310-00-728-5504

5310-00-728-5505, 5310-00-728-5506, 5310-00-728-5507, 5310-00-728-5508, 5310-00-728-5509

Technical Data | NSN 5310-00-728-5504

Characteristic	Specifications
THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.312 INCHES
THREAD QUANTITY PER INCH	24
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	PLASTIC POLYAMIDE LOCKING INSERT STEEL NUT
SURFACE TREATMENT	CADMIUM NUT
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE NUT
HARDNESS RATING	36.0 ROCKWELL C MAXIMUM
NUT STYLE	A116 PLATE
NUT LENGTH	1.296 INCHES MAXIMUM

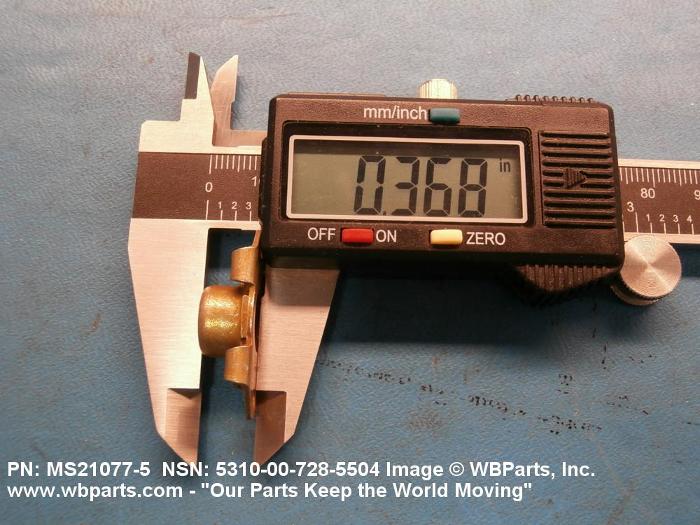

NUT HEIGHT	0.283 INCHES MINIMUM AND 0.387 INCHES MAXIMUM
PLATE THICKNESS	0.075 INCHES MAXIMUM
PLATE WIDTH	0.484 INCHES MINIMUM AND 0.609 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE WITH NONMETALLIC INSERT
NUT MOUNTING PROVISION	STRAIGHT HOLES
MOUNTING HOLE ARRANGEMENT STYLE	F38 2 HOLES
MOUNTING HOLE DIAMETER	0.130 INCHES MINIMUM AND 0.135 INCHES MAXIMUM
DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER	0.495 INCHES MINIMUM AND 0.505 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH	0.998 INCHES MINIMUM AND 1.002 INCHES MAXIMUM
TEMP RATING	250.0 DEG FAHRENHEIT NOMINAL
FEATURES PROVIDED	FLOATING NUT

Restrictions/Controls & Freight Information | NSN 5310-00-728-5504

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-728-5504

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each
