NSN 5310-00-728-5507 MS210774K, MS21077-4K, FNA401048BC
Product Details | PLATE SELF-LOCKING NUT
5310-00-728-5507 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: MS210774K, MS21077-4K, FNA401048BC, FNA401-048BC, 5310-00-728-5507, 00-728-5507, 5310007285507 , 007285507
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-728-5507 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

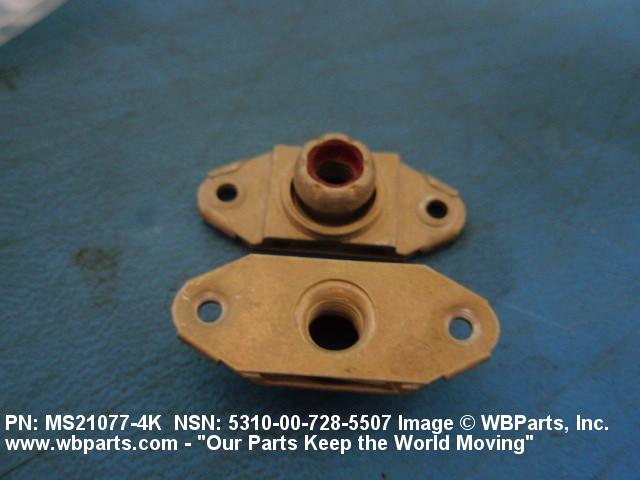

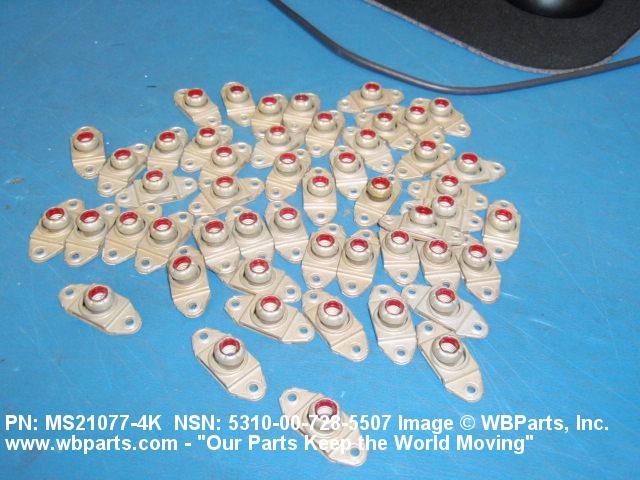

Drawings & Photos | NSN 5310-00-728-5507
Demand History | NSN 5310-00-728-5507
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS210774K | 2017-12-352 | 20 | United States |
| MS210774K | 2017-12-352 | 40 | United States |
| 5310-00-728-5507 | 2015-01-21 | 193 | DIBBS |
| 5310-00-728-5507 | 2015-01-07 | 4 | DIBBS |
| 5310-00-728-5507 | 2011-12-335 | 1 | DIBBS |
| 5310-00-728-5507 | 2011-04-111 | 1 | DIBBS |
| 5310-00-728-5507 | 2010-12-348 | 50 | United States |
| 5310-00-728-5507 | 2010-11-323 | 1 | DIBBS |
| 5310-00-728-5507 | 2010-10-285 | 1 | DIBBS |
| 5310-00-728-5507 | 2010-08-232 | 1 | DIBBS |
| MS210774K | 2009-12-338 | 22 | United States |
| FNA401048BC | 2009-05-132 | 10 | Canada |
Cross Reference | NSN 5310-00-728-5507
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5310007285507 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| FNA401-048BC | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| FNA401-048BC | 72962 | HARVARD INDUSTRIES INC |
| MS21077-4K | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS21077-4K | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-728-5507
Related Products | NSN 5310-00-728-5507
Technical Data | NSN 5310-00-728-5507
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | PLASTIC POLYAMIDE LOCKING INSERT STEEL NUT ALUMINUM ALLOY OR STEEL SHELL |
| SURFACE TREATMENT | CADMIUM NUT ANODIZE OR CADMIUM SHELL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 2 CL 2 FED SPEC SINGLE TREATMENT RESPONSE NUT QQ-P-416 TY 2 CL 2 FED SPEC 2ND TREATMENT RESPONSE SHELL |
| HARDNESS RATING | 36.0 ROCKWELL C MAXIMUM |
| NUT STYLE | A116 PLATE |
| NUT LENGTH | 1.296 INCHES MAXIMUM |
| NUT HEIGHT | 0.283 INCHES MINIMUM AND 0.387 INCHES MAXIMUM |
| PLATE THICKNESS | 0.075 INCHES MAXIMUM |
| PLATE WIDTH | 0.406 INCHES MINIMUM AND 0.516 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT |
| COUNTERSINK ANGLE | 88.0 DEGREES MINIMUM AND 102.0 DEGREES MAXIMUM NUT |
| NUT MOUNTING PROVISION | COUNTERSUNK HOLES |
| MOUNTING HOLE COUNTERSINK ANGLE | 98.0 DEGREES MINIMUM AND 102.0 DEGREES MAXIMUM |
| MOUNTING PROVISION LOCATION | OPPOSITE NUT PROJECTION SIDE |
| MOUNTING HOLE ARRANGEMENT STYLE | F38 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.495 INCHES MINIMUM AND 0.505 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.998 INCHES MINIMUM AND 1.002 INCHES MAXIMUM |
| TEMP RATING | 250.0 DEG FAHRENHEIT NOMINAL |
| FEATURES PROVIDED | FLOATING NUT |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21077-4K |
