NSN 5310-00-701-8287 NAS11953XH, NAS1195-3XH, 00-701-8287
Product Details | PLATE NUT SPACER
5310-00-701-8287 An item having two flat bearing surfaces, conforming to the same shape as the base of a NUT (1), PLAIN, PLATE and NUT (1), SELF-LOCKING, PLATE. It is used to provide better alignment in assembly.
Part Alternates: NAS11953XH, NAS1195-3XH, 5310-00-701-8287, 00-701-8287, 5310007018287, 007018287
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 FEB 1968 | 00-701-8287 | 17667 ( NUT SPACER, PLATE ) |

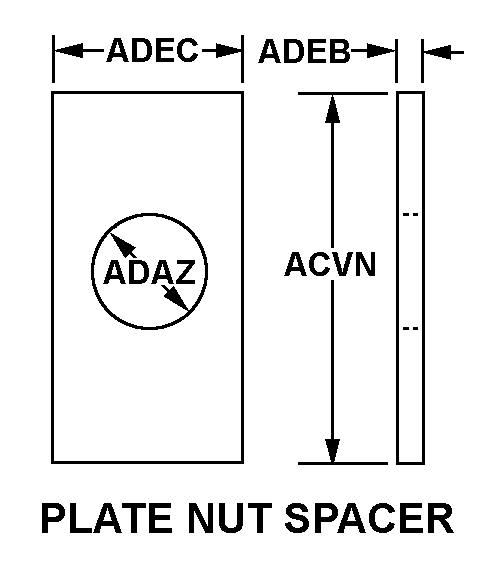

Drawings & Photos | NSN 5310-00-701-8287
Demand History | NSN 5310-00-701-8287
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-701-8287 | 2019-03-80 | 304 | DIBBS |
| 5310-00-701-8287 | 2018-11-305 | 555 | DIBBS |
| 5310-00-701-8287 | 2018-01-09 | 567 | DIBBS |
| 5310-00-701-8287 | 2017-10-292 | 200 | DIBBS |
| 5310-00-701-8287 | 2017-10-275 | 120 | DIBBS |
| 5310-00-701-8287 | 2013-03-63 | 24 | DIBBS |
| 5310-00-701-8287 | 2008-07-196 | 1702 | DIBBS |
| 5310-00-701-8287 | 2008-05-143 | 750 | DIBBS |
| 5310-00-701-8287 | 2008-05-123 | 799 | DIBBS |
| 5310-00-701-8287 | 2008-02-53 | 471 | DIBBS |
Cross Reference | NSN 5310-00-701-8287
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-701-8287
Related Products | NSN 5310-00-701-8287
Technical Data | NSN 5310-00-701-8287
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1020 OR STEEL COMP 1025 OR STEEL COMP 1010 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-7952 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-18729 MIL SPEC 2ND MATERIAL RESPONSE OR SAE 1010 ASSN STD 3RD MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| NUT STYLE | A144 PLATE NUT SPACER |
| NUT LENGTH | 0.724 INCHES MINIMUM AND 0.739 INCHES MAXIMUM |
| THRU-HOLE DIAMETER | 0.260 INCHES MINIMUM AND 0.270 INCHES MAXIMUM |
| PLATE THICKNESS | 0.057 INCHES MINIMUM AND 0.069 INCHES MAXIMUM |
| PLATE WIDTH | 0.401 INCHES MINIMUM AND 0.416 INCHES MAXIMUM |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F38 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.102 INCHES MINIMUM AND 0.108 INCHES MAXIMUM |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.247 INCHES MINIMUM AND 0.253 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.498 INCHES MINIMUM AND 0.502 INCHES MAXIMUM |
| SPECIFICATION/STANDARD DATA | 80205-NAS1195 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5310-00-701-8287
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
