Product Details | PLATE NUT SPACER

5310-01-250-7960 An item having two flat bearing surfaces, conforming to the same shape as the base of a NUT (1), PLAIN, PLATE and NUT (1), SELF-LOCKING, PLATE. It is used to provide better alignment in assembly.

Part Alternates: NAS463X10M, 5310-01-250-7960, 01-250-7960, 5310012507960, 012507960

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG) NSN Assign. NIIN
53 07 MAR 1987 01-250-7960

Drawings & Photos | NSN 5310-01-250-7960


Demand History | NSN 5310-01-250-7960

Part Number Request Date QTY Origin
NAS463X10M 2015-12-350 70 United States

Cross Reference | NSN 5310-01-250-7960

Part Number Cage Code Manufacturer
NAS463X10M 80205 NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-250-7960

Technical Data | NSN 5310-01-250-7960

Characteristic Specifications
MATERIAL STEEL COMP 1020 OR STEEL COMP 1025 OR STEEL COMP 4130 OR STEEL COMP 1010 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION MIL-S-7952 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-7952 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-18729 COND N MIL SPEC 3RD MATERIAL RESPONSE OVERALL
SURFACE TREATMENT CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
NUT STYLE A146 PLATE NUT SPACER

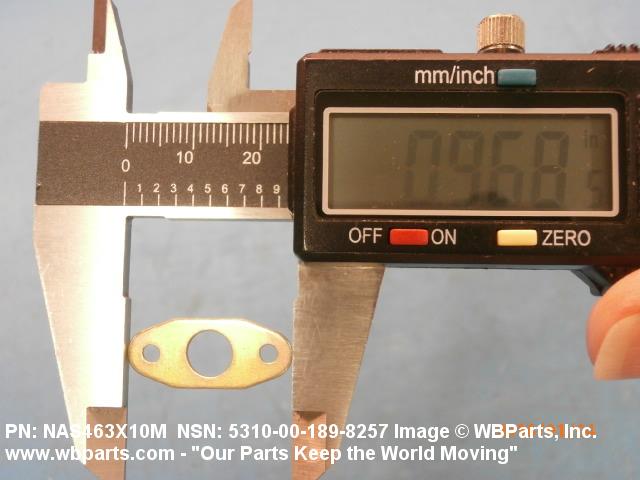

NUT LENGTH 0.969 INCHES NOMINAL

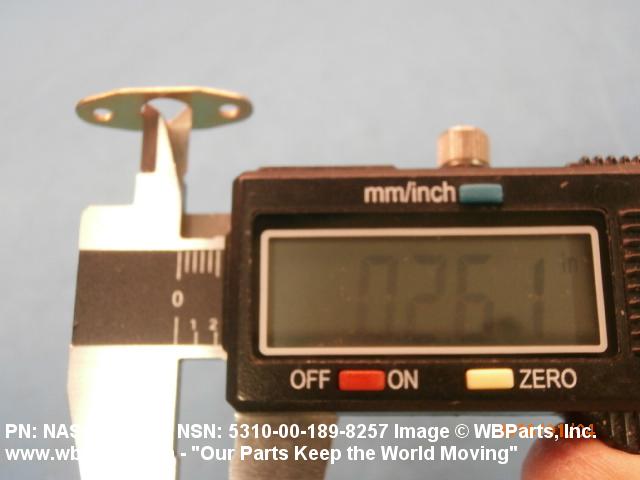

THRU-HOLE DIAMETER 0.260 INCHES MINIMUM AND 0.270 INCHES MAXIMUM

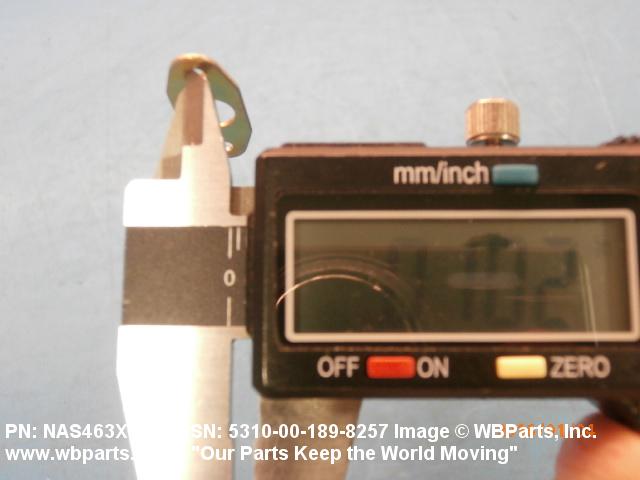

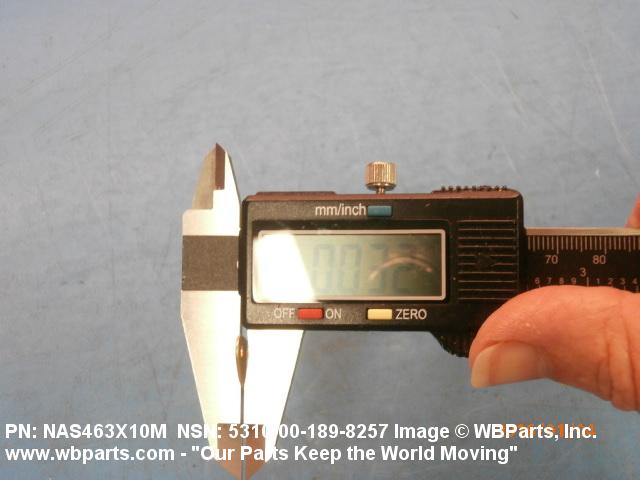

PLATE THICKNESS 0.032 INCHES NOMINAL

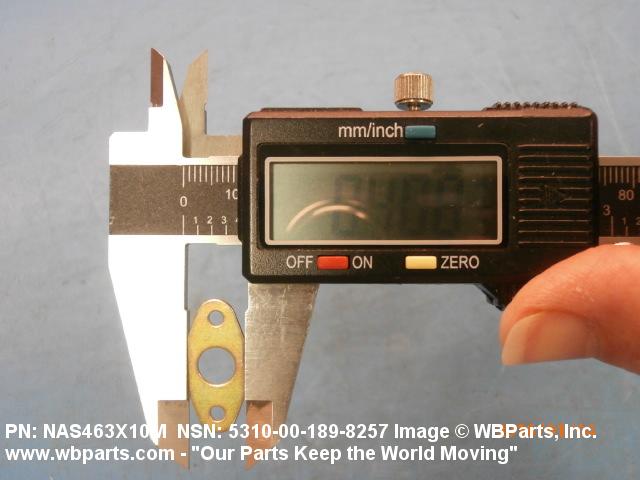

PLATE WIDTH 0.406 INCHES NOMINAL
NUT MOUNTING PROVISION STRAIGHT HOLES
MOUNTING HOLE ARRANGEMENT STYLE F38 2 HOLES
MOUNTING HOLE DIAMETER 0.102 INCHES MINIMUM AND 0.108 INCHES MAXIMUM
DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER 0.341 INCHES MINIMUM AND 0.347 INCHES MAXIMUM

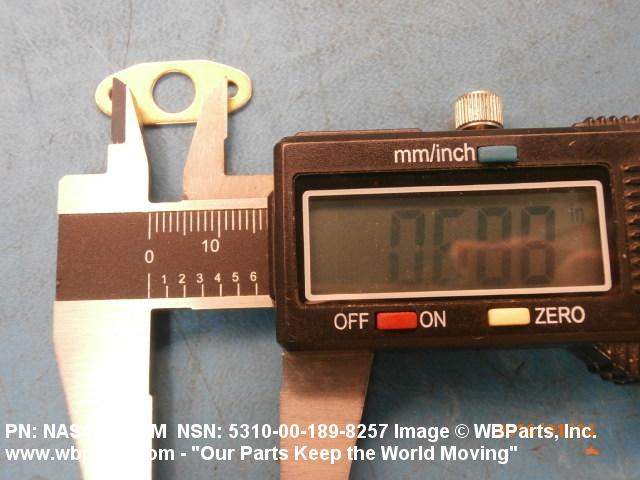

CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH 0.686 INCHES MINIMUM AND 0.690 INCHES MAXIMUM
SPECIFICATION/STANDARD DATA 80205-NAS463 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD

Restrictions/Controls & Freight Information | NSN 5310-01-250-7960

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 093486 BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 573 unknown
Originating Activity Code KH Defense Industrial Supply Center
Philadelphia, PA 19111
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5310-01-250-7960

Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation CodeSXSX:AF SICA RESIDUAL MMAC-OC-ALC
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
