NSN 5310-00-680-5240 22FP4428, 22FP4-428, 00-680-5240
Product Details | CLINCH SELF-LOCKING NUT
5310-00-680-5240 A nut having a sleeve portion on its under side, which can be crimped or clinched to hold the item in place when inserted in a hole. An integral feature is incorporated for locking.
Part Alternates: 22FP4428, 22FP4-428, 5310-00-680-5240, 00-680-5240, 5310006805240, 006805240
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-680-5240 | 15892 ( NUT, SELF-LOCKING, CLINCH ) |

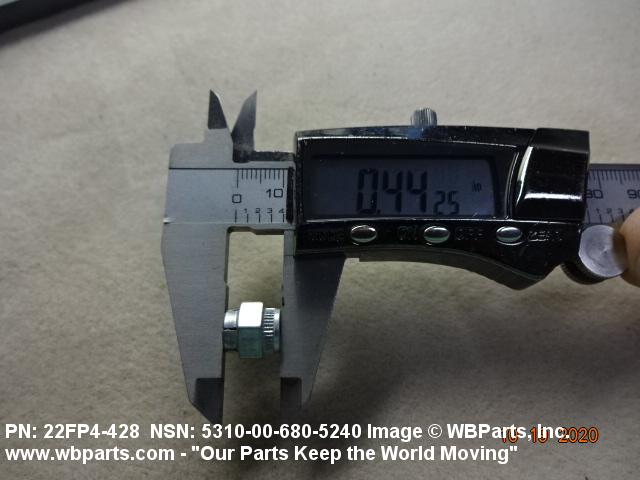

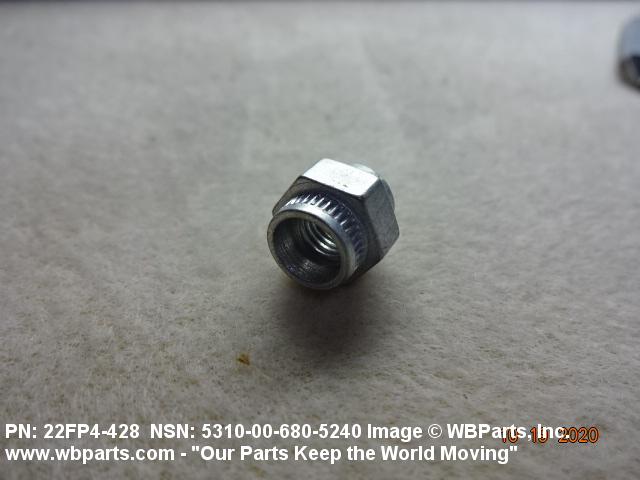

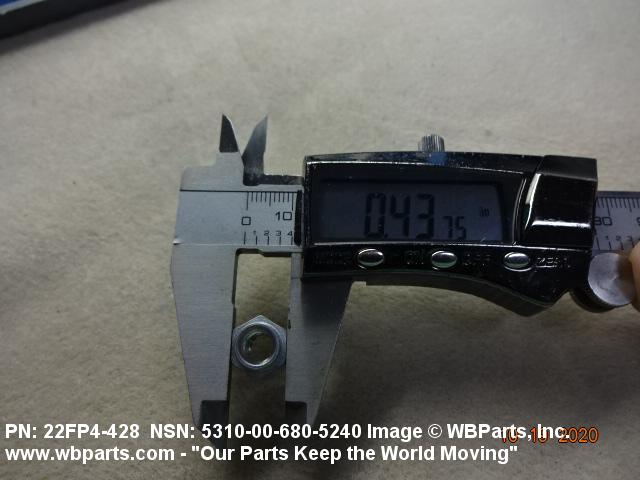

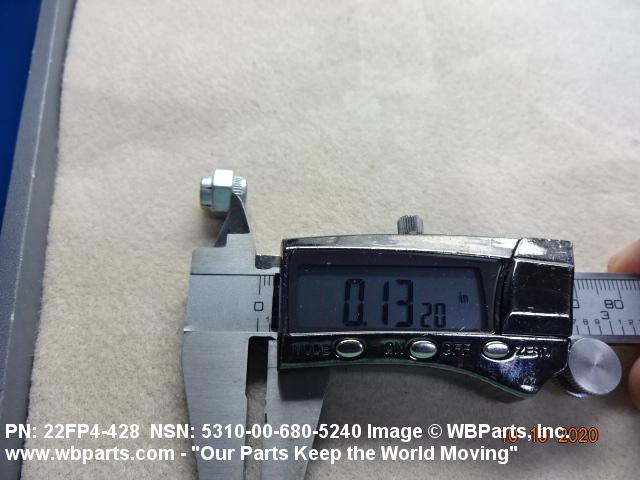

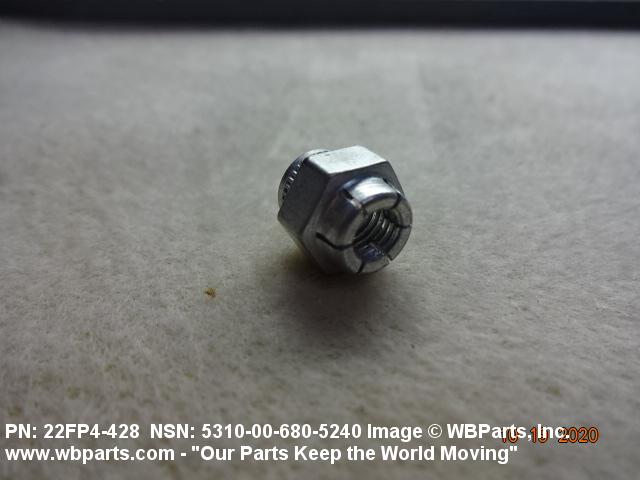

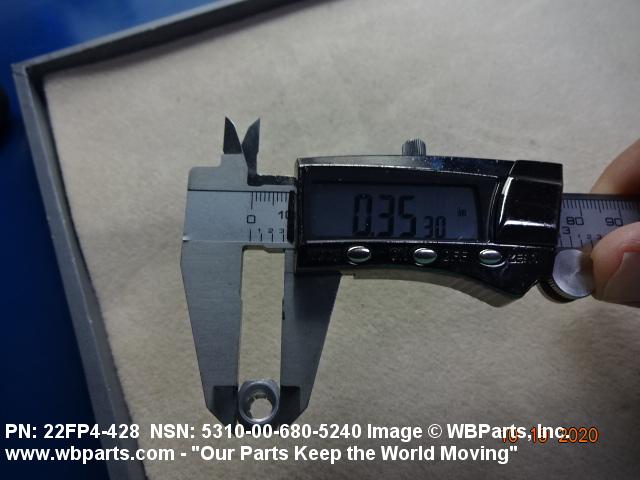

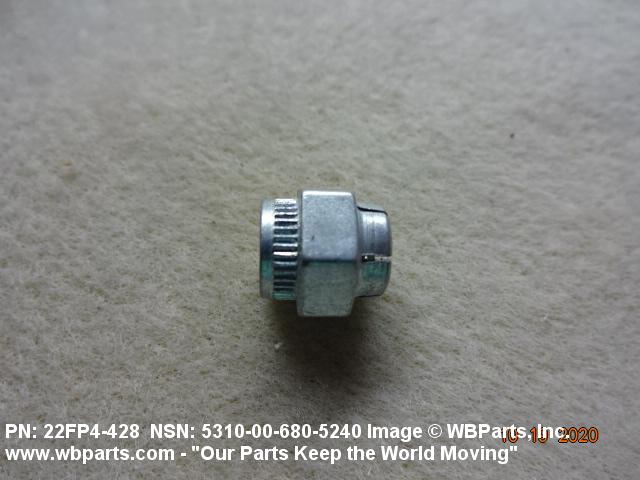

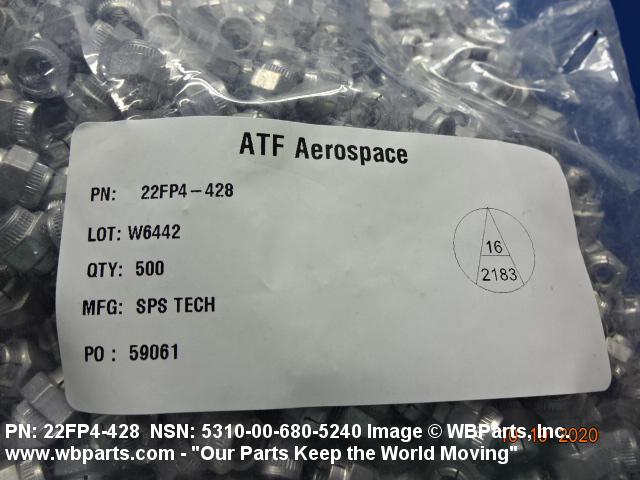

Drawings & Photos | NSN 5310-00-680-5240
Demand History | NSN 5310-00-680-5240
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 22FP4-428 | 2022-02-02 | 151 | DIBBS |
| 22FP4-428 | 2022-01-20 | 76 | DIBBS |
| 22FP4-428 | 2022-01-12 | 105 | DIBBS |
| 5310-00-680-5240 | 2020-10-01 | 500 | United States |
| 5310-00-680-5240 | 2020-03-03 | 200 | United States |
| 5310-00-680-5240 | 2020-03-03 | 500 | United States |
| 22FP4428 | 2019-04-09 | 500 | United States |
| 5310-00-680-5240 | 2018-06-28 | 188 | DIBBS |
| 22FP4428 | 2016-05-13 | 57 | United States |
| 5310-00-680-5240 | 2016-04-17 | 18 | DIBBS |
| 5310-00-680-5240 | 2016-04-05 | 18 | DIBBS |
| 5310-00-680-5240 | 2015-11-03 | 102 | DIBBS |
| 5310-00-680-5240 | 2014-08-08 | 9 | US |
| 5310-00-680-5240 | 2012-06-06 | 20 | DIBBS |
| 5310-00-680-5240 | 2012-05-04 | 20 | DIBBS |
| 5310-00-680-5240 | 2012-03-15 | 3 | DIBBS |
| 5310-00-680-5240 | 2012-03-11 | 3 | DIBBS |
| 22FP4428 | 2010-06-03 | 1000 | US |
Cross Reference | NSN 5310-00-680-5240
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 22FP4-428 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-680-5240
Related Products | NSN 5310-00-680-5240
Technical Data | NSN 5310-00-680-5240
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A51 CLINCH |
| PILOT DIAMETER | 0.357 INCHES MINIMUM AND 0.361 INCHES MAXIMUM |
| PILOT LENGTH | 0.130 INCHES MINIMUM AND 0.140 INCHES MAXIMUM |
| NUT HEIGHT | 0.431 INCHES MINIMUM AND 0.461 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.430 INCHES MINIMUM AND 0.439 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| NUT COUNTERBORE DEPTH | 0.120 INCHES MINIMUM AND 0.130 INCHES MAXIMUM NUT |
| COUNTERBORE DIAMETER | 0.280 INCHES MINIMUM AND 0.285 INCHES MAXIMUM NUT |
| LUBRICATION | SOLUBLE LUBRICANT |
| TEMP RATING | 450.0 DEG FAHRENHEIT NOMINAL |
Restrictions/Controls & Freight Information | NSN 5310-00-680-5240
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-680-5240
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
