Product Details | SLEEVE NUT

5310-00-672-4380 An internally threaded item with a cylindrical and/or square, hexagonal, octagonal, or dodecagonal outer periphery (parallel to the threaded axis) a portion(s) of which may or may not be enlarged, forming a flange(s) and/or shoulder(s). Items not having an enlarged outer portion may be threaded, a part of the full length, or tapped from both ends. Items having an enlarged outer portion (flange(s) or shoulder(s)) may be threaded the full length, threaded a part of the full length, or tapped from both ends. Items tapped from both ends shall have either right-hand threads on both ends or left-hand threads on both ends. For items conforming to any of the above and having a length overall exceeding two times the largest outside diameter or width across flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. For items with an outside contour that is the same the full length, having a continuous thread through its entire length, and the length does not exceed two times the diameter or width across the flats use NUT (1), PLAIN (as modified). Excludes NUT (1), PLAIN, CAP. See also TURNBUCKLE BODY.

Part Alternates: 115499, 5310-00-672-4380, 00-672-4380, 5310006724380, 006724380

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1963 00-672-4380

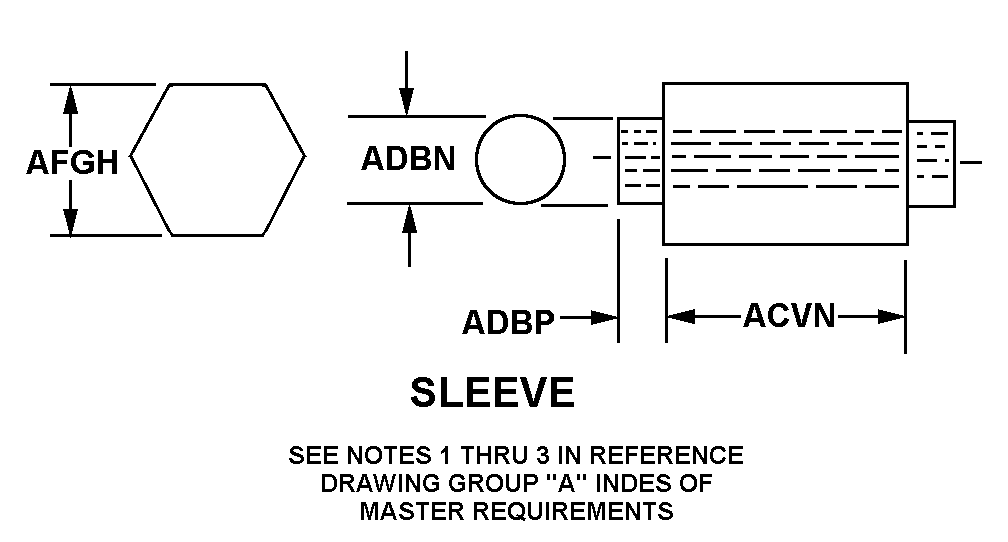

Drawings & Photos | NSN 5310-00-672-4380


Cross Reference | NSN 5310-00-672-4380

Part Number Cage Code Manufacturer
115499 70210 HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
115499 72599 ALLIEDSIGNAL INC DBA ALLIED-SIGNAL AEROSPACE CO

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-672-4380

Technical Data | NSN 5310-00-672-4380

Characteristic Specifications
THREAD SERIES UNS
NOMINAL THREAD SIZE 0.500 INCHES
THREAD QUANTITY PER INCH 18
THREAD CLASS 2B
THREAD DIRECTION RIGHT-HAND
MATERIAL STEEL CORROSION RESISTING OVERALL
HARDNESS RATING NOT RATED
NUT STYLE A34A SLEEVE
NUT LENGTH 0.195 INCHES NOMINAL
BOSS DIAMETER 0.620 INCHES NOMINAL
BOSS THICKNESS 0.156 INCHES NOMINAL
NUT WIDTH ACROSS FLATS 0.747 INCHES NOMINAL
CROSS-SECTIONAL SHAPE ROUND BOSS
TEMP RATING NOT RATED
SPECIAL FEATURES SECOND BOSS END 0.726 IN. DIA BY 0.078 IN. THK
MANUFACTURERS CODE 70210
DESIGN CONTROL REFERENCE 115499

Restrictions/Controls & Freight Information | NSN 5310-00-672-4380

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 093486 BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 671 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable
