NSN 5310-00-655-9860 11.04.03.02 , 11040302, 8701325
Product Details | SLEEVE NUT
5310-00-655-9860 An internally threaded item with a cylindrical and/or square, hexagonal, octagonal, or dodecagonal outer periphery (parallel to the threaded axis) a portion(s) of which may or may not be enlarged, forming a flange(s) and/or shoulder(s). Items not having an enlarged outer portion may be threaded, a part of the full length, or tapped from both ends. Items having an enlarged outer portion (flange(s) or shoulder(s)) may be threaded the full length, threaded a part of the full length, or tapped from both ends. Items tapped from both ends shall have either right-hand threads on both ends or left-hand threads on both ends. For items conforming to any of the above and having a length overall exceeding two times the largest outside diameter or width across flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. For items with an outside contour that is the same the full length, having a continuous thread through its entire length, and the length does not exceed two times the diameter or width across the flats use NUT (1), PLAIN (as modified). Excludes NUT (1), PLAIN, CAP. See also TURNBUCKLE BODY.
Part Alternates: 11.04.03.02 , 11040302, 8701325, 8756580 , 5310-00-655-9860, 00-655-9860, 5310006559860, 5310006559863 , 006559860
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-655-9860 | 29735 ( NUT, SLEEVE ) |

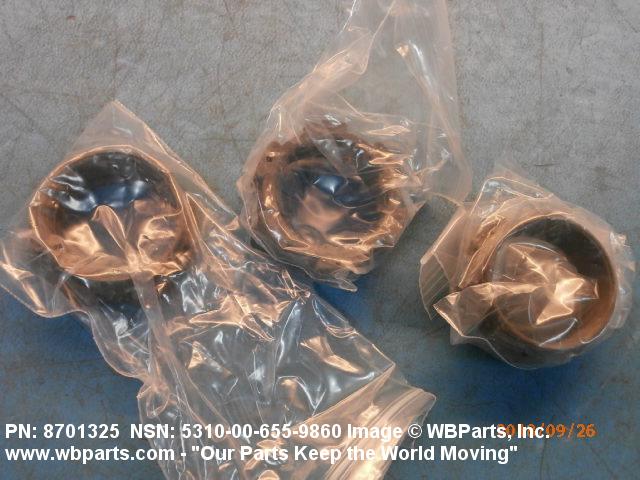

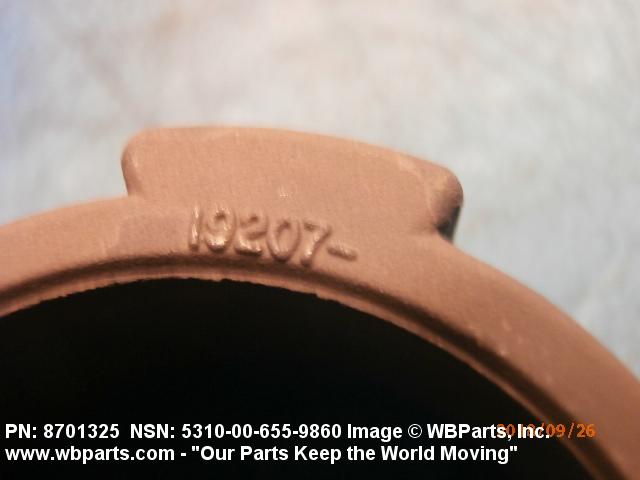

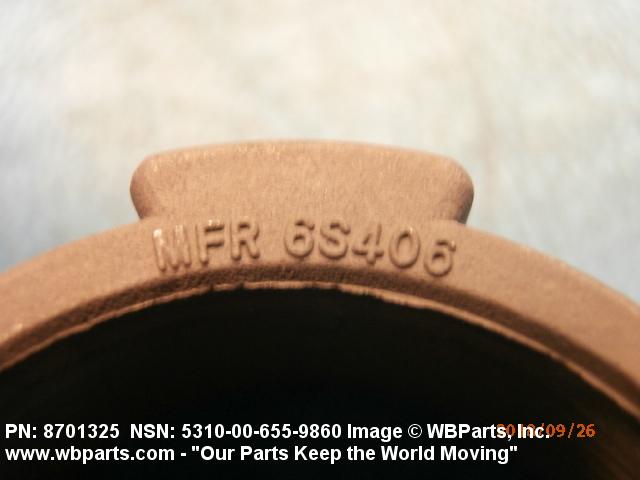

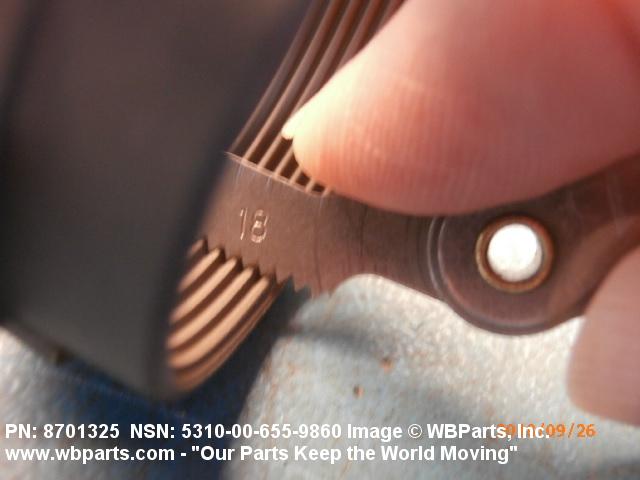

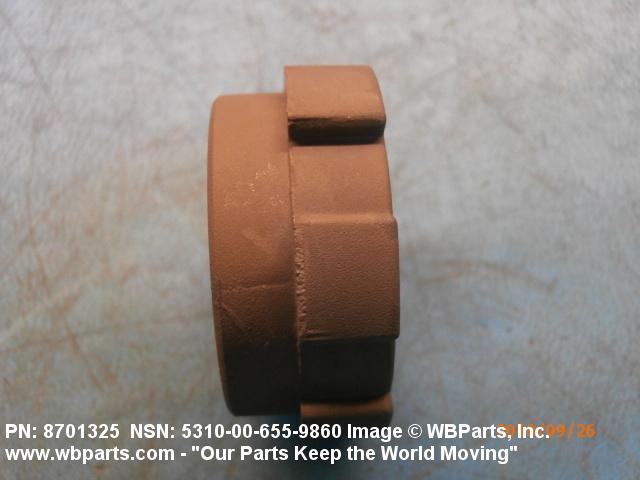

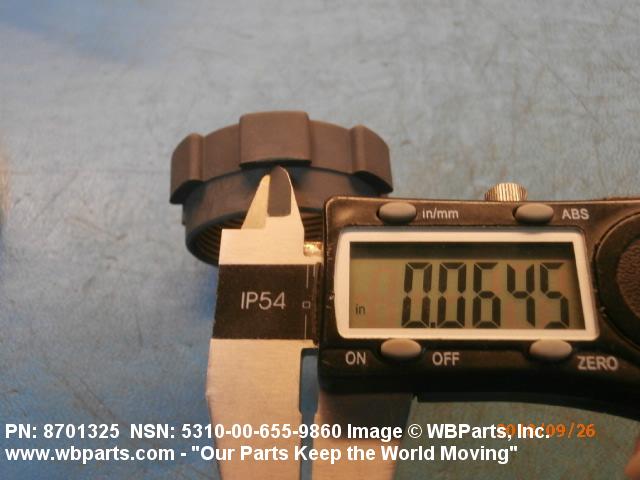

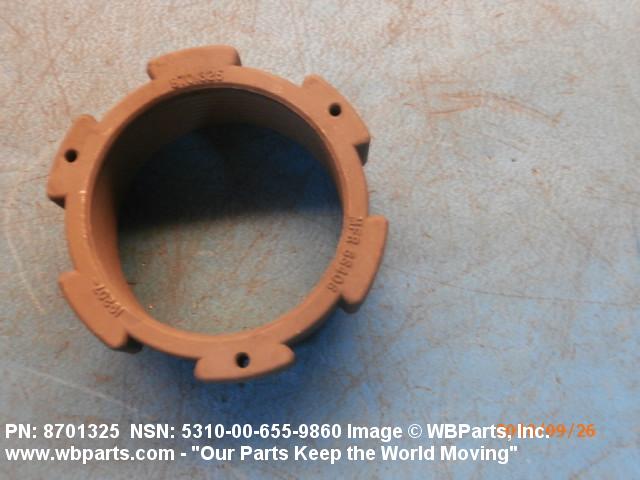

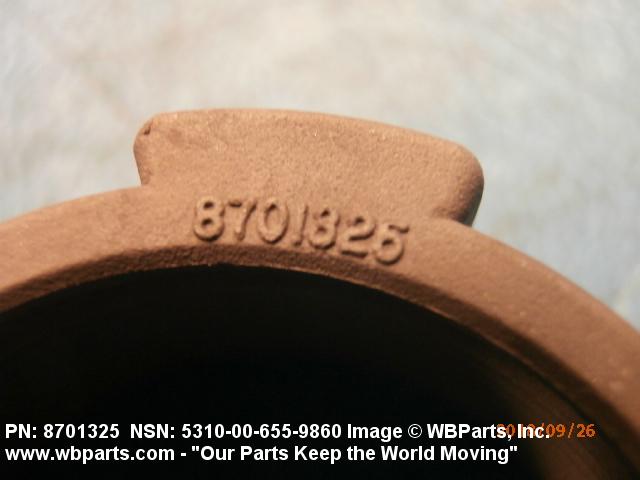

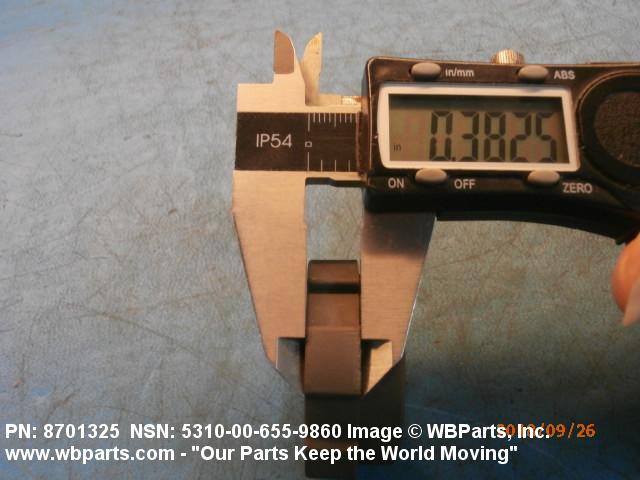

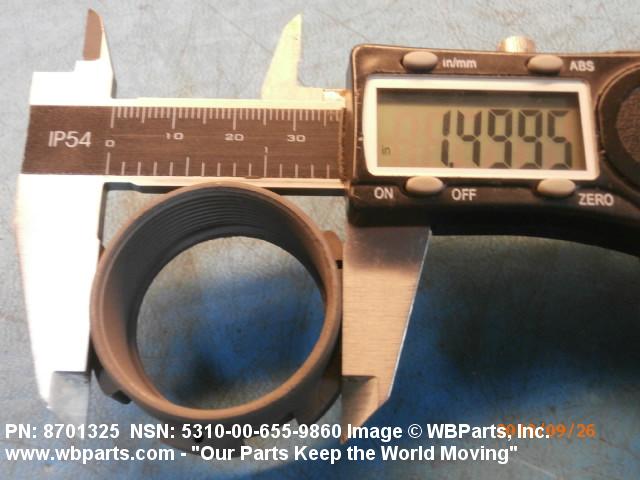

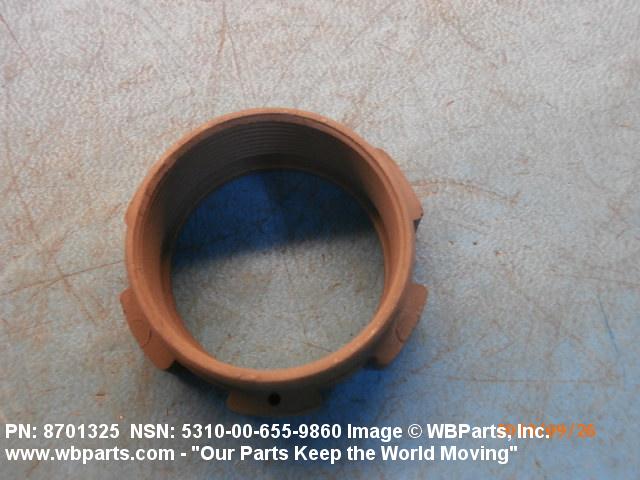

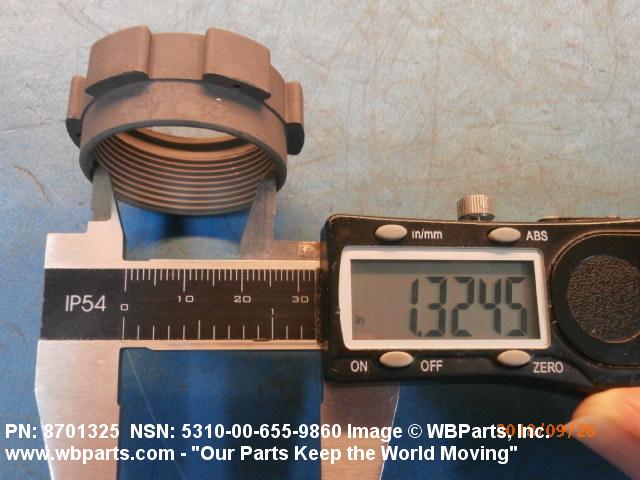

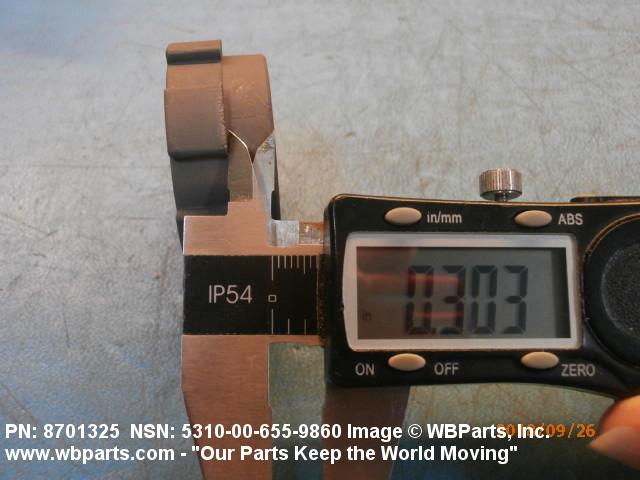

Drawings & Photos | NSN 5310-00-655-9860
Demand History | NSN 5310-00-655-9860
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-655-9863 | 2024-07-191 | 80976 | US |
| 5310-00-655-9863 | 2024-05-136 | 10988 | United Kingdom |
| 5310-00-655-9863 | 2024-02-60 | 200 | United Kingdom |
| 8701325 | 2023-10-299 | 300 | US |
| 5310-00-655-9863 | 2022-10-278 | 2500 | CL |
| 5310-00-655-9863 | 2022-09-272 | 25475 | CL |
| 5310-00-655-9863 | 2022-09-266 | 2100 | CL |
| 5310-00-655-9860 | 2022-03-75 | 647 | DIBBS |
| 5310-00-655-9860 | 2021-07-196 | 200 | US |
| 5310-00-655-9860 | 2021-05-129 | 154 | DIBBS |
| 5310-00-655-9863 | 2020-06-168 | 1056 | DE |
| 5310-00-655-9863 | 2020-01-24 | 30000 | US |
| 5310-00-655-9863 | 2020-01-07 | 30000 | US |
| 5310-00-655-9860 | 2019-12-364 | 1 | US |
| 5310-00-655-9860 | 2019-12-345 | 272 | DIBBS |
| 5310-00-655-9860 | 2018-08-239 | 3 | Thailand |
| 8701325 | 2018-03-87 | 35 | US |
| 5310-00-655-9863 | 2018-02-53 | 35600 | US |
| 8756580 | 2017-07-192 | 13932 | PK |
| 5310-00-655-9860 | 2017-05-128 | 5 | MANUAL |
| 8701325 | 2017-05-128 | 5 | TW |
| 8701325 | 2017-05-128 | 5 | TW |
| 5310-00-655-9863 | 2017-01-12 | 950 | PK |
| 5310-00-655-9863 | 2016-12-337 | 40 | United States |
| 5310-00-655-9863 | 2016-11-312 | 40 | United States |
| 5310-00-655-9863 | 2016-10-277 | 1500 | US |
| 5310-00-655-9860 | 2016-01-29 | 19 | Taiwan |
| 5310-00-655-9863 | 2014-06-177 | 60000 | US |
| 8701325 | 2014-01-02 | 29 | United States |
| 5310-00-655-9863 | 2013-12-346 | 4000 | PK |
| 5310-00-655-9863 | 2013-04-92 | 4195 | KR |
| 5310-00-655-9860 | 2012-05-135 | 10 | us |
| 5310-00-655-9863 | 2012-03-76 | 60000 | US |
| 8756580 | 2011-06-155 | 200 | PK |
| 8756580 | 2011-06-155 | 200 | PK |
| 5310-00-655-9863 | 2011-03-81 | 140000 | us |
| 5310-00-655-9863 | 2011-01-26 | 1 | US |
| 5310-00-655-9863 | 2010-07-196 | 500 | Germany |
| 8701325 | 2009-12-344 | 423 | Greece |
| 8756580 | 2007-10-304 | 120000 | Turkey |
| 8756580 | 2007-10-283 | 175000 | US |
