NSN 5310-00-638-6829 P15C80307, P15C8030-7, 00-638-6829
Product Details | ROUND PLAIN NUT
5310-00-638-6829 A nut, circular in shape, which may have wrenching facilities such as flats, holes, protrusions, slots or splines in or on the periphery or in the face opposite the bearing surface. For items having a thickness (or height) exceeding two times the outside diameter, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. See also NUT (1), PLAIN, KNURLED. (When height or thickness and/or outside diameter is designated as a tolerance dimension, the maximum dimension will be used to determine compliance.
Part Alternates: P15C80307, P15C8030-7, 5310-00-638-6829, 00-638-6829, 5310006386829, 006386829
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-638-6829 | 15887 ( NUT, PLAIN, ROUND ) |

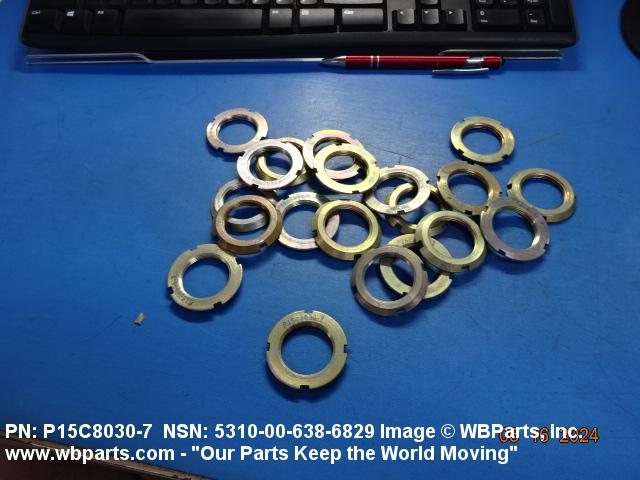

Drawings & Photos | NSN 5310-00-638-6829
Demand History | NSN 5310-00-638-6829
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-638-6829 | 2024-04-115 | 20 | United States |
| 5310-00-638-6829 | 2010-06-165 | 10 | DIBBS |
| 5310-00-638-6829 | 2008-07-191 | 10 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-638-6829
Technical Data | NSN 5310-00-638-6829
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNS |

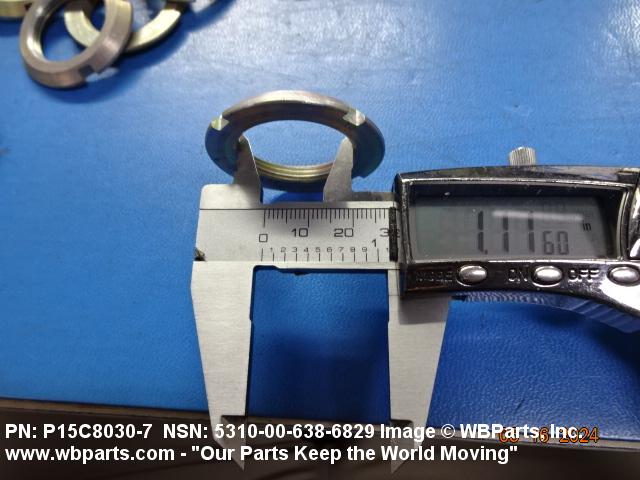

| NOMINAL THREAD SIZE | 1.173 INCHES |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 1020 OR STEEL COMP 1035 OR STEEL COMP 1212 OR STEEL COMP 1213 OR STEEL COMP 1115 OR STEEL COMP 1117 OR STEEL COMP 1118 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-633 FED SPEC ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-B-416,TY 1,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A71 ROUND |
| DRIVE POINT DEPTH | 0.084 INCHES MINIMUM AND 0.104 INCHES MAXIMUM |

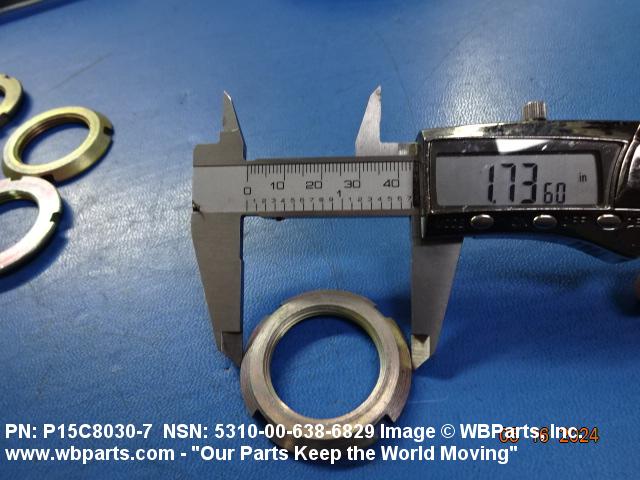

| NUT DIAMETER | 1.750 INCHES NOMINAL |

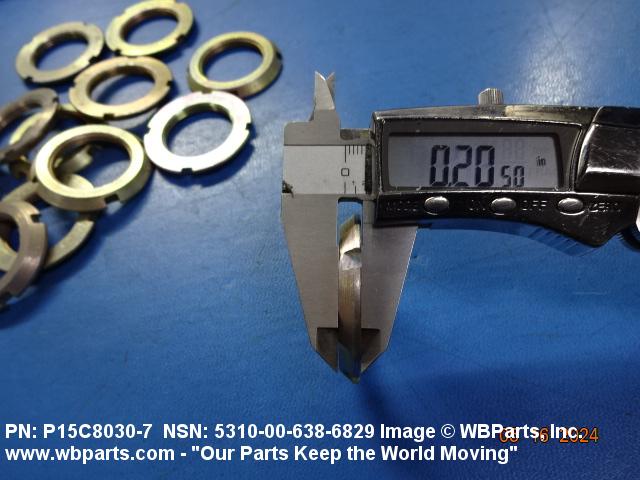

| NUT THICKNESS | 0.203 INCHES NOMINAL |

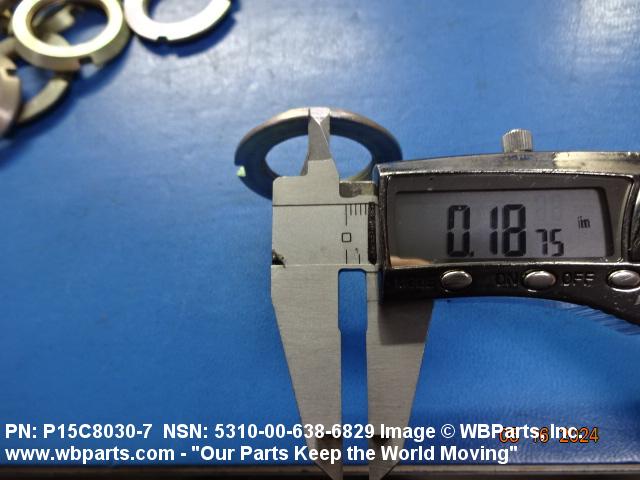

| DRIVE POINT WIDTH | 0.188 INCHES NOMINAL |
| DRIVE POINT QUANTITY | 4 |
| TEMP RATING | NOT RATED |
| MANUFACTURERS CODE | 99167 |
| DESIGN CONTROL REFERENCE | P15C8030-7 |
Restrictions/Controls & Freight Information | NSN 5310-00-638-6829
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-638-6829
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
