NSN 5310-00-638-2841 9M731064, 9M73-1-064, 00-638-2841
Product Details | PLATE NUT SPACER
5310-00-638-2841 An item having two flat bearing surfaces, conforming to the same shape as the base of a NUT (1), PLAIN, PLATE and NUT (1), SELF-LOCKING, PLATE. It is used to provide better alignment in assembly.
Part Alternates: 9M731064, 9M73-1-064, 5310-00-638-2841, 00-638-2841, 5310006382841, 006382841
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-638-2841 | 17667 ( NUT SPACER, PLATE ) |
Drawings & Photos | NSN 5310-00-638-2841
Cross Reference | NSN 5310-00-638-2841
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9M73-1-064 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-638-2841
Related Products | NSN 5310-00-638-2841
Technical Data | NSN 5310-00-638-2841
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/5,T3 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OR OXIDE FILM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC 1ST TREATMENT RESPONSE OR MIL-C-5514 MIL SPEC 2ND TREATMENT RESPONSE OVERALL |

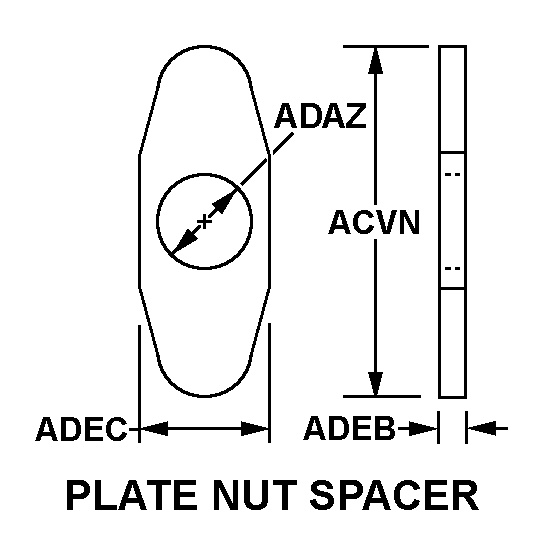

| NUT STYLE | A146 PLATE NUT SPACER |
| NUT LENGTH | 1.277 INCHES MINIMUM AND 1.283 INCHES MAXIMUM |
| THRU-HOLE DIAMETER | 0.615 INCHES MINIMUM AND 0.635 INCHES MAXIMUM |
| PLATE THICKNESS | 0.064 INCHES NOMINAL |
| PLATE WIDTH | 0.807 INCHES MINIMUM AND 0.813 INCHES MAXIMUM |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F38 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.133 INCHES MINIMUM AND 0.143 INCHES MAXIMUM |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.497 INCHES MINIMUM AND 0.503 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.997 INCHES MINIMUM AND 1.003 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5310-00-638-2841
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013540 | ALUM NUTS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-638-2841
