NSN 5310-00-616-6870 NAS689P16, 00-616-6870, 006166870
Product Details | GANG CHANNEL SELF-LOCKING NUT ASSEMBLY

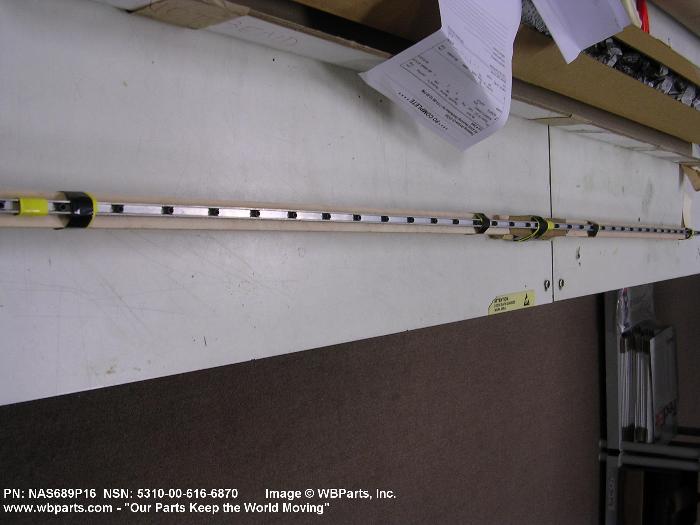

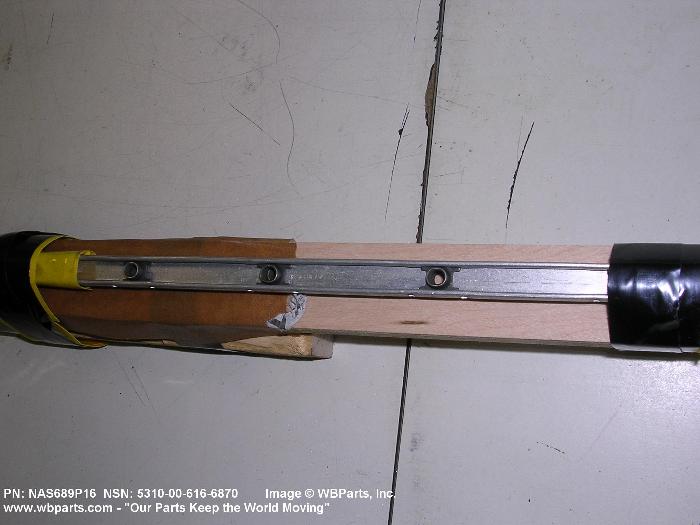

5310-00-616-6870 An item composed of a specially designed channel and a series of nuts having integral self-locking features assembled in predetermined spacing.
Part Alternates: NAS689P16, 5310-00-616-6870, 00-616-6870, 5310006166870, 006166870
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-616-6870 | 01864 ( NUT ASSEMBLY, SELF-LOCKING, GANG CHANNEL ) |
Drawings & Photos | NSN 5310-00-616-6870
Demand History | NSN 5310-00-616-6870
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-616-6870 | 2020-07-195 | 4 | US |
| 5310-00-616-6870 | 2014-03-76 | 28 | United States |
| NAS689P16 | 2008-07-184 | 2 | United States |
Cross Reference | NSN 5310-00-616-6870
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS689P16 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-616-6870
Technical Data | NSN 5310-00-616-6870
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | ALUMINUM ALLOY CHANNEL STEEL NUT |
| SURFACE TREATMENT | ANODIZE CHANNEL CADMIUM NUT |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A20 GANG CHANNEL, SELF LOCKING |
| NUT LENGTH | ANY ACCEPTABLE |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| CHANNEL STYLE | C1 STRAIGHT TYPE |
| OVERALL LENGTH | 72.000 INCHES NOMINAL |
| OVERALL WIDTH | 0.416 INCHES NOMINAL |
| ASSEMBLY OVERALL HEIGHT | 0.250 INCHES NOMINAL |
| CHANNEL HEIGHT | ANY ACCEPTABLE |
| NUT SPACING | 2.000 INCHES NOMINAL |
| NUT QUANTITY | 32 |
| NUT COUNTERBORE DEPTH | 0.027 INCHES NOMINAL NUT |
| COUNTERBORE DIAMETER | ANY ACCEPTABLE NUT |
| TEMP RATING | NOT RATED |
| FEATURES PROVIDED | FLOATING NUT |
| SPECIFICATION/STANDARD DATA | 80205-NAS688 THRU 692 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5310-00-616-6870
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
