NSN 5310-00-613-7433 F22NKCFM126, F22NKCFM1-26, 333-0981-00
Product Details | CLINCH SELF-LOCKING NUT
5310-00-613-7433 A nut having a sleeve portion on its under side, which can be crimped or clinched to hold the item in place when inserted in a hole. An integral feature is incorporated for locking.
Part Alternates: F22NKCFM126, F22NKCFM1-26, 333-0981-00, 5310-00-613-7433, 00-613-7433, 5310006137433, 333098100, 006137433
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 OCT 1969 | 00-613-7433 | 15892 ( NUT, SELF-LOCKING, CLINCH ) |

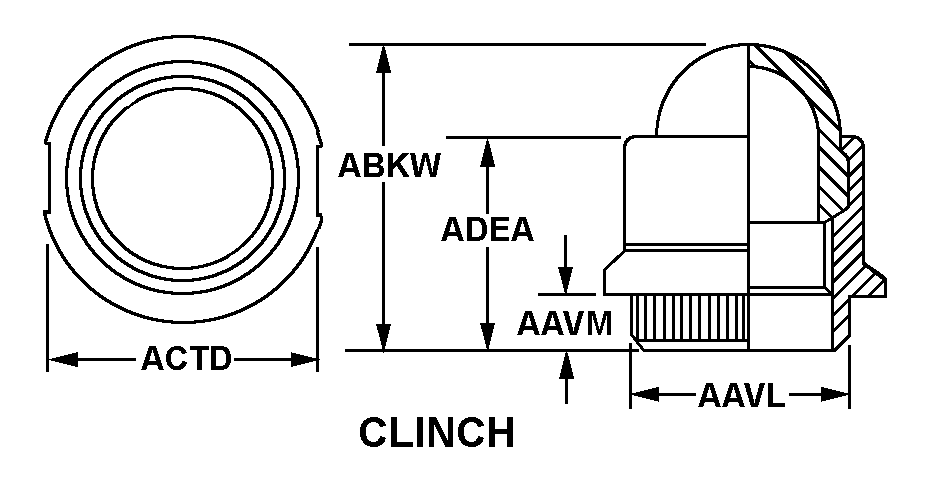

Drawings & Photos | NSN 5310-00-613-7433
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-613-7433
Related Products | NSN 5310-00-613-7433
Technical Data | NSN 5310-00-613-7433
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.086 INCHES |
| THREAD QUANTITY PER INCH | 56 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | PLASTIC POLYAMIDE CAP PLASTIC POLYAMIDE LOCKING INSERT STEEL NUT |
| SURFACE TREATMENT | CADMIUM AND CHROMATE NUT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE NUT |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A56 CLINCH |
| PILOT DIAMETER | 0.129 INCHES NOMINAL |
| PILOT LENGTH | 0.040 INCHES NOMINAL |
| OVERALL HEIGHT | 0.283 INCHES NOMINAL |
| NUT DIAMETER | 0.172 INCHES NOMINAL |
| NUT HEIGHT | 0.075 INCHES NOMINAL |
| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT |
| NUT COUNTERBORE DEPTH | 0.037 INCHES MINIMUM AND 0.043 INCHES MAXIMUM NUT |
| COUNTERBORE DIAMETER | 0.096 INCHES MINIMUM AND 0.101 INCHES MAXIMUM NUT |
| TEMP RATING | 350.0 DEG FAHRENHEIT NOMINAL |
| MANUFACTURERS CODE | 72962 |
| DESIGN CONTROL REFERENCE | F22NKCFM1-26 |
