NSN 5310-00-595-7079 MS200002C7, MS20002C7, SCB52208
Product Details | RECESSED WASHER
5310-00-595-7079 A washer of any peripheral shape having a centrally located hole. Both bearing surfaces are parallel and flat, but one or both of the bearing surfaces must be broken by a counterbore, countersink, or similarly shaped recess. The thickness must not exceed 25 per cent of the outside diameter or the largest outside dimension. The maximum limit of the tolerance or range applied to the thickness and/or largest outside dimension must be used to determine compliance. Excludes WASHER, CONCAVE, RETAINER, PACKING, and thrust type washers. See also SPACER, SLEEVE; and SPACER, STEPPED.
Part Alternates: MS200002C7, MS20002C7, SCB52208, SCB52209 , Z00.N5744532472, Z00N5744532472, 606128, 6061-28 , 852508, 938.75.11.104, 9387511104, 158562, 21192 FIND 9, 21192FIND9, 21194 FIND 30, 21194FIND30, 3188571PC21, 52125 FN 64, 52125FN64, 5310-00-595-7079, 00-595-7079, 5310005957079, 005957079
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-595-7079 | 15933 ( WASHER, RECESSED ) |

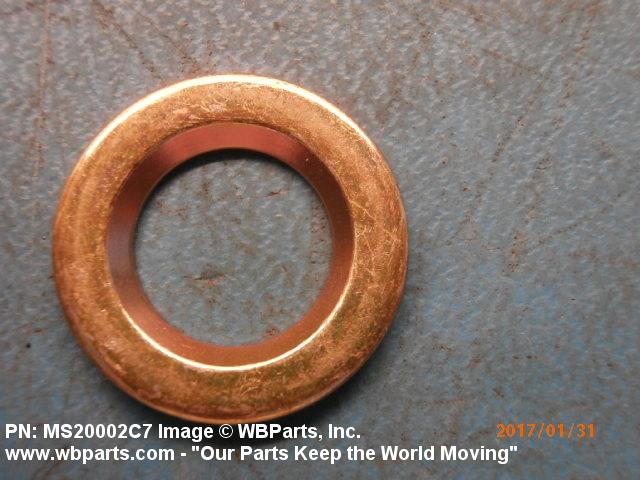

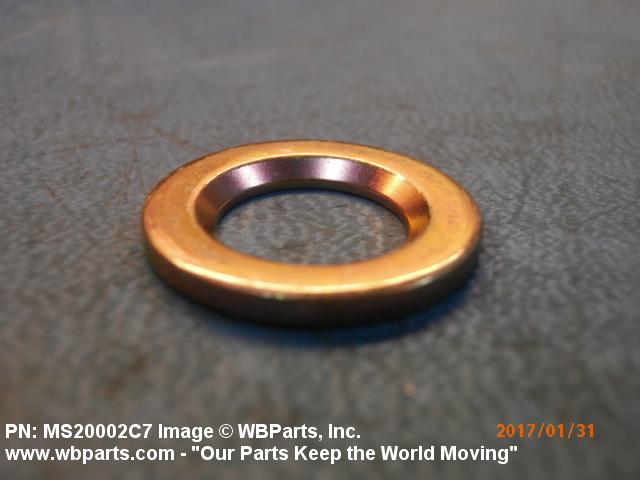

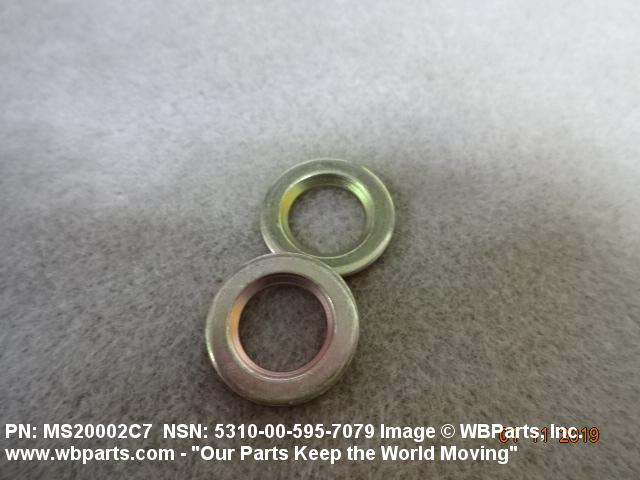

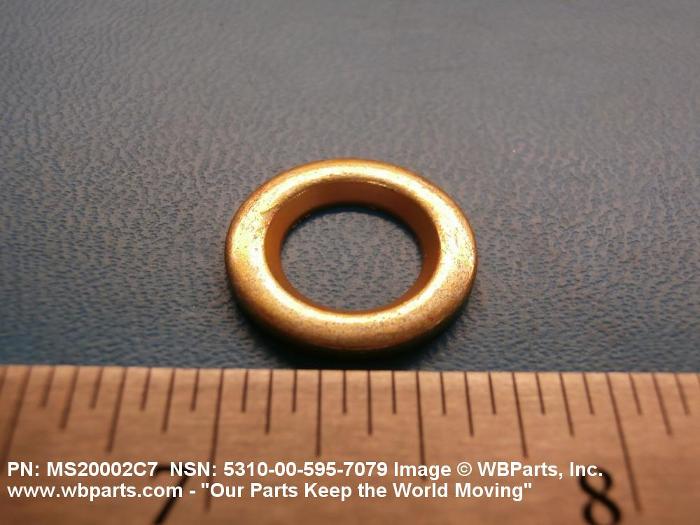

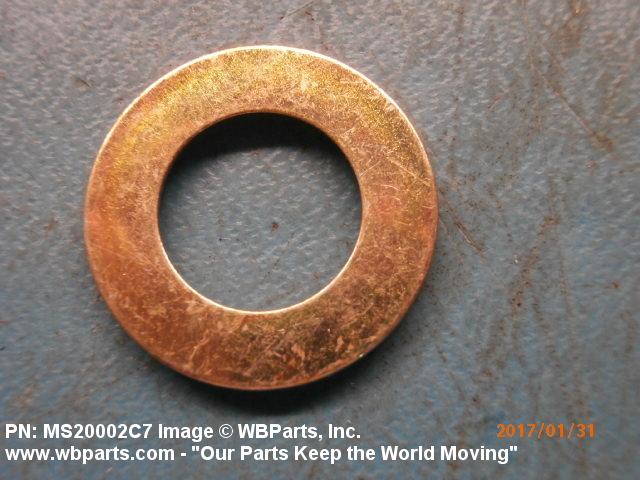

Drawings & Photos | NSN 5310-00-595-7079
Demand History | NSN 5310-00-595-7079
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS20002C7 | 2024-10-298 | 9 | ZA |
| MS20002C7 | 2023-09-249 | 1 | NG |
| 5310-00-595-7079 | 2021-03-74 | 10 | PH |
| 5310-00-595-7079 | 2020-12-361 | 3360 | TW |
| MS20002C7 | 2019-06-178 | 305 | United States |
| MS20002C7 | 2019-06-177 | 34 | US |
| 5310-00-595-7079 | 2019-02-51 | 1 | DIBBS-RFPs |
| MS20002C7 | 2017-07-198 | 200 | US |
| MS20002C7 | 2017-07-198 | 200 | US |
| MS20002C7 | 2017-01-13 | 100 | United States |
| MS20002C7 | 2017-01-10 | 6 | United States |
| MS200002C7 | 2016-03-75 | 100 | US |
| MS20002C7 | 2014-06-153 | 2 | Singapore |
| 5310-00-595-7079 | 2013-08-217 | 2 | DIBBS |
| MS20002C7 | 2013-05-133 | 1 | India |
| 5310-00-595-7079 | 2013-04-115 | 1442 | DIBBS |
| MS20002C7 | 2012-11-310 | 170 | |
| 5310-00-595-7079 | 2012-09-256 | 12 | United States |
| MS200002C7 | 2012-06-178 | 100 | PK |
| MS20002C7 | 2012-04-121 | 1 | IN |
| MS20002C7 | 2012-04-115 | 1 | IN |
| MS20002C7 | 2011-09-252 | 1 | India |
| MS20002C7 | 2011-08-229 | 8 | US |
| MS20002C7 | 2011-04-92 | 10 | Sri Lanka |
| 5310-00-595-7079 | 2010-06-181 | 35 | DIBBS |
| 5310-00-595-7079 | 2010-02-49 | 4 | Canada |
| 5310-00-595-7079 | 2009-02-49 | 500 | Canada |
| 5310-00-595-7079 | 2008-09-256 | 2 | US |
| 5310-00-595-7079 | 2008-06-182 | 286 | DIBBS |
| 5310-00-595-7079 | 2008-02-45 | 48 | United Kingdom |
| 5310-00-595-7079 | 2007-08-243 | 20 | United Kingdom |
| 5310-00-595-7079 | 2007-03-86 | 28 | MP |
Cross Reference | NSN 5310-00-595-7079
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 158562 | 13002 | GOODRICH CORPORATION DBA GOODRICH LANDING GEAR DIVISION |
| 158562 | 17576 | GOODRICH CORP DBA GOODRICH CORP |
| 158562 | 55284 | HONEYWELL INTERNATIONAL INC DBA HONEYWELL |
| 21192 FIND 9 | 78062 | DOVER ENGINEERED SYSTEMS, INC. DBA SARGENT CONTROLS & AEROSPACE |
| 21194 FIND 30 | 78062 | DOVER ENGINEERED SYSTEMS, INC. DBA SARGENT CONTROLS & AEROSPACE |
| 3188571PC21 | 59364 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 52125 FN 64 | 78062 | DOVER ENGINEERED SYSTEMS, INC. DBA SARGENT CONTROLS & AEROSPACE |
| 852508 | 09786 | ORDNANCE SUPPLY OFFICE |
| 938.75.11.104 | S4080 | PILATUS AIRCRAFT LTD |
| MS200002C7 | 0P012 | H. V. MODY, INC. DBA MODY AEROSPACE |
| MS20002C7 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS20002C7 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| Z00.N5744532472 | F0086 | SOCATA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-595-7079
Technical Data | NSN 5310-00-595-7079
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1330 OR STEEL COMP 4130 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 15 RECESS |

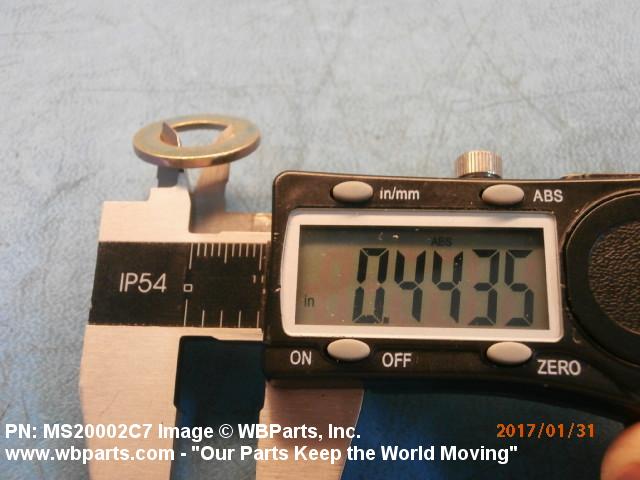

| HOLE DIAMETER | 0.441 INCHES MINIMUM AND 0.451 INCHES MAXIMUM |

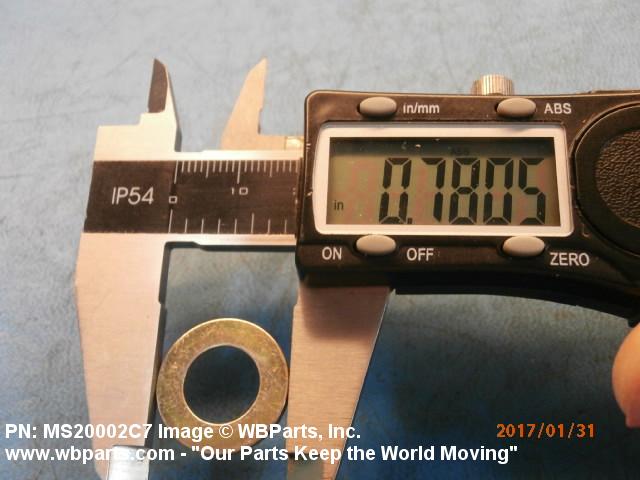

| OUTSIDE DIAMETER | 0.771 INCHES MINIMUM AND 0.791 INCHES MAXIMUM |
| RECESS DIAMETER | 0.543 INCHES MINIMUM AND 0.557 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.068 INCHES MINIMUM AND 0.088 INCHES MAXIMUM |
| RECESS ANGLE | 89.0 DEGREES MINIMUM AND 91.0 DEGREES MAXIMUM |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20002C7 |
Restrictions/Controls & Freight Information | NSN 5310-00-595-7079
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-595-7079
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
