NSN 5310-00-477-9632 13211E48541, 13211E4854-1, 00-477-9632
Product Details | CLINCH SELF-LOCKING NUT
5310-00-477-9632 A nut having a sleeve portion on its under side, which can be crimped or clinched to hold the item in place when inserted in a hole. An integral feature is incorporated for locking.
Part Alternates: 13211E48541, 13211E4854-1, 5310-00-477-9632, 00-477-9632, 5310004779632, 004779632
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 MAY 1970 | 00-477-9632 | 15892 ( NUT, SELF-LOCKING, CLINCH ) |

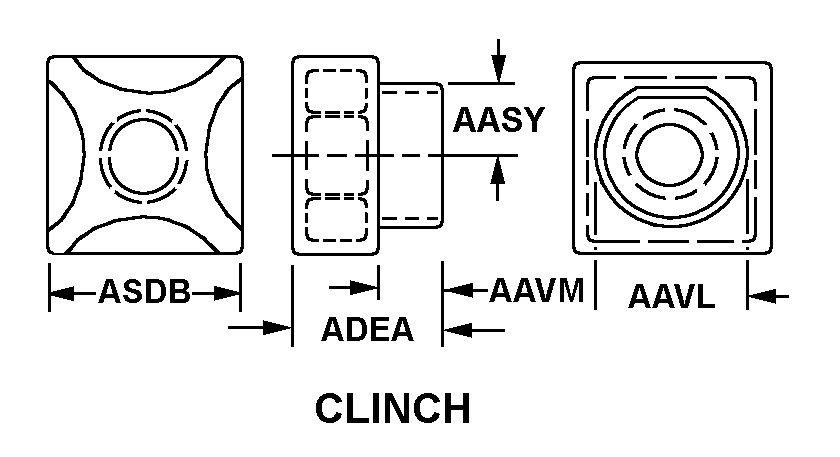

Drawings & Photos | NSN 5310-00-477-9632
Cross Reference | NSN 5310-00-477-9632
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13211E4854-1 | 97403 | CECOM LR CENTER |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-477-9632
Technical Data | NSN 5310-00-477-9632
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.112 INCHES |
| THREAD QUANTITY PER INCH | 40 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OR STEEL CORROSION RESISTING OR ALUMINUM ALLOY OR COPPER ALLOY OVERALL |
| SURFACE TREATMENT | ANODIZE OR CADMIUM OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A46 CLINCH |
| DISTANCE FROM CENTERLINE TO FLAT | ANY ACCEPTABLE |
| PILOT DIAMETER | ANY ACCEPTABLE |
| PILOT LENGTH | 0.125 INCHES MAXIMUM |
| NUT HEIGHT | ANY ACCEPTABLE |
| WIDTH ACROSS FLATS | 0.275 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| TEMP RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5310-00-477-9632
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | AJ | U.S. Army Soldier's Biological and Chemical Command Natick, MA 01760 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
