NSN 5310-00-476-7367 NAS15874C, NAS1587-4C, 10121404

Product Details | RECESSED WASHER

5310-00-476-7367 A washer of any peripheral shape having a centrally located hole. Both bearing surfaces are parallel and flat, but one or both of the bearing surfaces must be broken by a counterbore, countersink, or similarly shaped recess. The thickness must not exceed 25 per cent of the outside diameter or the largest outside dimension. The maximum limit of the tolerance or range applied to the thickness and/or largest outside dimension must be used to determine compliance. Excludes WASHER, CONCAVE, RETAINER, PACKING, and thrust type washers. See also SPACER, SLEEVE; and SPACER, STEPPED.

Part Alternates: NAS15874C, NAS1587-4C, 10121404 , 5310-00-476-7367, 00-476-7367, 5310004767367, 004767367

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	16 JUN 1971	00-476-7367	15933 ( WASHER, RECESSED )

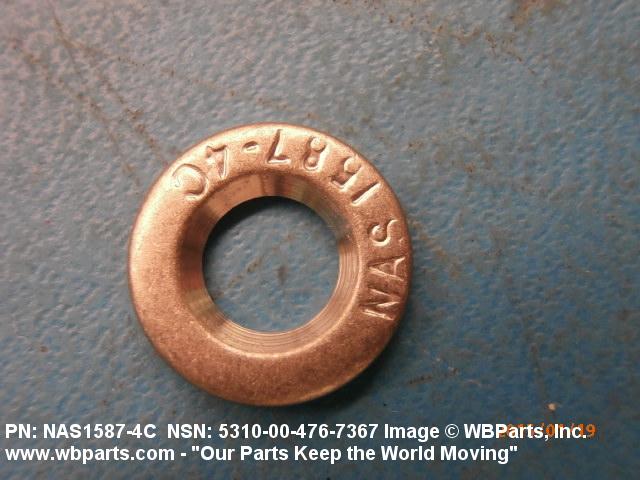

Drawings & Photos | NSN 5310-00-476-7367

Part Number	Request Date	QTY	Origin
NAS15874C	2024-02-45	49	US
NAS15874C	2020-05-139	354	China
5310-00-476-7367	2019-07-186	60	United States
5310-00-476-7367	2018-06-173	1	DIBBS-RFPs
NAS15874C	2017-07-186	50	Italy
NAS15874C	2016-06-175	8	United States
NAS15874C	2015-11-308	34	United States
NAS15874C	2015-11-308	102	United States
NAS15874C	2015-11-308	238	United States
NAS15874C	2015-11-308	510	United States
NAS15874C	2015-11-308	986	United States
NAS15874C	2015-11-308	1938	United States
NAS15874C	2015-01-12	10	United States
NAS1587-4C	2014-08-232	14	Australia
NAS1587-4C	2014-08-232	14	United States
NAS1587-4C	2014-08-232	14	United States
NAS1587-4C	2014-08-227	14	Australia
NAS15874C	2013-11-317	50	US
NAS1587-4C	2013-05-134	50	CZ
5310-00-476-7367	2013-05-121	21948	DIBBS
5310-00-476-7367	2013-04-93	3855	DIBBS
NAS15874C	2012-05-143	35	United States
5310-00-476-7367	2012-04-102	9	US
NAS15874C	2012-03-72	30	US
NAS15874C	2011-11-321	500	India
NAS15874C	2011-11-306	200	United States
NAS15874C	2011-10-304	200	US
NAS15874C	2011-07-199	8	US
NAS15874C	2011-06-179	57	US
5310-00-476-7367	2011-03-83	118	US
NAS15874C	2011-01-28	960	US
NAS15874C	2010-04-91	160	DE
NAS15874C	2010-02-56	4	US
NAS15874C	2010-02-54	4	United States
NAS15874C	2010-02-53	4	United States
NAS15874C	2009-11-308	6	United States
NAS15874C	2009-10-274	5	United States
NAS15874C	2009-07-182	100	US
NAS15874C	2009-05-124	2	US
5310-00-476-7367	2009-01-12	250	US
NAS15874C	2008-09-245	300	United Kingdom
NAS15874C	2008-08-240	30	United States

Cross Reference | NSN 5310-00-476-7367

Part Number	Cage Code	Manufacturer
NAS1587-4C	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-476-7367

Compare

Related Products | NSN 5310-00-476-7367

5310-00-476-7386, 5310-00-476-7395, 5310-00-476-7398, 5310-00-476-7417, 5310-00-476-7418

Technical Data | NSN 5310-00-476-7367

Characteristic	Specifications
MATERIAL	STEEL COMP 321 OR STEEL COMP 347 OR STEEL COMP 348 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-S-763 FED SPEC 1ST MATERIAL RESPONSE OR QQ-S-763 FED SPEC 2ND MATERIAL RESPONSE OR MIL-S-6721 MIL SPEC ALL MATERIAL RESPONSES OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
STYLE DESIGNATOR	15 RECESS

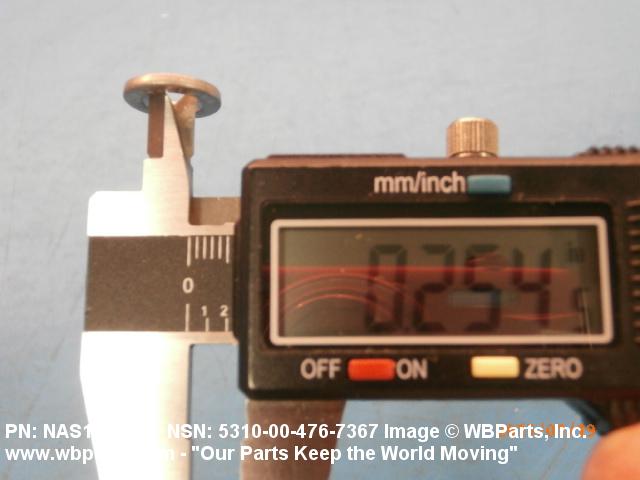

HOLE DIAMETER	0.252 INCHES MINIMUM AND 0.260 INCHES MAXIMUM
OUTSIDE DIAMETER	0.531 INCHES NOMINAL
RECESS DIAMETER	0.334 INCHES MINIMUM AND 0.344 INCHES MAXIMUM
MATERIAL THICKNESS	0.078 INCHES NOMINAL
RECESS ANGLE	90.0 DEGREES NOMINAL
SURFACE FINISH	63.0 MICROINCHES TOP 63.0 MICROINCHES BOTTOM
SPECIFICATION/STANDARD DATA	80205-NAS1587 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD

Restrictions/Controls & Freight Information | NSN 5310-00-476-7367

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	194160	WASHER OR GASKETS, IRON OR STEEL,
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-476-7367

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BJ	AH-64 Airframe
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
