NSN 5310-00-446-5222 684588, 00-446-5222, 004465222
Product Details | SHOULDERED AND RECESSED WASHER
5310-00-446-5222 A washer, round in shape, having a centrally located hole. One bearing surface is flat, the other surface is in the form of a raised shoulder (boss) having a flat bearing surface. Either or both of the bearing surfaces must be broken by a counterbore, countersink, or similar shaped recess. The thickness of the shoulder (boss) must not exceed 25 percent of the shoulder (boss) diameter. For items having a shoulder (boss) of greater thickness, use BEARING, SLEEVE; BUSHING, SLEEVE; or SPACER, SLEEVE. Excludes INSULATOR, WASHER and thrust type washers.
Part Alternates: 684588, 5310-00-446-5222, 00-446-5222, 5310004465222, 004465222
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-446-5222 | 15935 ( WASHER, SHOULDERED AND RECESSED ) |

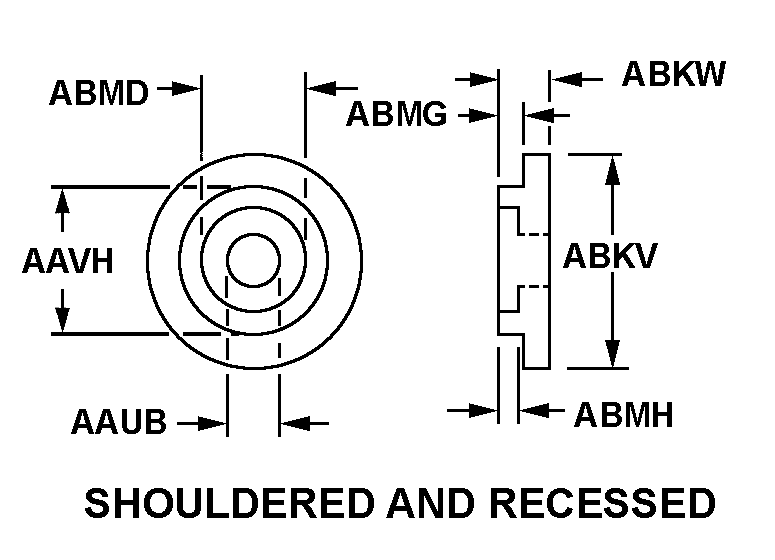

Drawings & Photos | NSN 5310-00-446-5222
Demand History | NSN 5310-00-446-5222
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 684588 | 2019-01-08 | 91 | DIBBS |
| 5310-00-446-5222 | 2018-12-351 | 28 | DIBBS |
| 5310-00-446-5222 | 2018-12-343 | 28 | DIBBS |
| 5310-00-446-5222 | 2018-07-193 | 14 | DIBBS |
| 5310-00-446-5222 | 2018-07-185 | 14 | DIBBS |
| 5310-00-446-5222 | 2018-05-123 | 9 | DIBBS |
| 5310-00-446-5222 | 2018-04-115 | 9 | DIBBS |
| 5310-00-446-5222 | 2017-08-220 | 5 | DIBBS |
| 5310-00-446-5222 | 2016-09-251 | 5 | DIBBS |
| 5310-00-446-5222 | 2016-02-48 | 5 | DIBBS |
| 5310-00-446-5222 | 2015-11-323 | 1 | DIBBS |
| 5310-00-446-5222 | 2015-11-315 | 1 | DIBBS |
| 5310-00-446-5222 | 2013-01-30 | 25 | DIBBS |
| 5310-00-446-5222 | 2012-05-130 | 3 | DIBBS |
| 5310-00-446-5222 | 2009-03-76 | 3 | DIBBS |
| 5310-00-446-5222 | 2008-12-364 | 4 | DIBBS |
| 5310-00-446-5222 | 2008-05-148 | 2 | DIBBS |
| 5310-00-446-5222 | 2008-03-64 | 3 | DIBBS |
Cross Reference | NSN 5310-00-446-5222
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 684588 | 99167 | HAMILTON SUNDSTRAND CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-446-5222
Related Products | NSN 5310-00-446-5222
Technical Data | NSN 5310-00-446-5222
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4140 OVERALL |
| STYLE DESIGNATOR | 12 SHOULDERED AND RECESS |
| HOLE DIAMETER | 0.588 INCHES MINIMUM AND 0.599 INCHES MAXIMUM |
| SHOULDER DIAMETER | 0.823 INCHES MINIMUM AND 0.828 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 0.930 INCHES MINIMUM AND 0.934 INCHES MAXIMUM |
| RECESS DIAMETER | 0.820 INCHES MINIMUM AND 0.830 INCHES MAXIMUM |
| SHOULDER HEIGHT | 0.061 INCHES MINIMUM AND 0.063 INCHES MAXIMUM |
| RECESS DEPTH | 0.136 INCHES MINIMUM AND 0.146 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.193 INCHES MINIMUM AND 0.213 INCHES MAXIMUM |
| MANUFACTURERS CODE | 99167 |
| DESIGN CONTROL REFERENCE | 684588 |
Restrictions/Controls & Freight Information | NSN 5310-00-446-5222
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
