Product Details | CLIP-ON NUT

5310-00-235-1806 An internally threaded fastener, plain or self-locking, of various shapes attached to a preformed item of semi-rigid material designed to retain, position or support other items by its own inherent spring action. The internally threaded fastener and the preformed item may be of one piece construction or fastened together by other means.

Part Alternates: A11330103, A11330-10-3, BACN10FX22, BAN10FX2, F49322322, F49322-3-22, 130062, 294618L, 5310-00-235-1806, 00-235-1806, 5310002351806, 002351806

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG) NSN Assign. NIIN
53 20 MAY 1973 00-235-1806

Drawings & Photos | NSN 5310-00-235-1806


Demand History | NSN 5310-00-235-1806

Part Number Request Date QTY Origin
130062 2024-11-319 10 United States
BACN10FX22 2024-10-281 12 United Kingdom
02351806SX 2024-10-280 108 DIBBS
BACN10FX22 2024-04-113 6 United States
BACN10FX22 2021-11-325 20586 DIBBS
BACN10FX22 2021-02-46 15000 DIBBS
5310-00-235-1806 2018-12-355 15867 DIBBS
5310-00-235-1806 2018-12-347 15867 DIBBS
5310-00-235-1806 2018-11-327 15867 DIBBS
5310-00-235-1806 2018-11-319 15867 DIBBS
5310-00-235-1806 2018-03-63 14589 DIBBS
5310-00-235-1806 2017-01-12 1 US
5310-00-235-1806 2017-01-05 10887 DIBBS
5310-00-235-1806 2015-05-130 4738 DIBBS
5310-00-235-1806 2012-07-200 30 US
5310-00-235-1806 2011-11-306 600 Argentina
5310-00-235-1806 2011-05-132 3663 DIBBS

Cross Reference | NSN 5310-00-235-1806

Part Number Cage Code Manufacturer
130062 60119 MONADNOCK COMPANY THE DBA LISI AEROSPACE
294618L 60119 MONADNOCK COMPANY THE DBA LISI AEROSPACE
A11330-10-3 72962 HARVARD INDUSTRIES INC
BACN10FX22 52828 REPUBLIC FASTENER MFG. CORP.
BACN10FX22 60119 MONADNOCK COMPANY THE DBA LISI AEROSPACE
BACN10FX22 81205 THE BOEING COMPANY DBA BOEING
BAN10FX2 81205 THE BOEING COMPANY DBA BOEING
F49322-3-22 15653 ALCOA GLOBAL FASTENERS, INC.
F49322-3-22 F7652 B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-235-1806

Technical Data | NSN 5310-00-235-1806

Characteristic Specifications
THREAD SERIES UNJF
NOMINAL THREAD SIZE 0.190 INCHES
THREAD QUANTITY PER INCH 32
THREAD CLASS 3B
THREAD DIRECTION RIGHT-HAND
MATERIAL STEEL OVERALL
SURFACE TREATMENT CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-P-416,TY 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING 46.0 ROCKWELL C MAXIMUM

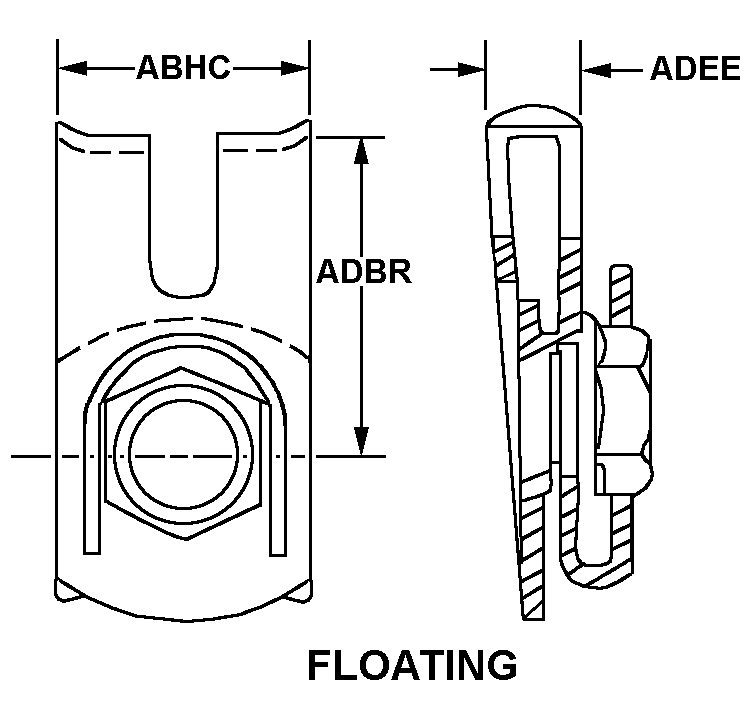

NUT STYLE A396 FLOATING
OVERALL WIDTH 0.447 INCHES MAXIMUM
DISTANCE FROM BASE TO CENTER OF APERTURE 0.650 INCHES MINIMUM AND 0.680 INCHES MAXIMUM
PANEL THICKNESS 0.095 INCHES MINIMUM
LOCKING FEATURE PREVAILING TORQUE ALL METAL DESIGN
TEMP RATING 450.0 DEG FAHRENHEIT MAXIMUM

Restrictions/Controls & Freight Information | NSN 5310-00-235-1806

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 093486 BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 573 unknown
Originating Activity Code KZ Defense Supply Center Philadelphia
Philadelphia, PA 19101
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5310-00-235-1806

Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation CodeSXSX:AF SICA RESIDUAL MMAC-OC-ALC
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
Q
EA : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
Q
EA : Each
