Product Details | BLIND RIVET PLAIN NUT

5310-00-225-4680 A metallic headed fastener having internal threads for a portion of the full length. It may have a smooth, hexagon or splined shank with an open or closed end. Is designed to be expanded tightly against the material it is being installed in by means of a special tool. The item must have a specified grip range. The grip range is the thickness of the material the item is being installed in. See also NUT (1) SELF-LOCKING, BLIND RIVET. Excludes NUT (1), SLEEVE.

Part Alternates: MS2713020K, MS27130-20K, MS27130A25K, A10K80, 3342716660, 334-2716-660, 4C17994101A, 4C17994-101A , 5597700, 5310-00-225-4680, 00-225-4680, 5310002254680 , 002254680

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1963 00-225-4680

Drawings & Photos | NSN 5310-00-225-4680


Demand History | NSN 5310-00-225-4680

Part Number Request Date QTY Origin
5310-00-225-4680 2023-11-334 25 United States
5310-00-225-4680 2015-03-68 16210 DIBBS
MS27130A25K 2014-06-157 50 United States

Cross Reference | NSN 5310-00-225-4680

Part Number Cage Code Manufacturer
334-2716-660 95105 ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS
5597700 34623 AM GENERAL, LLC
A10K80 03481 BFGOODRICH CO THE AEROSPACE DIV
MS27130-20K 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27130A25K 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-225-4680

Technical Data | NSN 5310-00-225-4680

Characteristic Specifications
THREAD SERIES UNF
NOMINAL THREAD SIZE 0.190 INCHES
THREAD QUANTITY PER INCH 32
THREAD CLASS 3B
THREAD DIRECTION RIGHT-HAND
MATERIAL ALUMINUM ALLOY 6053 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION QQ-A-430,TEMP T4 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT ANODIZE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION MIL-A-8625,TY 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING NOT RATED

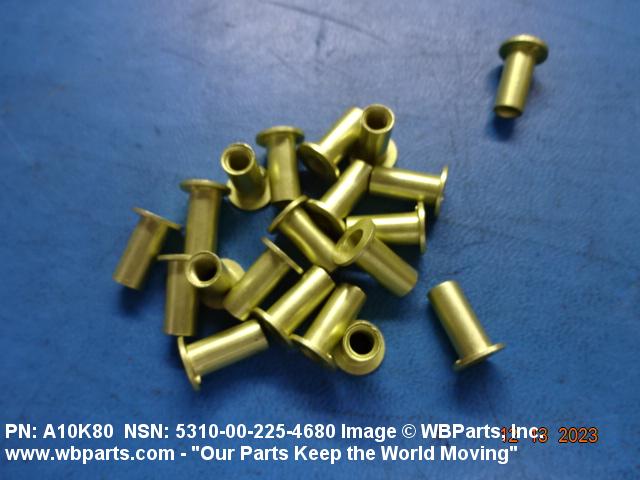

NUT STYLE A22 BLIND RIVET W/SMOOTH ROUND SHANK

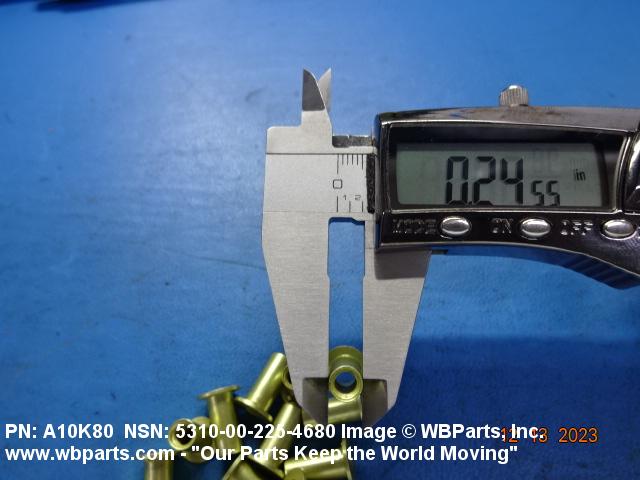

NUT DIAMETER 0.246 INCHES MINIMUM AND 0.250 INCHES MAXIMUM

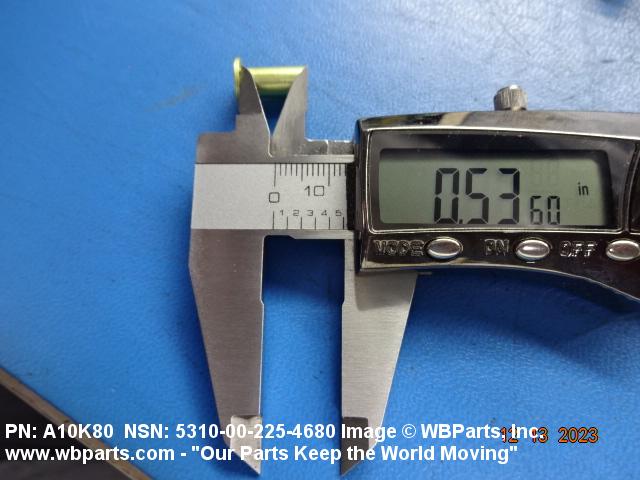

NUT LENGTH 0.516 INCHES MINIMUM AND 0.546 INCHES MAXIMUM

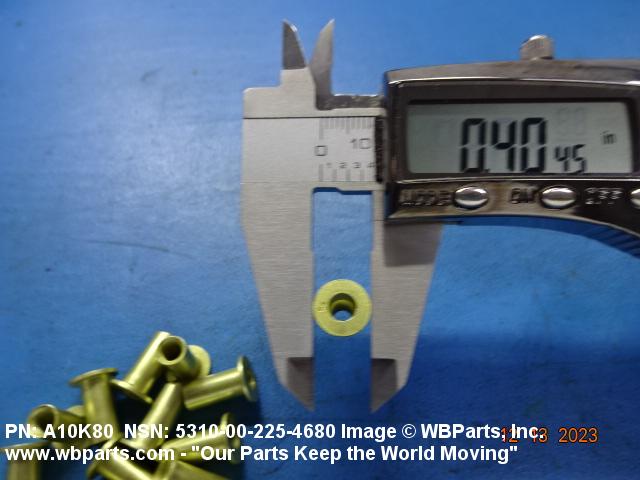

NUT GRIP RANGE 0.010 TO 0.080 INCHES
HEAD STYLE D18 FLAT KEYED

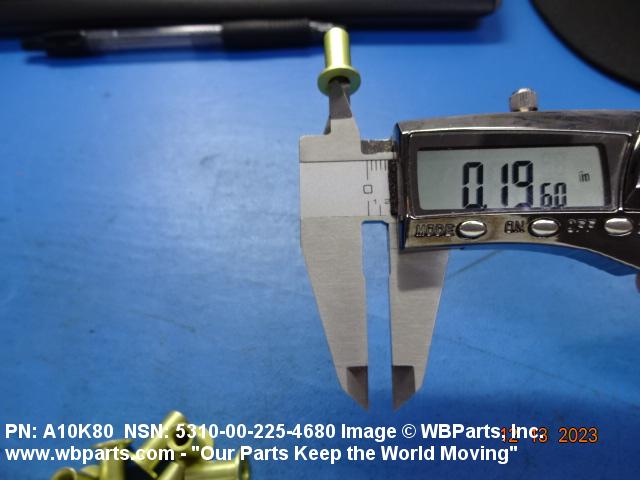

HEAD DIAMETER 0.391 INCHES MINIMUM AND 0.421 INCHES MAXIMUM
KEY LENGTH 0.061 INCHES NOMINAL

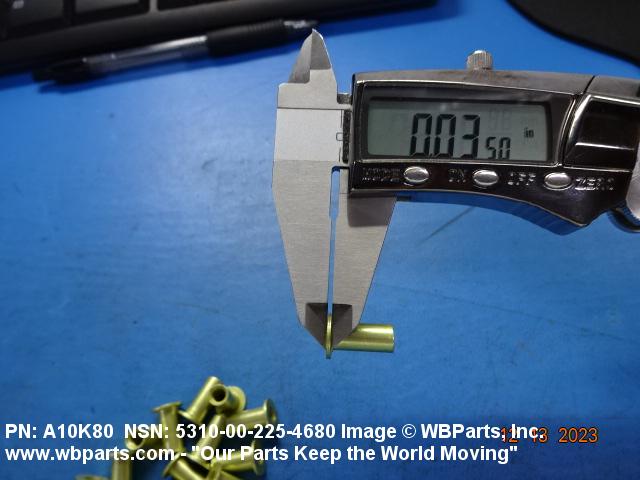

HEAD HEIGHT 0.038 INCHES NOMINAL
SHANK END TYPE OPEN
TEMP RATING NOT RATED
MANUFACTURERS CODE 96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MS27130A25K
