NSN 5310-00-225-5328 MS15795841, MS15795-841 , MS51795841

Product Details | FLAT WASHER

5310-00-225-5328 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.

Part Alternates: MS15795841, MS15795-841 , MS51795841, MS51795-841 , S8157N411030, S8157N411-030 , STD81240, STD812-40 , FFW92 , 688000-062 , 98019A126 , 98019A326, 10121210 , 136C705TC841, 23100422001, 2310-0422-001 , 423R050H10 , 47929, 479-29 , 4912548-12 , 504A21152, 504A2-11-52 , 5362218, 536221-8 , 6321510 , 5310-00-225-5328, 00-225-5328, 5310002255328 , 688000062, 491254812, 002255328

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	05 JAN 1968	00-225-5328	13393 ( WASHER, FLAT )

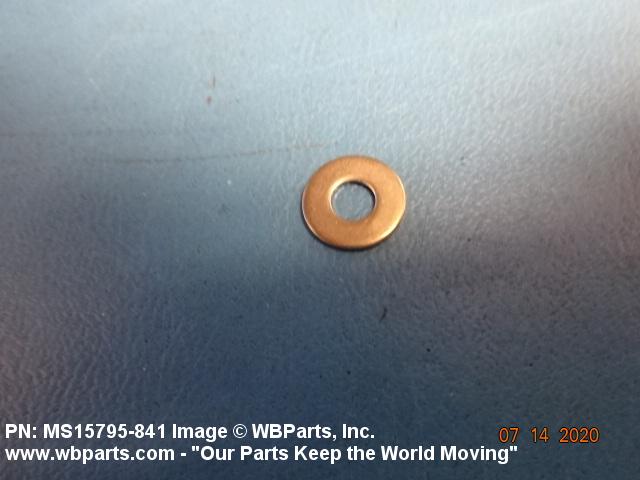

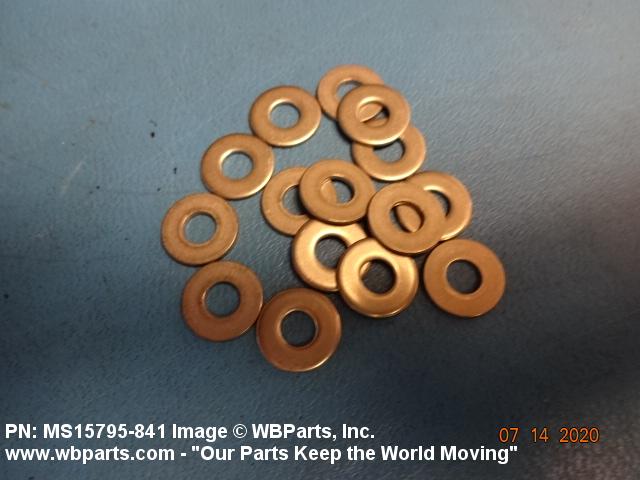

Drawings & Photos | NSN 5310-00-225-5328

Part Number	Request Date	QTY	Origin
MS15795841	2024-06-155	4	United Kingdom
5310-00-225-5328	2021-05-138	5	US
5310-00-225-5328	2020-12-342	40	US
98019A326	2020-11-330	1	United States
MS15795841	2020-06-168	50	United States
MS15795841	2020-01-03	1	United States
MS15795841	2019-04-101	200	United States
FFW92	2018-07-207	2	United States
FFW92	2016-08-217	21	US
5310-00-225-5328	2016-06-160	566	DIBBS
5310-00-225-5328	2016-04-116	1723	DIBBS
5310-00-225-5328	2016-03-88	1723	DIBBS
5310-00-225-5328	2015-09-256	2729	DIBBS
MS15795841	2013-08-225	4	United States
MS15795841	2013-03-67	368	US
5310-00-225-5328	2012-08-216	1461	DIBBS
5310-00-225-5328	2012-06-171	2577	DIBBS
5310-00-225-5328	2012-02-59	1900	DIBBS
FFW92	2011-10-304	495	United States
MS15795841	2011-07-200	44	US
MS15795841	2011-07-200	420	US
MS15795841	2011-07-200	4050	US
MS15795841	2011-07-200	20200	US
MS15795841	2010-08-224	5	United States
MS15795841	2010-02-50	45	us
MS15795841	2010-01-19	4	US
MS15795841	2009-07-195	100	US
5310-00-225-5328	2008-08-228	40	US
5310-00-225-5328	2008-05-151	60	US
5310-00-225-5328	2008-04-99	1500	US
5310-00-225-5328	2008-04-92	2	DIBBS
5310-00-225-5328	2008-04-92	1	DIBBS
5310-00-225-5328	2008-01-25	1500	DIBBS
5310-00-225-5328	2006-07-212	1000	PK

Cross Reference | NSN 5310-00-225-5328

Part Number	Cage Code	Manufacturer
136C705TC841	97942	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS
2310-0422-001	06032	ANTENNA PRODUCTS CORPORATION
423R050H10	97942	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS
479-29	99321	PARKER-HANNIFIN CORPORATION DBA PARKER AEROSPACE
4912548-12	03956	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS
4912548-12	90536	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
504A2-11-52	94033	CARDWELL CONDENSER CORP LAPOINTE-ADMIRAL DIV
5310002255328	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
536221-8	96214	RAYTHEON COMPANY DBA RAYTHEON
6321510	49671	LOCKHEED MARTIN CORP LOCKHEED MARTIN INFORMATION SYSTEMS
6321510	53711	NAVAL SEA SYSTEMS COMMAND
688000-062	12436	BAE SYSTEMS NATIONAL SECURITY SOLUTIONS INC.
98019A126	39428	MCMASTER-CARR SUPPLY COMPANY
98019A326	39428	MCMASTER-CARR SUPPLY COMPANY
FFW92	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
MS15795-841	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS15795-841	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS51795-841	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
S8157N411-030	59364	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
STD812-40	81579	MASON ELECTRIC COMPANY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-225-5328

Compare

Related Products | NSN 5310-00-225-5328

5310-00-225-5355, 5310-00-225-5365, 5310-00-225-5369, 5310-00-225-5465, 5310-00-225-5468

Technical Data | NSN 5310-00-225-5328

Characteristic	Specifications
MATERIAL	STEEL COMP 301 OR STEEL COMP 302 OR STEEL COMP 316 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD ALL MATERIAL RESPONSES OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL

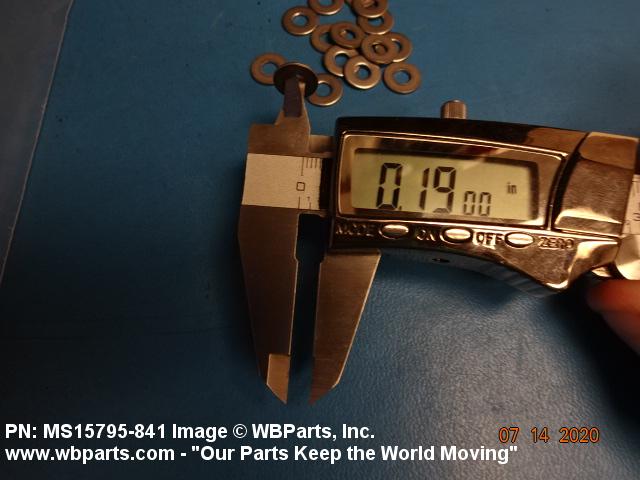

HOLE DIAMETER	0.183 INCHES MINIMUM AND 0.196 INCHES MAXIMUM
PERIPHERAL SHAPE STYLE	1 ROUND

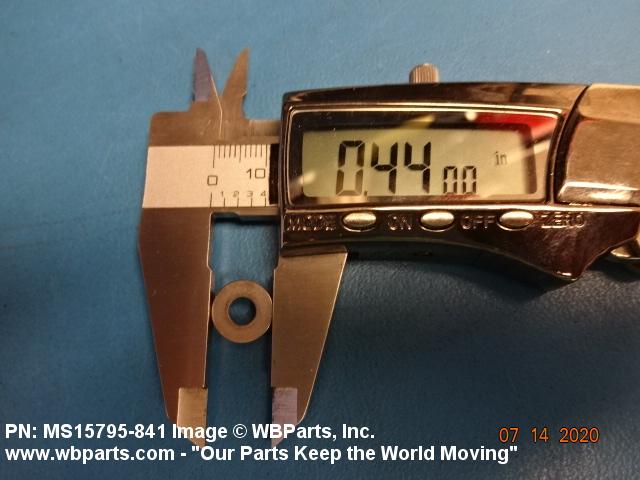

OVERALL DIAMETER	0.433 INCHES MINIMUM AND 0.453 INCHES MAXIMUM
CENTER HOLE SHAPE STYLE	1 ROUND
CROSS-SECTIONAL SHAPE STYLE	1 RECTANGULAR

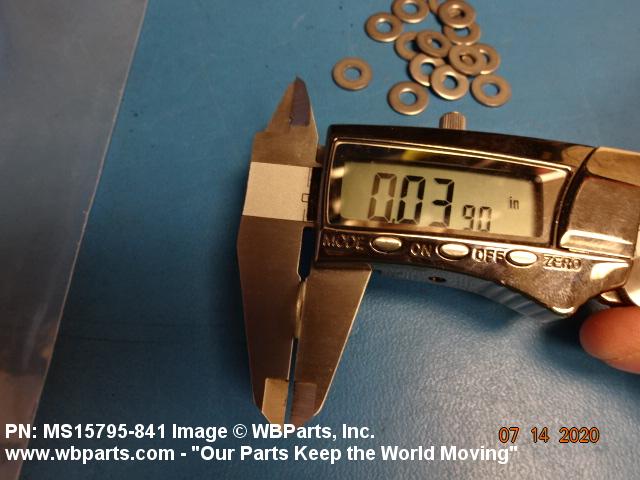

THICKNESS	0.036 INCHES MINIMUM AND 0.065 INCHES MAXIMUM
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FFW92

Restrictions/Controls & Freight Information | NSN 5310-00-225-5328

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093490	BOLT/NUT/SCREW/CLIPS/FASTENER/ETC
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	SG	403 SCMS/GUED 5215 Thurlow St, Suite 5, Bldg 70C Wright-Patterson AFB OH 45433
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-225-5328

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
