NSN 5310-00-216-7985 SK139880, SL4815PC31, SL4817PC31
Product Details | ROUND PLAIN NUT
5310-00-216-7985 A nut, circular in shape, which may have wrenching facilities such as flats, holes, protrusions, slots or splines in or on the periphery or in the face opposite the bearing surface. For items having a thickness (or height) exceeding two times the outside diameter, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. See also NUT (1), PLAIN, KNURLED. (When height or thickness and/or outside diameter is designated as a tolerance dimension, the maximum dimension will be used to determine compliance.
Part Alternates: SK139880, SL4815PC31, SL4817PC31, SL4987PC31, SL4989PC31, SL5096PC31, SL5098PC31, SL7722PC36, SL7723PC36, SL7724PC36, SL8186PC16, 10378, 254817C, 904P, 5310-00-216-7985, 00-216-7985, 5310002167985, 002167985
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-216-7985 | 15887 ( NUT, PLAIN, ROUND ) |
Drawings & Photos | NSN 5310-00-216-7985
Cross Reference | NSN 5310-00-216-7985
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10378 | 54402 | R. P. S. INC |
| 254817C | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| 904P | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| SK139880 | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| SL4815PC31 | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| SL4817PC31 | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| SL4987PC31 | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| SL4989PC31 | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| SL5096PC31 | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| SL5098PC31 | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| SL7722PC36 | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| SL7723PC36 | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| SL7724PC36 | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| SL8186PC16 | 93232 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-216-7985
Technical Data | NSN 5310-00-216-7985
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 1.375 INCHES |
| THREAD QUANTITY PER INCH | 12 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | LEFT-HAND |
| MATERIAL | NICKEL ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-N-894,CLASS A MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |

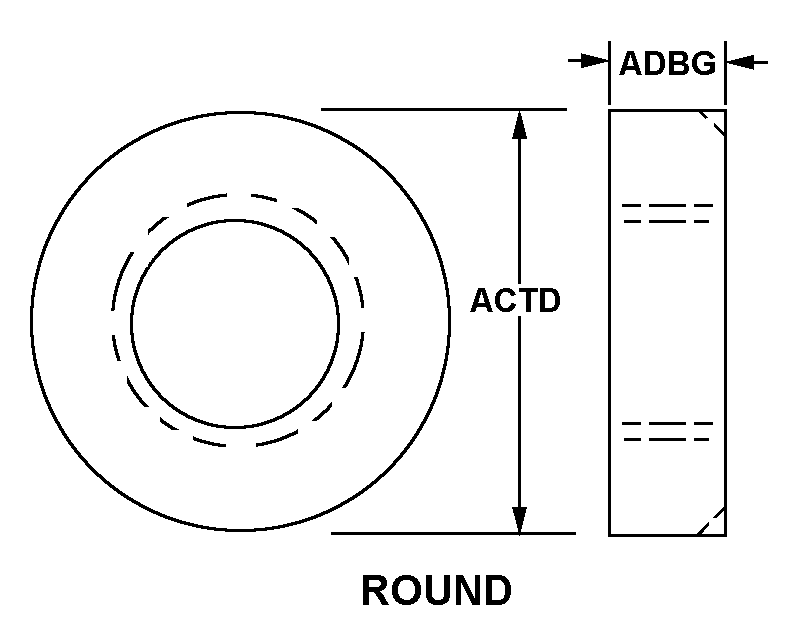

| NUT STYLE | A77 ROUND |
| NUT DIAMETER | 1.750 INCHES NOMINAL |
| NUT THICKNESS | 0.875 INCHES NOMINAL |

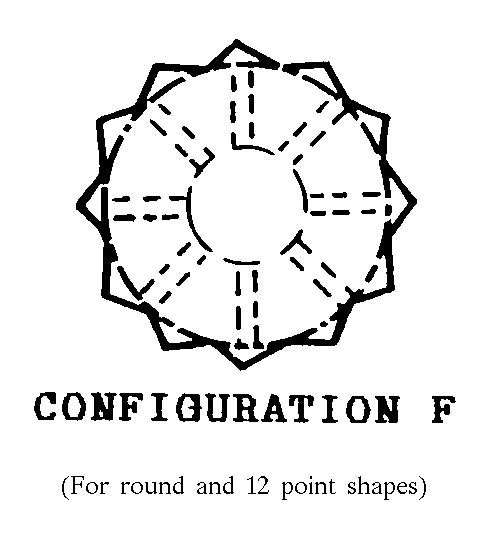

| HOLE CONFIGURATION STYLE | H6 CONFIGURATION F |
| HOLE TYPE AND QUANTITY | 2 DRILLED AND 2 TAPPED |
| DRILLED HOLE DIAMETER | 0.250 INCHES NOMINAL |
| HOLE NOMINAL THREAD DIAMETER | 0.250 INCHES |
| HOLE THREAD QUANTITY PER INCH | 20 |
| TEMP RATING | NOT RATED |
| MANUFACTURERS CODE | 93232 |
| DESIGN CONTROL REFERENCE | SK139880 |
Restrictions/Controls & Freight Information | NSN 5310-00-216-7985
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 139820 | NICKEL BOLTS/NAILS/NUTS/RIVETS ETC |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-216-7985
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
