NSN 5310-00-208-1762 NAS463TDD10, D2648 , 00-208-1762
Product Details | PLATE NUT SPACER
5310-00-208-1762 An item having two flat bearing surfaces, conforming to the same shape as the base of a NUT (1), PLAIN, PLATE and NUT (1), SELF-LOCKING, PLATE. It is used to provide better alignment in assembly.
Part Alternates: NAS463TDD10, D2648 , 5310-00-208-1762, 00-208-1762, 5310002081762, 002081762
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-208-1762 | 17667 ( NUT SPACER, PLATE ) |

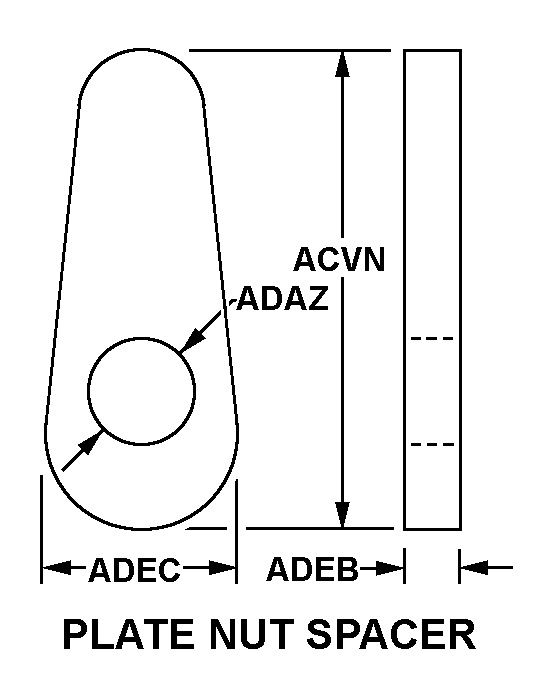

Drawings & Photos | NSN 5310-00-208-1762
Demand History | NSN 5310-00-208-1762
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-208-1762 | 2018-01-29 | 24986 | DIBBS |
| NAS463TDD10 | 2013-01-28 | 50 | US |
| 5310-00-208-1762 | 2012-10-296 | 0 | DIBBS |
| 5310-00-208-1762 | 2012-10-296 | 28184 | DIBBS |
| 5310-00-208-1762 | 2011-02-32 | 14583 | DIBBS |
| 5310-00-208-1762 | 2010-10-295 | 7515 | DIBBS |
| 5310-00-208-1762 | 2010-05-139 | 4793 | DIBBS |
| 5310-00-208-1762 | 2009-11-322 | 3433 | DIBBS |
| 5310-00-208-1762 | 2009-05-125 | 3051 | DIBBS |
Cross Reference | NSN 5310-00-208-1762
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS463TDD10 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-208-1762
Related Products | NSN 5310-00-208-1762
Technical Data | NSN 5310-00-208-1762
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2014 OR ALUMINUM ALLOY 2024 OR ALUMINUM ALLOY 7075 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/3,ALLOY 2014,T6 FED SPEC 1ST MATERIAL RESPONSE OR QQ-A-250/5 ALLOY ALCLAD 2024,T3 FED SPEC 2ND MATERIAL RESPONSE OR QQ-A-250/5,T4 FED SPEC 3RD MATERIAL RESPONSE OR QQ-B-250/13,T6 FED SPEC 4TH MATERIAL RESPONSE OVERALL |
| NUT STYLE | A142 PLATE NUT SPACER |
| NUT LENGTH | 1.063 INCHES MINIMUM AND 1.093 INCHES MAXIMUM |
| THRU-HOLE DIAMETER | 0.210 INCHES MINIMUM AND 0.220 INCHES MAXIMUM |
| PLATE THICKNESS | 0.059 INCHES MINIMUM AND 0.067 INCHES MAXIMUM |
| PLATE WIDTH | 0.485 INCHES MINIMUM AND 0.515 INCHES MAXIMUM |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F44 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.102 INCHES MINIMUM AND 0.108 INCHES MAXIMUM |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.341 INCHES MINIMUM AND 0.347 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.310 INCHES MINIMUM AND 0.314 INCHES MAXIMUM |
| SPECIFICATION/STANDARD DATA | 80205-NAS463 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5310-00-208-1762
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
