NSN 5310-00-167-0807 A203738, A20373-8, AN960C516

Product Details | FLAT WASHER

5310-00-167-0807 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.

Part Alternates: A203738, A20373-8, AN960C516 , AN960C916, ASNA2397C516 , NAS1149C0563R, NAS1149C0963R, B900T4, B90-0T4 , FFW92 , FF-W-92, LYC502C516 , Z00.N5741504390 , Z00.N5741504530, Z00N5741504390, Z00N5741504530, 5410161, 5410-161 , 672075-197 , 709173PC10 , 840291, 851230 , 92115, 92-11-5 , 938.77.61.017 , 9387761017, 9457232152, 945723-2152 , 004003081041, 004-003081-041, 10116604 , 122450PC10, 12Z22472, 12Z22-472 , 145451095556, 145-4510955-56 , 158255PC31 , 166216PC5, 166216PC500 , 210115C516, 21C1530206, 21C1530-206 , 280457PC12 , 330005B, 381637PC99 , 51102000, 5110-2000 , 5310-00-167-0807, 00-167-0807, 5310001670803 , 5310001670807, 001670807, 672075197

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-167-0807	13393 ( WASHER, FLAT )

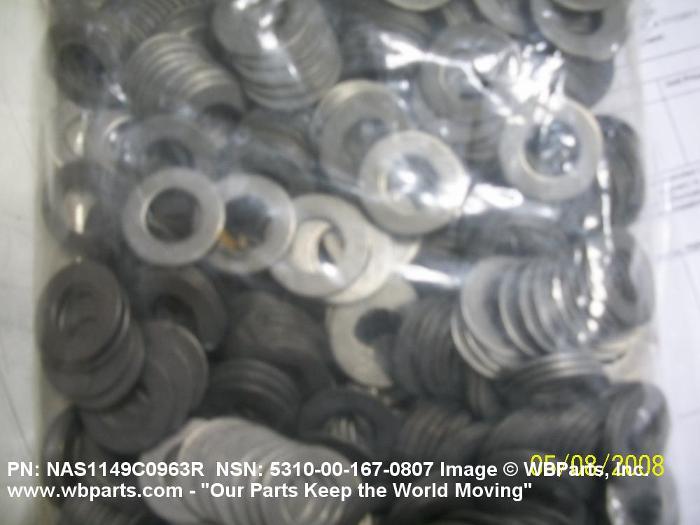

Drawings & Photos | NSN 5310-00-167-0807

Part Number	Request Date	QTY	Origin
NAS1149C0563R	2024-11-306	75	Japan
NAS1149C0563R	2024-09-264	18	United States
NAS1149C0963R	2024-05-152	1	US
NAS1149C0563R	2024-04-106	100	Kazakhstan
NAS1149C0563R	2024-01-22	20	Germany
AN960C916	2023-07-193	8	United States
NAS1149C0963R	2023-07-193	48	United States
NAS1149C0563R	2023-06-165	4	United States
FF-W-92	2023-01-18	60	Saudi Arabia
AN960C516	2022-12-355	16	United States
NAS1149C0963R	2022-11-333	4	US
5310-00-167-0803	2022-08-228	16	United States
5310-00-167-0803	2022-08-224	16	United States
NAS1149C0563R	2022-07-182	330	United States
NAS1149C0563R	2022-05-147	20000	China
5310-00-167-0807	2022-05-137	1	US
NAS1149C0563R	2022-01-31	100	United States
NAS1149C0563R	2022-01-28	1000	United States
5310-00-167-0807	2022-01-18	50	PK
5310-00-167-0803	2021-05-132	5	US
NAS1149C0563R	2021-04-102	50	PH
NAS1149C0963R	2021-03-75	294	AE
NAS1149C0963R	2021-03-71	294	US
NAS1149C0563R	2021-02-46	200	Taiwan
NAS1149C0563R	2020-10-280	100	SA
AN960C516	2020-02-35	28	United States
5310-00-167-0807	2020-01-10	20	Pakistan
NAS1149C0563R	2020-01-06	50	United States
NAS1149C0563R	2020-01-06	50	United States
NAS1149C0563R	2019-12-351	455	United States
NAS1149C0563R	2019-10-277	4	United States
AN960C516	2019-07-192	33	US
5310-00-167-0807	2019-05-129	8	United States
5310-00-167-0807	2019-05-128	8	United States
5310-00-167-0807	2019-04-99	2	United States
NAS1149C0963R	2019-03-64	100	United States
NAS1149C0963R	2019-02-39	1	United States
5310-00-167-0807	2018-12-337	425	DIBBS
NAS1149C0563R	2018-11-310	17482	Israel
5310-00-167-0807	2018-11-308	1365	DIBBS
5310-00-167-0807	2018-10-282	79	DIBBS
FFW92	2018-07-207	2	United States
NAS1149C0563R	2018-04-115	100	United States
NAS1149C0563R	2017-09-262	100	Sweden
AN960C516	2017-08-221	100	US
NAS1149C0563R	2017-08-219	350	United States
NAS1149C0963R	2017-08-219	200	United States
NAS1149C0563R	2017-07-206	1	US
AN960C516	2017-05-139	10	Taiwan
NAS1149C0963R	2017-04-112	4	MX
NAS1149C0963R	2017-01-31	100	United States
AN960C516	2017-01-10	6	United States
NAS1149C0563R	2016-12-354	56	US
AN960C516	2016-09-253	129	Italy
FFW92	2016-08-217	21	US
AN960C516	2016-07-190	500	Thailand
AN960C516	2016-04-96	400	Romania
NAS1149C0563R	2015-09-267	100	United States
5310-00-167-0803	2015-07-208	500	TW
5310-00-167-0803	2015-05-127	11	United States
5310-00-167-0807	2015-05-127	3	United States
AN960C916	2015-05-126	100	us
NAS1149C0563R	2015-03-71	14	United States
NAS1149C0563R	2015-01-27	6	United States
NAS1149C0563R	2014-09-272	450	US
NAS1149C0563R	2014-09-245	8	Australia
NAS1149C0563R	2014-09-245	4	Australia
NAS1149C0563R	2014-09-245	4	Australia
NAS1149C0563R	2014-09-245	4	Australia
NAS1149C0563R	2014-08-237	2	US
5310-00-167-0803	2014-08-217	300	United States
NAS1149C0563R	2014-08-217	1	US
AN960C516	2014-06-162	16	United States
NAS1149C0563R	2014-05-141	8	United States
NAS1149C0563R	2014-05-136	5	India
NAS1149C0563R	2014-01-29	20	United States
NAS1149C0563R	2013-08-238	50	US
NAS1149C0563R	2013-08-238	50	CN
AN960C516	2013-08-221	50	LK
NAS1149C0563R	2013-07-205	50	Singapore
5310-00-167-0807	2013-06-165	1000	United States
5310-00-167-0803	2013-04-113	180	DE
5310-00-167-0803	2013-04-113	180	DE
5310-00-167-0803	2013-01-08	20	United States
5310-00-167-0803	2013-01-08	20	United States
AN960C516	2012-11-310	139
AN960C516	2012-05-150	180	US
NAS1149C0563R	2012-05-150	3190	Israel
AN960C516	2012-04-104	4	US
NAS1149C0563R	2012-04-103	2700	Israel
NAS1149C0563R	2012-04-101	36216	IL
NAS1149C0563R	2012-03-73	2168	Israel
NAS1149C0563R	2012-03-62	1	US
NAS1149C0963R	2011-12-353	300	us
NAS1149C0563R	2011-12-341	2383	Israel
NAS1149C0563R	2011-11-327	500	United States
FFW92	2011-10-304	495	United States
NAS1149C0563R	2011-07-210	14	US
NAS1149C0563R	2011-07-206	14	US
NAS1149C0563R	2011-07-201	9600	TR
NAS1149C0563R	2011-05-151	500	CN
NAS1149C0963R	2011-05-151	500	Canada
AN960C516	2011-04-117	484	MX
AN960C516	2011-04-111	484	MX
5310-00-167-0807	2011-02-45	1	TW
NAS1149C0563R	2011-02-33	210	TW
NAS1149C0563R	2011-01-28	960	US
AN960C916	2011-01-19	500	Canada
AN960C516	2010-11-326	8	United States
NAS1149C0563R	2010-11-326	8	United States
NAS1149C0563R	2010-11-326	500	United States
AN960C516	2010-10-299	100	United States
5310-00-167-0803	2010-10-299	28	United States
5310-00-167-0803	2010-10-284	1	US
NAS1149C0963R	2010-08-231	8	US
NAS1149C0563R	2010-08-223	24	United States
5310-00-167-0807	2010-05-126	4	US
5310-00-167-0803	2010-02-43	200	US
5310-00-167-0807	2010-02-39	16	United States
5310-00-167-0807	2009-12-335	20	US
AN960C516	2009-10-302	250	Italy
AN960C516	2009-09-265	10	Netherlands
NAS1149C0963R	2009-08-233	160	United States
5310-00-167-0803	2009-08-217	2	AM
5310-00-167-0807	2009-05-125	235	DIBBS
5310-00-167-0803	2009-03-77	4000	India
NAS1149C0563R	2009-02-50	20000	us
5310-00-167-0803	2008-08-242	200	India
AN960C516	2008-08-234	100	Seychelles
5310-00-167-0807	2008-07-189	281	DIBBS
5310-00-167-0807	2008-04-105	578	DIBBS
NAS1149C0963R	2008-03-64	12	US
AN960C516	2007-10-303	52	United States
AN960C516	2007-07-183	200	US
5310-00-167-0803	2007-02-59	20	US
NAS1149C0963R	2006-08-242	6	France

Cross Reference | NSN 5310-00-167-0807

Part Number	Cage Code	Manufacturer
004-003081-041	26916	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE
938.77.61.025	S4080	PILATUS AIRCRAFT LTD
A20373-8	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
AN960C916	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
FF-W-92	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
NAS1149C0963R	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
Z00.N5741504530	F0086	SOCATA

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-167-0807

Compare

Related Products | NSN 5310-00-167-0807

5310-00-167-0808, 5310-00-167-0809, 5310-00-167-0810, 5310-00-167-0811, 5310-00-167-0812

Technical Data | NSN 5310-00-167-0807

Characteristic	Specifications
MATERIAL	STEEL CORROSION RESISTING OR STEEL COMP 321 OR STEEL COMP 347 OR STEEL COMP 348 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-5059 MIL SPEC 1ST MATERIAL RESPONSE AND MIL-S-6721 MIL SPEC 2ND MATERIAL RESPONSE AND MIL-S-6721 MIL SPEC 3RD MATERIAL RESPONSE AND MIL-S-6721 MIL SPEC 4TH MATERIAL RESPONSE OVERALL
HOLE DIAMETER	0.568 INCHES MINIMUM AND 0.588 INCHES MAXIMUM
PERIPHERAL SHAPE STYLE	1 ROUND
OVERALL DIAMETER	1.057 INCHES MINIMUM AND 1.082 INCHES MAXIMUM
CENTER HOLE SHAPE STYLE	1 ROUND
CROSS-SECTIONAL SHAPE STYLE	1 RECTANGULAR
THICKNESS	0.053 INCHES MINIMUM AND 0.073 INCHES MAXIMUM
MANUFACTURERS CODE	88044
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	AN960C916
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FF-W-92

Restrictions/Controls & Freight Information | NSN 5310-00-167-0807

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	194160	WASHER OR GASKETS, IRON OR STEEL,
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-167-0807

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	HL	TG:TH-1H SUPT HELICOPTER
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
