NSN 5310-00-167-0808 A8056, A80-56, A96671CC

Product Details | FLAT WASHER

5310-00-167-0808 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.

Part Alternates: A8056, A80-56, A96671CC, A-9667-1CC, AN960C1016, NAS1149C1063R, WC-21367-1 PIEC, WC213671PIEC, FFW92, FF-W-92, LYC502C1016, 10116606 , 1075DP06362511, 1075DP063-625-11, 1561628, 3100483000, 310-0483-000, 65E316A-4323A ITEM 6, 65E316A4323AITEM6, 8528792, 87, 907354, 5310-00-167-0808, 00-167-0808, 5310001670808, 001670808

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-167-0808	13393 ( WASHER, FLAT )

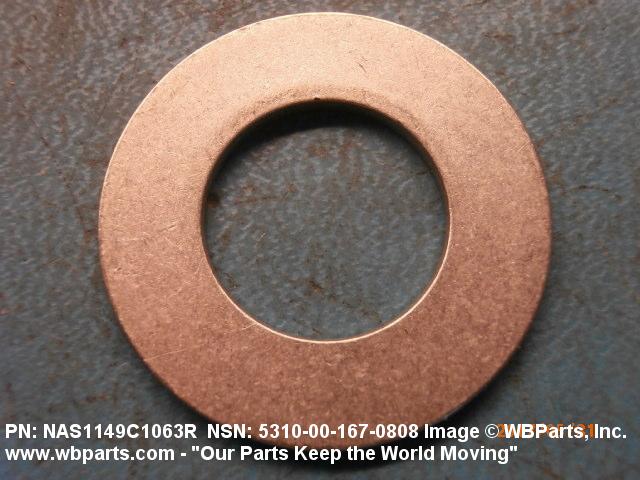

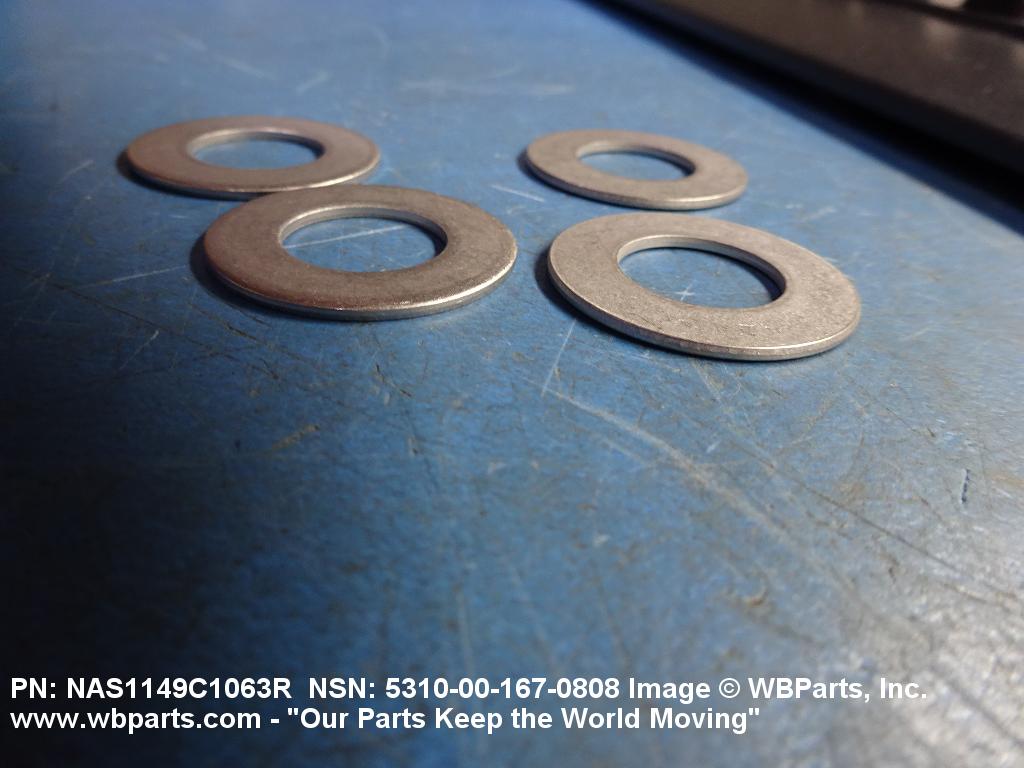

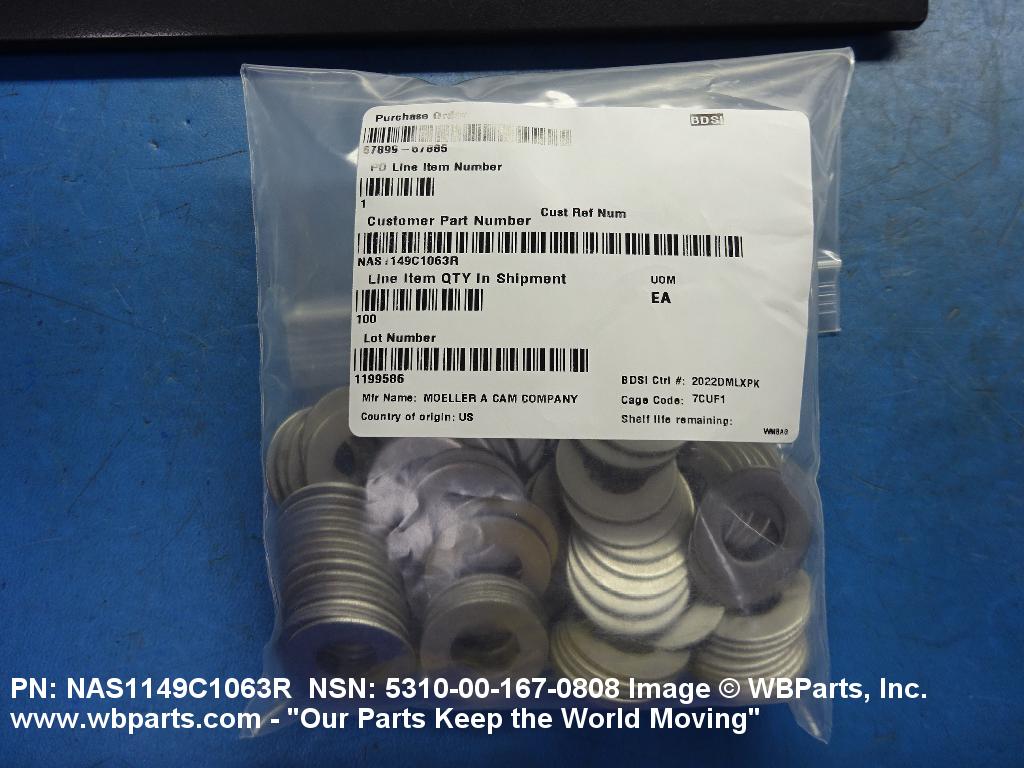

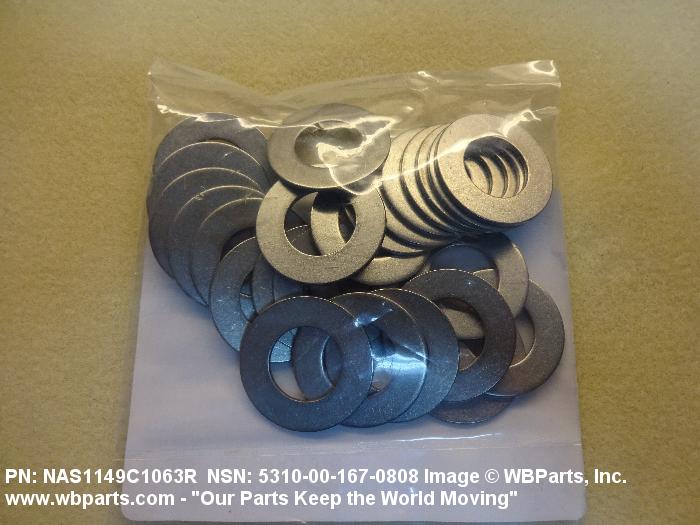

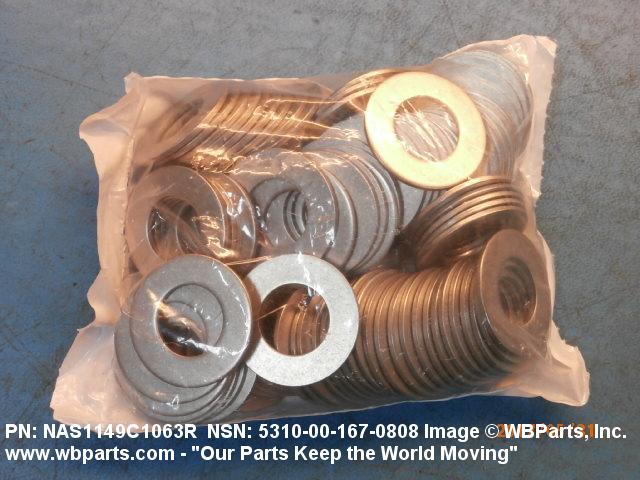

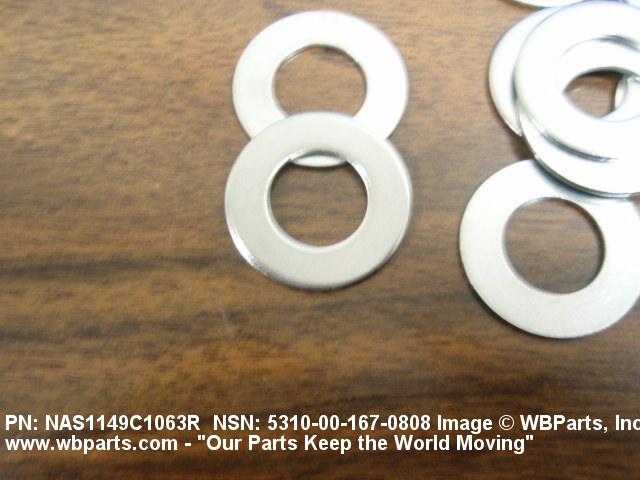

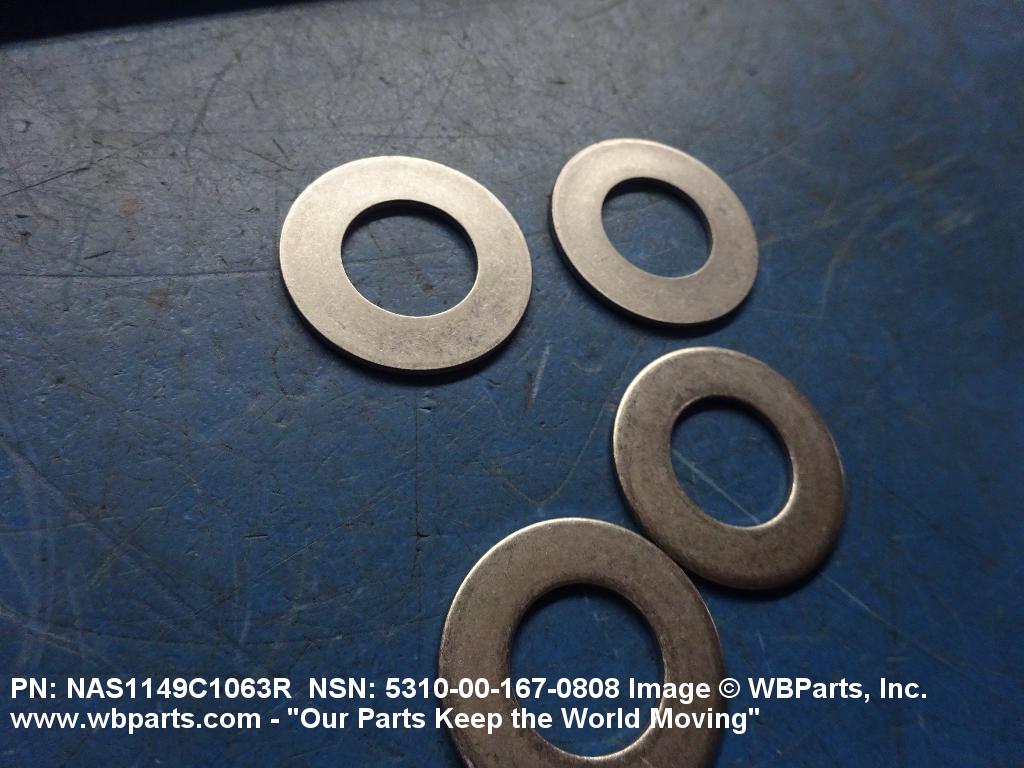

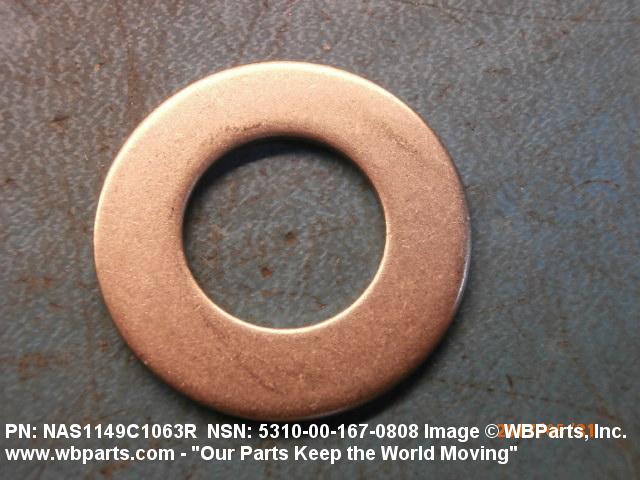

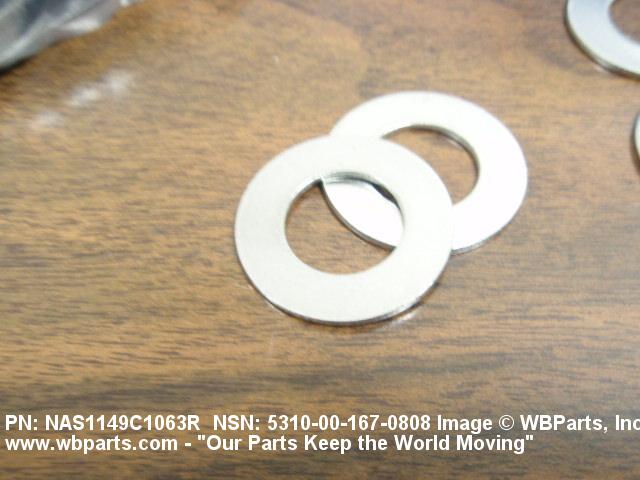

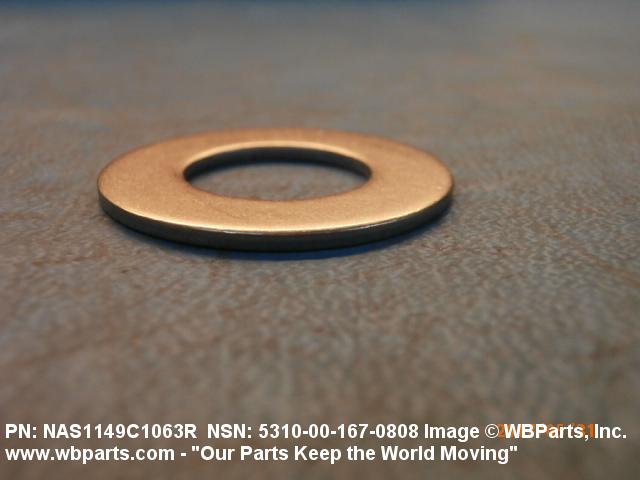

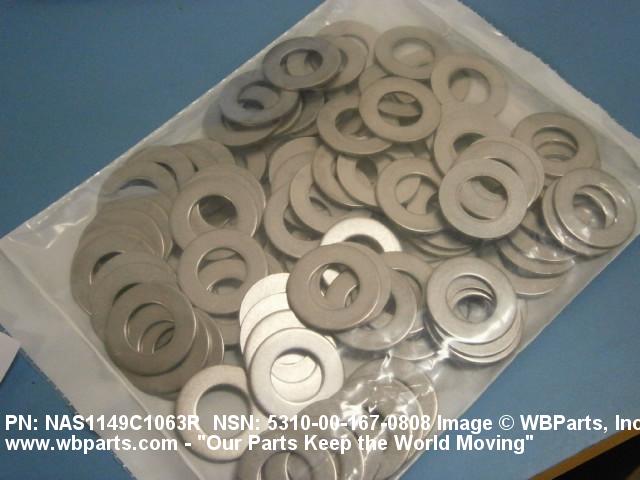

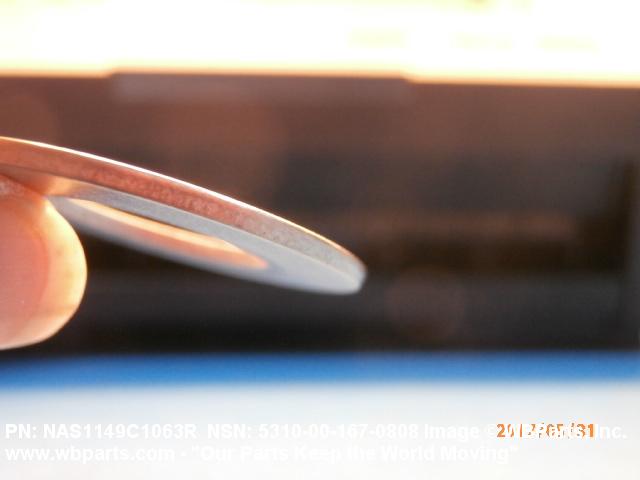

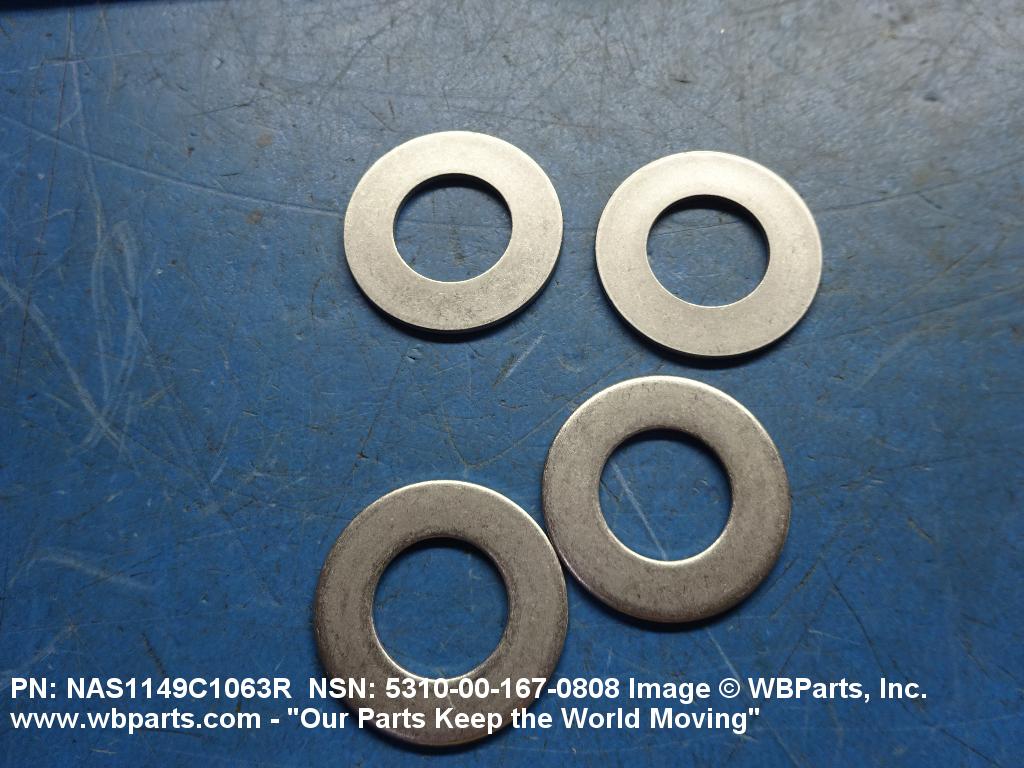

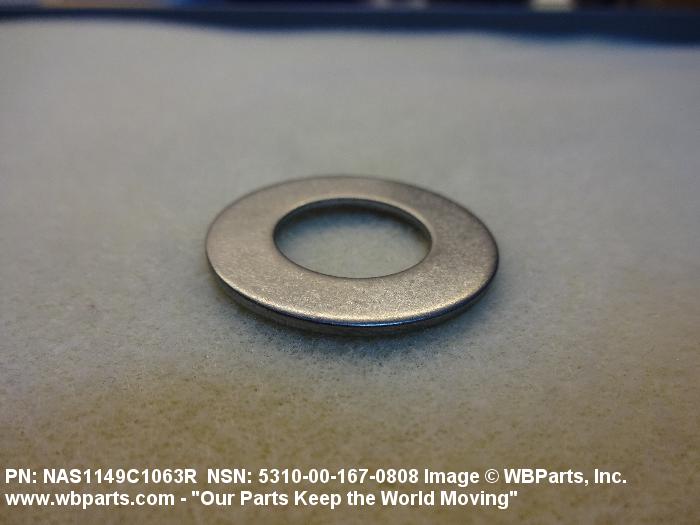

Drawings & Photos | NSN 5310-00-167-0808

Part Number	Request Date	QTY	Origin
NAS1149C1063R	2024-06-162	100	us
AN960C1016	2023-03-72	600	South Africa
FF-W-92	2023-01-18	60	Saudi Arabia
NAS1149C1063R	2022-07-207	100	United States
NAS1149C1063R	2022-07-207	100	United States
5310-00-167-0808	2022-06-152	10	United States
AN960C1016	2022-03-83	6	United States
NAS1149C1063R	2021-12-348	100	Croatia
NAS1149C1063R	2021-10-299	100	Croatia
NAS1149C1063R	2020-12-365	26	United States
AN960C1016	2020-02-35	56	United States
NAS1149C1063R	2019-08-227	150	US
AN960C1016	2019-06-165	50	Singapore
AN960C1016	2019-04-107	12	US
NAS1149C1063R	2019-03-71	80	United States
NAS1149C1063R	2018-08-222	500	TH
FFW92	2018-07-207	2	United States
NAS1149C1063R	2018-03-80	50	Thailand
NAS1149C1063R	2018-03-79	8	United States
5310-00-167-0808	2018-02-43	15540	DIBBS
NAS1149C1063R	2017-05-125	6	United States
NAS1149C1063R	2017-05-124	1	us
NAS1149C1063R	2017-04-95	1	India
AN960C1016	2016-09-253	8	Italy
FFW92	2016-08-217	21	US
NAS1149C1063R	2015-09-266	4	United States
NAS1149C1063R	2015-09-260	25	United States
5310-00-167-0808	2015-05-127	2	United States
NAS1149C1063R	2015-04-120	100	United States
NAS1149C1063R	2014-11-314	13	IN
NAS1149C1063R	2014-03-78	10	United States
AN960C1016	2013-07-193	2	United States
AN960C1016	2013-04-120	2	United States
NAS1149C1063R	2012-12-340	93	US
NAS1149C1063R	2012-09-258	6	US
NAS1149C1063R	2012-07-205	700	US
5310-00-167-0808	2012-06-163	50	United States
NAS1149C1063R	2012-05-151	20	United States
AN960C1016	2012-04-104	4	US
NAS1149C1063R	2012-04-102	1280	US
NAS1149C1063R	2011-11-325	20	United Kingdom
FFW92	2011-10-304	495	United States
AN960C1016	2011-09-266	1000	US
NAS1149C1063R	2011-08-241	24	US
AN960C1016	2011-03-69	10	Netherlands
AN960C1016	2011-03-63	500	US
AN960C1016	2011-03-62	10	Netherlands
NAS1149C1063R	2011-03-62	10	Netherlands
AN960C1016	2011-03-62	10	Netherlands
NAS1149C1063R	2011-02-55	24	US
5310-00-167-0808	2011-01-14	10	IT
NAS1149C1063R	2010-08-223	1	United States
5310-00-167-0808	2010-07-201	100	United States
5310-00-167-0808	2010-07-201	100	United States
AN960C1016	2010-02-53	100	US
5310-00-167-0808	2010-02-49	3	KH
NAS1149C1063R	2010-02-48	56	US
AN960C1016	2009-10-301	32	US
5310-00-167-0808	2009-06-180	50	United Kingdom
NAS1149C1063R	2009-03-77	2	Canada
5310-00-167-0808	2008-07-213	6	US
NAS1149C1063R	2008-07-207	16	US
AN960C1016	2007-11-318	16	US
NAS1149C1063R	2006-06-178	1	US

Cross Reference | NSN 5310-00-167-0808

Part Number	Cage Code	Manufacturer
1075DP063-625-11	71790	CURTISS-WRIGHT CORP AIRPLANE DIV
1561628	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
310-0483-000	95104	ALCATEL USA INC. DIV WTPG
65E316A-4323A ITEM 6	99551	GOODRICH CORPORATION DIV POWER TRANSMISSION SYSTEMS
8528792	18876	U S ARMY AVIATION AND MISSILE COMMAND
87	71790	CURTISS-WRIGHT CORP AIRPLANE DIV
907354	06840	BENDIX CORP THE
907354	06848	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
A-9667-1CC	38151	MARATHON ELECTRIC MANUFACTURING CORPORATION
A80-56	74080	HARVARD INDUSTRIES
AN960C1016	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
FF-W-92	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
LYC502C1016	99193	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
NAS1149C1063R	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
WC-21367-1 PIEC	66850	PENTAIR VALVES & CONTROLS US LP DIV PENTAIR FLOW CONTROL

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-167-0808

Compare

Related Products | NSN 5310-00-167-0808

5310-00-167-0809, 5310-00-167-0810, 5310-00-167-0811, 5310-00-167-0812, 5310-00-167-0813

Technical Data | NSN 5310-00-167-0808

Characteristic	Specifications
MATERIAL	STEEL CORROSION RESISTING OR STEEL COMP 321 OR STEEL COMP 347 OR STEEL COMP 348 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-5059 MIL SPEC 1ST MATERIAL RESPONSE AND MIL-S-6721 MIL SPEC 2ND MATERIAL RESPONSE AND MIL-S-6721 MIL SPEC 3RD MATERIAL RESPONSE AND MIL-S-6721 MIL SPEC 4TH MATERIAL RESPONSE OVERALL

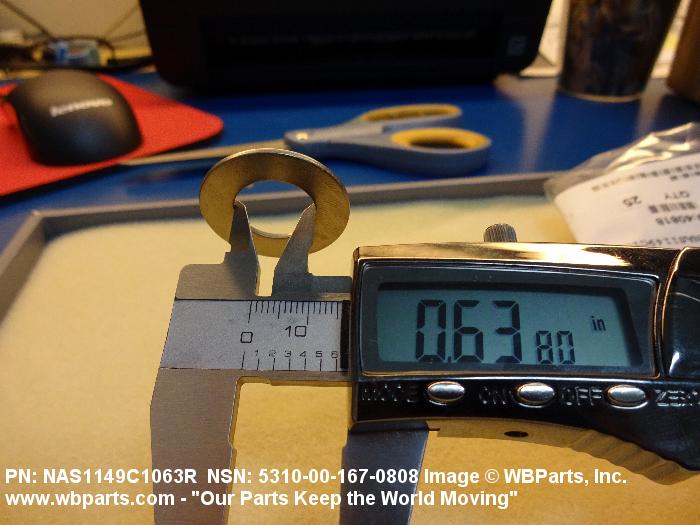

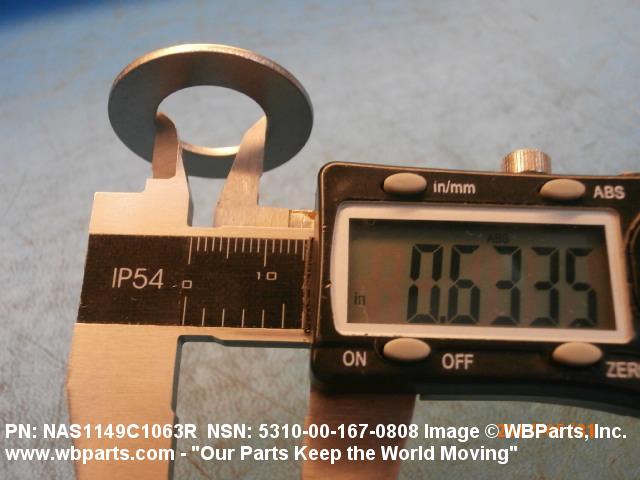

HOLE DIAMETER	0.630 INCHES MINIMUM AND 0.650 INCHES MAXIMUM
PERIPHERAL SHAPE STYLE	1 ROUND

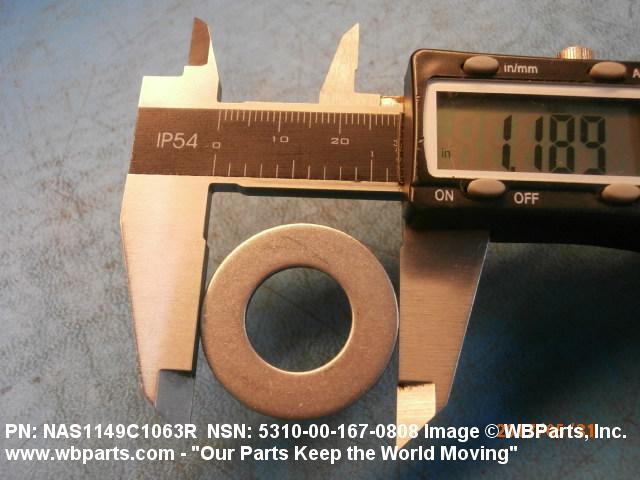

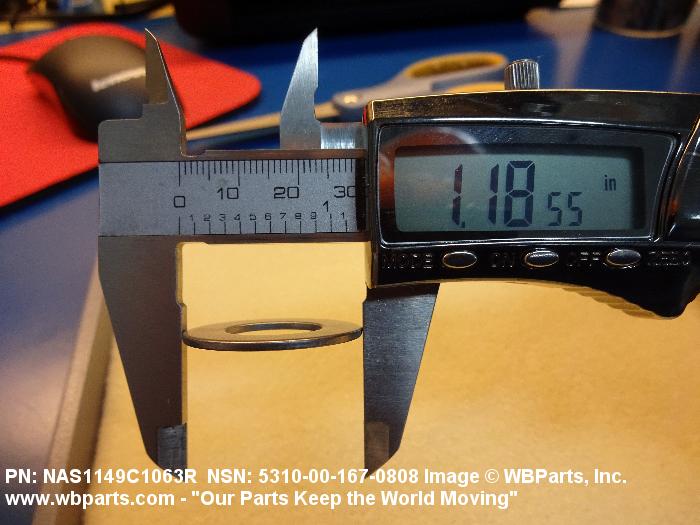

OVERALL DIAMETER	1.183 INCHES MINIMUM AND 1.208 INCHES MAXIMUM
CENTER HOLE SHAPE STYLE	1 ROUND
CROSS-SECTIONAL SHAPE STYLE	1 RECTANGULAR

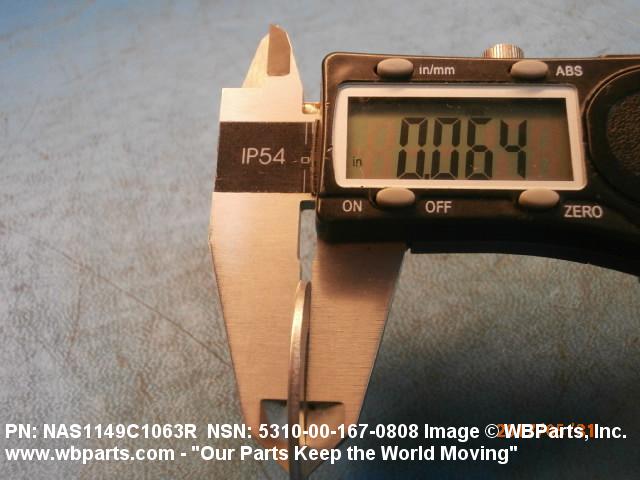

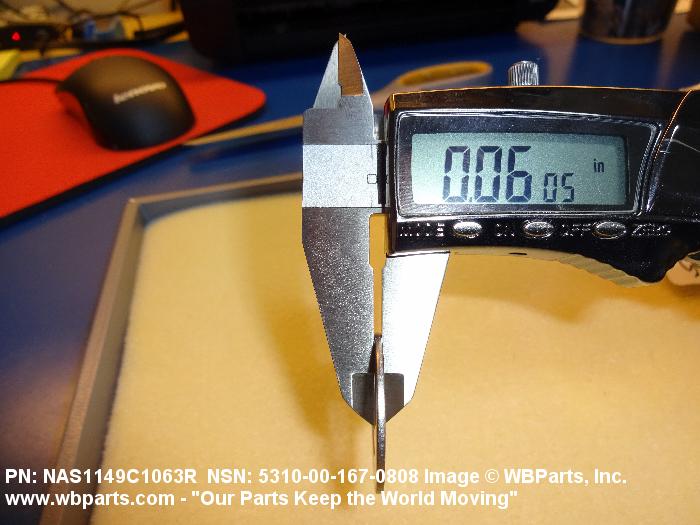

THICKNESS	0.053 INCHES MINIMUM AND 0.073 INCHES MAXIMUM
NONDEFINITIVE SPEC/STD DATA	A TYPE AND 2 GRADE AND B CLASS
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FF-W-92

Restrictions/Controls & Freight Information | NSN 5310-00-167-0808

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	194160	WASHER OR GASKETS, IRON OR STEEL,
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-167-0808

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BJ	AH-64 Airframe
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	K	Reserved
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
