NSN 5310-00-167-0766 MS630404, MS63040-4, AN9704
Product Details | FLAT WASHER
5310-00-167-0766 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.
Part Alternates: MS630404, MS63040-4, AN9704, AN970-4, F300 0T 024 0738, F3000T0240738, 8168223, 93047, 5310-00-167-0766, 00-167-0766, 5310001670766, 001670766
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-167-0766 | 13393 ( WASHER, FLAT ) |

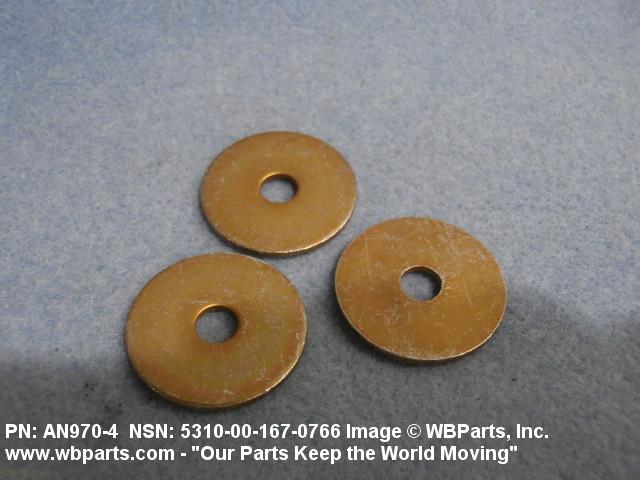

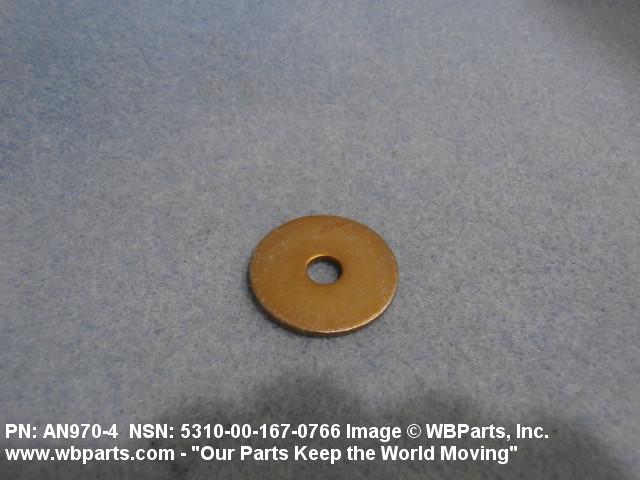

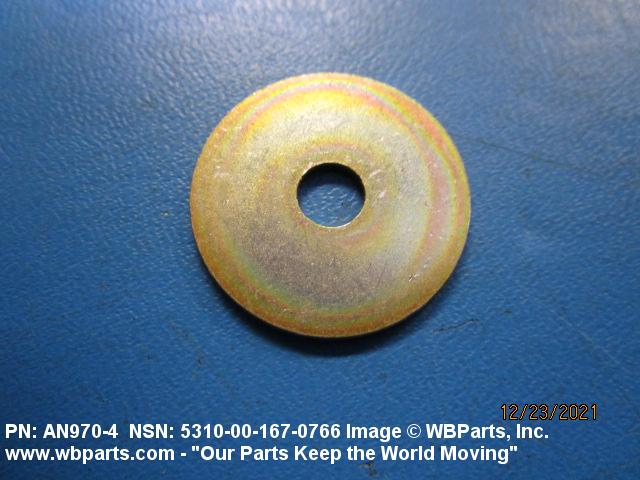

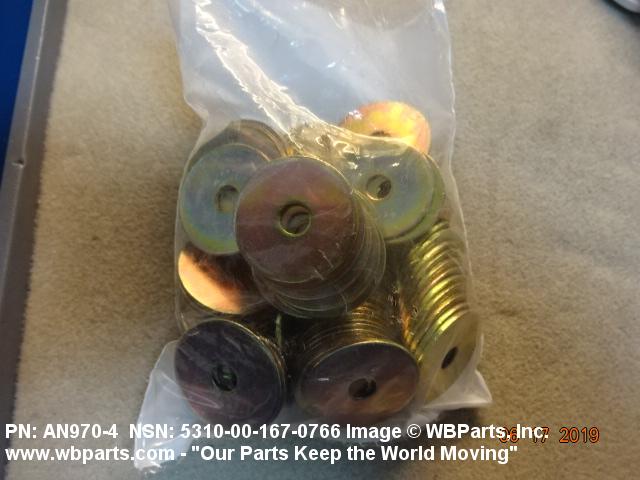

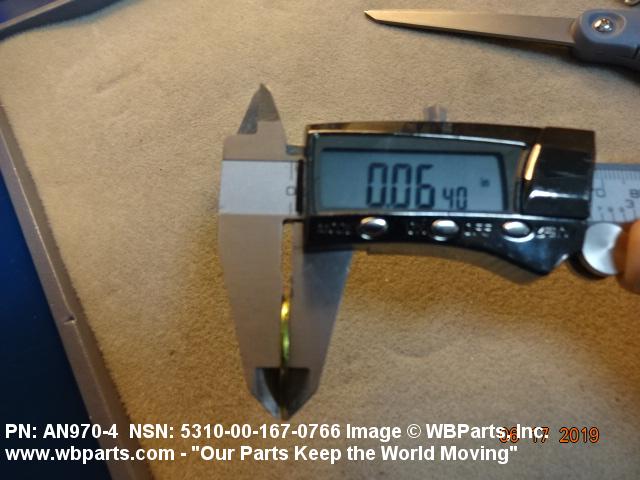

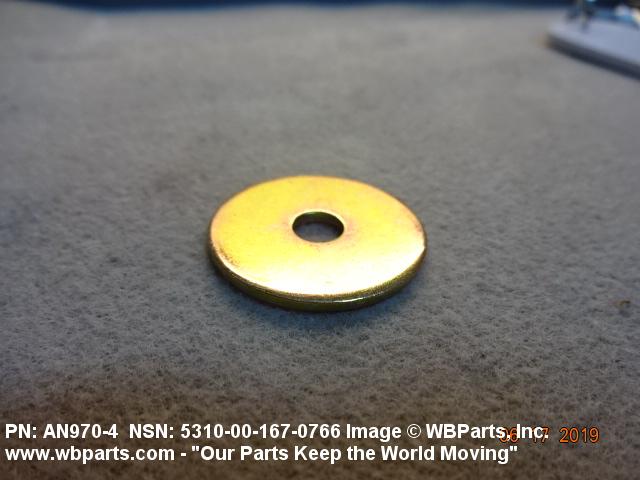

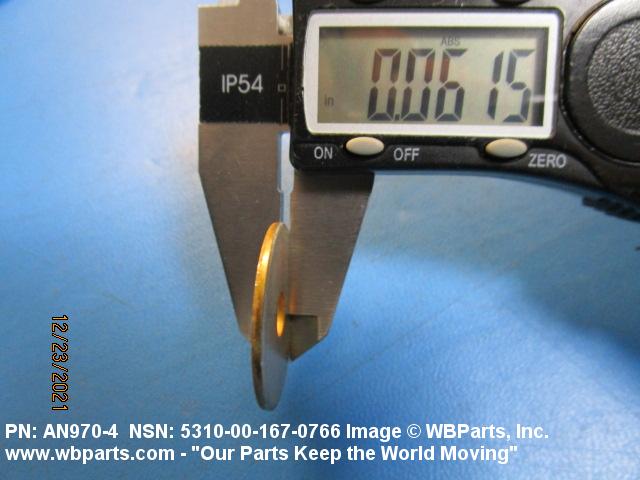

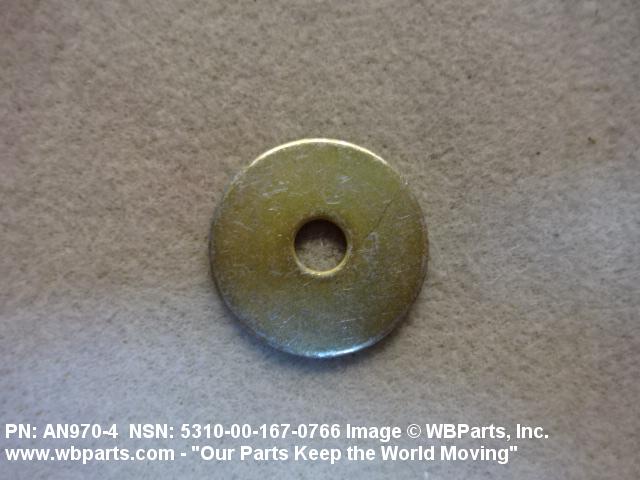

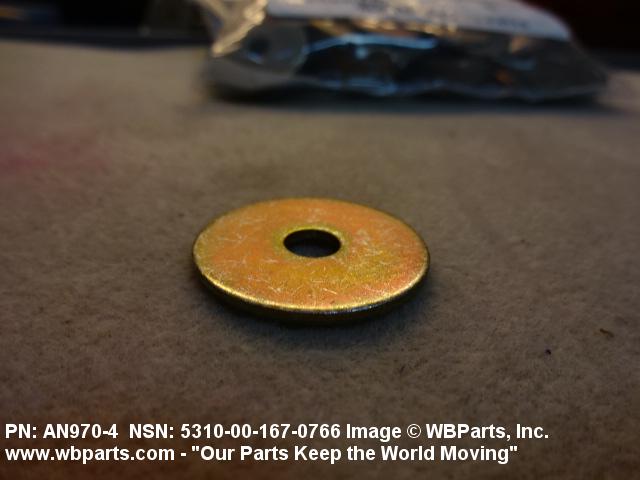

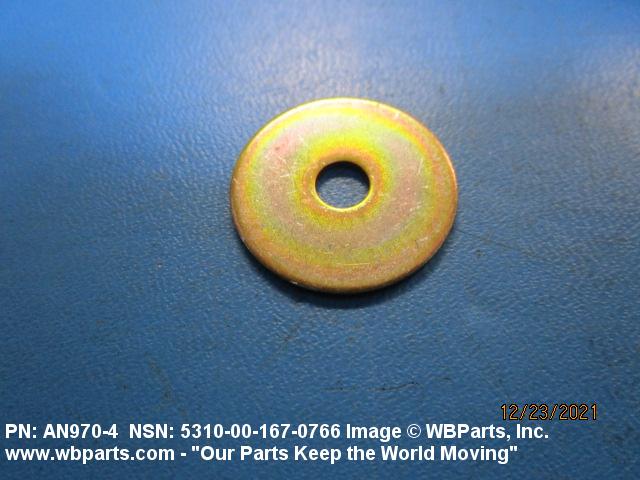

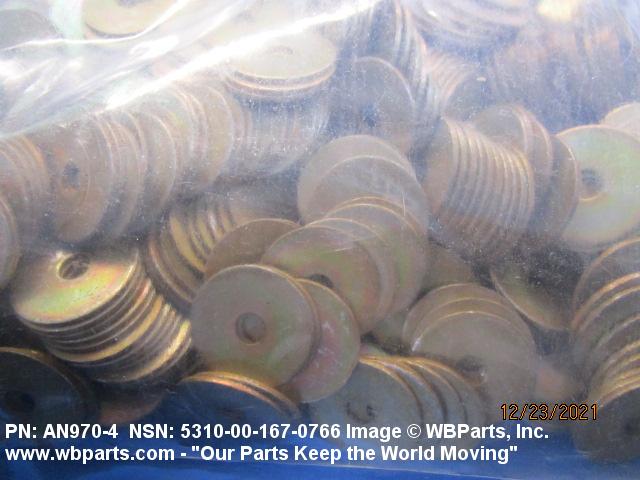

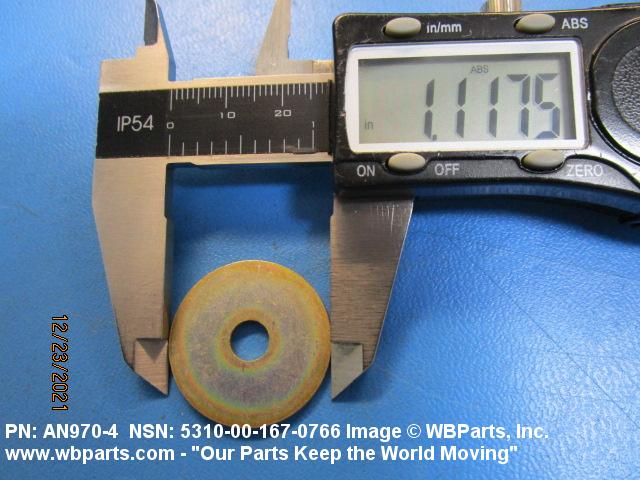

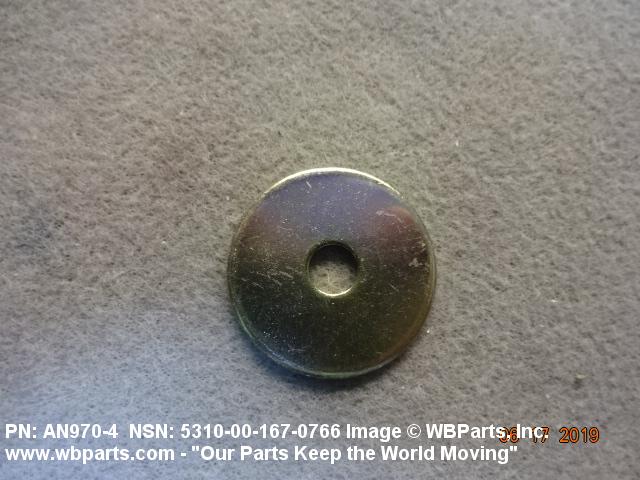

Drawings & Photos | NSN 5310-00-167-0766
Demand History | NSN 5310-00-167-0766
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN9704 | 2024-11-319 | 20 | United States |
| AN9704 | 2024-05-141 | 20 | IN |
| AN9704 | 2022-04-108 | 120 | United States |
| AN9704 | 2022-03-90 | 50 | United States |
| AN9704 | 2021-06-167 | 30 | MY |
| AN9704 | 2021-06-167 | 30 | TR |
| AN9704 | 2021-06-165 | 30 | US |
| MS630404 | 2021-02-50 | 50 | United States |
| AN970-4 | 2020-05-147 | 1000 | US |
| AN9704 | 2019-09-263 | 100 | US |
| AN9704 | 2019-09-263 | 500 | US |
| AN9704 | 2019-09-263 | 1000 | US |
| 5310-00-167-0766 | 2018-08-225 | 605 | DIBBS |
| 5310-00-167-0766 | 2018-06-158 | 681 | DIBBS |
| 5310-00-167-0766 | 2018-02-44 | 1374 | United States |
| AN9704 | 2018-01-30 | 4 | United States |
| AN9704 | 2018-01-30 | 4 | United States |
| AN9704 | 2018-01-12 | 20000 | United States |
| 5310-00-167-0766 | 2017-12-339 | 1374 | DIBBS |
| 5310-00-167-0766 | 2017-11-311 | 973 | DIBBS |
| AN9704 | 2017-08-221 | 100 | United States |
| 5310-00-167-0766 | 2017-06-181 | 5 | DIBBS-KIT |
| AN970-4 | 2017-06-181 | 5 | |
| AN9704 | 2017-05-124 | 1 | us |
| 5310-00-167-0766 | 2017-02-46 | 21200 | KR |
| AN9704 | 2017-02-40 | 40 | United States |
| 5310-00-167-0766 | 2017-01-08 | 319 | DIBBS |
| 5310-00-167-0766 | 2016-07-192 | 394 | DIBBS |
| AN9704 | 2016-05-132 | 500 | Thailand |
| 5310-00-167-0766 | 2016-05-129 | 976 | DIBBS |
| AN970-4 | 2016-01-18 | 4 | Australia |
| 5310-00-167-0766 | 2016-01-03 | 1469 | DIBBS |
| 5310-00-167-0766 | 2015-07-193 | 482 | DIBBS |
| 5310-00-167-0766 | 2015-02-48 | 843 | DIBBS |
| AN9704 | 2015-01-12 | 100 | Canada |
| MS63040-4 | 2014-11-308 | 5000 | United States |
| AN9704 | 2014-08-214 | 60 | US |
| 5310-00-167-0766 | 2014-02-56 | 724 | DIBBS |
| AN9704 | 2013-10-301 | 50 | Malaysia |
| AN9704 | 2013-07-207 | 25 | us |
| 5310-00-167-0766 | 2013-06-165 | 1000 | United States |
| AN9704 | 2013-04-120 | 8 | United States |
| AN9704 | 2013-04-120 | 16 | United States |
| AN9704 | 2013-02-36 | 20 | India |
| AN9704 | 2012-04-102 | 3 | United States |
| AN9704 | 2012-01-24 | 300 | United States |
| AN9704 | 2011-05-145 | 100 | US |
| AN9704 | 2010-12-350 | 1000 | United States |
| AN9704 | 2010-11-327 | 1 | United States |
| AN9704 | 2010-09-263 | 50 | Canada |
| 5310-00-167-0766 | 2010-06-179 | 65 | DIBBS |
| 5310-00-167-0766 | 2010-04-111 | 2250 | DIBBS |
| 5310-00-167-0766 | 2009-03-64 | 44 | US |
| 5310-00-167-0766 | 2009-01-27 | 120 | US |
| AN9704 | 2008-12-346 | 143 | United States |
| AN9704 | 2008-12-345 | 1 | United States |
| 5310-00-167-0766 | 2008-03-70 | 4824 | DIBBS |
| 5310-00-167-0766 | 2008-02-56 | 626 | DIBBS |
Cross Reference | NSN 5310-00-167-0766
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5310001670766 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 8168223 | 00000 | ORDNANCE CORPS |
| 93047 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| AN970-4 | 10630 | ANILLO INDUSTRIES, INC. DBA ANILLO INDUSTRIES |
| AN970-4 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| AN970-4 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN970-4 | FA1D6 | TECHNIC AVIATION |
| MS63040-4 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-167-0766
Technical Data | NSN 5310-00-167-0766
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |

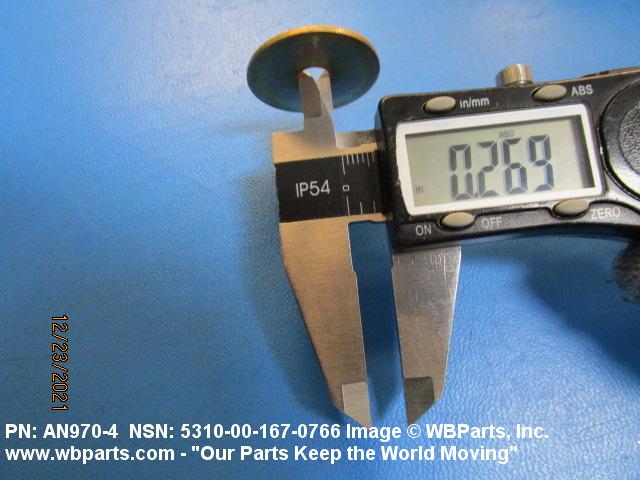

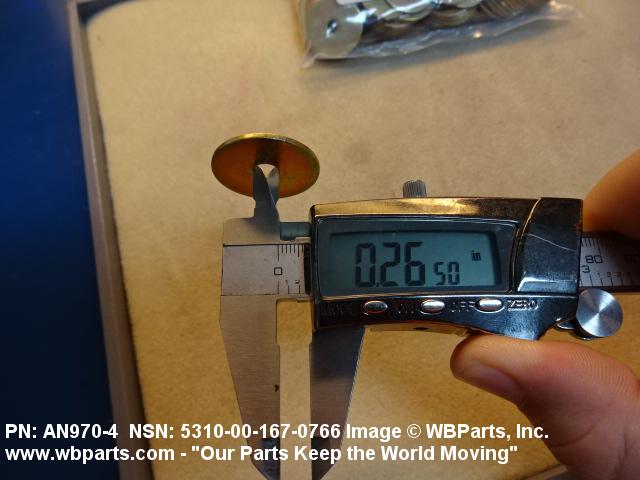

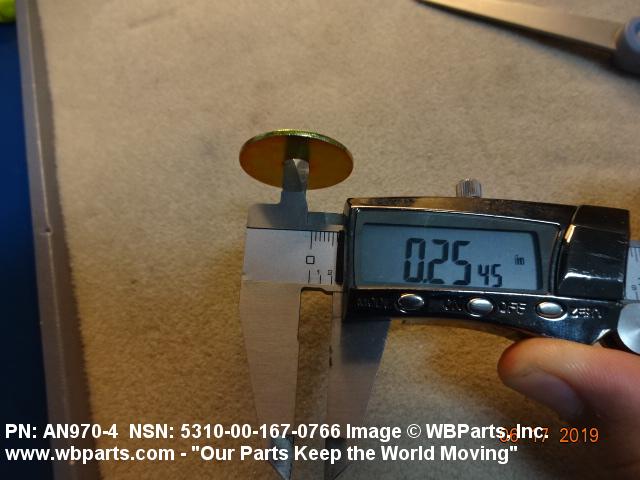

| HOLE DIAMETER | 0.255 INCHES MINIMUM AND 0.275 INCHES MAXIMUM |
| PERIPHERAL SHAPE STYLE | 1 ROUND |

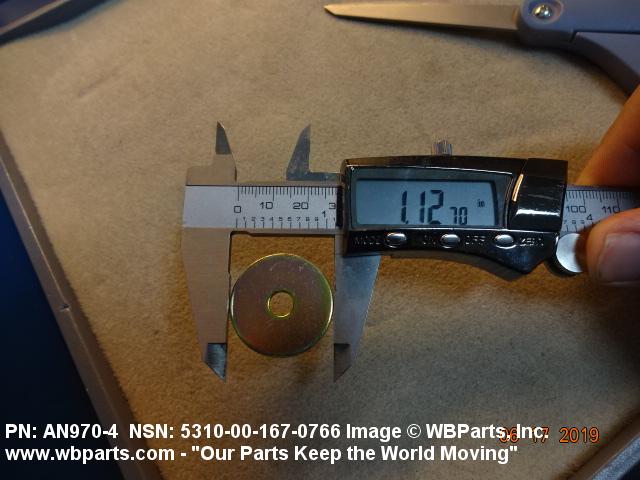

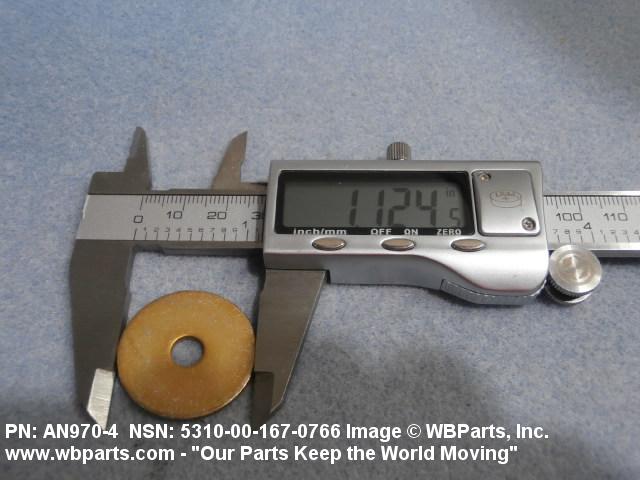

| OVERALL DIAMETER | 1.115 INCHES MINIMUM AND 1.135 INCHES MAXIMUM |
| CENTER HOLE SHAPE STYLE | 1 ROUND |
| CROSS-SECTIONAL SHAPE STYLE | 1 RECTANGULAR |

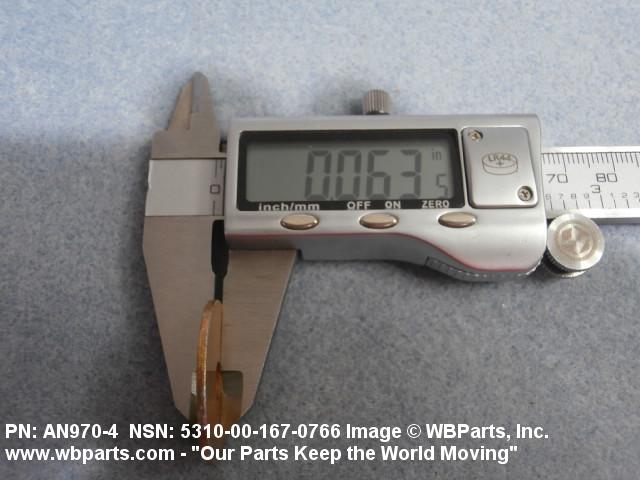

| THICKNESS | 0.053 INCHES MINIMUM AND 0.073 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5310-00-167-0766
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
