Product Details | FLAT WASHER

5310-00-167-0768 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.

Part Alternates: MS630406, MS63040-6, AN960A10 , AN9706, AN970-6, 000050638 ITEM, 000050638ITEM, 000050640 ITEM, 000050640ITEM, 000261437001, 000261437-001, 1243003190, 124-3003-190, 5310-00-167-0768, 00-167-0768, 5310001670768, 001670768

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1963 00-167-0768

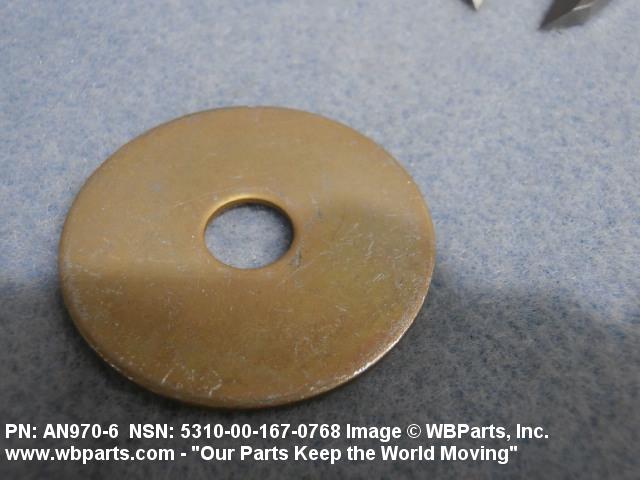

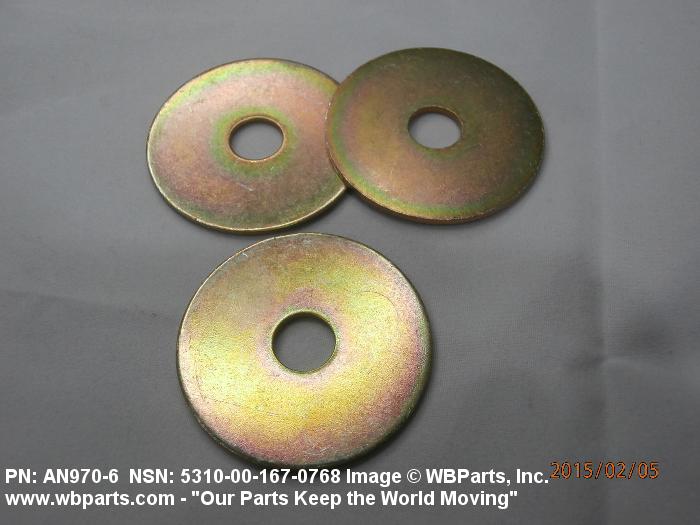

Drawings & Photos | NSN 5310-00-167-0768


Demand History | NSN 5310-00-167-0768

Part Number Request Date QTY Origin
AN9706 2024-03-66 3 US
5310-00-167-0768 2022-12-349 357 DIBBS
AN9706 2022-04-108 40 United States
AN970-6 2020-05-147 1000 US
5310-00-167-0768 2018-06-173 1 DIBBS-RFPs
5310-00-167-0768 2018-04-114 300 MANUAL
MS63040-6 2018-04-114 300 Seychelles
5310-00-167-0768 2017-11-321 142 US
5310-00-167-0768 2017-07-187 200 MANUAL
AN970-6 2017-07-187 200 KR
AN9706 2016-04-95 32 Egypt
MS63040-6 2014-11-308 5000 United States
AN9706 2013-09-263 2 Ecuador
AN9706 2013-04-120 12 United States
AN9706 2013-03-77 1 us
AN9706 2013-02-36 20 India
AN9706 2013-01-30 4 United Kingdom
AN9706 2012-04-100 88 US
AN9706 2011-07-199 25 United States
AN9706 2010-05-132 36 United States
AN9706 2009-12-338 5 US
AN9706 2009-07-212 150 United States
5310-00-167-0768 2009-06-170 69 DIBBS
AN9706 2008-04-94 8 US
AN9706 2008-03-79 8 United States

Cross Reference | NSN 5310-00-167-0768

Part Number Cage Code Manufacturer
000050638 ITEM 07332 WAUKESHA BEARINGS CORPORATION
000050640 ITEM 07332 WAUKESHA BEARINGS CORPORATION
000261437-001 D9182 BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
124-3003-190 13499 ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
AN970-6 6R888 J. T. D. STAMPING CO., INC.
AN970-6 80205 NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
AN970-6 88044 AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
MS63040-6 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NASM970 80205 NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-167-0768

Technical Data | NSN 5310-00-167-0768

Characteristic Specifications
MATERIAL STEEL OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION 66 FED STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-P-416,TY 1,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL

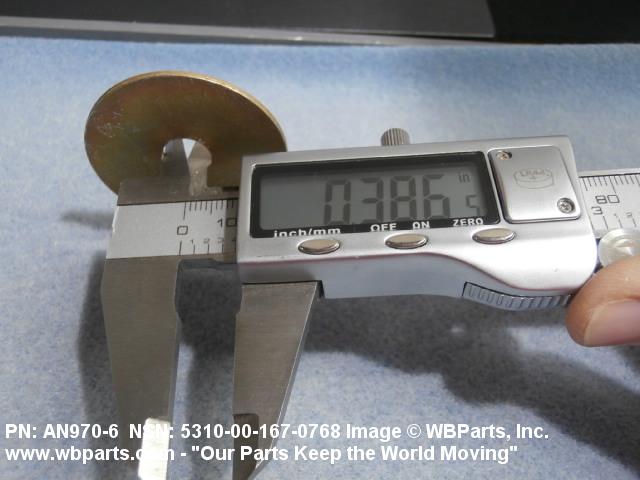

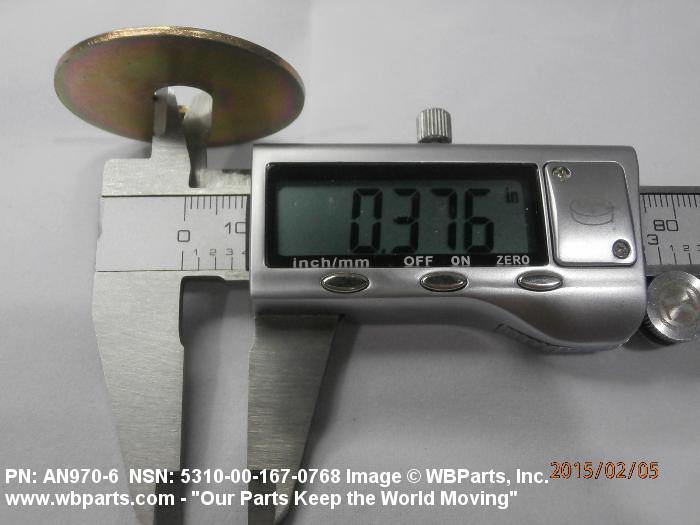

HOLE DIAMETER 0.380 INCHES MINIMUM AND 0.400 INCHES MAXIMUM
PERIPHERAL SHAPE STYLE 1 ROUND

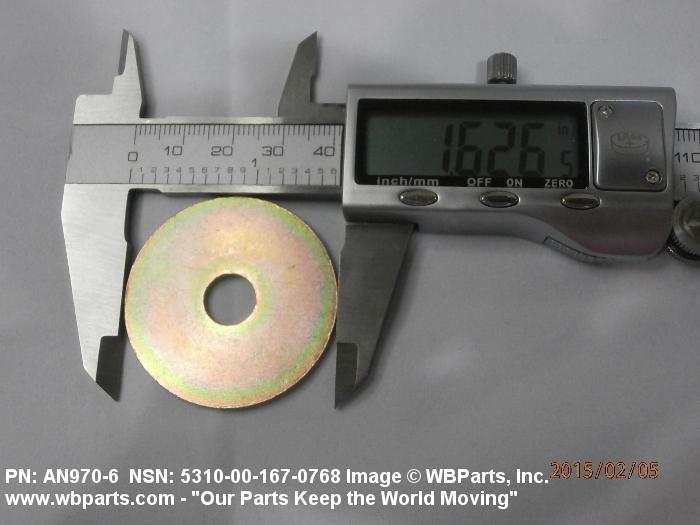

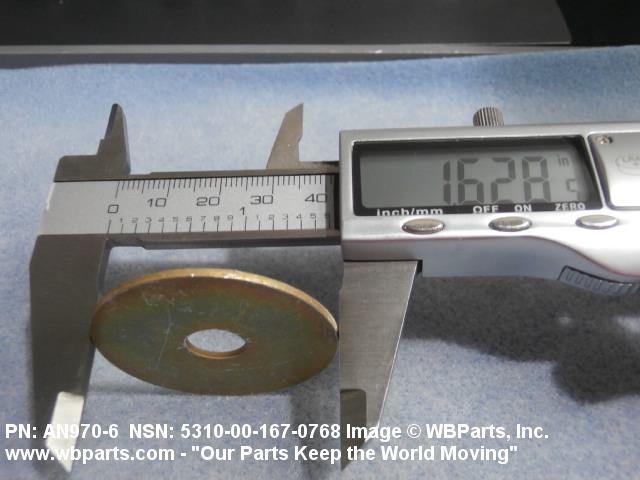

OVERALL DIAMETER 1.615 INCHES MINIMUM AND 1.635 INCHES MAXIMUM
CENTER HOLE SHAPE STYLE 1 ROUND
CROSS-SECTIONAL SHAPE STYLE 1 RECTANGULAR

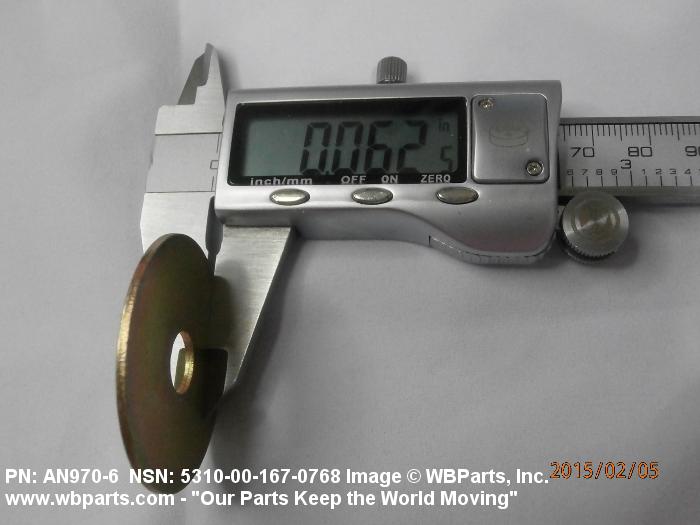

THICKNESS 0.053 INCHES MINIMUM AND 0.073 INCHES MAXIMUM

Restrictions/Controls & Freight Information | NSN 5310-00-167-0768

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 194120 WASHERS/GASKETS/PCKG DVCS NOI
Less than car load rating P 77.5
Less than truck load rating W Rating Variable
Water commodity Code 713 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable
