Product Details | HEXAGON PLAIN NUT

5310-00-141-3009 A nut, flat on top and bottom having 6 flat sides. For items which have internal tapered or straight (parallel) pipe threads, specific electrical conduit size designation, and which when installed, provide a method of tightening to lock the connection, see LOCKNUT, ELECTRICAL CONDUIT. See also LOCKNUT, TUBE FITTING. For items having a thickness (or height) exceeding two times the width across the flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. (When height or thickness and/or width across the flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance.

Part Alternates: NAS5098, NAS509-8, FFN836, FF-N-836, LS111708, LS11170-8, 5310-00-141-3009, 00-141-3009, 5310001413009, 001413009

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1963 00-141-3009

Drawings & Photos | NSN 5310-00-141-3009


Demand History | NSN 5310-00-141-3009

Part Number Request Date QTY Origin
FFN836 2024-10-291 190 US
NAS5098 2024-09-250 25 United States
FFN836 2023-09-258 100 TR
NAS5098 2023-02-46 10 United States
FFN836 2021-11-307 200 United States
FFN836 2021-08-228 100 United States
5310-00-141-3009 2020-11-322 2476 DIBBS
NAS5098 2020-05-135 2 Canada
NAS5098 2019-12-346 230 United States
FFN836 2019-02-44 288 US
NAS5098 2018-07-190 100 India
FFN836 2018-02-32 2 US
NAS509-8 2017-07-206 2 India
FFN836 2017-05-123 25 United States
FF-N-836 2016-05-145 48 Spain
NAS5098 2015-03-68 100 United States
5310-00-141-3009 2014-12-355 2610 DIBBS
5310-00-141-3009 2014-08-222 2 DIBBS
5310-00-141-3009 2014-03-82 2591 DIBBS
NAS5098 2014-03-76 24 KR
NAS5098 2014-01-10 3 United States
NAS5098 2014-01-09 3 US
NAS5098 2013-07-207 4 US
NAS5098 2013-03-66 6 United States
FFN836 2012-12-341 1 US
NAS509-8 2012-11-310 50
5310-00-141-3009 2012-10-290 8 United States
NAS5098 2012-10-289 8 US
5310-00-141-3009 2012-05-125 120 India
5310-00-141-3009 2012-04-117 100 United States
NAS509-8 2012-04-116 20 TR
NAS509-8 2012-04-115 22 IN
5310-00-141-3009 2012-01-26 3373 DIBBS
NAS5098 2011-11-326 35 United States
5310-00-141-3009 2011-06-157 2597 DIBBS
FFN836 2010-11-322 100 United Kingdom
5310-00-141-3009 2010-10-300 100 India
FFN836 2010-08-218 1 US
FFN836 2010-08-218 1 US
FFN836 2010-08-218 1 US
FFN836 2010-08-218 1 US
5310-00-141-3009 2010-04-113 4998 DIBBS
FFN836 2010-03-90 4 us
FFN836 2010-03-81 50 United States
FFN836 2010-02-46 50 United States
5310-00-141-3009 2009-09-260 2243 DIBBS
FFN836 2009-07-183 1000 US
FFN836 2009-05-141 580 US
5310-00-141-3009 2009-02-50 9 US
5310-00-141-3009 2009-01-09 22 United States
FFN836 2008-07-195 20 US
FFN836 2008-06-171 200 US
FFN836 2008-02-39 1 US
FFN836 2007-10-298 100 US

Cross Reference | NSN 5310-00-141-3009

Part Number Cage Code Manufacturer
FF-N-836 81348 FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
LS11170-8 98897 LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS
NAS509-8 80205 NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-141-3009

Technical Data | NSN 5310-00-141-3009

Characteristic Specifications
THREAD SERIES UNJF
NOMINAL THREAD SIZE 0.500 INCHES
THREAD QUANTITY PER INCH 20
THREAD CLASS 3B
THREAD DIRECTION RIGHT-HAND
MATERIAL STEEL COMP 4130 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-P-416,TYPE 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING 34.0 ROCKWELL C MINIMUM AND 38.0 ROCKWELL C MAXIMUM
NUT STYLE A12 HEXAGON
NUT HEIGHT 0.313 INCHES NOMINAL

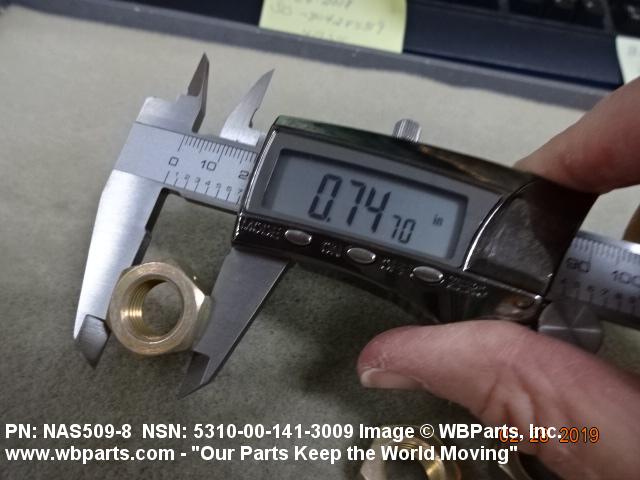

WIDTH ACROSS FLATS 0.740 INCHES MINIMUM AND 0.752 INCHES MAXIMUM
HOLE CONFIGURATION STYLE H2 CONFIGURATION B
HOLE TYPE AND QUANTITY 3 DRILLED

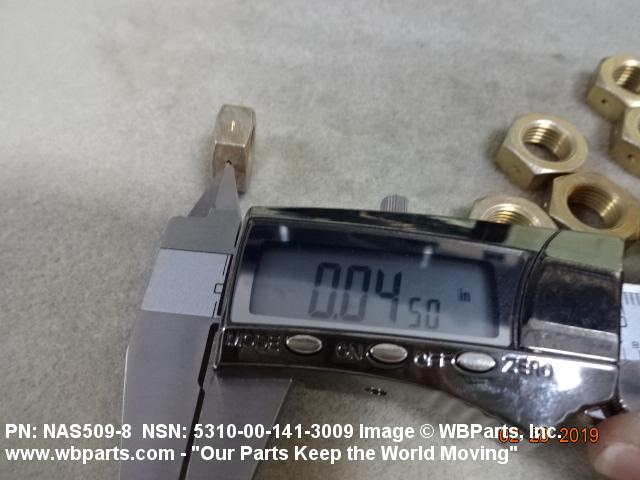

DRILLED HOLE DIAMETER 0.045 INCHES MINIMUM AND 0.050 INCHES MAXIMUM
BEARING SURFACE TYPE CHAMFERED
COUNTERSINK ANGLE 110.0 DEGREES NOMINAL BOTH ENDS
TEMP RATING NOT RATED
III BEARING SURFACE FINISH 125.0 MICROINCHES
MANUFACTURERS CODE 81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE FF-N-836

Restrictions/Controls & Freight Information | NSN 5310-00-141-3009

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:FThe item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).
Category Code Description
NMF Description 093486 BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 573 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5310-00-141-3009

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
