NSN 5310-00-141-3010 NAS5094, NAS509-4, FFN836

Product Details | HEXAGON PLAIN NUT

5310-00-141-3010 A nut, flat on top and bottom having 6 flat sides. For items which have internal tapered or straight (parallel) pipe threads, specific electrical conduit size designation, and which when installed, provide a method of tightening to lock the connection, see LOCKNUT, ELECTRICAL CONDUIT. See also LOCKNUT, TUBE FITTING. For items having a thickness (or height) exceeding two times the width across the flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. (When height or thickness and/or width across the flats is designated as a tolerance dimension, the maximum dimension will be used to determine compliance.

Part Alternates: NAS5094, NAS509-4, FFN836, FF-N-836, LS111704, LS11170-4, LS111704M, LS11170-4M, 10116574 , 2210221, 5310-00-141-3010, 00-141-3010, 5310001413010, 001413010

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-141-3010	01857 ( NUT, PLAIN, HEXAGON )

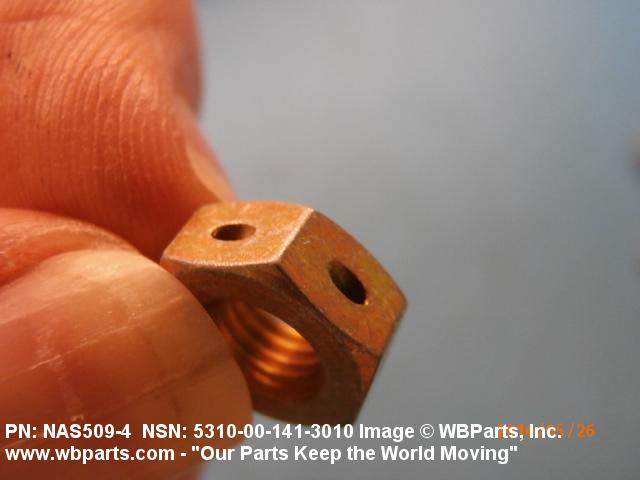

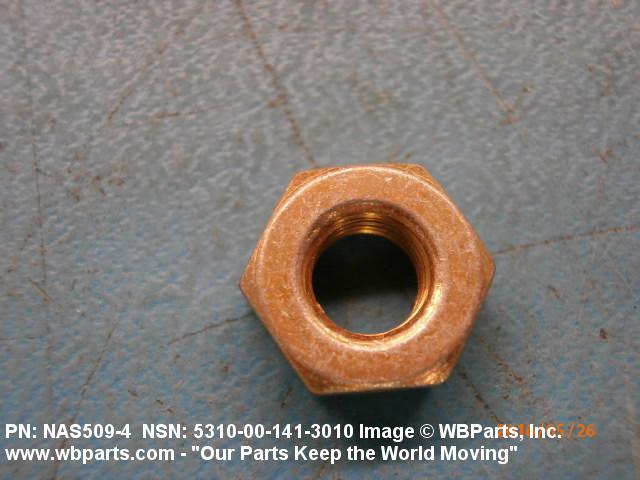

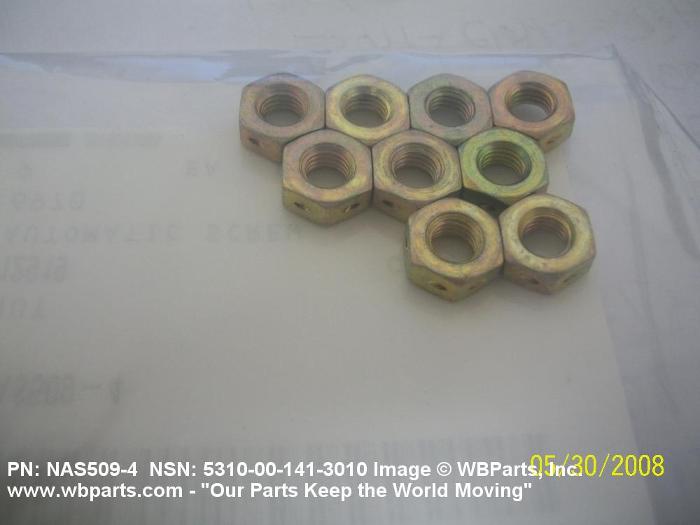

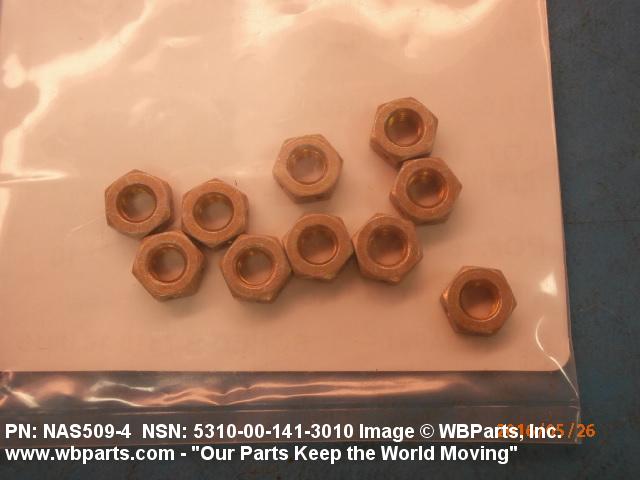

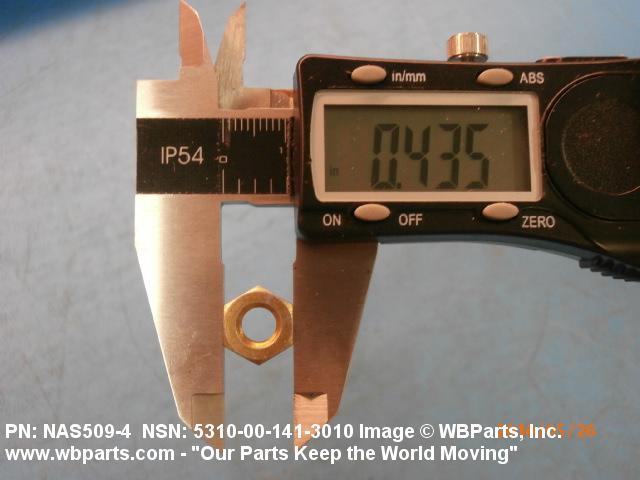

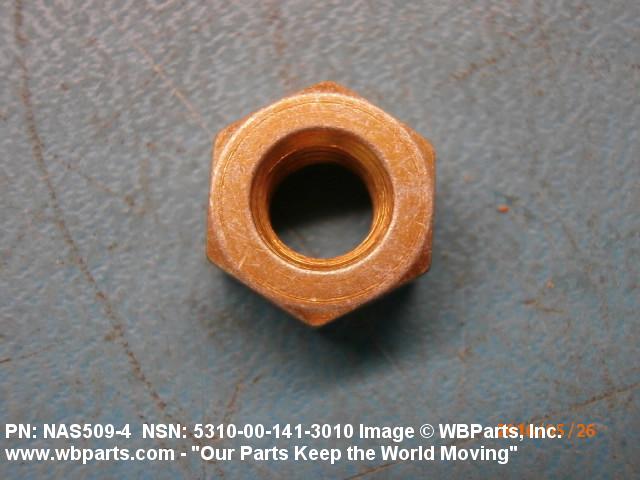

Drawings & Photos | NSN 5310-00-141-3010

Part Number	Request Date	QTY	Origin
FFN836	2024-10-291	190	US
NAS5094	2024-08-229	2	us
5310-00-141-3010	2024-02-43	10	Saudi Arabia
NAS5094	2024-02-40	20	United States
FFN836	2023-09-258	100	TR
5310-00-141-3010	2023-07-194	200	US
5310-00-141-3010	2022-05-138	2	US
FFN836	2021-11-307	200	United States
5310-00-141-3010	2021-09-267	3	United States
FFN836	2021-08-228	100	United States
NAS5094	2021-04-103	8	US
NAS509-4	2020-05-136	40	Poland
FFN836	2019-02-44	288	US
NAS5094	2019-01-14	1	United States
NAS5094	2019-01-14	2	United States
NAS5094	2019-01-14	6	United States
NAS5094	2019-01-14	10	United States
NAS5094	2019-01-14	20	United States
NAS5094	2019-01-14	40	United States
NAS5094	2019-01-14	75	United States
NAS5094	2019-01-14	120	United States
NAS5094	2019-01-14	300	United States
NAS5094	2018-12-346	1	United States
NAS5094	2018-12-346	2	United States
NAS5094	2018-12-346	6	United States
NAS5094	2018-12-346	10	United States
NAS5094	2018-12-346	20	United States
NAS5094	2018-12-346	40	United States
NAS5094	2018-12-346	75	United States
NAS5094	2018-12-346	120	United States
NAS5094	2018-12-346	300	United States
5310-00-141-3010	2018-10-282	2452	DIBBS
NAS5094	2018-07-190	100	India
FFN836	2018-02-32	2	US
5310-00-141-3010	2018-01-01	4369	DIBBS
5310-00-141-3010	2017-11-309	1293	DIBBS
5310-00-141-3010	2017-10-288	689	DIBBS
5310-00-141-3010	2017-10-274	1725	DIBBS
5310-00-141-3010	2017-08-233	4400	US
5310-00-141-3010	2017-08-228	4377	DIBBS
FFN836	2017-05-123	25	United States
NAS5094	2016-05-146	4	United States
FF-N-836	2016-05-145	48	Spain
NAS509-4	2015-05-147	8	Romania
NAS5094	2015-04-107	300	United States
NAS509-4	2015-03-76	10	TH
5310-00-141-3010	2015-01-29	50	US
5310-00-141-3010	2014-09-268	9521	DIBBS
NAS5094	2014-08-232	8	United States
NAS5094	2013-12-355	30	US
5310-00-141-3010	2013-09-246	10787	DIBBS
NAS5094	2013-08-233	60	US
5310-00-141-3010	2013-02-46	10	Argentina
FFN836	2012-12-341	1	US
5310-00-141-3010	2012-07-184	50	United States
NAS5094	2011-06-174	42	US
NAS5094	2011-06-174	210	US
5310-00-141-3010	2011-04-91	100	CA
5310-00-141-3010	2011-01-03	20	US
5310-00-141-3010	2010-12-350	10	US
FFN836	2010-11-322	100	United Kingdom
NAS5094	2010-11-307	60	US
FFN836	2010-08-218	1	US
FFN836	2010-08-218	1	US
FFN836	2010-08-218	1	US
FFN836	2010-08-218	1	US
FFN836	2010-03-90	4	us
FFN836	2010-03-81	50	United States
NAS5094	2010-03-61	4	US
FFN836	2010-02-46	50	United States
5310-00-141-3010	2009-09-273	2	United States
NAS5094	2009-09-265	100	Netherlands
5310-00-141-3010	2009-09-257	10	US
FFN836	2009-07-183	1000	US
FFN836	2009-05-141	580	US
NAS5094	2009-03-82	3	United States
5310-00-141-3010	2008-07-196	5	United States
FFN836	2008-07-195	20	US
5310-00-141-3010	2008-07-189	50	US
FFN836	2008-06-171	200	US
5310-00-141-3010	2008-06-157	1	United States
FFN836	2008-02-39	1	US
FFN836	2007-10-298	100	US

Cross Reference | NSN 5310-00-141-3010

Part Number	Cage Code	Manufacturer
2210221	001JK	EMBRAER S/A
2210221	FB459	EMBRAER AVIATION INTERNATIONAL
2210221	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
FF-N-836	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
LS11170-4	98897	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS
LS11170-4M	98897	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS
NAS509-4	51792	COLUMBIA NUT & BOLT LLC
NAS509-4	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-141-3010

Compare

Related Products | NSN 5310-00-141-3010

5310-00-141-3011, 5310-00-141-3014, 5310-00-141-3015, 5310-00-141-3019, 5310-00-141-3021

Technical Data | NSN 5310-00-141-3010

Characteristic	Specifications
THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.250 INCHES
THREAD QUANTITY PER INCH	28
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL COMP 4130 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-6758,COND F4 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	34.0 ROCKWELL C MINIMUM AND 38.0 ROCKWELL C MAXIMUM
NUT STYLE	A12 HEXAGON

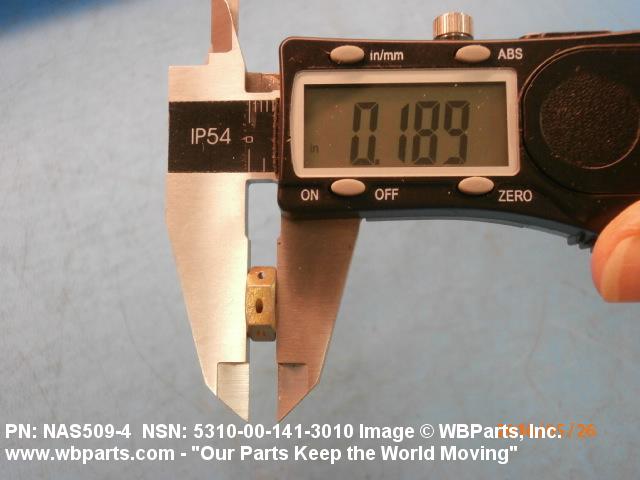

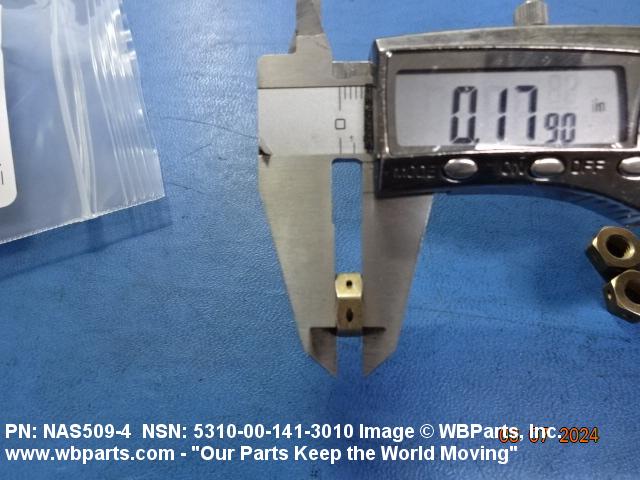

NUT HEIGHT	0.188 INCHES NOMINAL
WIDTH ACROSS FLATS	0.428 INCHES MINIMUM AND 0.440 INCHES MAXIMUM
HOLE CONFIGURATION STYLE	H2 CONFIGURATION B

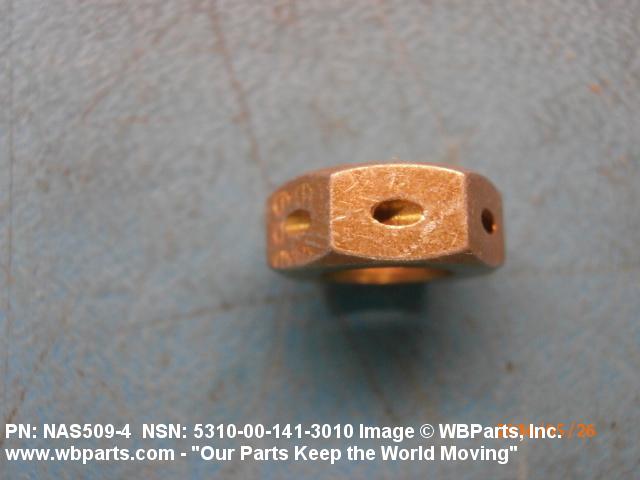

HOLE TYPE AND QUANTITY	3 DRILLED

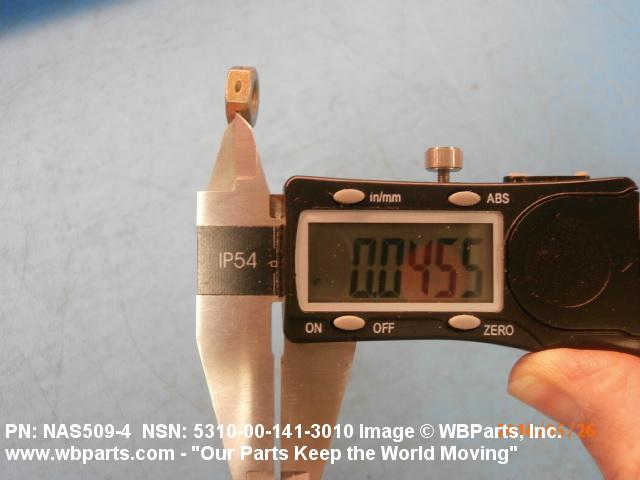

DRILLED HOLE DIAMETER	0.045 INCHES MINIMUM AND 0.050 INCHES MAXIMUM
BEARING SURFACE TYPE	CHAMFERED
TEMP RATING	NOT RATED
NONDEFINITIVE SPEC/STD DATA	2 TYPE
III BEARING SURFACE FINISH	125.0 MICROINCHES
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FF-N-836

Restrictions/Controls & Freight Information | NSN 5310-00-141-3010

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-141-3010

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BJ	AH-64 Airframe
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	7	An item that has been reviewed and determined not to fit the definition of codes 0 thru 6. These items are not assigned a specific application within the Marine Corps.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
