NSN 5310-00-043-0818 GYN145, 00-043-0818, 000430818
Product Details | HEXAGON SLOTTED SELF-LOCKING NUT
5310-00-043-0818 A nut having a flat bearing surface and 6 flat sides with slots in its upper portion. An integral feature is incorporated for locking on the threads of a mating member. The slots, when used in conjunction with a solid or split (cotter) pin, act as an extra "fail safe", feature in critical applications. Excludes NUT (1), SELF-LOCKING, CASTELLATED, OCTAGON.
Part Alternates: GYN145, 5310-00-043-0818, 00-043-0818, 5310000430818, 000430818
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 MAY 1968 | 00-043-0818 | 29733 ( NUT, SELF-LOCKING, SLOTTED, HEXAGON ) |

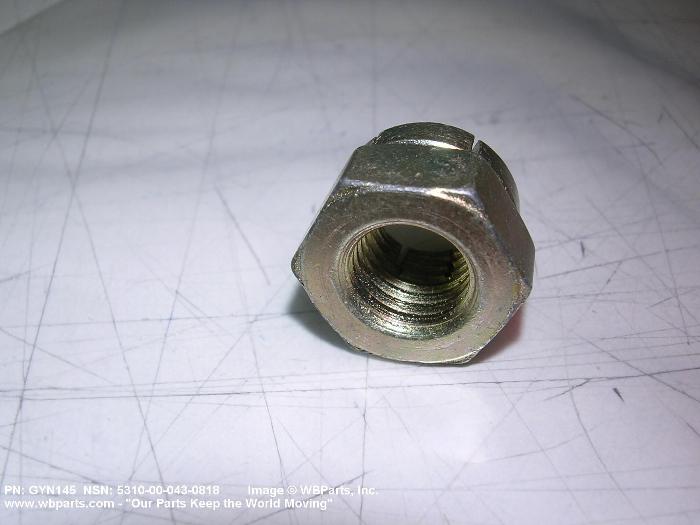

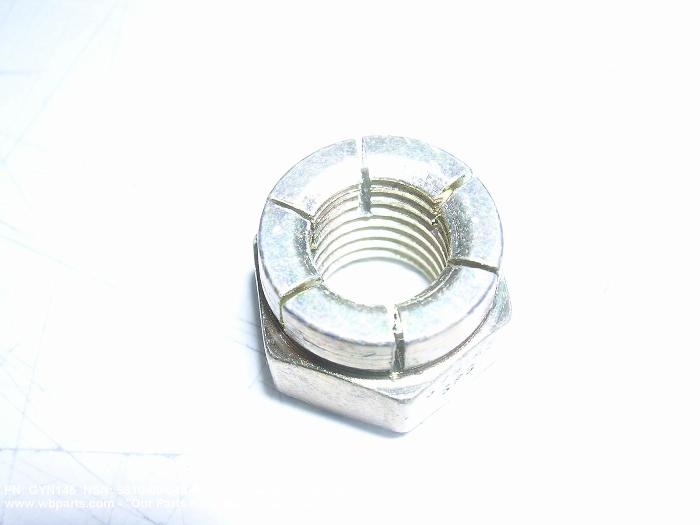

Drawings & Photos | NSN 5310-00-043-0818
Demand History | NSN 5310-00-043-0818
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-043-0818 | 2022-04-96 | 10 | Sweden |
| 5310-00-043-0818 | 2014-09-246 | 1549 | DIBBS |
| 5310-00-043-0818 | 2013-04-100 | 899 | DIBBS |
| 5310-00-043-0818 | 2013-02-49 | 900 | US |
| 5310-00-043-0818 | 2013-01-22 | 899 | DIBBS |
| 5310-00-043-0818 | 2013-01-03 | 810 | DIBBS |
| 5310-00-043-0818 | 2012-11-312 | 928 | DIBBS |
| 5310-00-043-0818 | 2012-10-278 | 1130 | DIBBS |
| 5310-00-043-0818 | 2011-06-172 | 54 | DIBBS |
| 5310-00-043-0818 | 2011-05-145 | 52 | DIBBS |
| 5310-00-043-0818 | 2011-05-123 | 1002 | DIBBS |
| 5310-00-043-0818 | 2011-04-103 | 2845 | DIBBS |
| GYN145 | 2010-12-342 | 50 | CA |
| 5310-00-043-0818 | 2010-11-305 | 727 | DIBBS |
| 5310-00-043-0818 | 2010-09-272 | 572 | DIBBS |
| 5310-00-043-0818 | 2010-09-260 | 4 | DIBBS |
| 5310-00-043-0818 | 2010-03-89 | 110 | DIBBS |
| 5310-00-043-0818 | 2009-11-322 | 737 | DIBBS |
| 5310-00-043-0818 | 2009-09-252 | 164 | DIBBS |
| 5310-00-043-0818 | 2009-08-236 | 277 | DIBBS |
| 5310-00-043-0818 | 2009-05-150 | 1429 | DIBBS |
| 5310-00-043-0818 | 2009-03-75 | 312 | DIBBS |
| 5310-00-043-0818 | 2009-03-69 | 259 | DIBBS |
| 5310-00-043-0818 | 2008-06-170 | 4 | US |
| 5310-00-043-0818 | 2008-04-114 | 7000 | DIBBS |
| GYN145 | 2008-03-72 | 40 | US |
| 5310-00-043-0818 | 2008-02-36 | 50 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-043-0818
Related Products | NSN 5310-00-043-0818
Technical Data | NSN 5310-00-043-0818
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.312 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A17 SLOTTED, HEXAGON |
| NUT HEIGHT | 0.348 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.498 INCHES NOMINAL |
| BEARING SURFACE TYPE | CHAMFERED |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| TEMP RATING | NOT RATED |
| MANUFACTURERS CODE | 73842 |
| DESIGN CONTROL REFERENCE | GYN145 |
Restrictions/Controls & Freight Information | NSN 5310-00-043-0818
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | SG | 403 SCMS/GUED 5215 Thurlow St, Suite 5, Bldg 70C Wright-Patterson AFB OH 45433 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-043-0818
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | LE | SU:LANDING GEAR SYSTEMS AND COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
