NSN 5310-01-193-6883 50FK640, 5255189027, 525-518-9027
Product Details | HEXAGON SLOTTED SELF-LOCKING NUT
5310-01-193-6883 A nut having a flat bearing surface and 6 flat sides with slots in its upper portion. An integral feature is incorporated for locking on the threads of a mating member. The slots, when used in conjunction with a solid or split (cotter) pin, act as an extra "fail safe", feature in critical applications. Excludes NUT (1), SELF-LOCKING, CASTELLATED, OCTAGON.
Part Alternates: 50FK640, 5255189027, 525-518-9027, 645167P640, 5310-01-193-6883, 01-193-6883, 5310011936883, 011936883
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 NOV 1984 | 01-193-6883 | 29733 ( NUT, SELF-LOCKING, SLOTTED, HEXAGON ) |

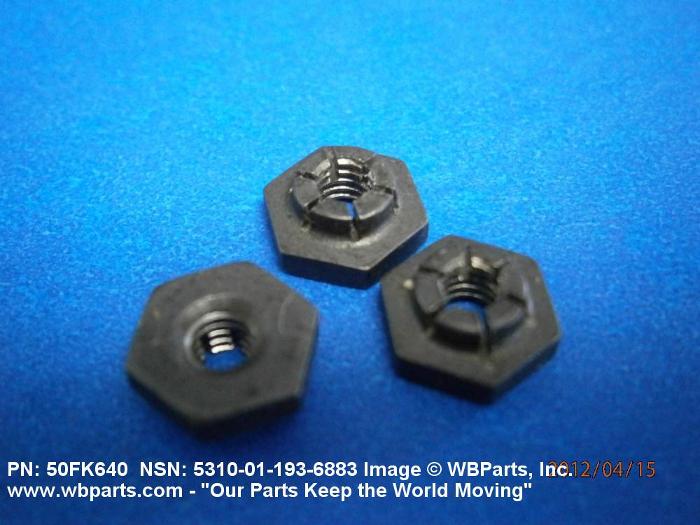

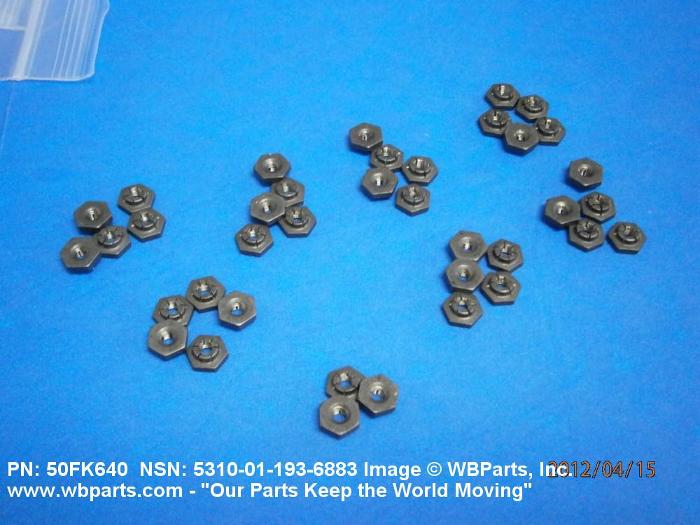

Drawings & Photos | NSN 5310-01-193-6883
Demand History | NSN 5310-01-193-6883
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-193-6883 | 2018-02-39 | 135 | DIBBS |
| 5310-01-193-6883 | 2018-01-31 | 135 | DIBBS |
| 5310-01-193-6883 | 2015-05-139 | 275 | DIBBS |
| 5310-01-193-6883 | 2015-04-120 | 275 | DIBBS |
| 50FK640 | 2012-03-83 | 38 | Turkey |
| 50FK640 | 2012-02-45 | 38 | Turkey |
| 50FK640 | 2012-01-27 | 38 | Turkey |
| 5310-01-193-6883 | 2009-12-349 | 122 | DIBBS |
| 50FK640 | 2009-08-227 | 200 | US |
| 50FK640 | 2007-09-270 | 150 | US |
| 50FK640 | 2006-11-326 | 3 | US |
Cross Reference | NSN 5310-01-193-6883
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-193-6883
Related Products | NSN 5310-01-193-6883
Technical Data | NSN 5310-01-193-6883
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 40 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 302 OR STEEL COMP 302B OR STEEL COMP 303 OR STEEL COMP 303 PLUS X OR STEEL COMP 303SE OR STEEL COMP 303CU OR STEEL COMP 303MA OR STEEL COMP 303PB OR STEEL COMP 304 OR STEEL COMP 304L OR STEEL COMP 304H OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A17 SLOTTED, HEXAGON |
| NUT HEIGHT | 0.141 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.305 INCHES MINIMUM AND 0.313 INCHES MAXIMUM |
| BEARING SURFACE TYPE | FLAT |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| TEMP RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5310-01-193-6883
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-193-6883
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
