NSN 5307-01-549-5173 120745, 432431A1, 01-549-5173
Product Details | BALL STUD
5307-01-549-5173 A metal item with a spherical shaped head and a straight and/or tapered body, usually with a threaded shank.
Part Alternates: 120745, 432431A1, 5307-01-549-5173, 01-549-5173, 5307015495173, 015495173
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 MAR 2007 | 01-549-5173 | 17484 ( STUD, BALL ) |
Drawings & Photos | NSN 5307-01-549-5173
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-01-549-5173
Related Products | NSN 5307-01-549-5173
Technical Data | NSN 5307-01-549-5173
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | CHROMATE ZINC OVERALL |

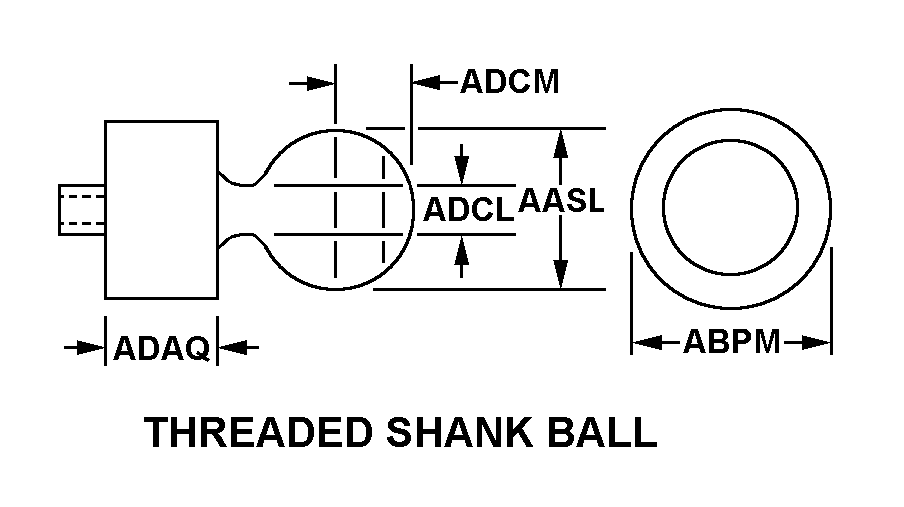

| STYLE DESIGNATOR | 9 THREADED SHANK BALL |
| HEAD DIAMETER | 13.0 MILLIMETERS NOMINAL |
| BODY DIAMETER | 8.0 MILLIMETERS NOMINAL |
| BODY LENGTH | 15.7 MILLIMETERS NOMINAL |
| DISTANCE FROM SPHERICAL HEAD CENTERLINE TO HEAD END | 14.0 MILLIMETERS NOMINAL |
| OVERALL LENGTH | 35.0 MILLIMETERS NOMINAL |
| THREAD SERIES DESIGNATOR | M |
| NOMINAL THREAD SIZE | 8.0 MILLIMETERS |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 12.0 MILLIMETERS NOMINAL |
| III END ITEM IDENTIFICATION | 2420-01-532-3399 |
Restrictions/Controls & Freight Information | NSN 5307-01-549-5173
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5307-01-549-5173
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
