NSN 5307-01-436-3976 0.250-20UNC X 1 CCL SST, 025020UNCX1CCLSST, 1741AS7141
Product Details | WELDING STUD
5307-01-436-3976 A headed or headless fastener externally or internally threaded. It is intended for fastening by welding the head, unthreaded end or welding tip. If headed, the head is not designed to be self-holding, nor to be turned with a wrench or inserted driver, nor does the head have small raised projections on the top or underside to facilitate welding. See also BOLT, WELDING.
Part Alternates: 0.250-20UNC X 1 CCL SST, 025020UNCX1CCLSST, 1741AS7141, 1741AS714-1, 250-20 UNC X 1 CCL SST, 25020UNCX1CCLSST, 5307-01-436-3976, 01-436-3976, 5307014363976, 101007313, 014363976
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 SEP 1996 | 01-436-3976 | 16944 ( STUD, WELDING ) |

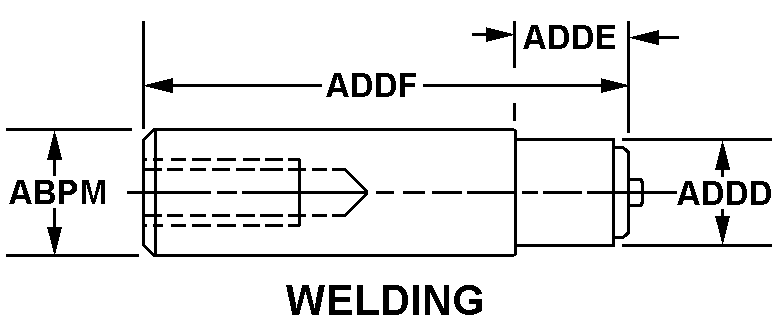

Drawings & Photos | NSN 5307-01-436-3976
Demand History | NSN 5307-01-436-3976
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5307-01-436-3976 | 2018-07-191 | 1587 | DIBBS |
| 5307-01-436-3976 | 2017-01-04 | 1587 | DIBBS |
| 5307-01-436-3976 | 2016-06-165 | 345 | DIBBS |
| 5307-01-436-3976 | 2016-06-157 | 345 | DIBBS |
| 5307-01-436-3976 | 2015-03-89 | 384 | DIBBS |
| 5307-01-436-3976 | 2015-03-77 | 384 | DIBBS |
| 5307-01-436-3976 | 2014-05-121 | 500 | DIBBS |
| 5307-01-436-3976 | 2014-04-108 | 1 | DIBBS-RFPs |
| 5307-01-436-3976 | 2012-05-129 | 94 | DIBBS |
| 5307-01-436-3976 | 2012-04-101 | 185 | DIBBS |
| 5307-01-436-3976 | 2012-02-47 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-01-436-3976
Related Products | NSN 5307-01-436-3976
Technical Data | NSN 5307-01-436-3976
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304 |
| STYLE DESIGNATOR | 147 WELDING |
| BODY DIAMETER | 0.250 INCHES NOMINAL |
| UNTHREADED END DIAMETER | 0.187 INCHES NOMINAL |
| UNTHREADED END LENGTH | 0.187 INCHES NOMINAL |
| LENGTH EXCLUDING FLUXED WELDING TIP | 0.813 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 20 |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.813 INCHES NOMINAL |
