NSN 5307-01-344-2092 MIL-S-24149/4, MILS241494, MILS241494STEELTY6CL3
Product Details | WELDING STUD
5307-01-344-2092 A headed or headless fastener externally or internally threaded. It is intended for fastening by welding the head, unthreaded end or welding tip. If headed, the head is not designed to be self-holding, nor to be turned with a wrench or inserted driver, nor does the head have small raised projections on the top or underside to facilitate welding. See also BOLT, WELDING.
Part Alternates: MIL-S-24149/4, MILS241494, MILS241494STEELTY6CL3, 5307-01-344-2092, 01-344-2092, 5307013442092, 013442092
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 AUG 1991 | 01-344-2092 | 16944 ( STUD, WELDING ) |
Drawings & Photos | NSN 5307-01-344-2092
Demand History | NSN 5307-01-344-2092
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MILS241494 | 2021-02-04 | 600 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5307-01-344-2092
Technical Data | NSN 5307-01-344-2092
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |

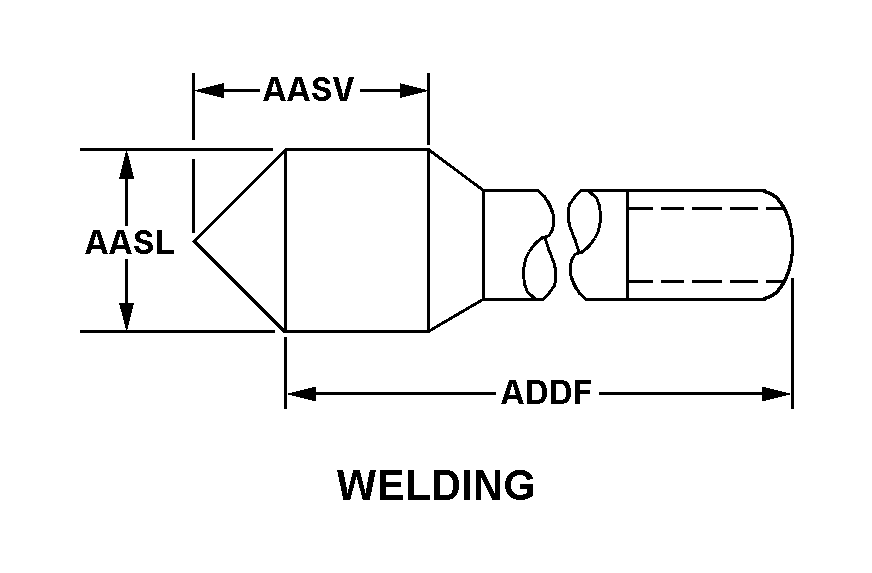

| STYLE DESIGNATOR | 139 WELDING |
| HEAD DIAMETER | 0.235 INCHES MINIMUM AND 0.280 INCHES MAXIMUM |
| LENGTH EXCLUDING FLUXED WELDING TIP | 1.437 INCHES NOMINAL |
| SPECIAL FEATURES | END GROOVED IN LIEU OF THREADS |
| NONDEFINITIVE SPEC/STD DATA | 6 TYPE AND 3 CLASS AND A STYLE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-S-24149/4 |
Restrictions/Controls & Freight Information | NSN 5307-01-344-2092
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5307-01-344-2092
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
