NSN 5307-01-308-6101 M24149/3-69, M24149369, 01-308-6101
Product Details | WELDING STUD
5307-01-308-6101 A headed or headless fastener externally or internally threaded. It is intended for fastening by welding the head, unthreaded end or welding tip. If headed, the head is not designed to be self-holding, nor to be turned with a wrench or inserted driver, nor does the head have small raised projections on the top or underside to facilitate welding. See also BOLT, WELDING.
Part Alternates: M24149/3-69, M24149369, 5307-01-308-6101, 01-308-6101, 5307013086101, 013086101
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 OCT 1989 | 01-308-6101 | 16944 ( STUD, WELDING ) |
Drawings & Photos | NSN 5307-01-308-6101
Demand History | NSN 5307-01-308-6101
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5307-01-308-6101 | 2020-06-179 | 28 | United States |
| 5307-01-308-6101 | 2010-01-28 | 203 | DIBBS |
| 5307-01-308-6101 | 2009-10-289 | 203 | DIBBS |
| 5307-01-308-6101 | 2009-04-111 | 203 | DIBBS |
Cross Reference | NSN 5307-01-308-6101
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M24149/3-69 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-01-308-6101
Related Products | NSN 5307-01-308-6101
Technical Data | NSN 5307-01-308-6101
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| STYLE DESIGNATOR | 135 WELDING |
| UNTHREADED END DIAMETER | 0.443 INCHES MINIMUM AND 0.453 INCHES MAXIMUM |
| UNTHREADED END LENGTH | 0.500 INCHES MINIMUM AND 0.562 INCHES MAXIMUM |

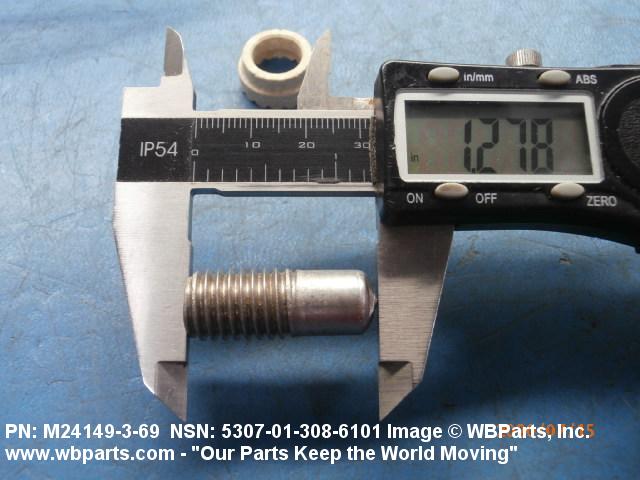

| LENGTH EXCLUDING FLUXED WELDING TIP | 1.219 INCHES MINIMUM AND 1.281 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNC NUT THREAD |

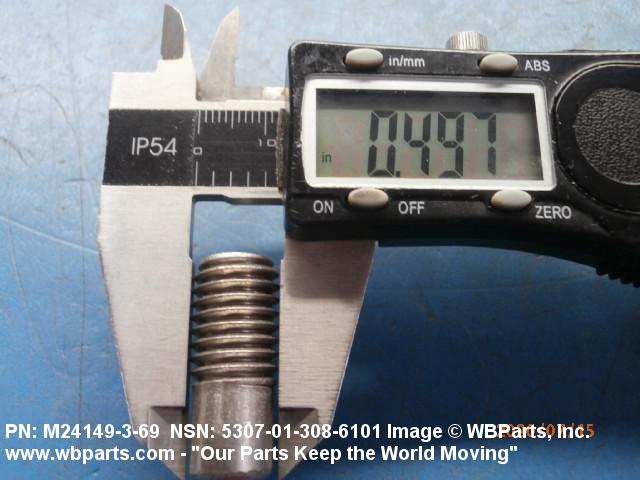

| NOMINAL THREAD SIZE | 0.500 INCHES NUT THREAD |
| THREAD CLASS | 2A NUT THREAD |

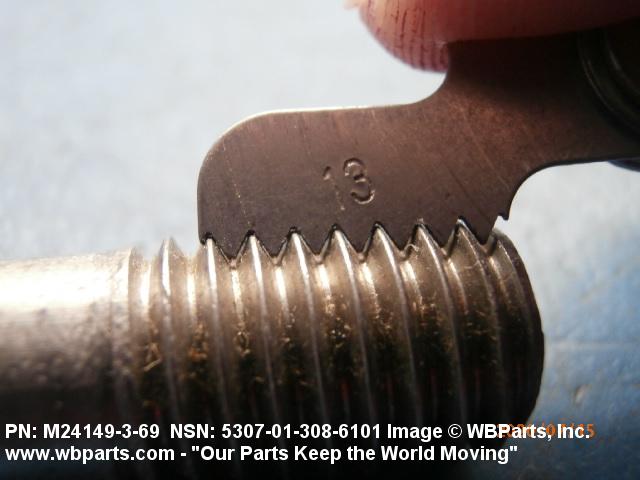

| THREAD QUANTITY PER INCH | 13 NUT THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD |
| THREAD LENGTH | 0.750 INCHES NOMINAL NUT THREAD |

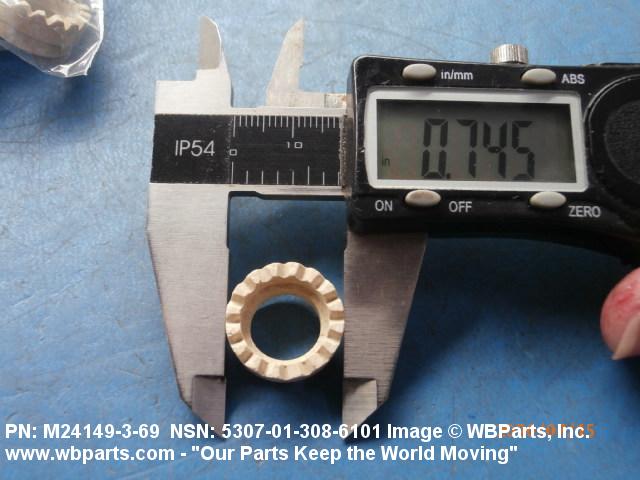

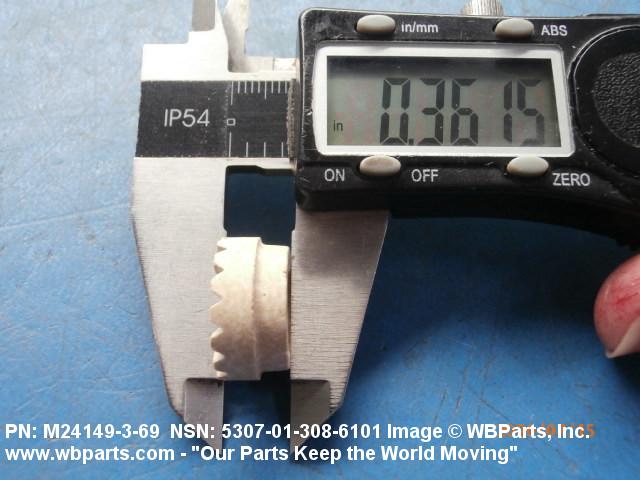

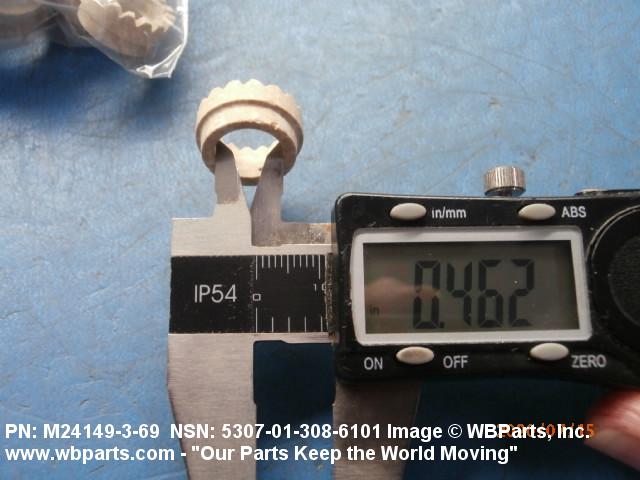

| FEATURES PROVIDED | HEAT SHIELD |
| NONDEFINITIVE SPEC/STD DATA | 5 TYPE AND 1 CLASS |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M24149/3-69 |
Restrictions/Controls & Freight Information | NSN 5307-01-308-6101
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
