NSN 5307-01-296-2928 5003143, 01-296-2928, 012962928
Product Details | BALL STUD
5307-01-296-2928 A metal item with a spherical shaped head and a straight and/or tapered body, usually with a threaded shank.
Part Alternates: 5003143, 5307-01-296-2928, 01-296-2928, 5307012962928, 012962928
Hardware and Abrasives | Studs
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 17 MAR 1989 | 01-296-2928 | 17484 ( STUD, BALL ) |
Cross Reference | NSN 5307-01-296-2928
Part Number | Cage Code | Manufacturer |
---|---|---|
5003143 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5307-01-296-2928
Related Products | NSN 5307-01-296-2928
Technical Data | NSN 5307-01-296-2928
Characteristic | Specifications |
---|---|
MATERIAL | STEEL COMP 4140 |
SURFACE TREATMENT | PHOSPHATE ZINC OVERALL |
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | DOD-P-16232 TY Z MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |

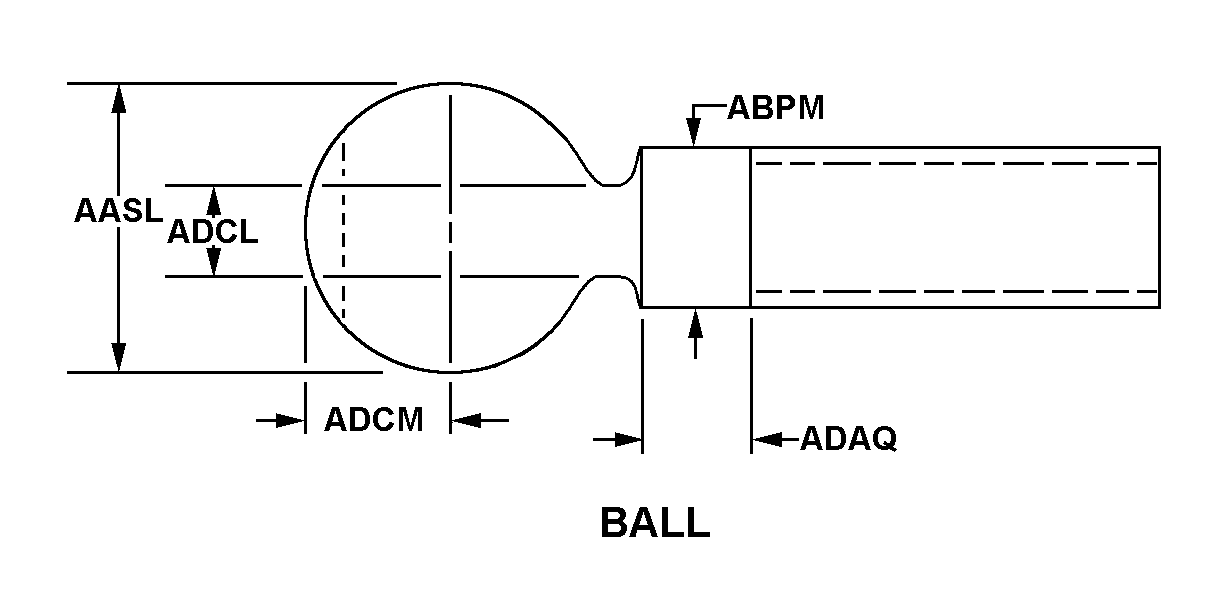

STYLE DESIGNATOR | 13 BALL |
HEAD DIAMETER | 0.483 INCHES MINIMUM AND 0.488 INCHES MAXIMUM |
BODY DIAMETER | 0.496 INCHES MINIMUM AND 0.497 INCHES MAXIMUM |
BODY LENGTH | 3.089 INCHES MINIMUM AND 3.161 INCHES MAXIMUM |
NECK DIAMETER | 0.230 INCHES MINIMUM AND 0.270 INCHES MAXIMUM |
DISTANCE FROM SPHERICAL HEAD CENTERLINE TO HEAD END | 0.225 INCHES NOMINAL |
OVERALL LENGTH | 3.995 INCHES MINIMUM AND 4.005 INCHES MAXIMUM |
THREAD SERIES DESIGNATOR | UNF |
NOMINAL THREAD SIZE | 0.500 INCHES |
THREAD CLASS | 2A |
THREAD QUANTITY PER INCH | 20 |
THREAD DIRECTION | RIGHT-HAND |
THREAD LENGTH | 0.844 INCHES MINIMUM AND 0.906 INCHES MAXIMUM |
SPECIAL FEATURES | TWO UNDERCUT AREAS IN SHANK |
III HARDNESS RATING | 50.0 ROCKWELL C MINIMUM AND 55.0 ROCKWELL C MAXIMUM |
III SURFACE FINISH | 32.0 MICROINCHES HEAD 32.0 MICROINCHES UNDERCUTS |
Restrictions/Controls & Freight Information | NSN 5307-01-296-2928
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
Category | Code | Description |
---|---|---|
No Freight Information |
Management | NSN 5307-01-296-2928
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
