NSN 5307-01-294-6829 M24149/2-721, M241492721, MIL-S-24149/2
Product Details | WELDING STUD
5307-01-294-6829 A headed or headless fastener externally or internally threaded. It is intended for fastening by welding the head, unthreaded end or welding tip. If headed, the head is not designed to be self-holding, nor to be turned with a wrench or inserted driver, nor does the head have small raised projections on the top or underside to facilitate welding. See also BOLT, WELDING.
Part Alternates: M24149/2-721, M241492721, MIL-S-24149/2, MILS241492, 5307-01-294-6829, 01-294-6829, 5307012946829, 012946829
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 FEB 1989 | 01-294-6829 | 16944 ( STUD, WELDING ) |

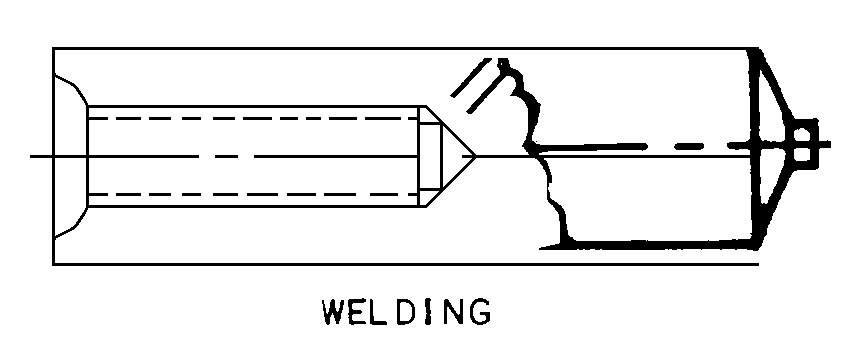

Drawings & Photos | NSN 5307-01-294-6829
Cross Reference | NSN 5307-01-294-6829
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M24149/2-721 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5307-01-294-6829
Technical Data | NSN 5307-01-294-6829
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| STYLE DESIGNATOR | 146 WELDING |
| BODY DIAMETER | 0.432 INCHES MINIMUM AND 0.442 INCHES MAXIMUM |
| LENGTH EXCLUDING FLUXED WELDING TIP | 2.469 INCHES MINIMUM AND 2.531 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNC NUT THREAD |
| NOMINAL THREAD SIZE | 0.312 INCHES NUT THREAD |
| THREAD CLASS | 2B NUT THREAD |
| THREAD QUANTITY PER INCH | 18 NUT THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD |
| THREAD LENGTH | 0.468 INCHES NOMINAL NUT THREAD |
| FEATURES PROVIDED | HEAT SHIELD |
| NONDEFINITIVE SPEC/STD DATA | 4 TYPE AND 5 CLASS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-S-24149/2 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M24149/2-721 |
Restrictions/Controls & Freight Information | NSN 5307-01-294-6829
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5307-01-294-6829
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
