NSN 5307-01-235-3229 1562610, 01-235-3229, 012353229
Product Details | WELDING STUD
5307-01-235-3229 A headed or headless fastener externally or internally threaded. It is intended for fastening by welding the head, unthreaded end or welding tip. If headed, the head is not designed to be self-holding, nor to be turned with a wrench or inserted driver, nor does the head have small raised projections on the top or underside to facilitate welding. See also BOLT, WELDING.
Part Alternates: 1562610, 5307-01-235-3229, 01-235-3229, 5307012353229, 012353229
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 JUN 1986 | 01-235-3229 | 16944 ( STUD, WELDING ) |

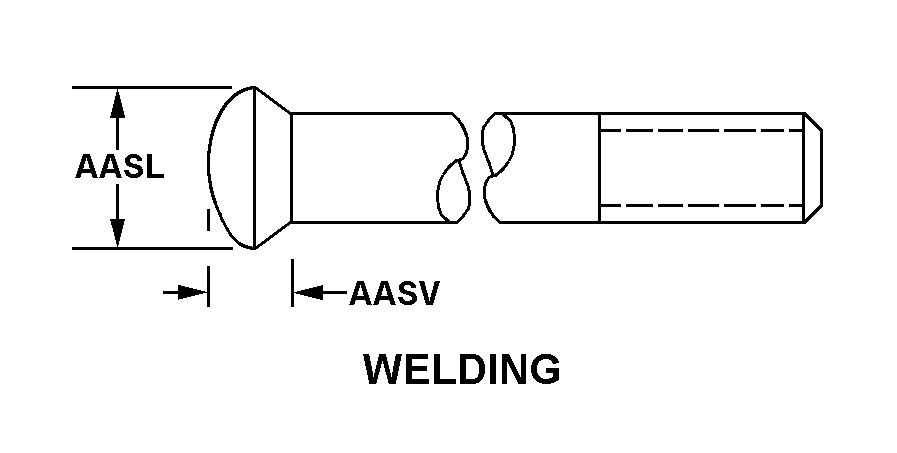

Drawings & Photos | NSN 5307-01-235-3229
Demand History | NSN 5307-01-235-3229
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5307-01-235-3229 | 2010-09-266 | 1 | DIBBS |
| 5307-01-235-3229 | 2010-09-265 | 8 | DIBBS |
Cross Reference | NSN 5307-01-235-3229
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1562610 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-01-235-3229
Related Products | NSN 5307-01-235-3229
Technical Data | NSN 5307-01-235-3229
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35,TYPE FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 138 WELDING |
| HEAD DIAMETER | 0.328 INCHES NOMINAL |
| HEAD LENGTH | 0.260 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNC NUT THREAD |
| NOMINAL THREAD SIZE | 0.190 INCHES NUT THREAD |
| THREAD CLASS | 2A NUT THREAD |
| THREAD QUANTITY PER INCH | 32 NUT THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD |
| THREAD LENGTH | 0.310 INCHES NOMINAL NUT THREAD |
| MANUFACTURERS CODE | 10001 |
| DESIGN CONTROL REFERENCE | 1562610 |
Restrictions/Controls & Freight Information | NSN 5307-01-235-3229
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SU | Ogden Air Logistics Center Hill AFB, UT 84056-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
