NSN 5307-01-184-2044 011842044
Product Details | SPACING THREADED STANDOFF
5307-01-184-2044 A standoff that must have a threaded end(s) or be internally threaded its full length. For items having external threads on both ends, see STUD (as modified). For items with an outside contour that is the same for the entire length, are flat on top and bottom, having internal threads its full length, and the length does not exceed twice the width across the flats or outside diameter, see NUT (as modified); use maximum dimensions(s) for compliance.
Part Alternates: 011842044
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01-184-2044 | 40280 ( STANDOFF, THREADED, SPACING ) |

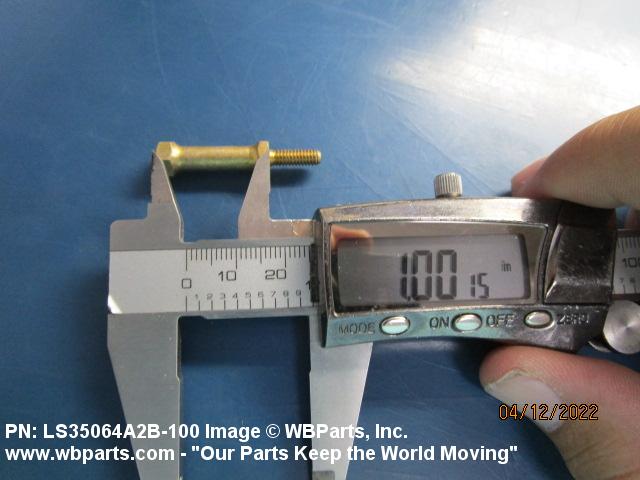

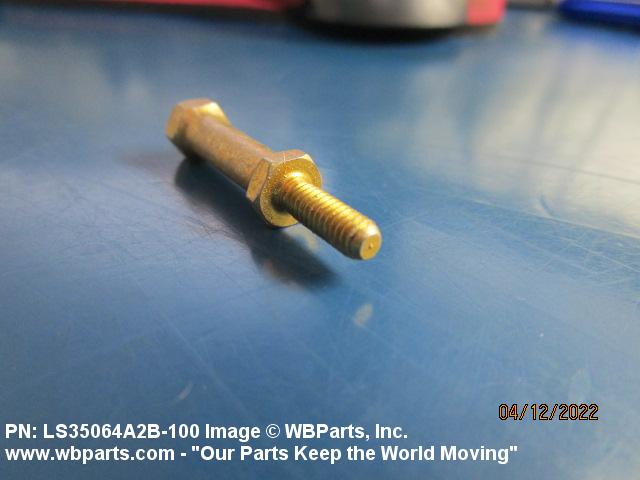

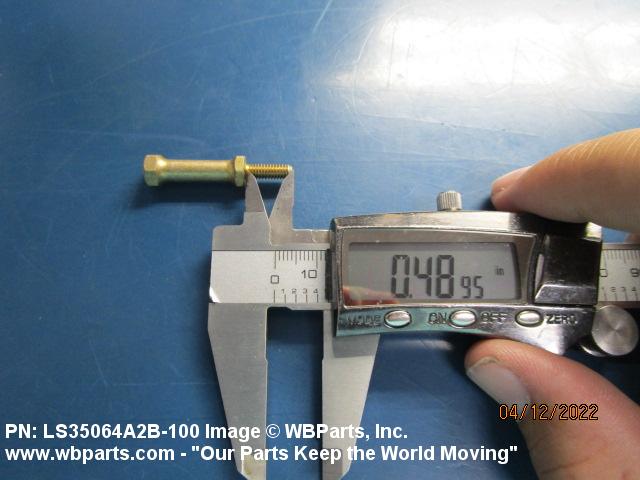

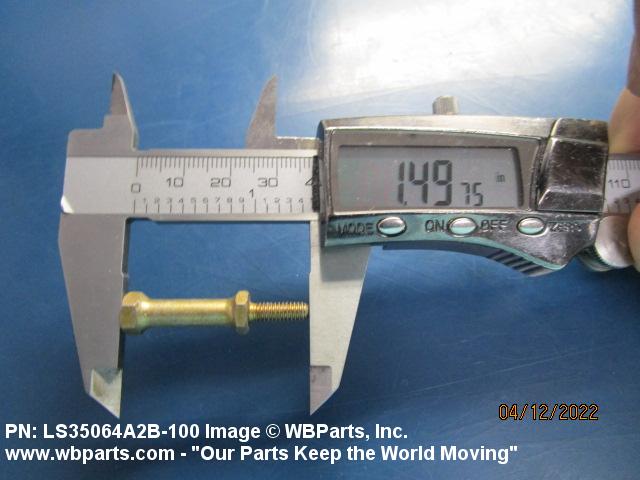

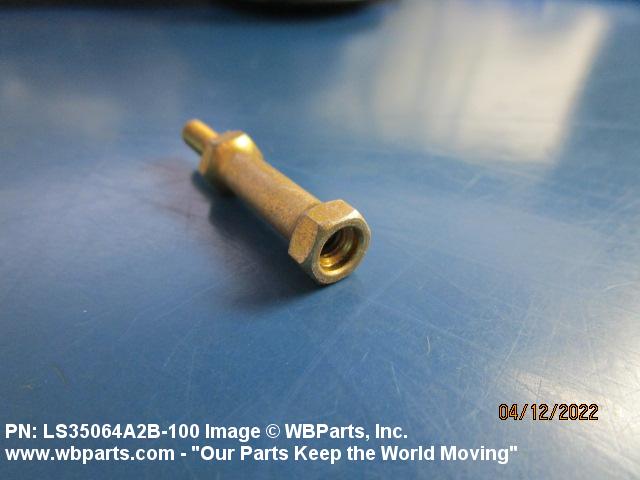

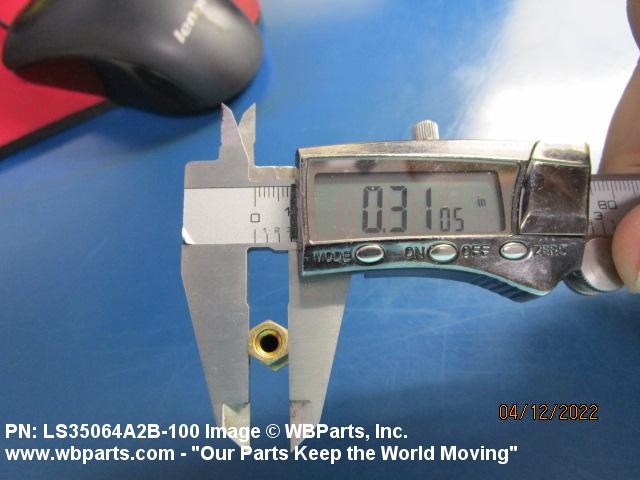

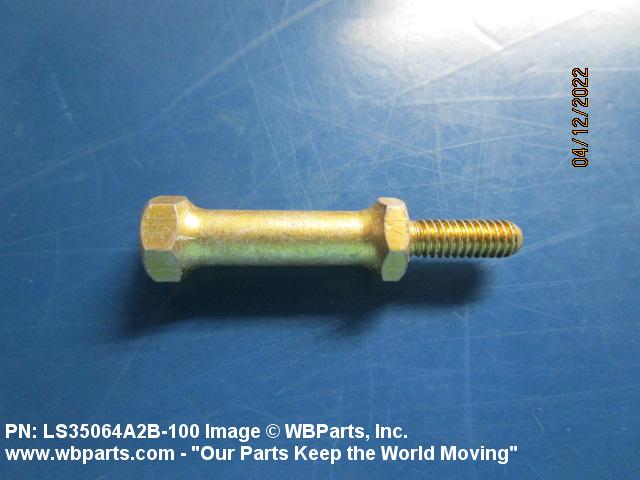

Drawings & Photos | NSN 5307-01-184-2044
Demand History | NSN 5307-01-184-2044
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| LS35064A2B100 | 2022-03-88 | 500 | United States |
| LS35064A2B100 | 2022-03-81 | 500 | United States |
| LS35064A2B100 | 2018-01-31 | 2000 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5307-01-184-2044
Technical Data | NSN 5307-01-184-2044
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 OR STEEL COMP 4140 OR STEEL COMP 8740 OR STEEL COMP 8630 STANDOFF |
| SURFACE TREATMENT | CADMIUM AND CHROMATE STANDOFF |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY2,CL2 FED SPEC SINGLE TREATMENT RESPONSE STANDOFF |
| CROSS-SECTIONAL SHAPE | HEXAGON |
| WIDTH ACROSS FLATS | 0.3040 INCHES MINIMUM AND 0.3160 INCHES MAXIMUM |
| STYLE DESIGNATOR | 25 TWO SHOULDERS LEFT INTERNAL AND RIGHT EXTERNAL THREADS |
| SHOULDER WIDTH ACROSS FLATS | 0.304 INCHES MINIMUM AND 0.316 INCHES MAXIMUM |
| SHOULDER LENGTH | 0.115 INCHES MINIMUM AND 0.135 INCHES MAXIMUM |
| SECOND SHOULDER DIAMETER | 0.337 INCHES MINIMUM AND 0.357 INCHES MAXIMUM |
| SECOND SHOULDER LENGTH | 0.070 INCHES MINIMUM AND 0.090 INCHES MAXIMUM |
| LENGTH | 1.470 INCHES MINIMUM AND 1.530 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJEF LEFT INTERNAL UNJEF RIGHT EXTERNAL |
| NOMINAL THREAD SIZE | 0.164 INCHES LEFT INTERNAL 0.164 INCHES RIGHT EXTERNAL |
| THREAD QUANTITY PER INCH | 32 LEFT INTERNAL 32 RIGHT EXTERNAL |
| THREAD CLASS | 3B LEFT INTERNAL 3A RIGHT EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND LEFT INTERNAL RIGHT-HAND RIGHT EXTERNAL |
| THREAD LENGTH | 0.1250 INCHES NOMINAL LEFT INTERNAL 0.5000 INCHES NOMINAL RIGHT EXTERNAL |
Restrictions/Controls & Freight Information | NSN 5307-01-184-2044
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
