NSN 5307-01-122-4780 P07519, P075-19, 01-122-4780
Product Details | WELDING STUD

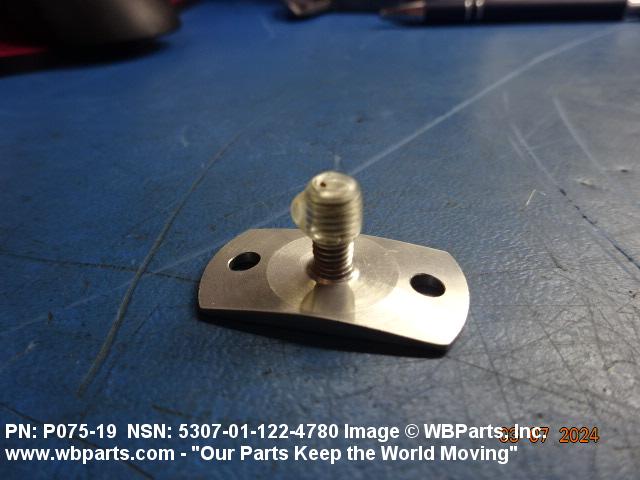

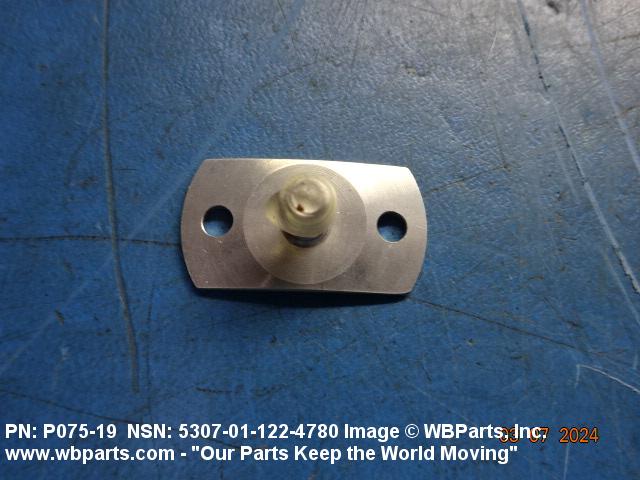

5307-01-122-4780 A headed or headless fastener externally or internally threaded. It is intended for fastening by welding the head, unthreaded end or welding tip. If headed, the head is not designed to be self-holding, nor to be turned with a wrench or inserted driver, nor does the head have small raised projections on the top or underside to facilitate welding. See also BOLT, WELDING.
Part Alternates: P07519, P075-19, 5307-01-122-4780, 01-122-4780, 5307011224780, 011224780
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 NOV 1981 | 01-122-4780 | 16944 ( STUD, WELDING ) |
Drawings & Photos | NSN 5307-01-122-4780
Demand History | NSN 5307-01-122-4780
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5307-01-122-4780 | 2024-11-312 | 10 | US |
| 5307-01-122-4780 | 2024-10-295 | 10 | United States |
| 5307-01-122-4780 | 2024-05-128 | 1 | US |
| 5307-01-122-4780 | 2024-02-54 | 50 | United States |
| 5307-01-122-4780 | 2023-12-341 | 120 | United States |
| 5307-01-122-4780 | 2023-10-292 | 600 | United States |
| 5307-01-122-4780 | 2023-10-283 | 665 | United States |
| 5307-01-122-4780 | 2023-06-155 | 916 | DIBBS |
| P07519 | 2023-02-52 | 1 | United States |
| 5307-01-122-4780 | 2021-12-342 | 100 | US |
| P07519 | 2021-01-06 | 7 | United States |
| 5307-01-122-4780 | 2020-10-296 | 50 | United States |
| P07519 | 2019-08-219 | 80 | United States |
| 5307-01-122-4780 | 2019-06-164 | 4 | US |
| 5307-01-122-4780 | 2018-11-329 | 2344 | DIBBS |
| 5307-01-122-4780 | 2017-12-342 | 50 | US |
| 5307-01-122-4780 | 2014-10-301 | 3417 | DIBBS |
| 5307-01-122-4780 | 2014-03-78 | 3548 | DIBBS |
| 5307-01-122-4780 | 2014-01-23 | 3417 | DIBBS |
Cross Reference | NSN 5307-01-122-4780
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| P075-19 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-01-122-4780
Related Products | NSN 5307-01-122-4780
Technical Data | NSN 5307-01-122-4780
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 140 WELDING |

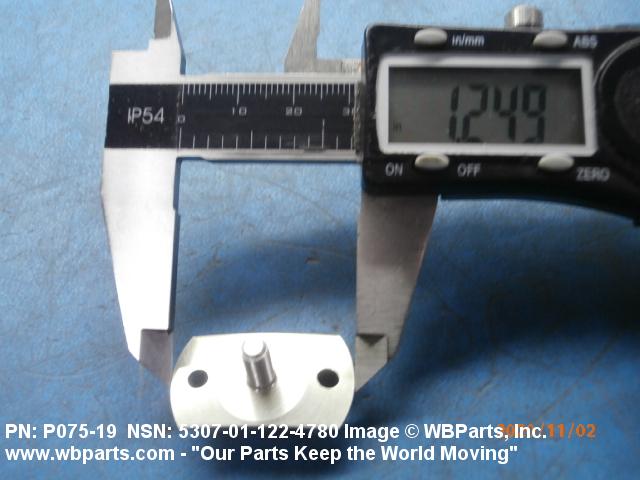

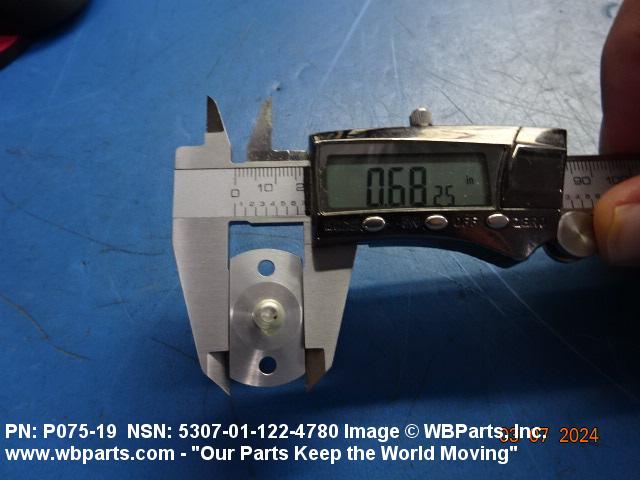

| HEAD DIAMETER | 1.250 INCHES NOMINAL |

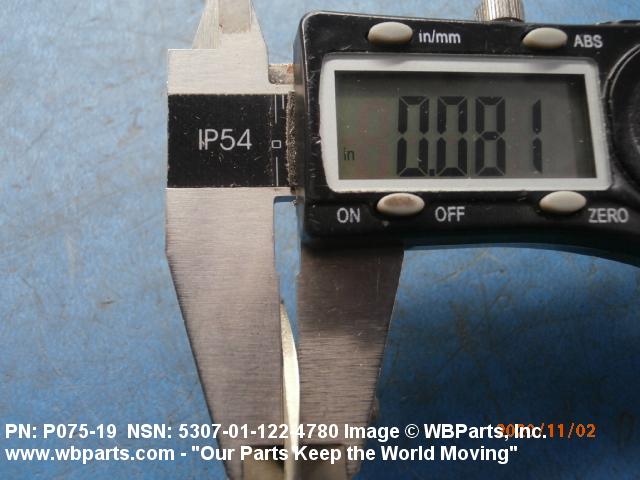

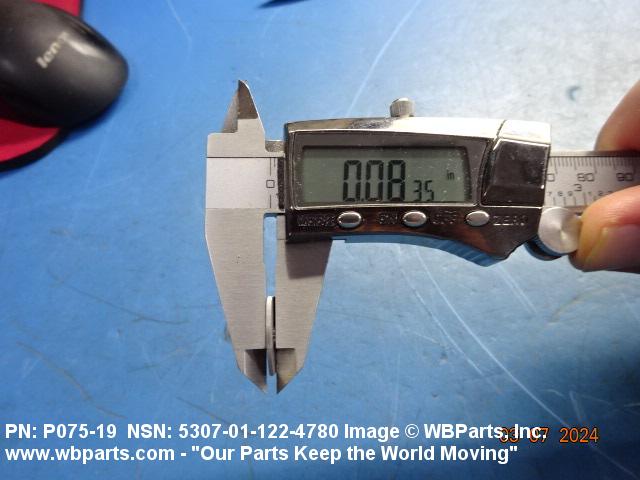

| HEAD LENGTH | 0.080 INCHES NOMINAL |
| THREAD CLASS | 2A NUT THREAD |
| THREAD LENGTH | 0.380 INCHES NOMINAL NUT THREAD |

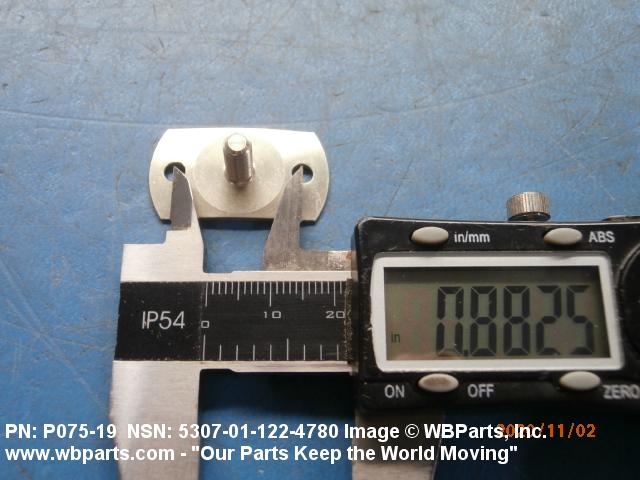

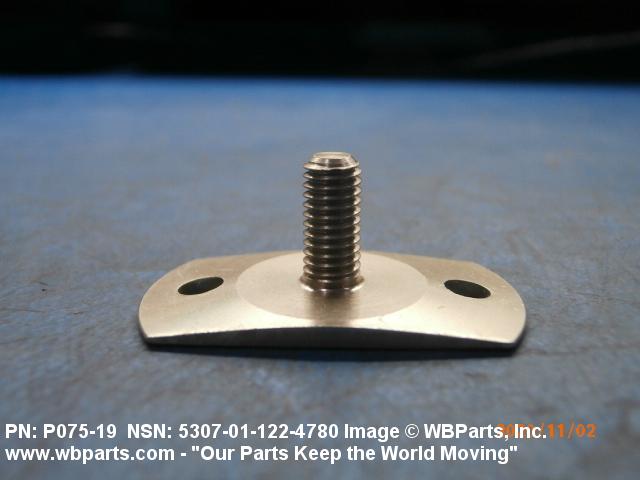

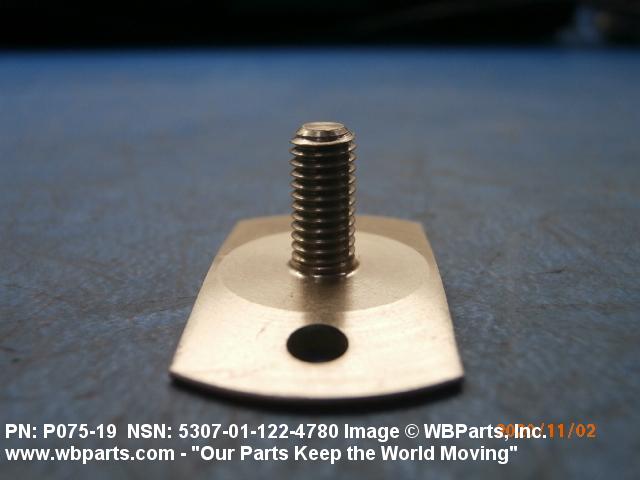

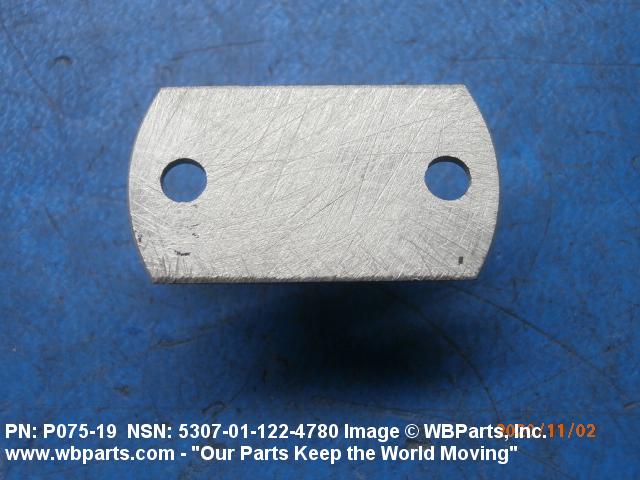

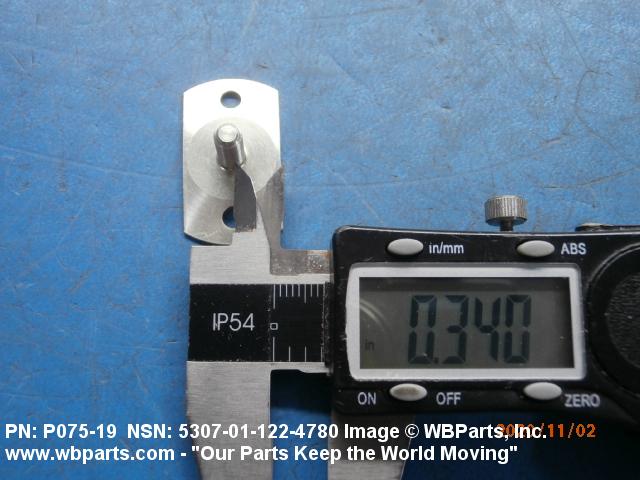

| SPECIAL FEATURES | HEAD DIA. HAS TWO PARALLEL FLATS EACH 0.340 IN. FROM CENTER,AND TWO 0.156 IN. DIA. HOLES LOCATED ON AA 0.875 IN. DIA. BOLT CIRCLE AND INTERSECTION OF A CENTER REFERENCE LINE PARALLEL TO FLATS |
| MANUFACTURERS CODE | 81755 |
| DESIGN CONTROL REFERENCE | P075-19 |
