Product Details | BALL STUD

5307-00-377-1410 A metal item with a spherical shaped head and a straight and/or tapered body, usually with a threaded shank.

Part Alternates: K94J00011, K94J0001-1, P100473424, P100-473-4-24, P1004734495, P100-473-4-495, 5307-00-377-1410, 00-377-1410, 5307003771410, 003771410

Hardware and Abrasives | Studs

Supply Group (FSG) NSN Assign. NIIN
53 16 MAR 1974 00-377-1410

Drawings & Photos | NSN 5307-00-377-1410


Demand History | NSN 5307-00-377-1410

Part Number Request Date QTY Origin
5307-00-377-1410 2012-05-128 1000 US
5307-00-377-1410 2012-04-115 108 US
5307-00-377-1410 2012-04-115 3000 US

Cross Reference | NSN 5307-00-377-1410

Part Number Cage Code Manufacturer
K94J0001-1 12464 MCDONNELL DOUGLAS CORP MCDONNELL DOUGLAS ELECTRONIC SYSTEMS
P100-473-4-24 78553 TINNERMAN PALNUT ENGINEERED PRODUCTS INC
P100-473-4-495 78553 TINNERMAN PALNUT ENGINEERED PRODUCTS INC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5307-00-377-1410

Technical Data | NSN 5307-00-377-1410

Characteristic Specifications
MATERIAL STEEL COMP 1213
MATERIAL DOCUMENT AND CLASSIFICATION AISI ASSN STD SINGLE MATERIAL RESPONSE
SURFACE TREATMENT CADMIUM OVERALL

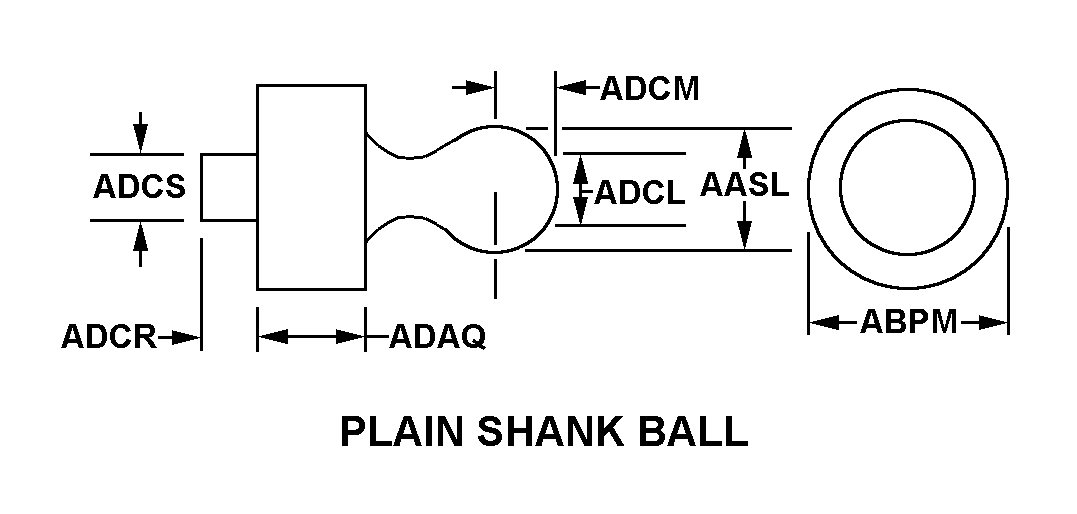

STYLE DESIGNATOR 8 PLAIN SHANK BALL
HEAD DIAMETER 0.187 INCHES NOMINAL
BODY DIAMETER 0.250 INCHES NOMINAL
BODY LENGTH 0.149 INCHES NOMINAL
NECK DIAMETER 0.156 INCHES NOMINAL
DISTANCE FROM SPHERICAL HEAD CENTERLINE TO HEAD END 0.093 INCHES NOMINAL
PLAIN SHANK LENGTH 0.125 INCHES MINIMUM AND 0.135 INCHES MAXIMUM
PLAIN SHANK DIAMETER 0.092 INCHES MINIMUM AND 0.096 INCHES MAXIMUM
OVERALL LENGTH 0.598 INCHES NOMINAL
MANUFACTURERS CODE 78553
DESIGN CONTROL REFERENCE P100-473-4-495

Restrictions/Controls & Freight Information | NSN 5307-00-377-1410

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 093486 BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 573 unknown
Originating Activity Code KZ Defense Supply Center Philadelphia
Philadelphia, PA 19101
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5307-00-377-1410

Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation CodeSXSX:AF SICA RESIDUAL MMAC-OC-ALC
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
