NSN 5307-00-292-7855 01760-0031, 1760031, 1760-031
Product Details | BALL STUD
5307-00-292-7855 A metal item with a spherical shaped head and a straight and/or tapered body, usually with a threaded shank.
Part Alternates: 01760-0031, 1760031, 1760-031, 2110H34, 5307-00-292-7855, 00-292-7855, 5307002927855, 017600031, 002927855
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-292-7855 | 17484 ( STUD, BALL ) |

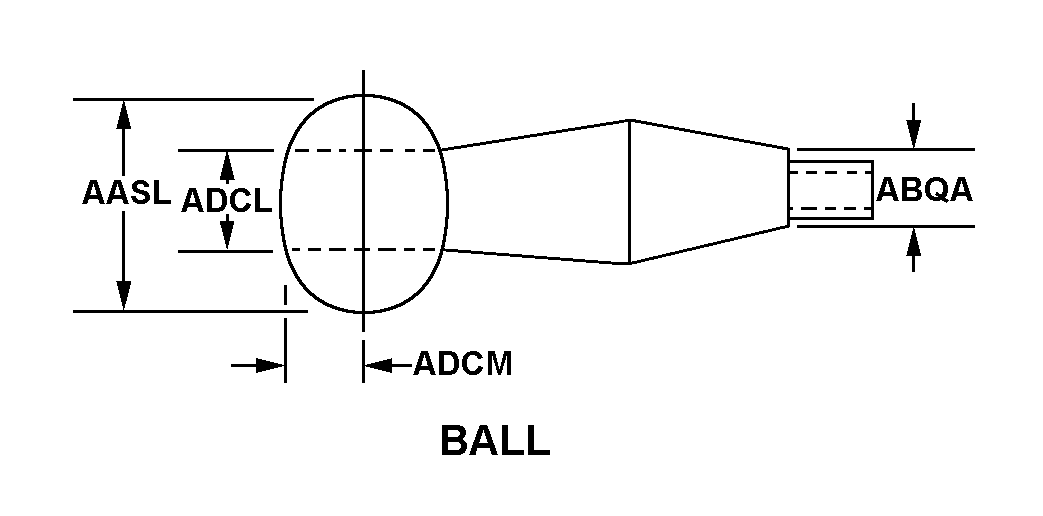

Drawings & Photos | NSN 5307-00-292-7855
Cross Reference | NSN 5307-00-292-7855
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 01760-0031 | 79343 | SCIENCE APPLICATIONS INTERNATIONAL CORPORATION |
| 01760-0031 | 93568 | HARSCO CORP BMY-COMBAT SYSTEMS DIV |
| 1760-031 | 93568 | HARSCO CORP BMY-COMBAT SYSTEMS DIV |
| 2110H34 | 3D6E9 | AXLETECH INTERNATIONAL, LLC |
| 2110H34 | 78500 | MERITOR HEAVY VEHICLE SYSTEMS LLC DIV MERITOR HEAVY VEHICLE SYSTEMS, |
