NSN 5306-01-569-4092 NAS6604D24, 01-569-4092, 015694092
Product Details | SHEAR BOLT

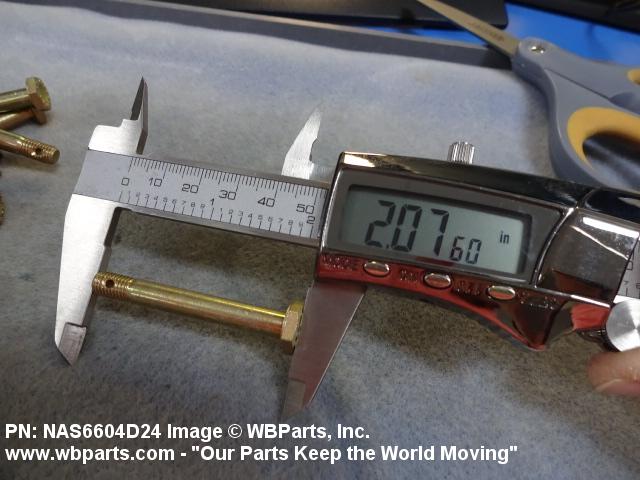

5306-01-569-4092 A high strength, 160,000 pounds per square inch (1100 megapascals) minimum tensile strength externally threaded fastener designed for use in applications involving great shear stress. The head is designed to accommodate an external wrench or driver. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. The unthreaded portion is of specific grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. A locking feature may be incorporated in the design of the head or threads. See BOLT, MACHINE and BOLT, CLEVIS.
Part Alternates: NAS6604D24, 5306-01-569-4092, 01-569-4092, 5306015694092, 015694092
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 DEC 2008 | 01-569-4092 | 15903 ( BOLT, SHEAR ) |
Drawings & Photos | NSN 5306-01-569-4092
Demand History | NSN 5306-01-569-4092
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS6604D24 | 2016-08-231 | 20 | US |
| 5306-01-569-4092 | 2016-02-43 | 32 | DIBBS |
| 5306-01-569-4092 | 2016-02-35 | 32 | DIBBS |
| 5306-01-569-4092 | 2013-05-129 | 1 | DIBBS |
| 5306-01-569-4092 | 2013-05-129 | 3 | DIBBS |
| 5306-01-569-4092 | 2012-12-355 | 1 | DIBBS |
| 5306-01-569-4092 | 2012-12-342 | 6 | DIBBS |
Cross Reference | NSN 5306-01-569-4092
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS6604D24 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
