NSN 5306-01-491-0083 NAS14647, NAS146-47, 01-491-0083
Product Details | INTERNAL WRENCHING BOLT

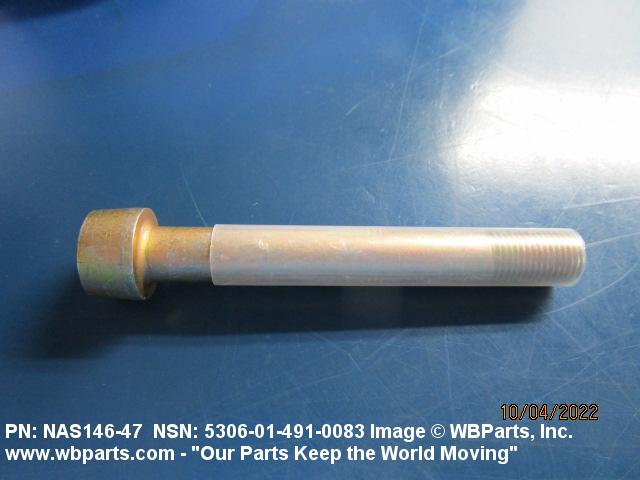

5306-01-491-0083 An externally threaded fastener whose threaded portion is of one nominal diameter, No. 10 (0.190 IN.) (5 mm) or larger. It is designed with an internal socket or internal multiple spline for use with an internal driver. The head is beveled (conical) or cylindrical in shape. Items with cylindrical shaped heads must have an externally relieved body. A locking feature may be incorporated in the design of the head or threads. See also SCREW, CAP, SOCKET HEAD. Excludes SETSCREW; SCREW, SHOULDER; BOLT, SHOULDER; SCREW, EXTERNALLY RELIEVED BODY; BOLT, EXTERNALLY RELIEVED BODY; and SCREW, MACHINE.
Part Alternates: NAS14647, NAS146-47, 5306-01-491-0083, 01-491-0083, 5306014910083, 014910083
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 OCT 2001 | 01-491-0083 | 06666 ( BOLT, INTERNAL WRENCHING ) |

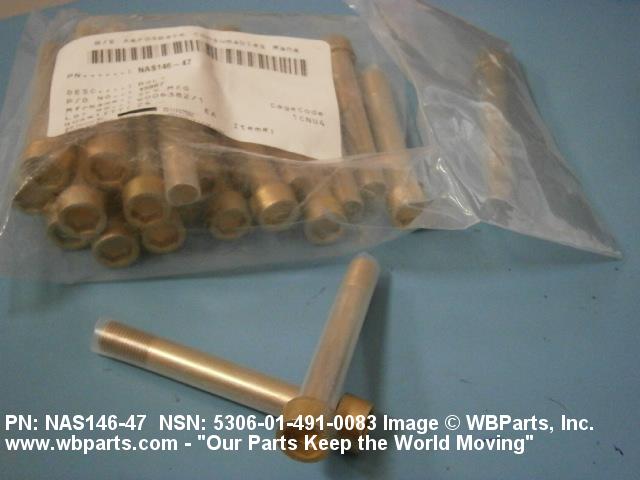

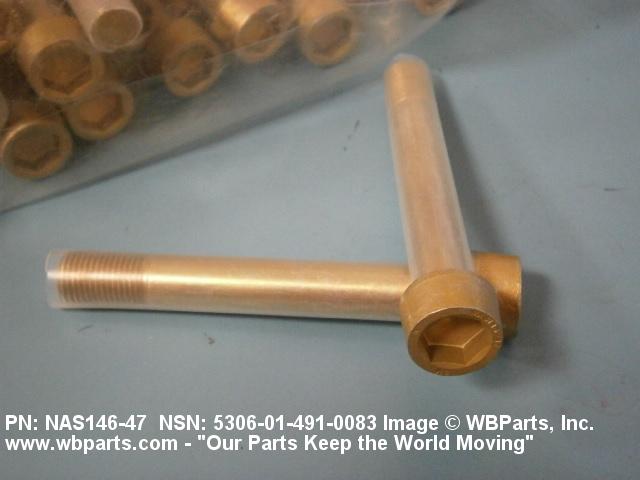

Drawings & Photos | NSN 5306-01-491-0083
Demand History | NSN 5306-01-491-0083
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-01-491-0083 | 2022-09-257 | 13 | United States |
| NAS14647 | 2012-01-27 | 24 | South Africa |
| 5306-01-491-0083 | 2011-08-237 | 4 | AU |
Cross Reference | NSN 5306-01-491-0083
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS146-47 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-491-0083
Technical Data | NSN 5306-01-491-0083
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

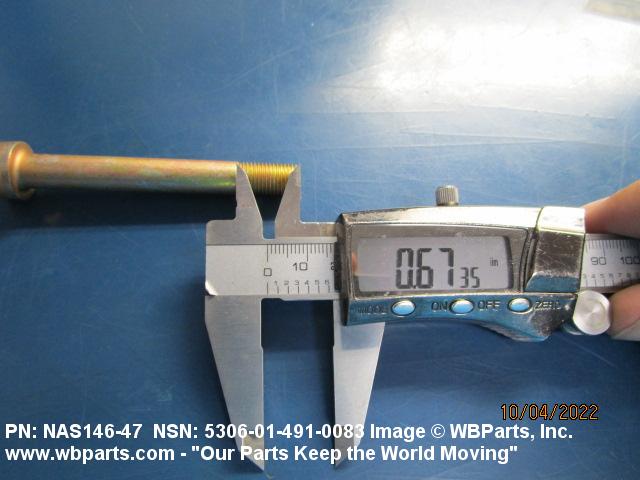

| THREAD LENGTH | 0.663 INCHES MINIMUM AND 0.713 INCHES MAXIMUM |

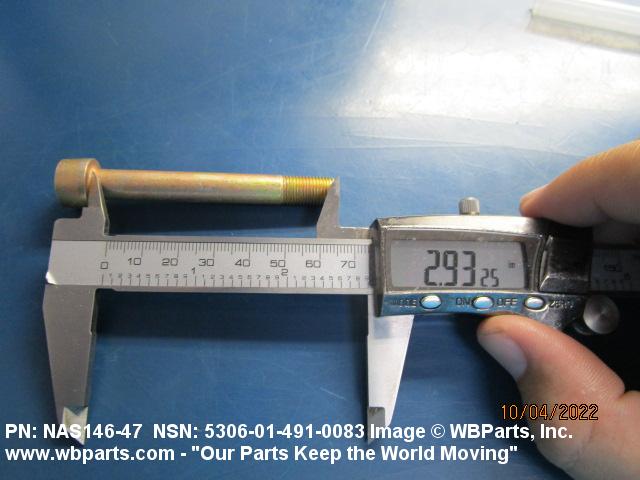

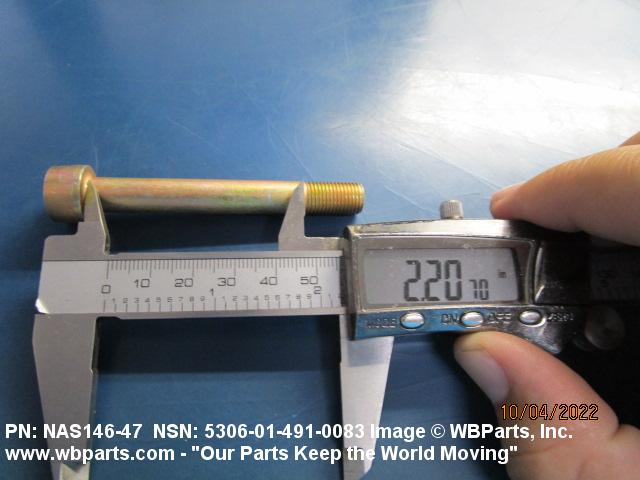

| FASTENER LENGTH | 2.173 INCHES MINIMUM AND 2.203 INCHES MAXIMUM |
| MATERIAL | STEEL COMP E4340 OR STEEL COMP 8740 OR STEEL COMP 6150 OR STEEL COMP 3140 OR STEEL COMP 3135 OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| HEAD STYLE | C28 BEVEL-CONICAL |

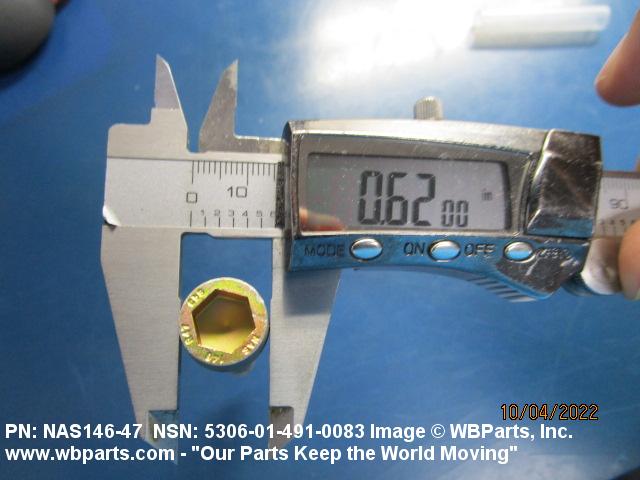

| HEAD DIAMETER | 0.615 INCHES MINIMUM AND 0.625 INCHES MAXIMUM |

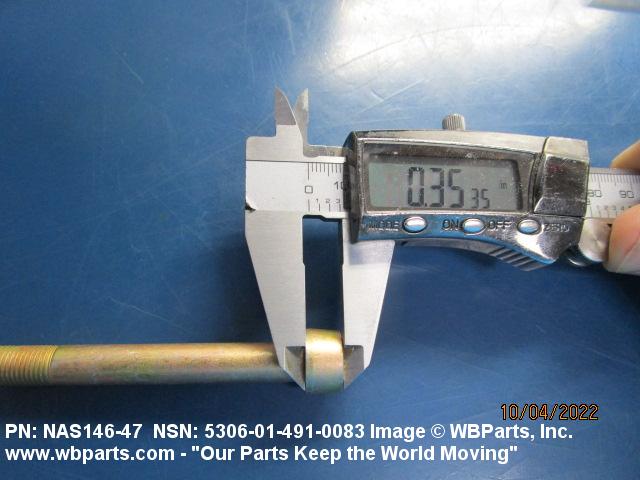

| HEAD HEIGHT | 0.343 INCHES NOMINAL |

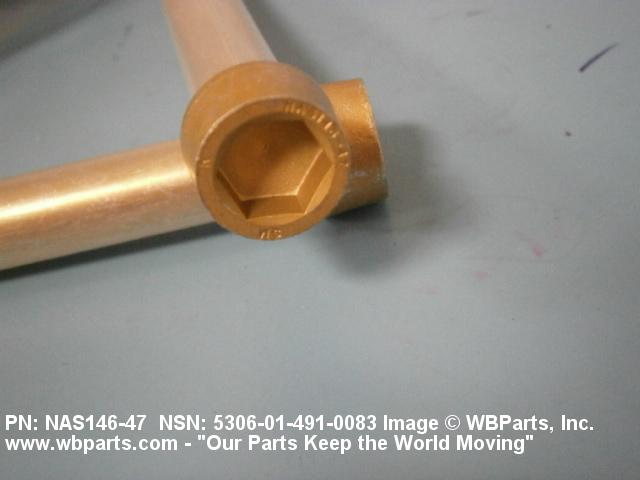

| INTERNAL DRIVE STYLE | D5 HEXAGON |
