Product Details | INTERNAL WRENCHING BOLT
5306-01-053-9319 An externally threaded fastener whose threaded portion is of one nominal diameter, No. 10 (0.190 IN.) (5 mm) or larger. It is designed with an internal socket or internal multiple spline for use with an internal driver. The head is beveled (conical) or cylindrical in shape. Items with cylindrical shaped heads must have an externally relieved body. A locking feature may be incorporated in the design of the head or threads. See also SCREW, CAP, SOCKET HEAD. Excludes SETSCREW; SCREW, SHOULDER; BOLT, SHOULDER; SCREW, EXTERNALLY RELIEVED BODY; BOLT, EXTERNALLY RELIEVED BODY; and SCREW, MACHINE.
Part Alternates: C953764, C9537-6-4, CA2103764HS, CA21037-6-4HS, 12000064, 120000-6-4, 1359320001, 135932-0001, 5306-01-053-9319, 01-053-9319, 5306010539319, 010539319
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 JAN 1978 | 01-053-9319 | 06666 ( BOLT, INTERNAL WRENCHING ) |

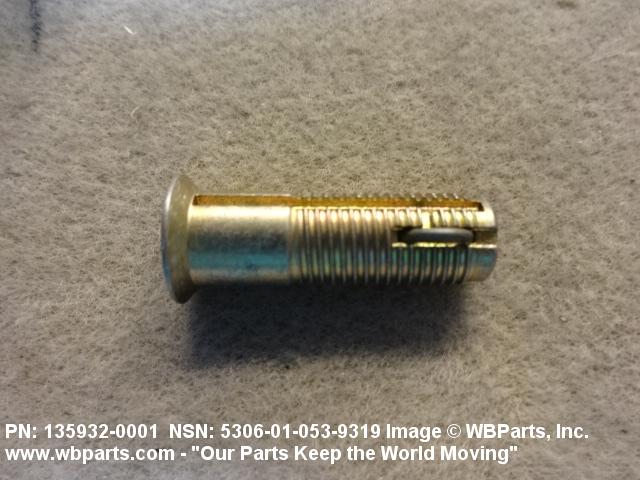

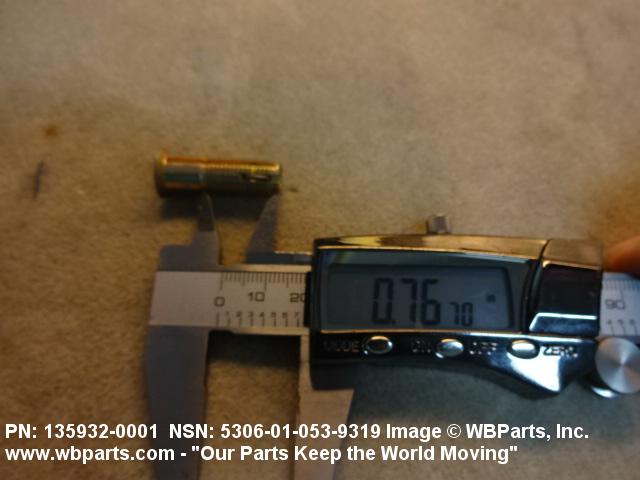

Drawings & Photos | NSN 5306-01-053-9319
Demand History | NSN 5306-01-053-9319
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 120000-6-4 | 2024-09-264 | 42668 | DIBBS |
| CA21037-6-4HS | 2024-09-264 | 42668 | DIBBS |
| 120000-6-4 | 2024-09-256 | 42668 | DIBBS |
| CA21037-6-4HS | 2024-09-256 | 42668 | DIBBS |
| 5306-01-053-9319 | 2024-05-137 | 1712 | United States |
| 5306-01-053-9319 | 2024-04-110 | 1712 | United States |
| 120000-6-4 | 2024-03-74 | 4457 | DIBBS |
| CA21037-6-4HS | 2024-03-74 | 4457 | DIBBS |
| 5306-01-053-9319 | 2024-02-57 | 250 | United States |
| 1359320001 | 2023-10-283 | 30 | Thailand |
| 5306-01-053-9319 | 2023-10-276 | 4 | United States |
| 5306-01-053-9319 | 2023-07-186 | 10 | Thailand |
| 5306-01-053-9319 | 2022-06-179 | 3000 | Turkey |
| 5306-01-053-9319 | 2020-07-202 | 27000 | US |
| 120000-6-4 | 2020-07-202 | 27000 | DIBBS |
| CA21037-6-4HS | 2020-07-202 | 27000 | DIBBS |
| 5306-01-053-9319 | 2020-06-157 | 1 | DIBBS-RFPs |
| 120000-6-4 | 2020-06-155 | 11000 | DIBBS |
| CA21037-6-4HS | 2020-06-155 | 11000 | DIBBS |
| 120000-6-4 | 2020-05-129 | 3837 | DIBBS |
| CA21037-6-4HS | 2020-05-129 | 3837 | DIBBS |
| 120000-6-4 | 2020-04-121 | 10310 | DIBBS |
| CA21037-6-4HS | 2020-04-121 | 10310 | DIBBS |
| 120000-6-4 | 2020-03-75 | 3837 | DIBBS |
| CA21037-6-4HS | 2020-03-75 | 3837 | DIBBS |
| 120000-6-4 | 2020-03-62 | 4818 | DIBBS |
| CA21037-6-4HS | 2020-03-62 | 4818 | DIBBS |
| 120000-6-4 | 2020-02-43 | 5364 | DIBBS |
| CA21037-6-4HS | 2020-02-43 | 5364 | DIBBS |
| 120000-6-4 | 2020-02-36 | 4708 | DIBBS |
| CA21037-6-4HS | 2020-02-36 | 4708 | DIBBS |
| 5306-01-053-9319 | 2020-01-10 | 5364 | US |
| 120000-6-4 | 2020-01-05 | 5364 | DIBBS |
| CA21037-6-4HS | 2020-01-05 | 5364 | DIBBS |
| 120000-6-4 | 2019-07-212 | 2654 | DIBBS |
| CA21037-6-4HS | 2019-07-212 | 2654 | DIBBS |
| 120000-6-4 | 2019-04-99 | 4625 | DIBBS |
| CA21037-6-4HS | 2019-04-99 | 4625 | DIBBS |
| 5306-01-053-9319 | 2019-01-20 | 800 | United States |
| 5306-01-053-9319 | 2018-12-360 | 5270 | DIBBS |
| 5306-01-053-9319 | 2018-06-157 | 1 | DIBBS-RFPs |
| 5306-01-053-9319 | 2017-02-53 | 27 | MANUAL |
| 5306-01-053-9319 | 2015-05-133 | 100 | Thailand |
| 5306-01-053-9319 | 2015-05-127 | 100 | Thailand |
| 5306-01-053-9319 | 2015-05-125 | 100 | MANUAL |
| 5306-01-053-9319 | 2015-04-113 | 100 | PL |
| 5306-01-053-9319 | 2014-04-107 | 15950 | US |
| 5306-01-053-9319 | 2014-04-105 | 15950 | DIBBS |
| 5306-01-053-9319 | 2014-02-59 | 17533 | DIBBS |
| 5306-01-053-9319 | 2014-02-44 | 17533 | DIBBS |
| 5306-01-053-9319 | 2013-08-213 | 4565 | DIBBS |
| 5306-01-053-9319 | 2013-07-203 | 4565 | DIBBS |
| 5306-01-053-9319 | 2013-01-29 | 14000 | DIBBS |
| 5306-01-053-9319 | 2013-01-07 | 4868 | DIBBS |
| 5306-01-053-9319 | 2013-01-02 | 13876 | DIBBS |
| 5306-01-053-9319 | 2012-12-341 | 4265 | DIBBS |
| 5306-01-053-9319 | 2012-11-334 | 865 | DIBBS |
| 5306-01-053-9319 | 2012-11-313 | 2 | US |
| 5306-01-053-9319 | 2012-10-292 | 4265 | DIBBS |
| 5306-01-053-9319 | 2012-09-261 | 5415 | DIBBS |
| 5306-01-053-9319 | 2012-08-227 | 5415 | DIBBS |
| 5306-01-053-9319 | 2012-05-135 | 3439 | DIBBS |
| 5306-01-053-9319 | 2010-11-309 | 100 | IT |
| 5306-01-053-9319 | 2010-11-309 | 1 | IT |
| 5306-01-053-9319 | 2009-08-218 | 10000 | DIBBS |
| 5306-01-053-9319 | 2009-05-142 | 10000 | DIBBS |
| CA2103764HS | 2009-05-126 | 20 | US |
| CA2103764HS | 2009-04-103 | 4 | US |
| 5306-01-053-9319 | 2009-01-30 | 10000 | DIBBS |
| 5306-01-053-9319 | 2008-07-199 | 1000 | IL |
| 5306-01-053-9319 | 2008-07-192 | 10000 | DIBBS |
| 5306-01-053-9319 | 2008-06-164 | 10000 | DIBBS |
| C953764 | 2008-03-91 | 12 | United States |
| C953764 | 2008-03-88 | 15 | US |
Cross Reference | NSN 5306-01-053-9319
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 120000-6-4 | 60119 | MONADNOCK COMPANY THE DBA LISI AEROSPACE |
| 135932-0001 | 19397 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| C9537-6-4 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| CA21037-6-4HS | 29372 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-01-053-9319
Related Products | NSN 5306-01-053-9319
Technical Data | NSN 5306-01-053-9319
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |

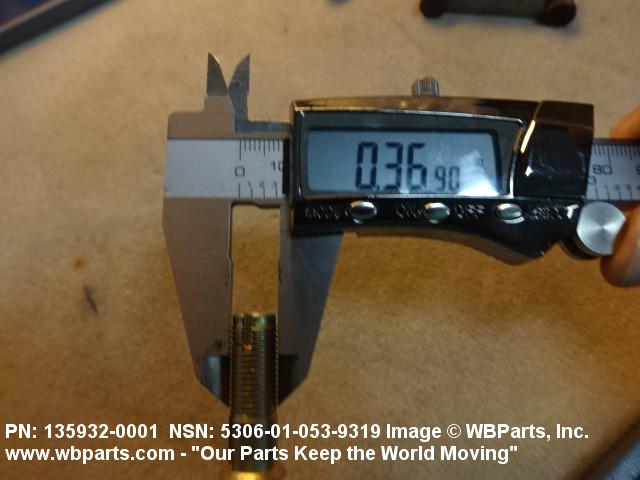

| NOMINAL THREAD DIAMETER | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

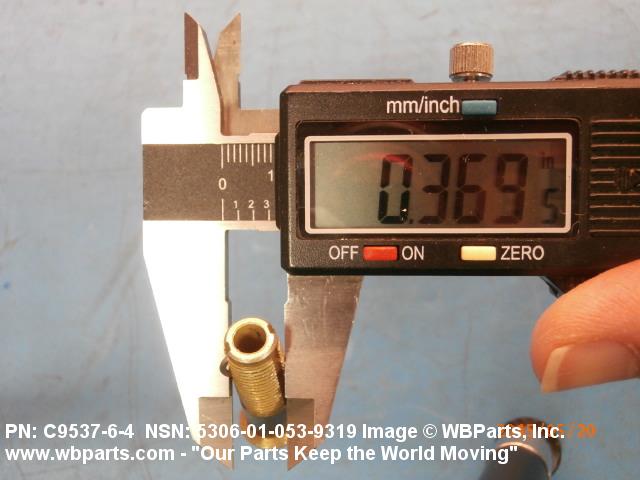

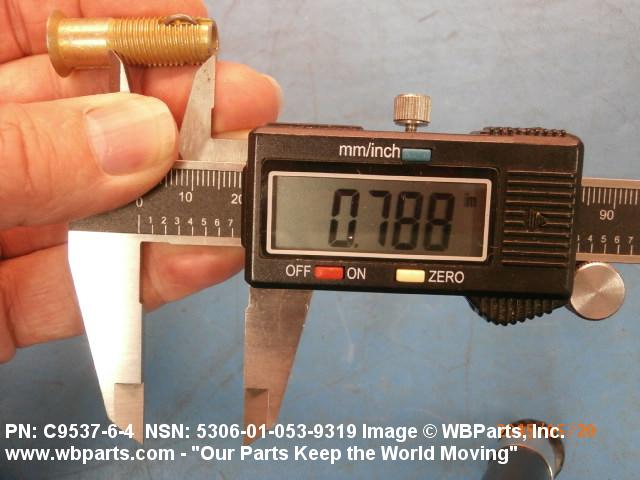

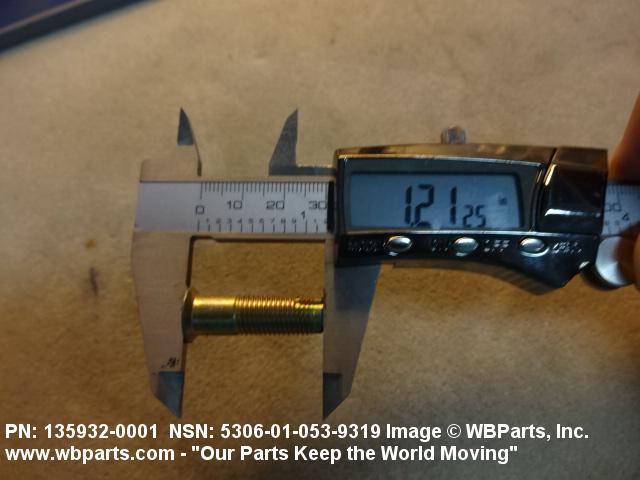

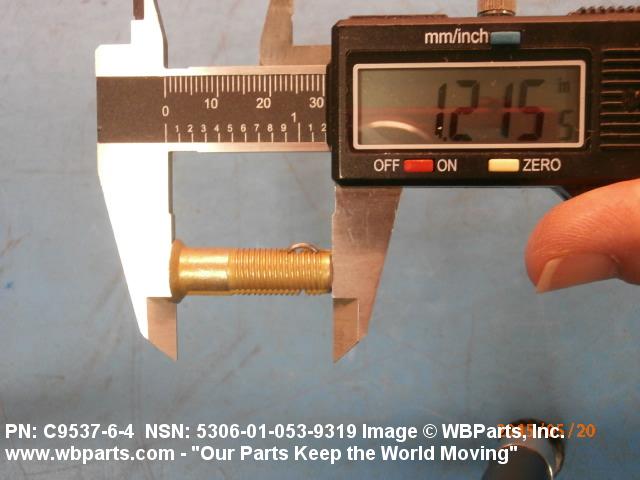

| THREAD LENGTH | 0.840 INCHES NOMINAL |
| FASTENER LENGTH | 1.210 INCHES NOMINAL |
| MATERIAL | STEEL COMP 4140 AND STEEL COMP 8740 OVERALL STEEL COMP 631 LOCKING FEATURE |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5626 MIL SPEC SINGLE MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL AMS 5673 ASSN STD SINGLE MATERIAL RESPONSE LOCKING FEATURE |
| SURFACE TREATMENT | CADMIUM OVERALL PASSIVATE LOCKING FEATURE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE LOCKING FEATURE |
| HEAD STYLE | C50 FLAT COUNTERSUNK |

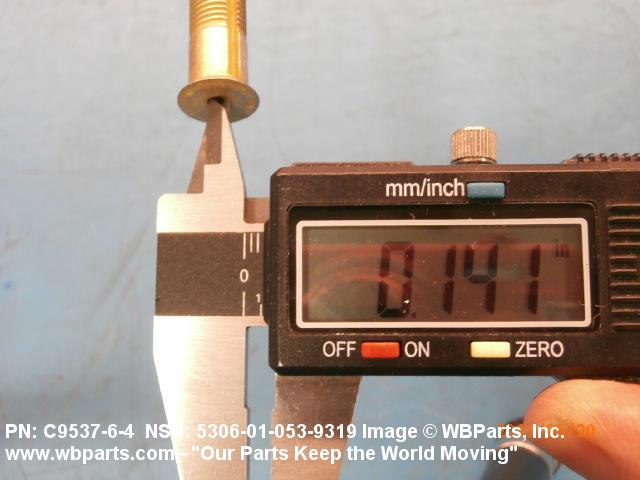

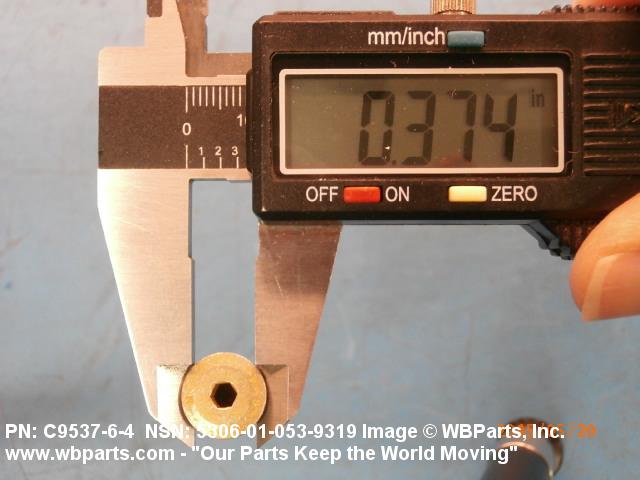

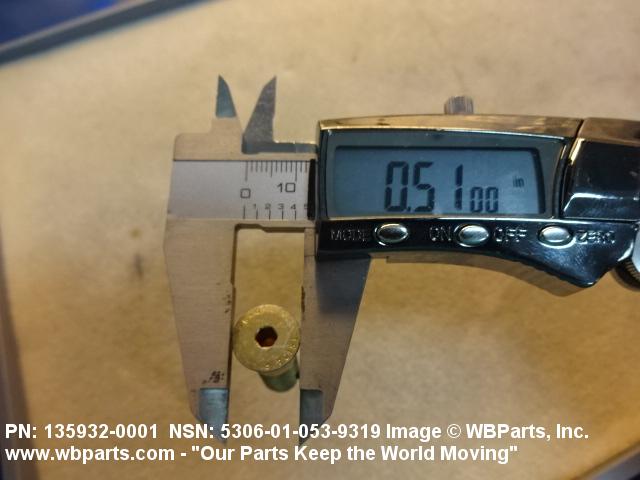

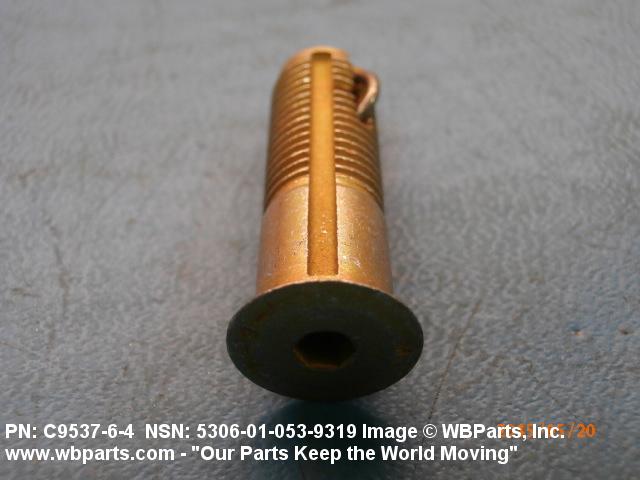

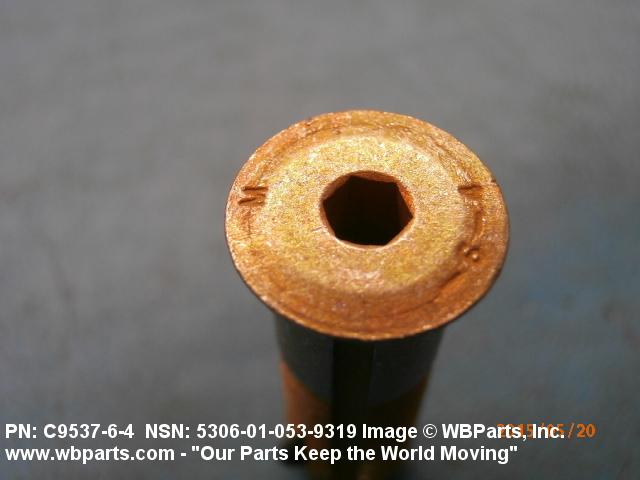

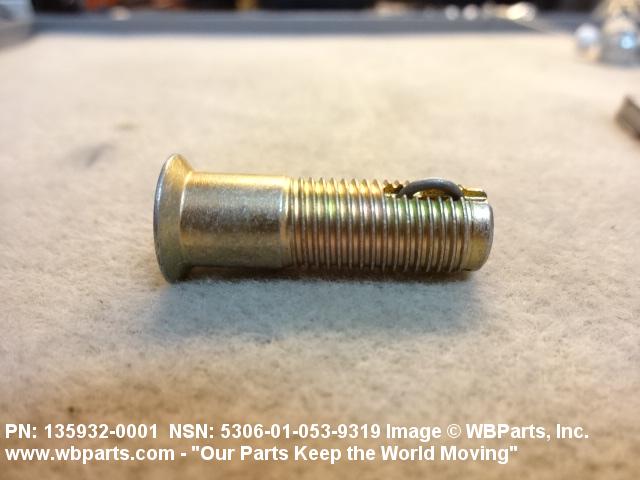

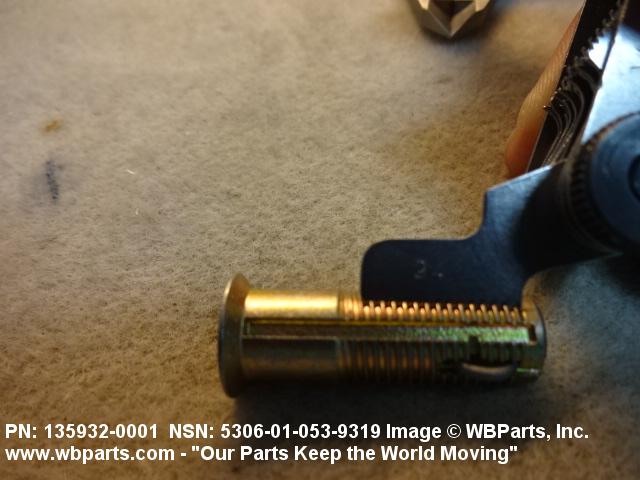

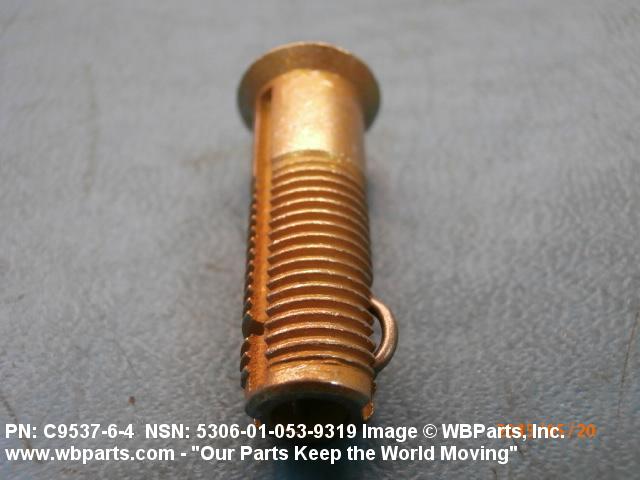

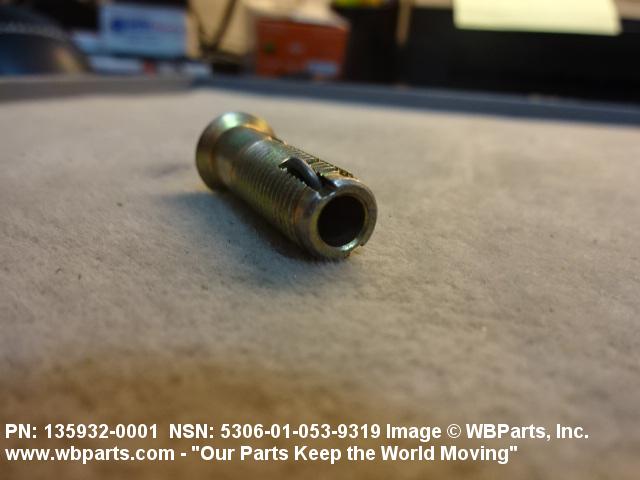

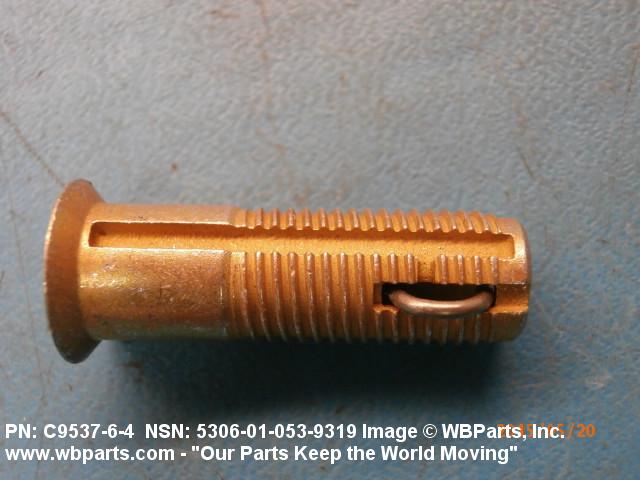

| HEAD DIAMETER | 0.375 INCHES NOMINAL |
| COUNTERSINK ANGLE | 100.0 DEGREES NOMINAL |
| INTERNAL DRIVE STYLE | D5 HEXAGON |
| WIDTH ACROSS FLATS | 0.141 INCHES NOMINAL |
| LOCKING FEATURE | SLOTTED CONCENTRIC HOLE |
| EXTERNALLY RELIEVED BODY DIAMETER QUANTITY | 1 |
| FEATURES PROVIDED | RETAINING CLIP |
| SPECIAL FEATURES | EXTERNALLY RELIEVED PORTION 0.100IN. LG AT TIP OF THREAD END;CONCENTRICHOLE THROUGH THREADED PORTION TO ACCOMODATE RETAINING CLIP-LOCKING FEATURE |
| III END ITEM IDENTIFICATION | AN/ALE-40 |
| MANUFACTURERS CODE | 29372 |
| DESIGN CONTROL REFERENCE | CA21037-6-4HS |
