NSN 5306-01-480-1173 NAS11032, NAS1103-2, 01-480-1173
Product Details | SHEAR BOLT

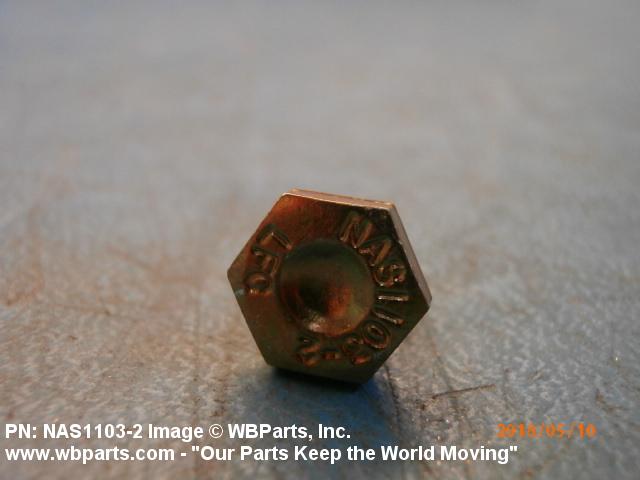

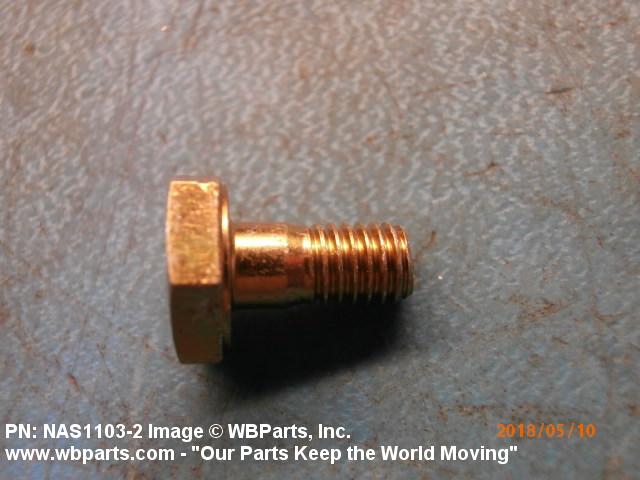

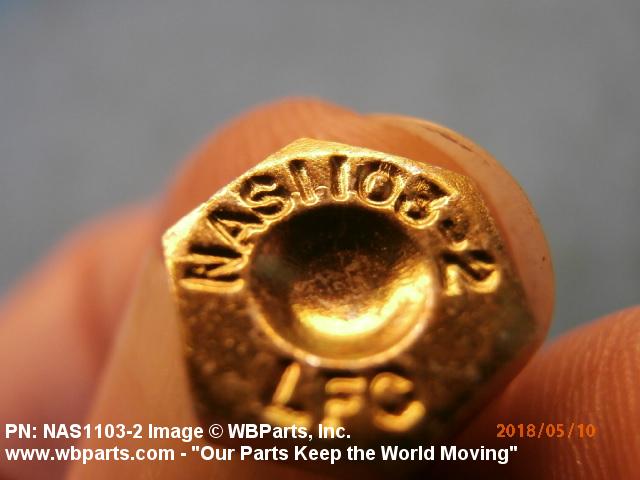

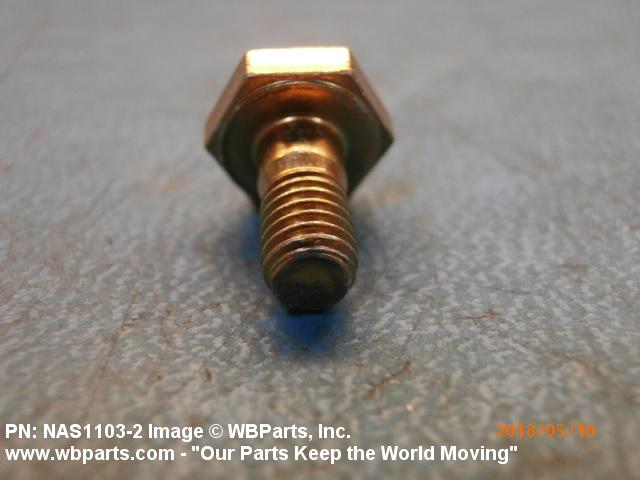

5306-01-480-1173 A high strength, 160,000 pounds per square inch (1100 megapascals) minimum tensile strength externally threaded fastener designed for use in applications involving great shear stress. The head is designed to accommodate an external wrench or driver. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. The unthreaded portion is of specific grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. A locking feature may be incorporated in the design of the head or threads. See BOLT, MACHINE and BOLT, CLEVIS.
Part Alternates: NAS11032, NAS1103-2, 5306-01-480-1173, 01-480-1173, 5306014801173, 014801173
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 NOV 2000 | 01-480-1173 | 15903 ( BOLT, SHEAR ) |

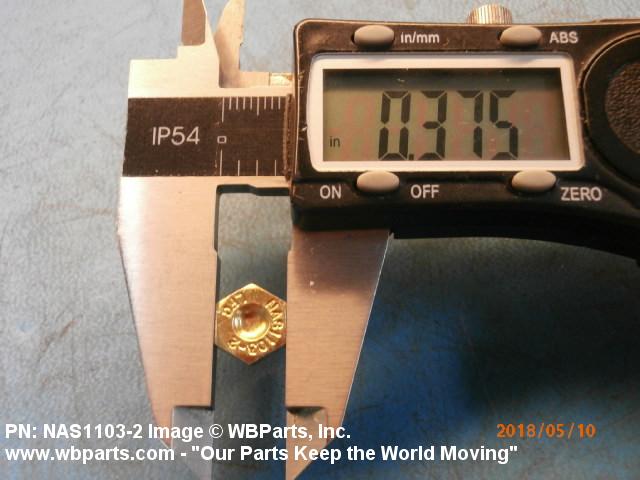

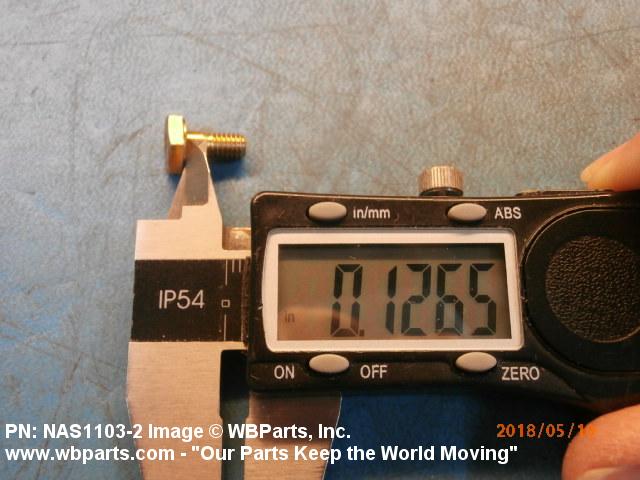

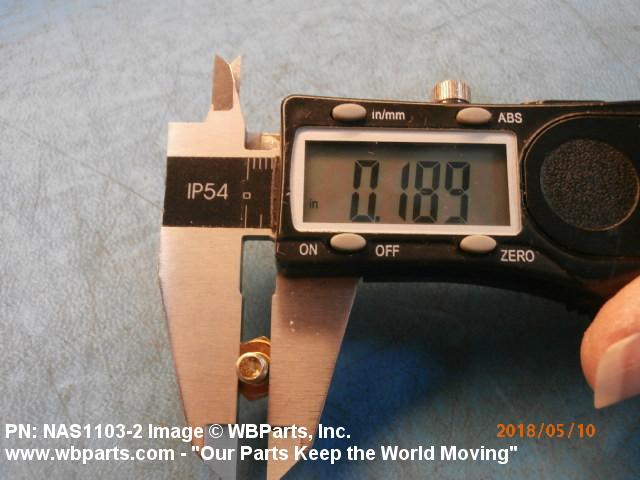

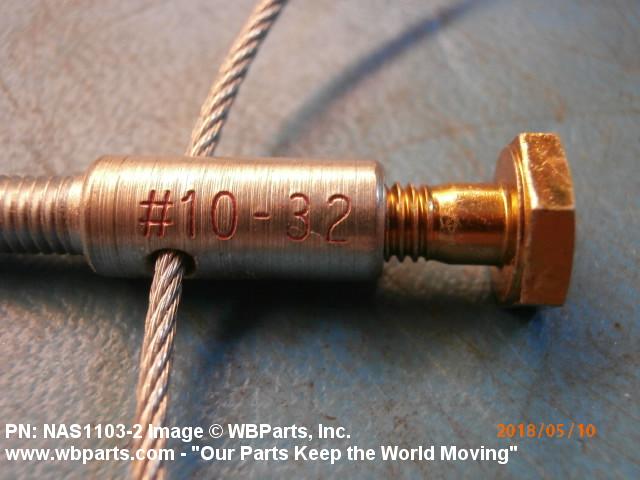

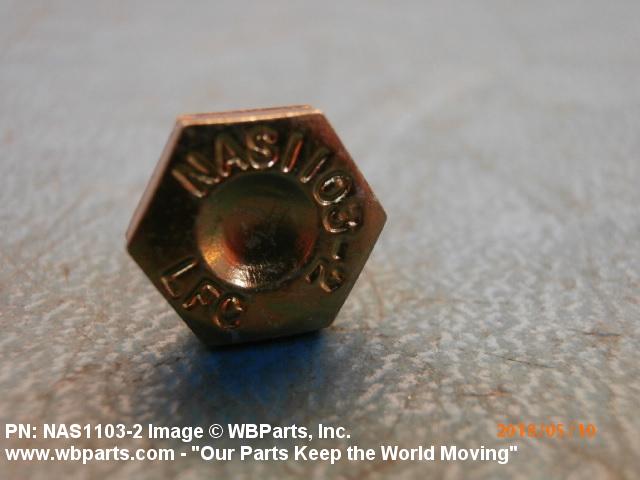

Drawings & Photos | NSN 5306-01-480-1173
Demand History | NSN 5306-01-480-1173
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-01-480-1173 | 2020-10-288 | 200 | US |
| 5306-01-480-1173 | 2019-07-203 | 236 | LT |
| 5306-01-480-1173 | 2018-05-124 | 290 | CL |
| NAS11032 | 2018-04-120 | 290 | us |
| NAS1103-2 | 2012-11-310 | 212 | |
| NAS11032 | 2010-11-305 | 950 | US |
| 5306-01-480-1173 | 2009-08-238 | 5 | MX |
Cross Reference | NSN 5306-01-480-1173
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1103-2 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-480-1173
Technical Data | NSN 5306-01-480-1173
| Characteristic | Specifications |
|---|---|
| THREAD DIRECTION | RIGHT-HAND |
| THREAD QUANTITY PER INCH | 32 |
| SURFACE TREATMENT | CADMIUM OVERALL |

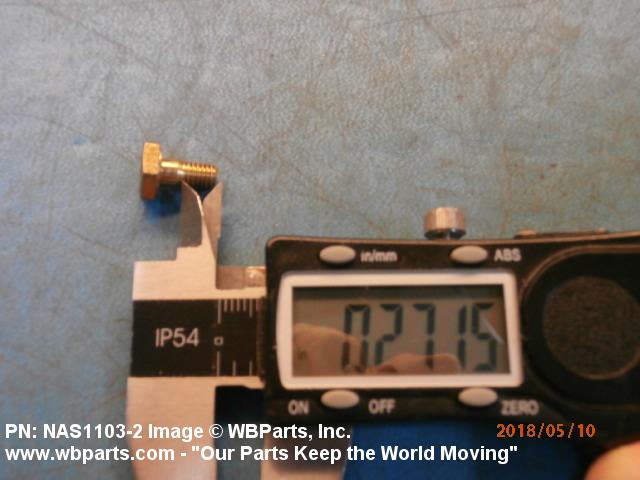

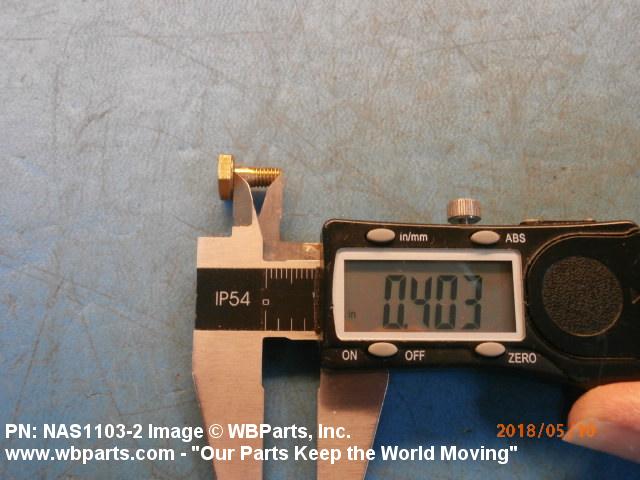

| FASTENER LENGTH | 0.401 INCHES NOMINAL |
| HEAD STYLE | HEXAGON |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD SERIES DESIGNATOR | UNJF |
| THREAD LENGTH | 0.276 INCHES NOMINAL |
| GRIP LENGTH | 0.125 INCHES NOMINAL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASM 6382 ASSN STD SINGLE MATERIAL RESPONSE OVERALL OR AMS 6415 ASSN STD SINGLE MATERIAL RESPONSE OVERALL OR AMS 6484 ASSN STD SINGLE MATERIAL RESPONSE OVERALL OR AMS 6322 ASSN STD SINGLE MATERIAL RESPONSE OVERALL OR AMS 6325 ASSN STD SINGLE MATERIAL RESPONSE OVERALL OR AMS 6327 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| GRIP DIAMETER | 0.189 INCHES MINIMUM AND 0.190 INCHES MAXIMUM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS-QQ-P-416, TYPE II, CALSS 2 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| MATERIAL | STEEL COMP 4140 OVERALL OR STEEL COMP 4340 OVERALL OR STEEL COMP 8740 OVERALL |

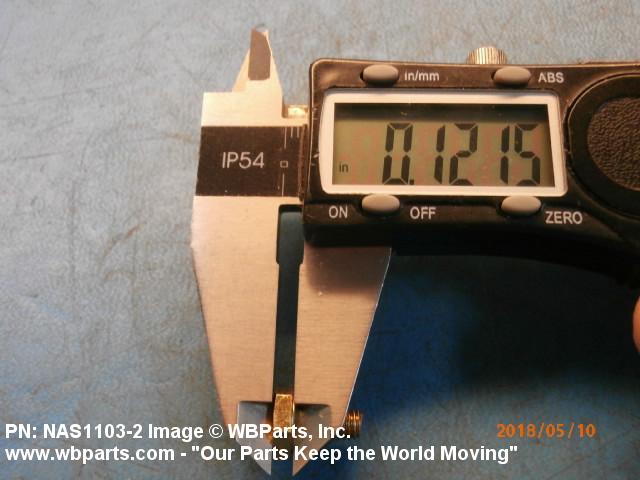

| HEAD HEIGHT | 0.110 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |
