NSN 5306-01-421-5112 B30US5K16, BACB30US5K16, LE11100673516

Product Details | SHEAR BOLT

5306-01-421-5112 A high strength, 160,000 pounds per square inch (1100 megapascals) minimum tensile strength externally threaded fastener designed for use in applications involving great shear stress. The head is designed to accommodate an external wrench or driver. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. The unthreaded portion is of specific grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. A locking feature may be incorporated in the design of the head or threads. See BOLT, MACHINE and BOLT, CLEVIS.

Part Alternates: B30US5K16, BACB30US5K16, LE11100673516, LE111-0067-3516, 5306-01-421-5112, 01-421-5112, 5306014215112, 014215112

Hardware and Abrasives | Bolts

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	09 NOV 1995	01-421-5112	15903 ( BOLT, SHEAR )

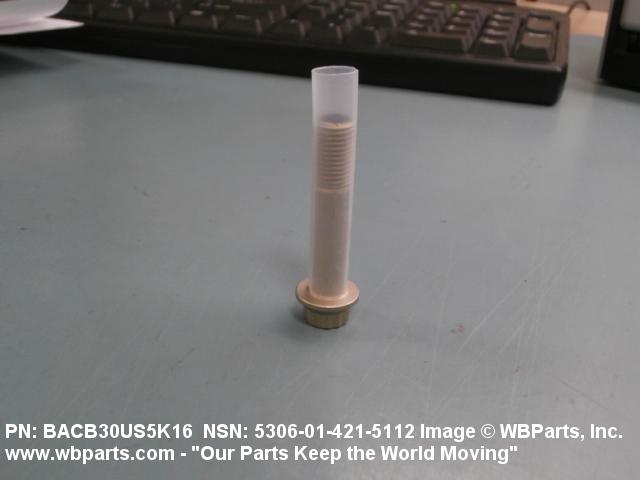

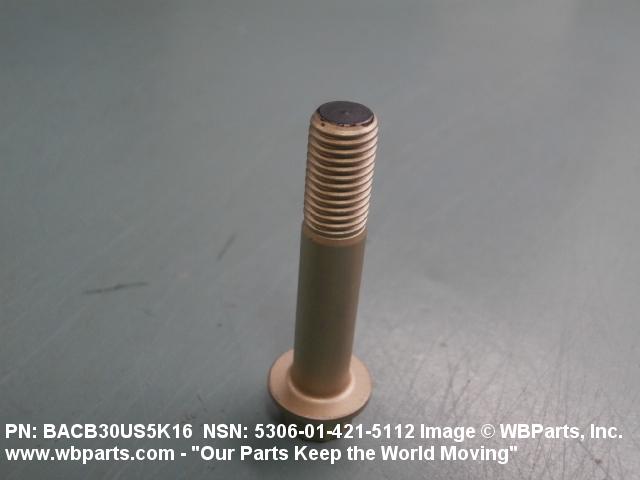

Drawings & Photos | NSN 5306-01-421-5112

Part Number	Request Date	QTY	Origin
B30US5K16	2021-07-206	298	DIBBS
BACB30US5K16	2021-07-206	298	DIBBS
BACB30US5K16	2020-10-281	8	United Arab Emirates
B30US5K16	2020-06-166	78	DIBBS
BACB30US5K16	2020-06-166	78	DIBBS
B30US5K16	2020-02-40	45	DIBBS
BACB30US5K16	2020-02-40	45	DIBBS
5306-01-421-5112	2016-04-118	23	DIBBS
5306-01-421-5112	2016-03-90	8	DIBBS
5306-01-421-5112	2015-12-347	100	DIBBS
5306-01-421-5112	2015-12-340	100	DIBBS
5306-01-421-5112	2014-09-251	4	DIBBS
5306-01-421-5112	2014-02-49	1	DIBBS
5306-01-421-5112	2014-02-34	1	DIBBS
5306-01-421-5112	2013-12-347	400	United States
5306-01-421-5112	2013-12-338	400	United States
5306-01-421-5112	2013-10-296	400	United States
BACB30US5K16	2013-08-228	16	US
5306-01-421-5112	2013-04-112	7	DIBBS
5306-01-421-5112	2012-09-253	6	DIBBS
5306-01-421-5112	2011-08-221	8	UK
5306-01-421-5112	2011-08-221	8	UK

Cross Reference | NSN 5306-01-421-5112

Part Number	Cage Code	Manufacturer
B30US5K16	06710	VALLEY-TODECO, INC.
B30US5K16	06725	SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES
B30US5K16	17943	FEDERAL MANUFACTURING CORPORATION
B30US5K16	27624	SPS TECHNOLOGIES, LLC DBA PB FASTENERS
B30US5K16	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
B30US5K16	57928	SONIC INDUSTRIES INC.
B30US5K16	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
B30US5K16	97928	HUCK INTL INC
BACB30US5K16	17446	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
LE111-0067-3516	43999	BOEING COMPANY, THE DBA BOEING

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5306-01-421-5112

Compare

Related Products | NSN 5306-01-421-5112

5306-01-421-5855, 5306-01-421-6054, 5306-01-421-6129, 5306-01-421-6147, 5306-01-421-6151

Technical Data | NSN 5306-01-421-5112

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNJF
NOMINAL THREAD DIAMETER	0.312 INCHES
THREAD QUANTITY PER INCH	24
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND

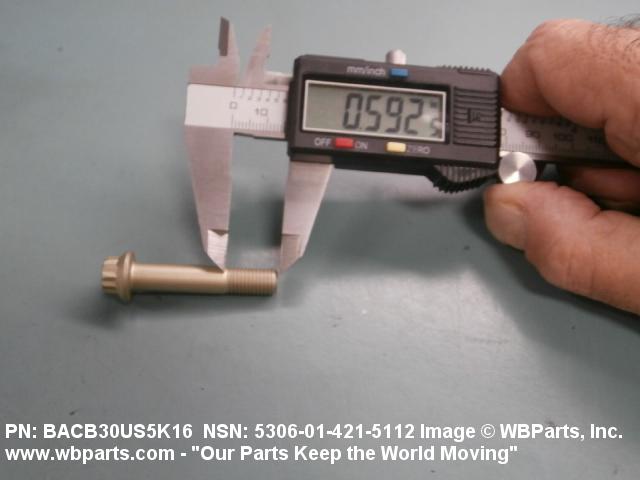

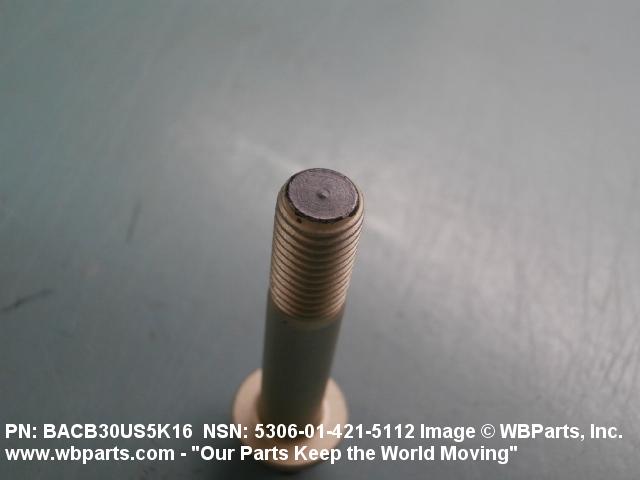

THREAD LENGTH	0.593 INCHES NOMINAL
FASTENER LENGTH	1.593 INCHES NOMINAL
MATERIAL	NICKEL ALLOY 718 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS5662 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	ALUMINUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-C-85614 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL
MINIMUM TENSILE STRENGTH	220000 POUNDS PER SQUARE INCH

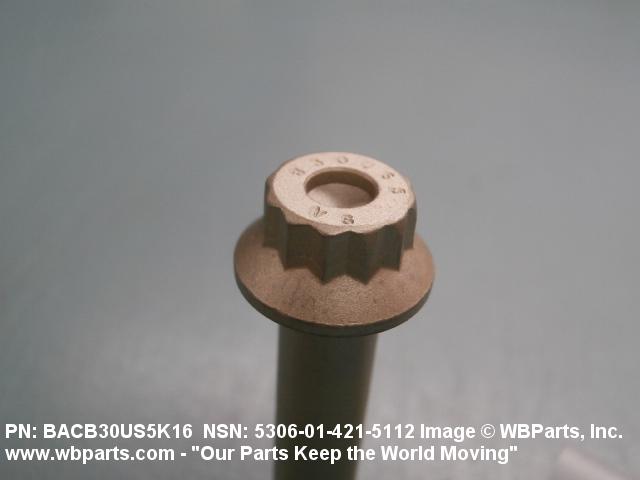

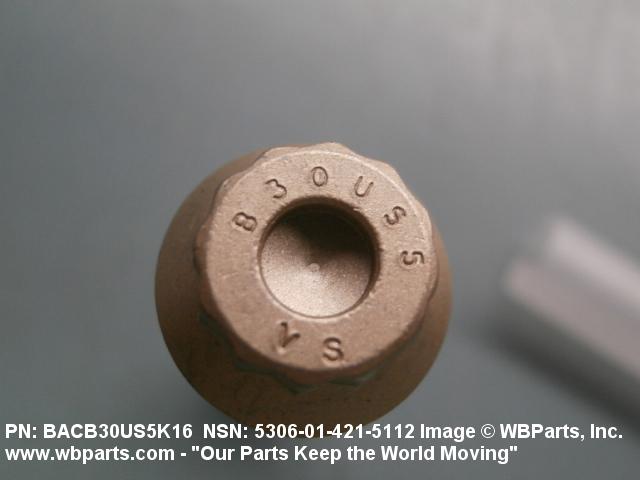

HEAD STYLE	C9 DOUBLE HEXAGON EXTENDED WASHER

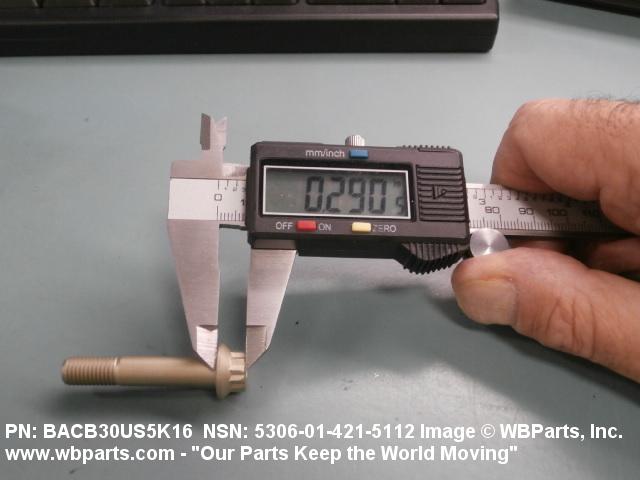

HEAD HEIGHT	0.290 INCHES NOMINAL

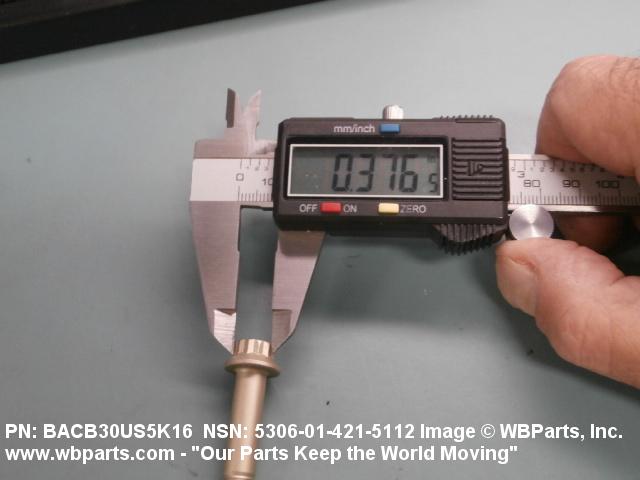

WIDTH BETWEEN FLATS	0.367 INCHES MINIMUM AND 0.376 INCHES MAXIMUM

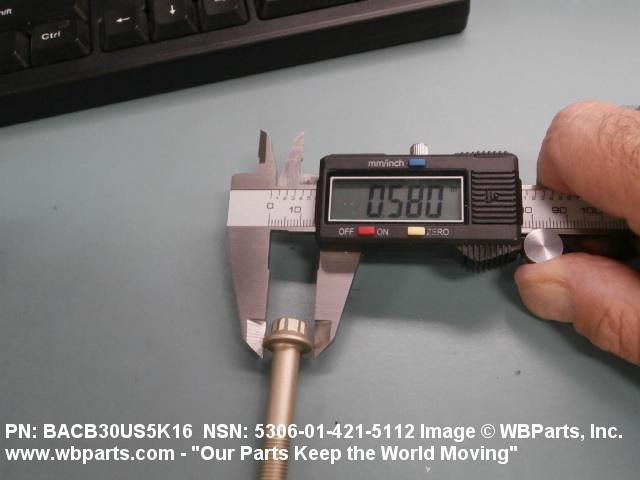

EXTENDED WASHER DIAMETER	0.580 INCHES NOMINAL

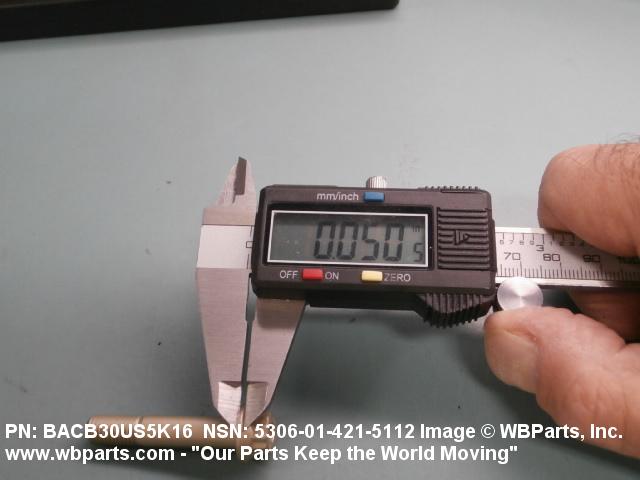

EXTENDED WASHER THICKNESS	0.050 INCHES NOMINAL

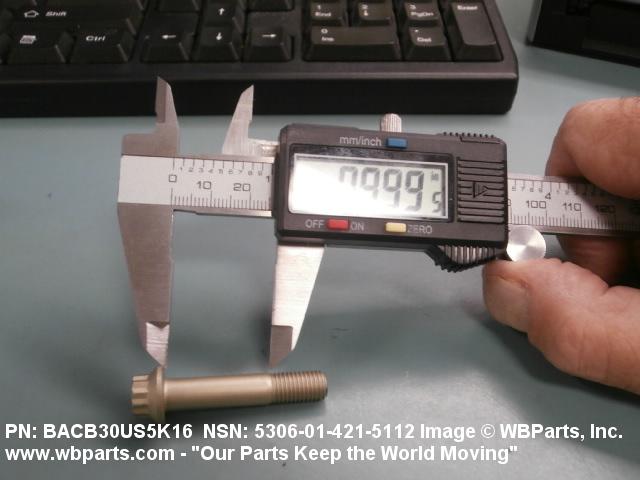

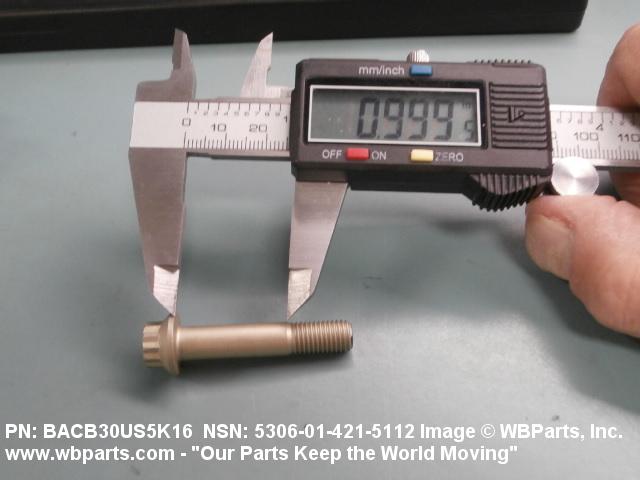

GRIP LENGTH	1.000 INCHES NOMINAL

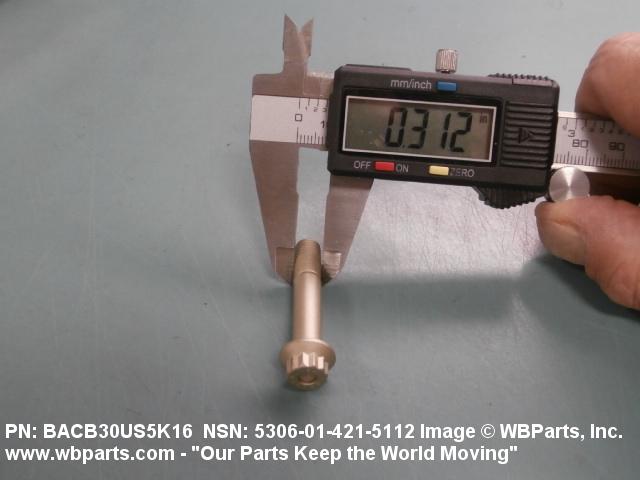

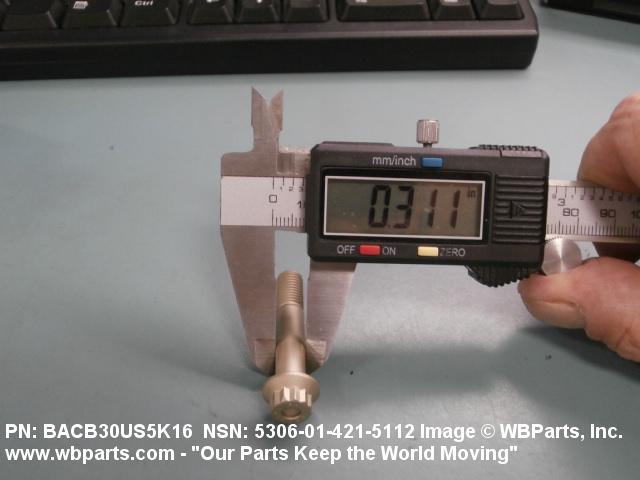

GRIP DIAMETER	0.311 INCHES MINIMUM AND 0.312 INCHES MAXIMUM
