NSN 5306-01-380-7423 AIC8711020, AIC871-10-20, SLB2651020
Product Details | SHEAR BOLT
5306-01-380-7423 A high strength, 160,000 pounds per square inch (1100 megapascals) minimum tensile strength externally threaded fastener designed for use in applications involving great shear stress. The head is designed to accommodate an external wrench or driver. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. The unthreaded portion is of specific grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. A locking feature may be incorporated in the design of the head or threads. See BOLT, MACHINE and BOLT, CLEVIS.
Part Alternates: AIC8711020, AIC871-10-20, SLB2651020, SLB265-10-20, VCG00271020, VCG0027-10-20, PBF15351020, PBF1535-10-20, 34081020, 3408-10-20, 3D00131020, 3D0013-10-20, 80994-10-20, 5306-01-380-7423, 01-380-7423, 5306013807423, 013807423, 809941020
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 SEP 1993 | 01-380-7423 | 15903 ( BOLT, SHEAR ) |

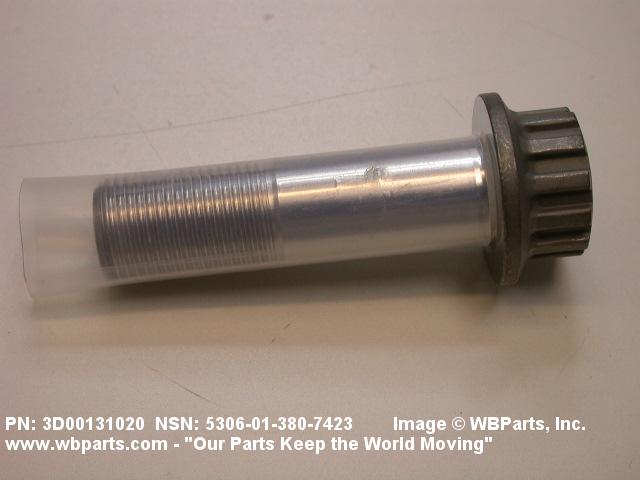

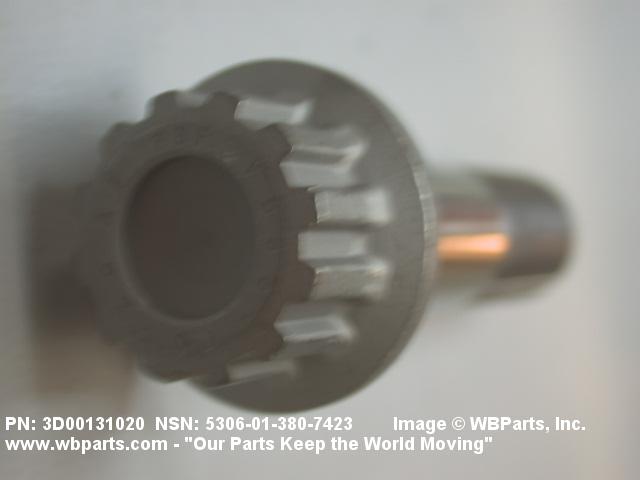

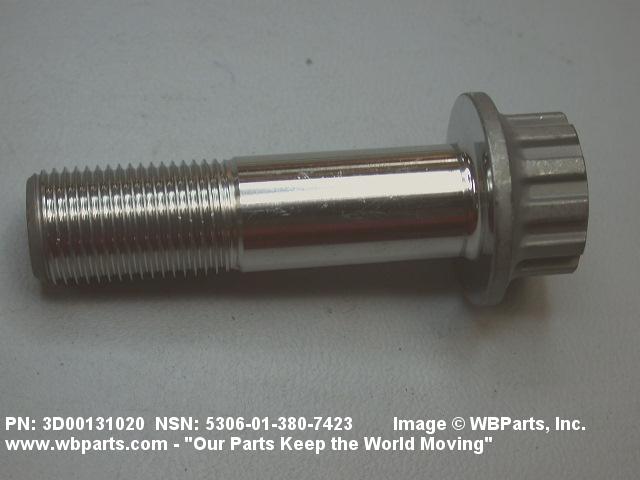

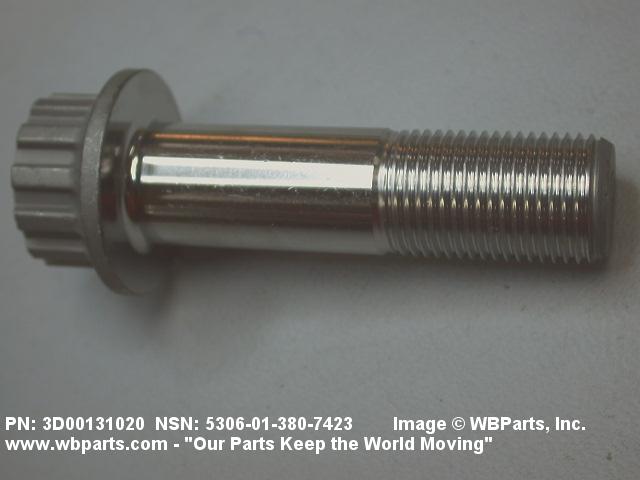

Drawings & Photos | NSN 5306-01-380-7423
Demand History | NSN 5306-01-380-7423
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3D00131020 | 2007-07-205 | 20 | United States |
| 3D00131020 | 2007-06-172 | 24 | United States |
| 3D00131020 | 2007-05-151 | 60 | United States |
| 3D00131020 | 2007-02-33 | 280 | us |
| 3D00131020 | 2006-11-332 | 392 | us |
Cross Reference | NSN 5306-01-380-7423
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3408-10-20 | 5M902 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 3408-10-20 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 3D0013-10-20 | 88277 | BOEING COMPANY, THE DBA BOEING |
| 80994-10-20 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| AIC871-10-20 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| PBF1535-10-20 | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
| SLB265-10-20 | 16258 | SPACELOK INC. |
| VCG0027-10-20 | 06710 | VALLEY-TODECO, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-380-7423
Technical Data | NSN 5306-01-380-7423
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.625 INCHES |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.960 INCHES MINIMUM AND 1.071 INCHES MAXIMUM |
| FASTENER LENGTH | 2.306 INCHES MINIMUM AND 2.336 INCHES MAXIMUM |
| MATERIAL | NICKEL ALLOY 718 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5662 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| MINIMUM TENSILE STRENGTH | 180000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C11 SPLINE EXTENDED WASHER |
| HEAD HEIGHT | 0.562 INCHES NOMINAL |
| EXTENDED WASHER DIAMETER | 1.153 INCHES MINIMUM AND 1.163 INCHES MAXIMUM |
| EXTENDED WASHER THICKNESS | 0.090 INCHES NOMINAL |
| HEAD MINOR DIAMETER | 0.673 INCHES MINIMUM AND 0.688 INCHES MAXIMUM |
| GRIP LENGTH | 1.250 INCHES NOMINAL |
| GRIP DIAMETER | 0.6230 INCHES MINIMUM AND 0.6240 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5306-01-380-7423
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093490 | BOLT/NUT/SCREW/CLIPS/FASTENER/ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-01-380-7423
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | BA | TB:C-17 PROGRAM |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F77 | Boeing Military Transportation Aircraft Los Angeles, CA 90307-3044 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
