NSN 5306-01-376-7894 NAS14657, NAS146-57, 01-376-7894
Product Details | INTERNAL WRENCHING BOLT
5306-01-376-7894 An externally threaded fastener whose threaded portion is of one nominal diameter, No. 10 (0.190 IN.) (5 mm) or larger. It is designed with an internal socket or internal multiple spline for use with an internal driver. The head is beveled (conical) or cylindrical in shape. Items with cylindrical shaped heads must have an externally relieved body. A locking feature may be incorporated in the design of the head or threads. See also SCREW, CAP, SOCKET HEAD. Excludes SETSCREW; SCREW, SHOULDER; BOLT, SHOULDER; SCREW, EXTERNALLY RELIEVED BODY; BOLT, EXTERNALLY RELIEVED BODY; and SCREW, MACHINE.
Part Alternates: NAS14657, NAS146-57, 5306-01-376-7894, 01-376-7894, 5306013767894, 013767894
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 JUN 1993 | 01-376-7894 | 06666 ( BOLT, INTERNAL WRENCHING ) |

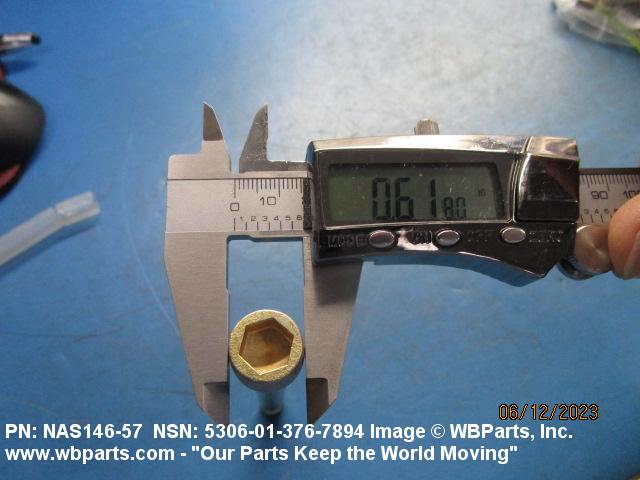

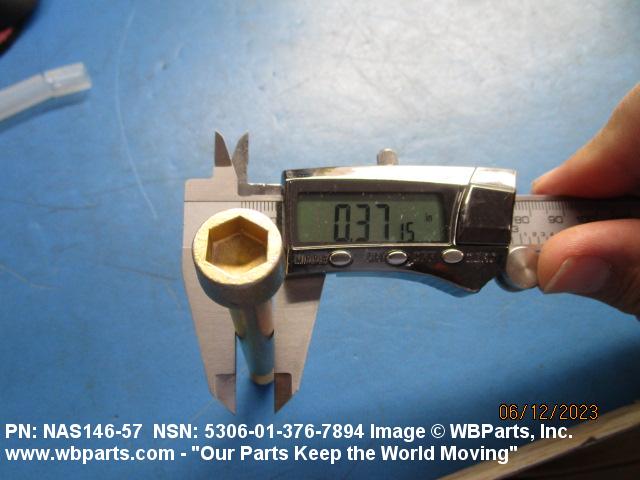

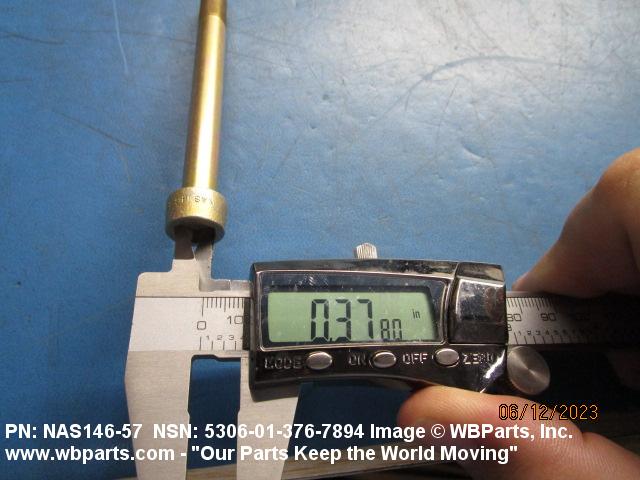

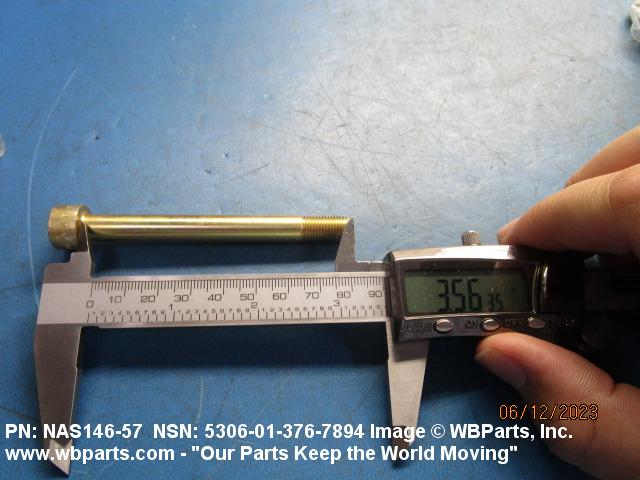

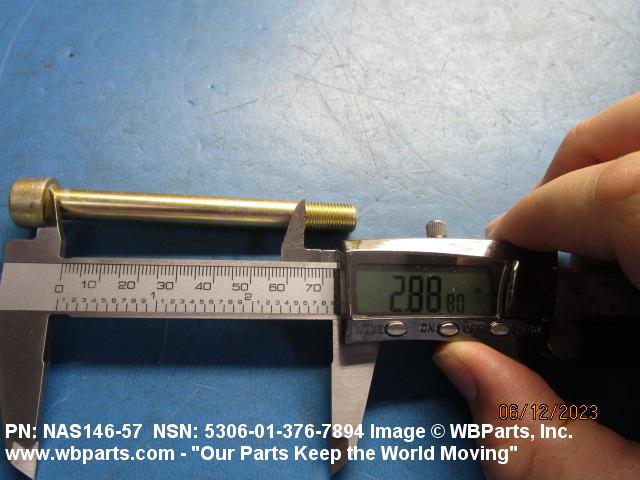

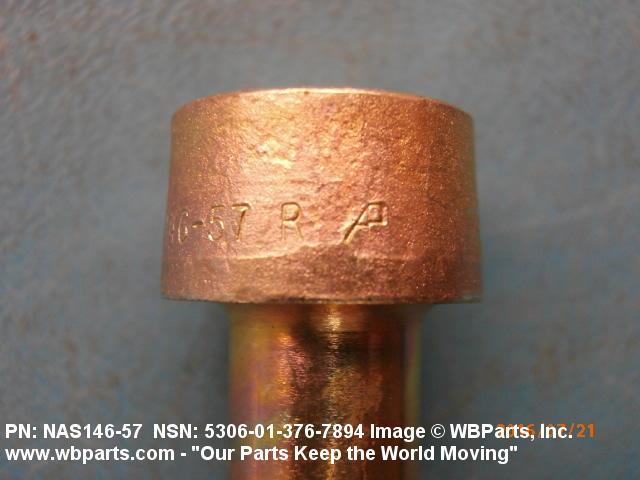

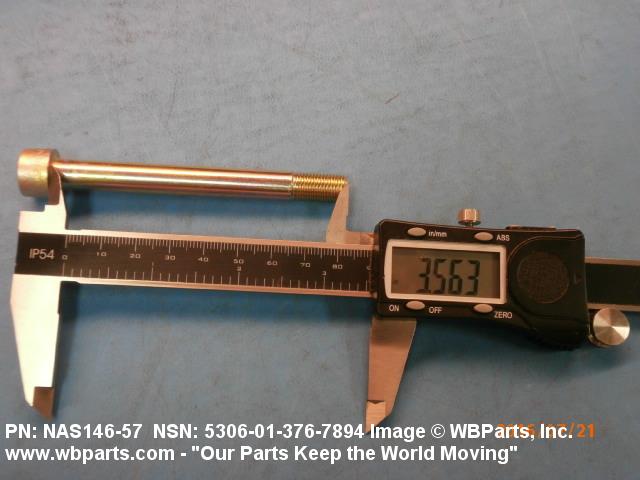

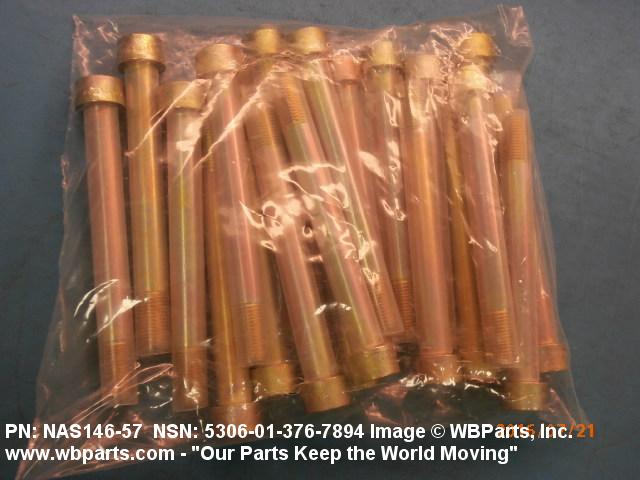

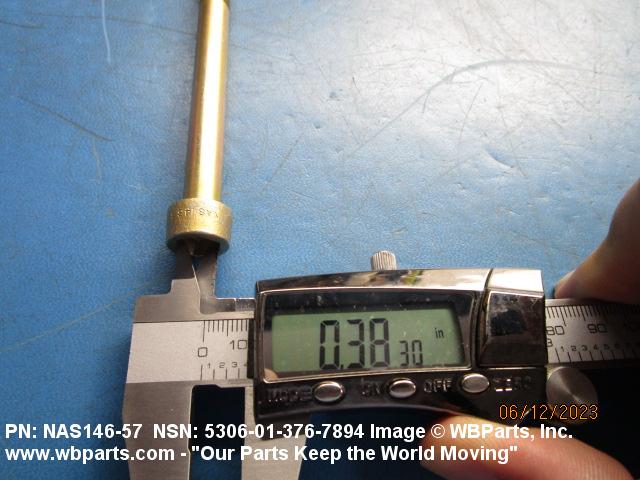

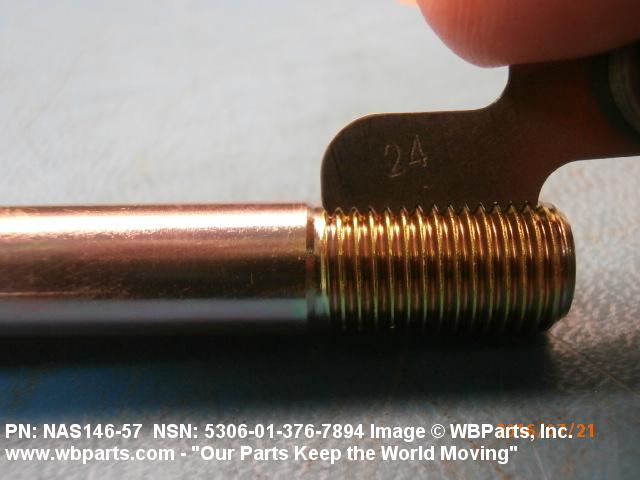

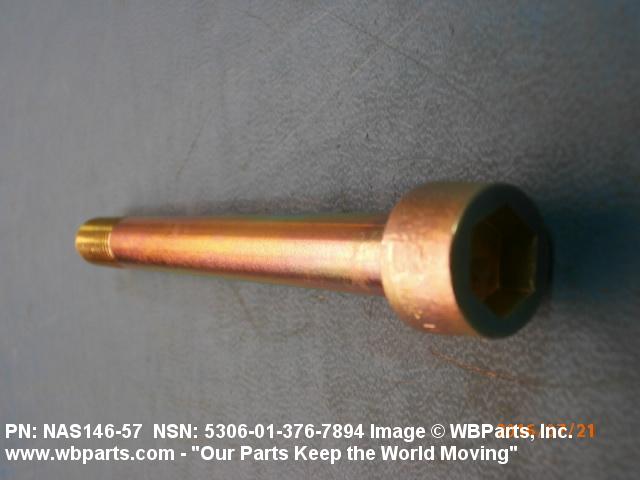

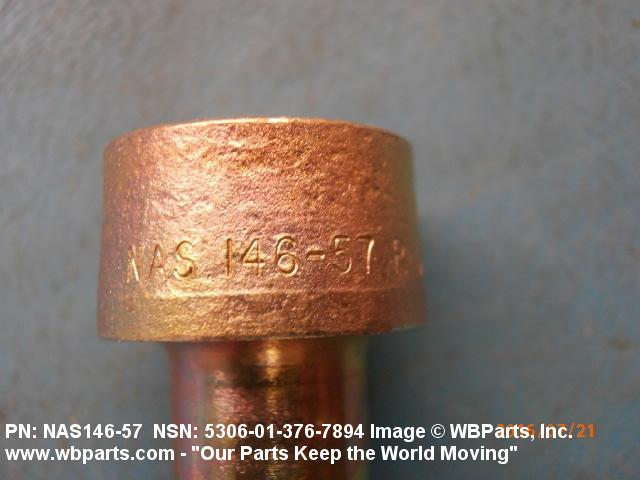

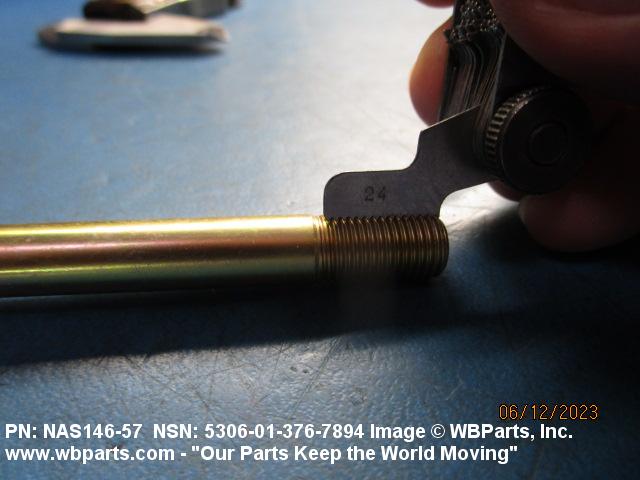

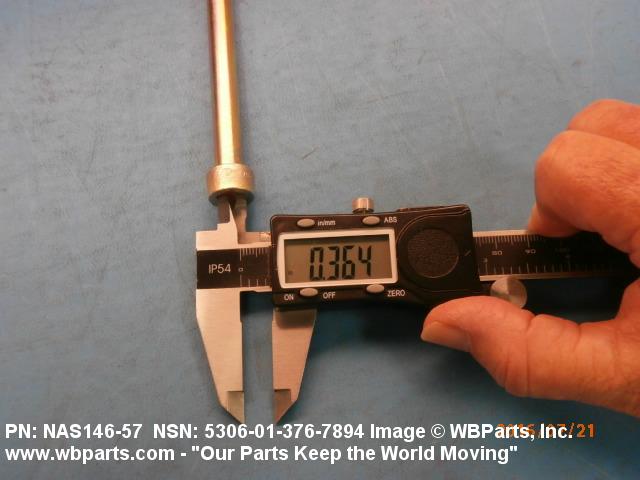

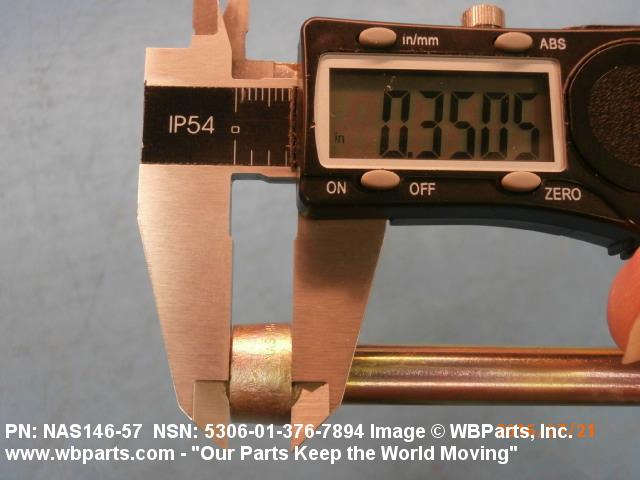

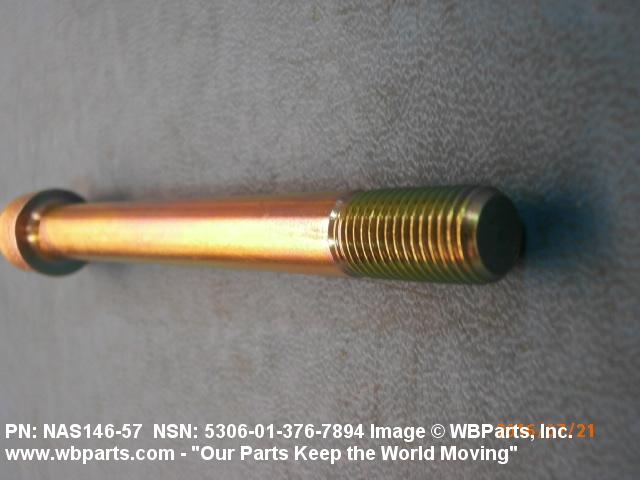

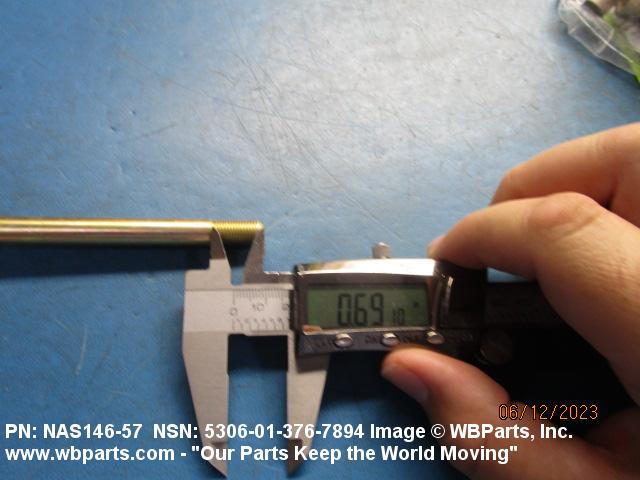

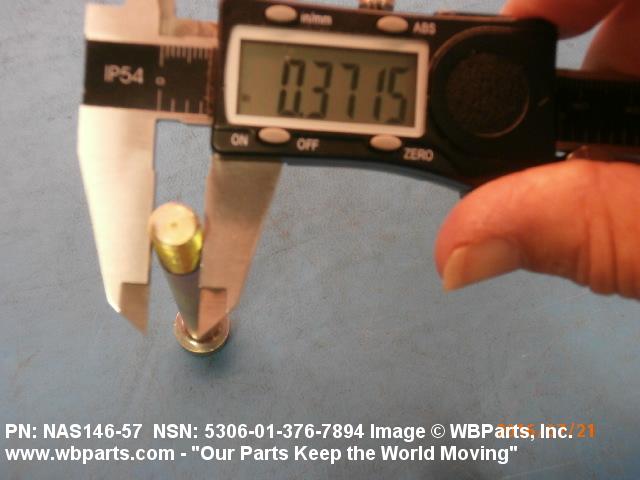

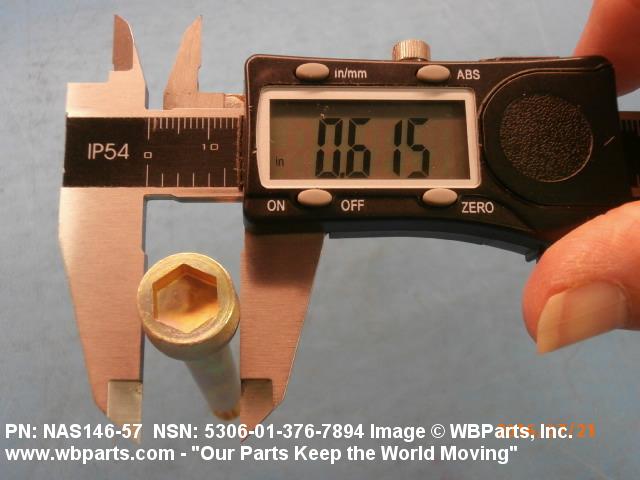

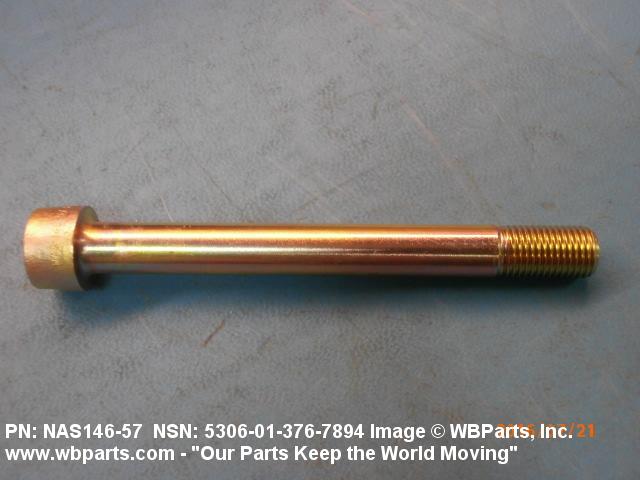

Drawings & Photos | NSN 5306-01-376-7894
Demand History | NSN 5306-01-376-7894
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-01-376-7894 | 2023-04-107 | 90 | United States |
| 5306-01-376-7894 | 2019-08-218 | 40 | Sweden |
| 5306-01-376-7894 | 2019-08-213 | 74 | Sweden |
| NAS14657 | 2017-02-40 | 30 | Sweden |
| 5306-01-376-7894 | 2016-09-246 | 35 | Sweden |
| NAS14657 | 2016-04-112 | 20 | Sweden |
| 5306-01-376-7894 | 2015-08-237 | 80 | Sweden |
| NAS14657 | 2014-09-244 | 20 | Sweden |
| 5306-01-376-7894 | 2013-09-247 | 2 | Sweden |
| 5306-01-376-7894 | 2012-08-214 | 50 | Sweden |
| 5306-01-376-7894 | 2010-03-90 | 20 | PK |
| NAS14657 | 2010-03-90 | 20 | PK |
Cross Reference | NSN 5306-01-376-7894
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS146-57 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-376-7894
Technical Data | NSN 5306-01-376-7894
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| FASTENER LENGTH | 3.562 INCHES NOMINAL |
| MATERIAL | STEEL COMP E4340 OVERALL |
Restrictions/Controls & Freight Information | NSN 5306-01-376-7894
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
