NSN 5306-01-297-4071 NAS1251A1066, NAS1251A10-66, 01-297-4071
Product Details | RING BOLT

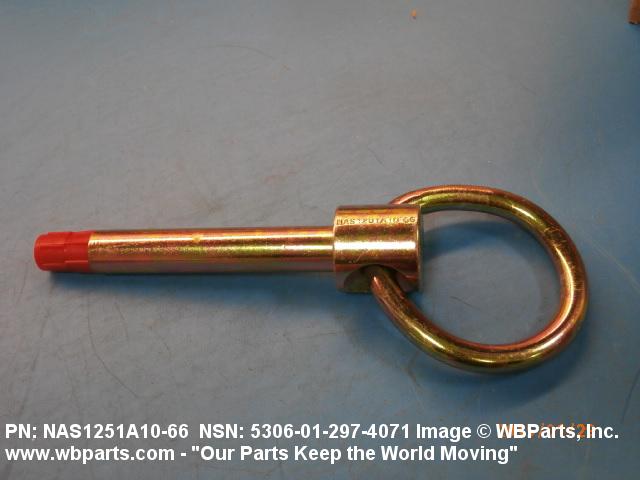

5306-01-297-4071 A BOLT, EYE having a nonremovable ring assembled in the eye.
Part Alternates: NAS1251A1066, NAS1251A10-66, 5306-01-297-4071, 01-297-4071, 5306012974071, 012974071
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 APR 1989 | 01-297-4071 | 01832 ( BOLT, RING ) |

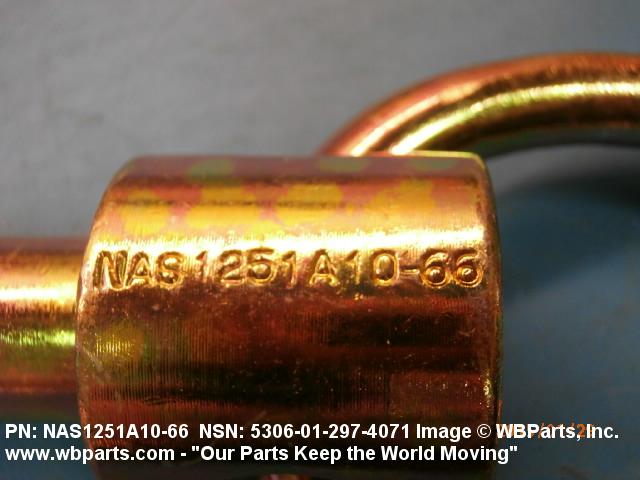

Drawings & Photos | NSN 5306-01-297-4071
Demand History | NSN 5306-01-297-4071
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-01-297-4071 | 2021-12-335 | 10 | US |
| 5306-01-297-4071 | 2016-08-243 | 12 | DIBBS |
| 5306-01-297-4071 | 2016-08-235 | 12 | DIBBS |
| NAS1251A10-66 | 2014-12-357 | 14 | Australia |
| NAS1251A10-66 | 2014-08-232 | 14 | Australia |
| NAS1251A10-66 | 2014-08-232 | 14 | United States |
| NAS1251A10-66 | 2014-08-232 | 14 | United States |
| NAS1251A10-66 | 2014-08-227 | 14 | Australia |
Cross Reference | NSN 5306-01-297-4071
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1251A10-66 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-01-297-4071
Related Products | NSN 5306-01-297-4071
Technical Data | NSN 5306-01-297-4071
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.562 INCHES |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

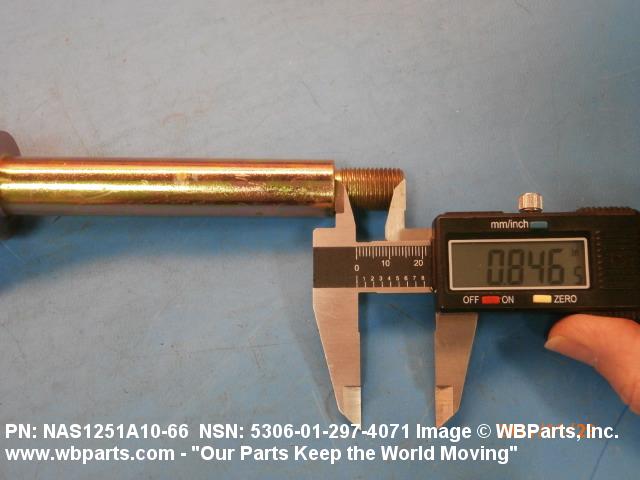

| THREAD LENGTH | 0.845 INCHES MINIMUM AND 0.905 INCHES MAXIMUM |
| MATERIAL | STEEL COMP E4340 OR STEEL COMP 4140 OR STEEL COMP 8740 OR STEEL COMP 8735 OR STEEL COMP 6150 OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OR ZINC AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY2 CL3 FED SPEC 1ST TREATMENT RESPONSE OR ASTM B633 ASSN STD 2ND TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |

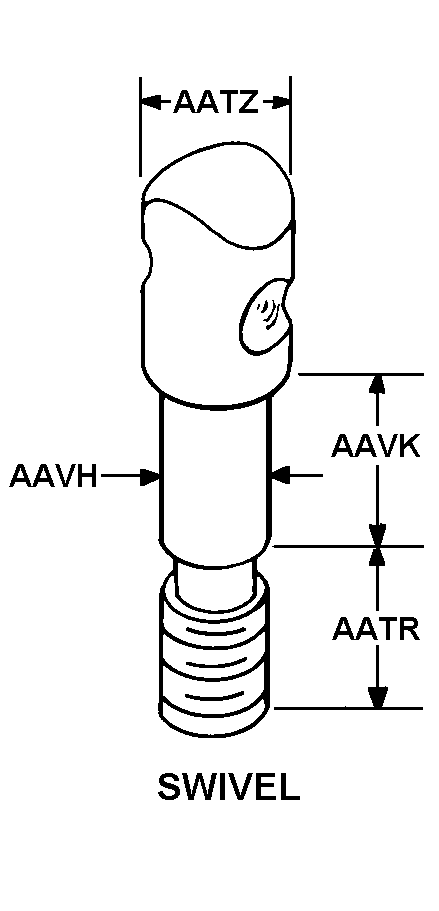

| STYLE DESIGNATOR | B19 SWIVEL |
| SHANK LENGTH | 0.845 INCHES MINIMUM AND 0.905 INCHES MAXIMUM |

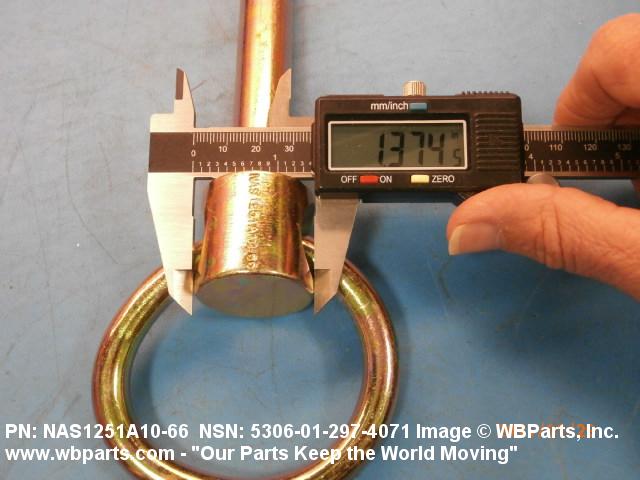

| EYE STOCK DIAMETER | 1.375 INCHES MINIMUM |

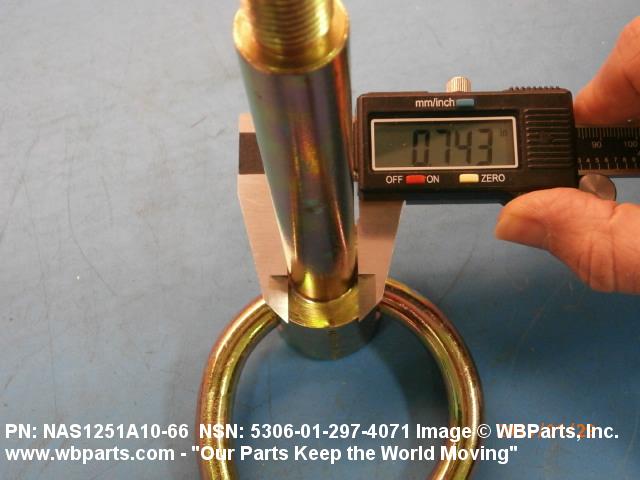

| SHOULDER DIAMETER | 0.743 INCHES MINIMUM AND 0.748 INCHES MAXIMUM |

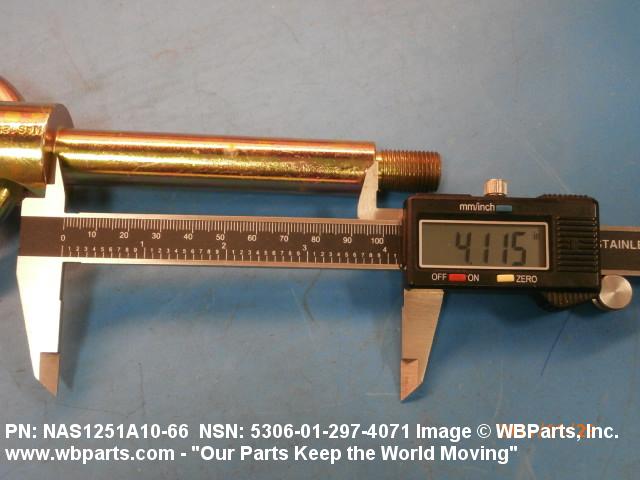

| SHOULDER LENGTH | 4.115 INCHES MINIMUM AND 4.135 INCHES MAXIMUM |

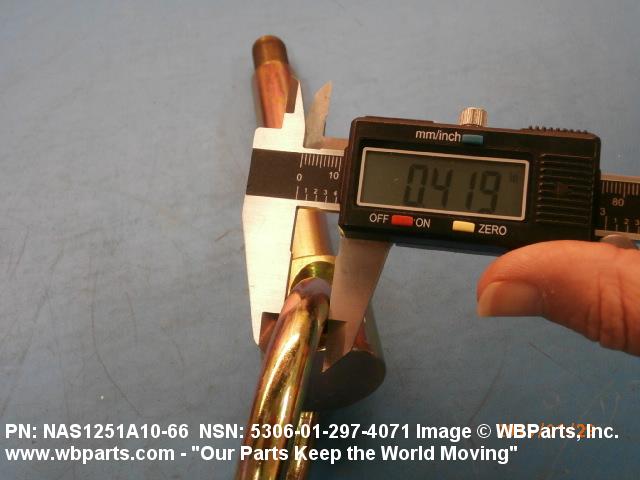

| RING STOCK DIAMETER | 0.417 INCHES MINIMUM AND 0.457 INCHES MAXIMUM |
| SPECIFICATION/STANDARD DATA | 80205-NAS1251 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5306-01-297-4071
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
