NSN 5306-01-285-1700 NAS1251249, NAS1251-2-49, 01-285-1700
Product Details | RING BOLT

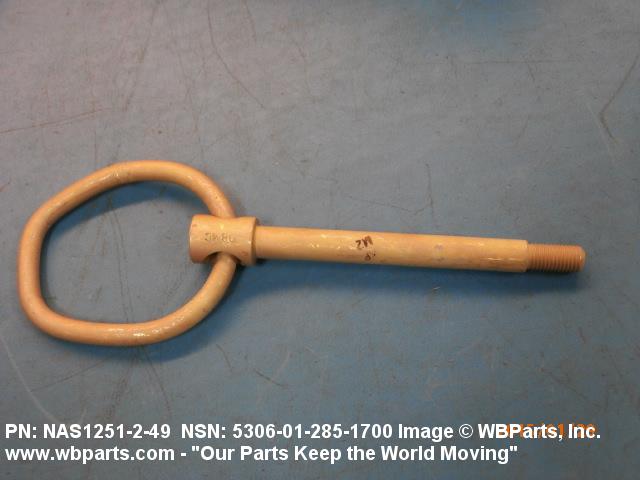

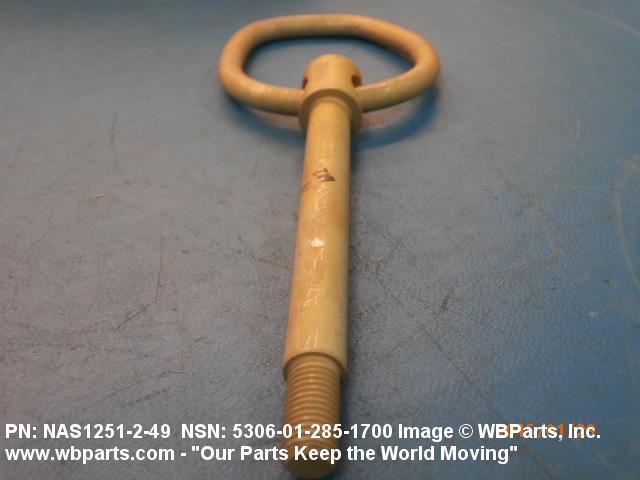

5306-01-285-1700 A BOLT, EYE having a nonremovable ring assembled in the eye.
Part Alternates: NAS1251249, NAS1251-2-49, 5306-01-285-1700, 01-285-1700, 5306012851700, 012851700
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 SEP 1988 | 01-285-1700 | 01832 ( BOLT, RING ) |

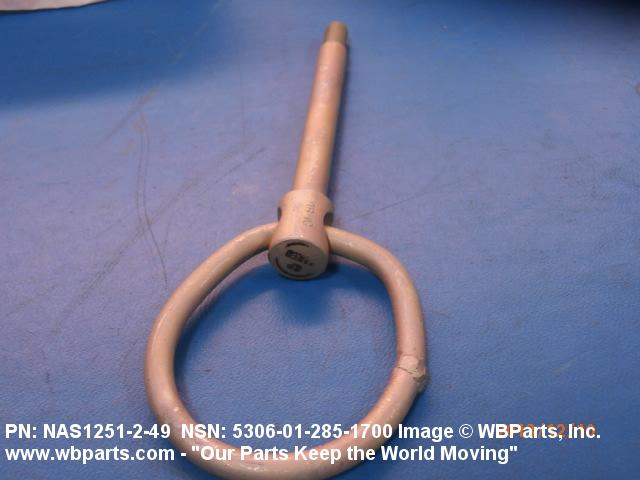

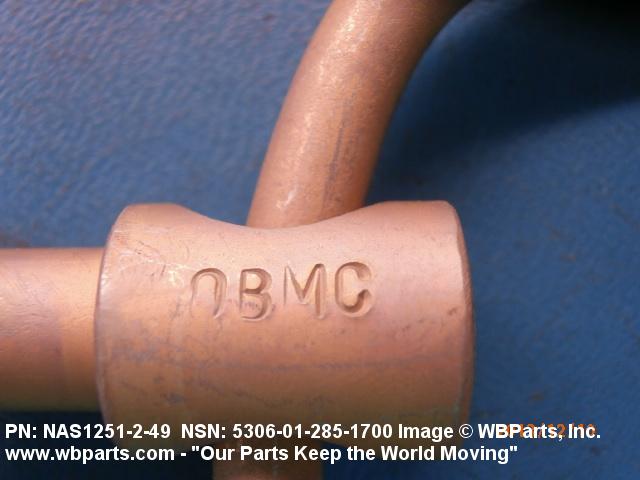

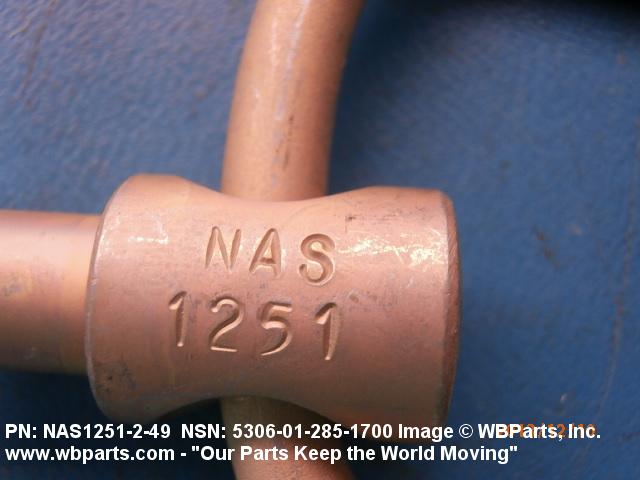

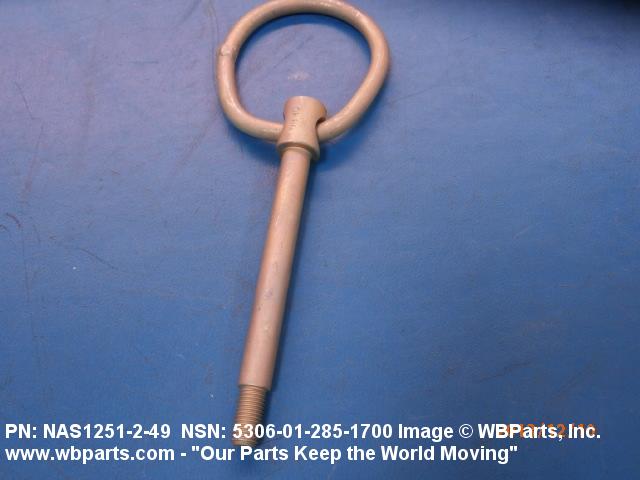

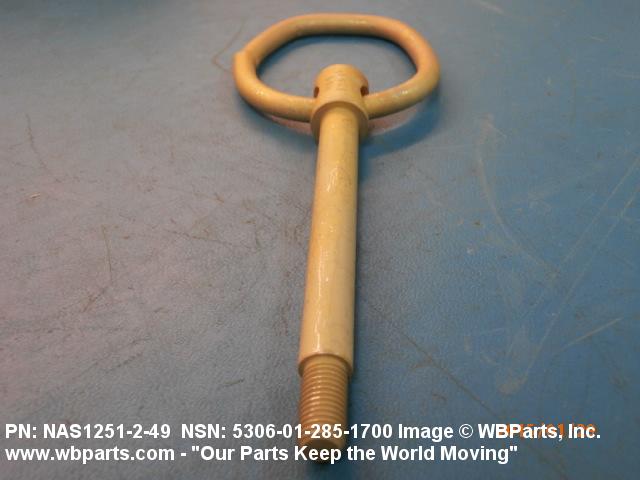

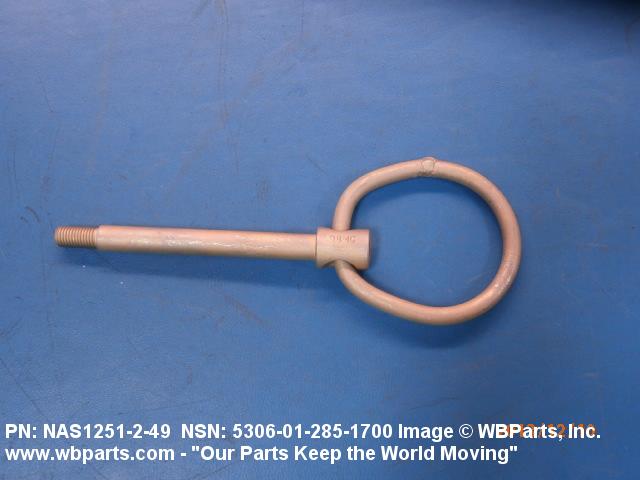

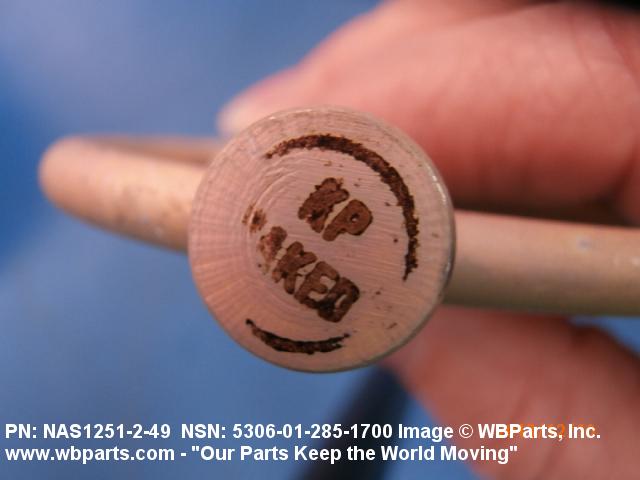

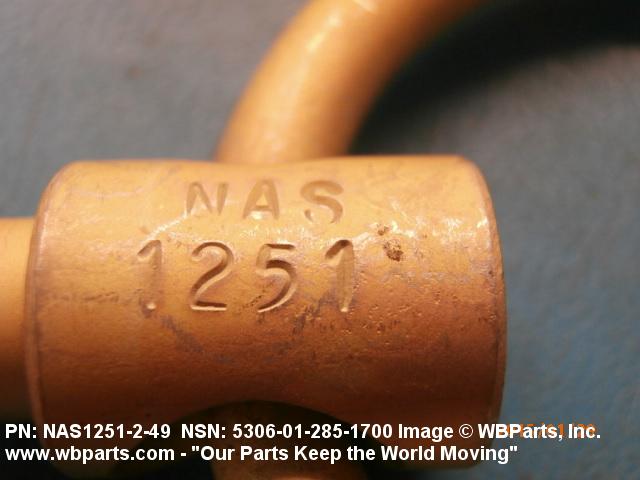

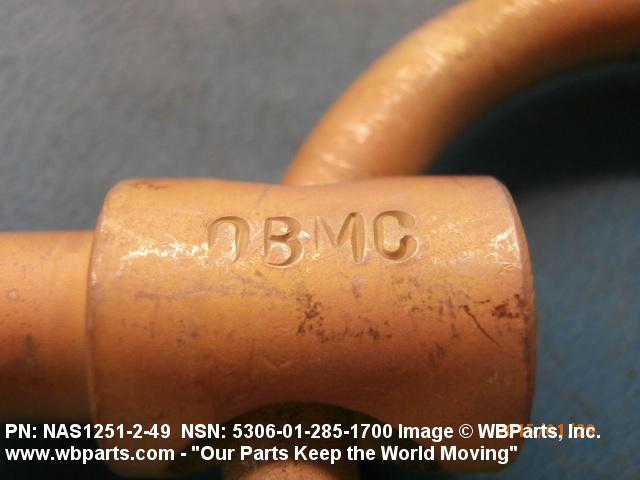

Drawings & Photos | NSN 5306-01-285-1700
Demand History | NSN 5306-01-285-1700
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1251-2-49 | 2014-12-357 | 14 | Australia |
| NAS1251-2-49 | 2014-08-232 | 8 | Australia |
| NAS1251-2-49 | 2014-08-232 | 8 | United States |
| NAS1251-2-49 | 2014-08-232 | 8 | United States |
| NAS1251-2-49 | 2014-08-227 | 8 | Australia |
| NAS1251-2-49 | 2013-11-309 | 22 | Australia |
Cross Reference | NSN 5306-01-285-1700
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1251-2-49 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-01-285-1700
Related Products | NSN 5306-01-285-1700
Technical Data | NSN 5306-01-285-1700

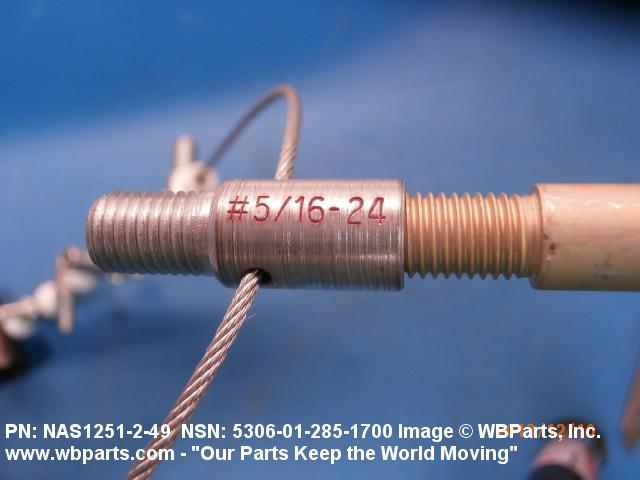

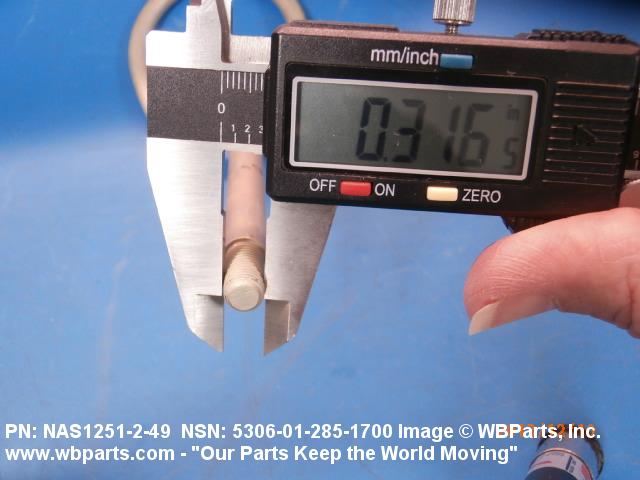

| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.312 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

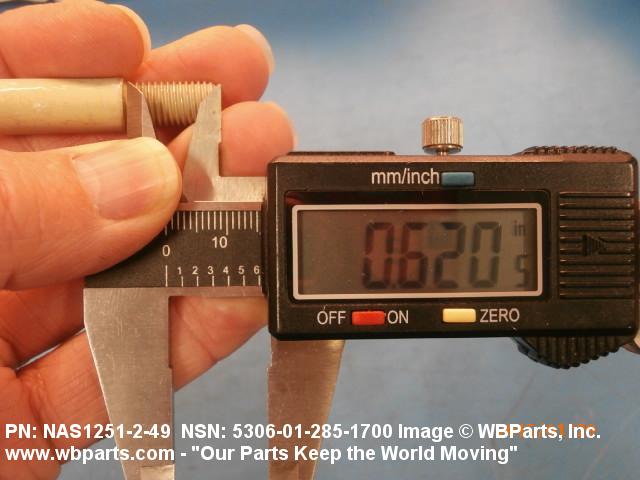

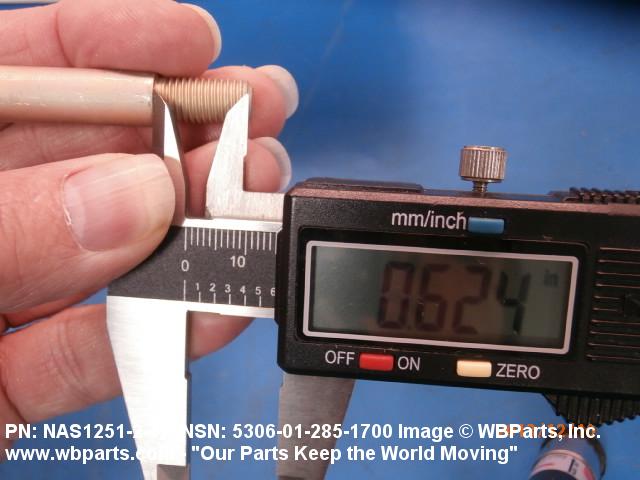

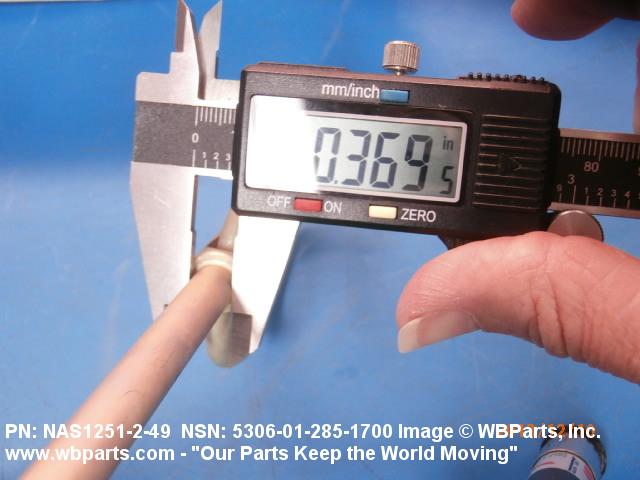

| THREAD LENGTH | 0.519 INCHES MINIMUM AND 0.662 INCHES MAXIMUM |
| MATERIAL | STEEL COMP E4340 OR STEEL COMP 4140 OR STEEL COMP 8740 OR STEEL COMP 8735 OR STEEL COMP 6150 OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OR ZINC AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY2 CL3 FED SPEC 1ST TREATMENT RESPONSE OR ASTM B633 TY2 CL3 ASSN STD 2ND TREATMENT RESPONSE OVERALL |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| STYLE DESIGNATOR | B19 SWIVEL |
| SHANK LENGTH | 0.602 INCHES MINIMUM AND 0.662 INCHES MAXIMUM |
| EYE STOCK DIAMETER | 0.562 INCHES MINIMUM |
| SHOULDER DIAMETER | 0.368 INCHES MINIMUM AND 0.373 INCHES MAXIMUM |

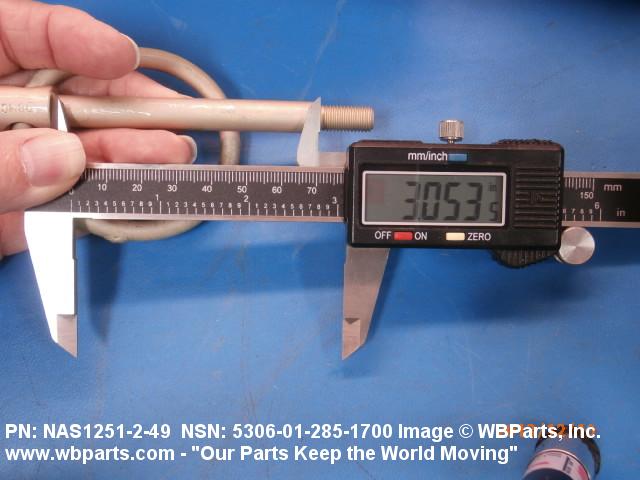

| SHOULDER LENGTH | 3.053 INCHES MINIMUM AND 3.073 INCHES MAXIMUM |

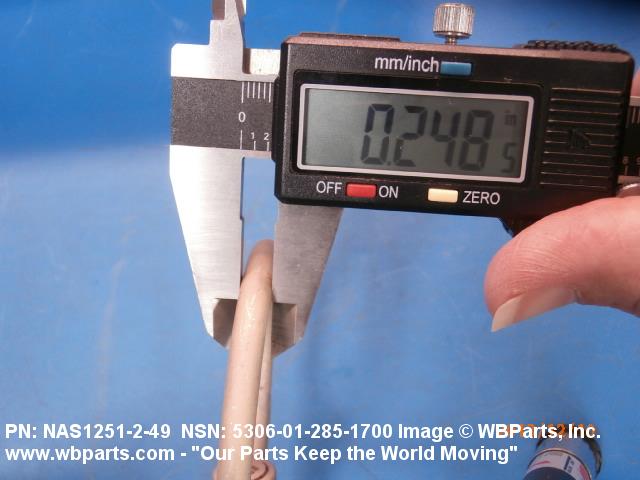

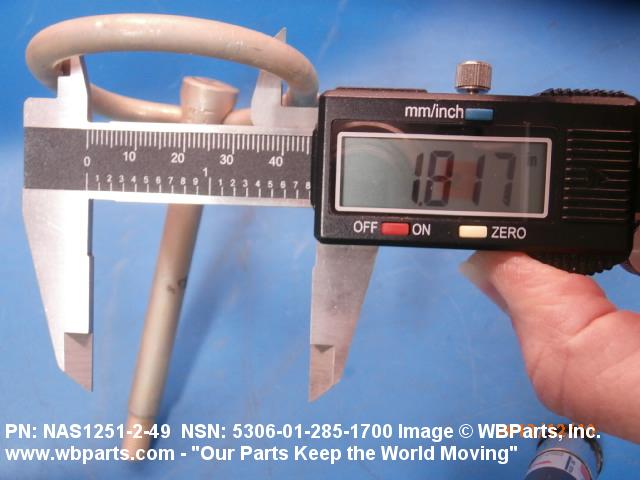

| RING STOCK DIAMETER | 0.230 INCHES MINIMUM AND 0.270 INCHES MAXIMUM |
| RING INSIDE DIAMETER | 1.780 INCHES MINIMUM AND 1.980 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5306-01-285-1700
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
