Product Details | INTERNAL WRENCHING BOLT

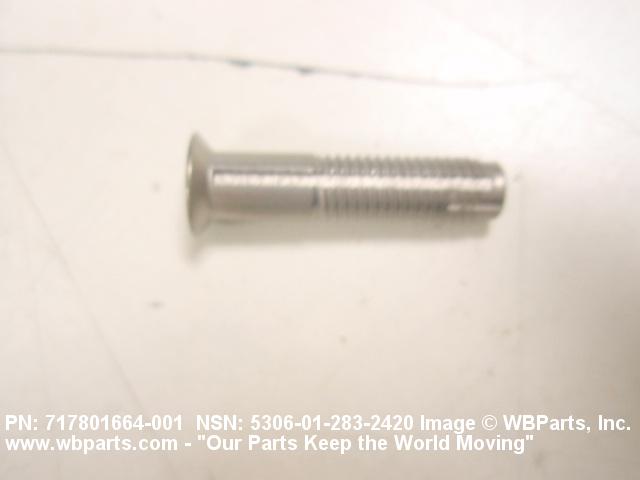

5306-01-283-2420 An externally threaded fastener whose threaded portion is of one nominal diameter, No. 10 (0.190 IN.) (5 mm) or larger. It is designed with an internal socket or internal multiple spline for use with an internal driver. The head is beveled (conical) or cylindrical in shape. Items with cylindrical shaped heads must have an externally relieved body. A locking feature may be incorporated in the design of the head or threads. See also SCREW, CAP, SOCKET HEAD. Excludes SETSCREW; SCREW, SHOULDER; BOLT, SHOULDER; SCREW, EXTERNALLY RELIEVED BODY; BOLT, EXTERNALLY RELIEVED BODY; and SCREW, MACHINE.

Part Alternates: CA2116044HS, CA21160-4-4HS, 717801664001, 717801664-001, 5306-01-283-2420, 01-283-2420, 5306012832420, 012832420

Hardware and Abrasives | Bolts

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	31 JUL 1988	01-283-2420	06666 ( BOLT, INTERNAL WRENCHING )

Drawings & Photos | NSN 5306-01-283-2420

Part Number	Request Date	QTY	Origin
5306-01-283-2420	2024-09-262	10	US
CA2116044HS	2019-10-282	320	Germany
5306-01-283-2420	2017-05-124	312	DIBBS
5306-01-283-2420	2017-02-33	531	DIBBS
5306-01-283-2420	2017-01-19	128	DIBBS
5306-01-283-2420	2016-12-341	177	DIBBS
5306-01-283-2420	2016-08-231	350	DIBBS
5306-01-283-2420	2016-08-215	350	DIBBS
5306-01-283-2420	2016-07-213	232	DIBBS
5306-01-283-2420	2016-03-71	176	DIBBS
5306-01-283-2420	2016-03-63	176	DIBBS
5306-01-283-2420	2016-02-40	160	DIBBS
5306-01-283-2420	2016-02-34	142	DIBBS
5306-01-283-2420	2015-02-33	190	TR
5306-01-283-2420	2015-01-28	177	DIBBS
5306-01-283-2420	2012-08-236	63	DIBBS
5306-01-283-2420	2012-08-230	38	DIBBS
5306-01-283-2420	2012-08-230	60	DIBBS
5306-01-283-2420	2012-08-219	38	DIBBS
5306-01-283-2420	2012-08-219	60	DIBBS
5306-01-283-2420	2012-06-167	38	DIBBS
5306-01-283-2420	2012-05-129	60	DIBBS
CA2116044HS	2012-04-118	1190	United States
717801664-001	2010-05-132	126	United States
5306-01-283-2420	2009-04-105	85	DIBBS
5306-01-283-2420	2009-03-61	53	DIBBS
5306-01-283-2420	2009-02-56	34	DIBBS
5306-01-283-2420	2009-01-30	26	DIBBS
5306-01-283-2420	2008-09-255	146	DIBBS
5306-01-283-2420	2008-07-207	15	DIBBS
5306-01-283-2420	2008-06-156	24	DIBBS
5306-01-283-2420	2008-04-106	63	DIBBS
5306-01-283-2420	2008-04-102	18	DIBBS
5306-01-283-2420	2008-04-100	7	DIBBS
5306-01-283-2420	2008-04-99	17	DIBBS
5306-01-283-2420	2008-04-99	35	DIBBS
5306-01-283-2420	2008-04-99	21	DIBBS
5306-01-283-2420	2008-03-79	18	DIBBS
5306-01-283-2420	2008-01-23	17	DIBBS

Cross Reference | NSN 5306-01-283-2420

Part Number	Cage Code	Manufacturer
717801664-001	04939	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
CA21160-4-4HS	29372	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
