NSN 5306-01-233-0586 NAS630622, NAS6306-22, 01-233-0586
Product Details | SHEAR BOLT
5306-01-233-0586 A high strength, 160,000 pounds per square inch (1100 megapascals) minimum tensile strength externally threaded fastener designed for use in applications involving great shear stress. The head is designed to accommodate an external wrench or driver. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. The unthreaded portion is of specific grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. A locking feature may be incorporated in the design of the head or threads. See BOLT, MACHINE and BOLT, CLEVIS.
Part Alternates: NAS630622, NAS6306-22, 5306-01-233-0586, 01-233-0586, 5306012330586, 012330586
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 MAY 1986 | 01-233-0586 | 15903 ( BOLT, SHEAR ) |

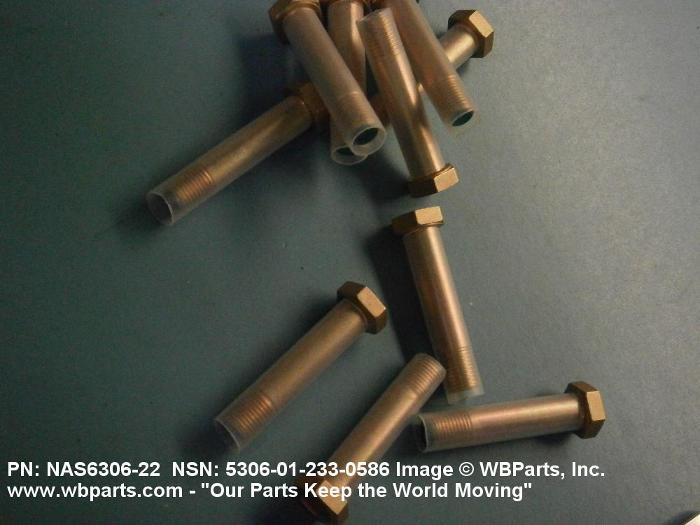

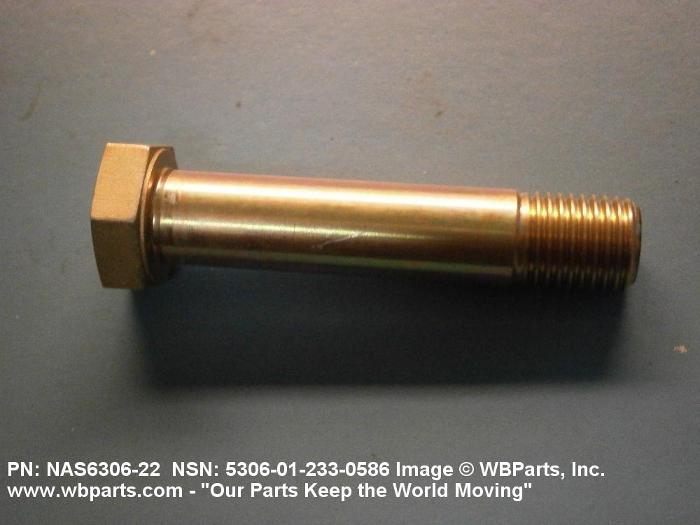

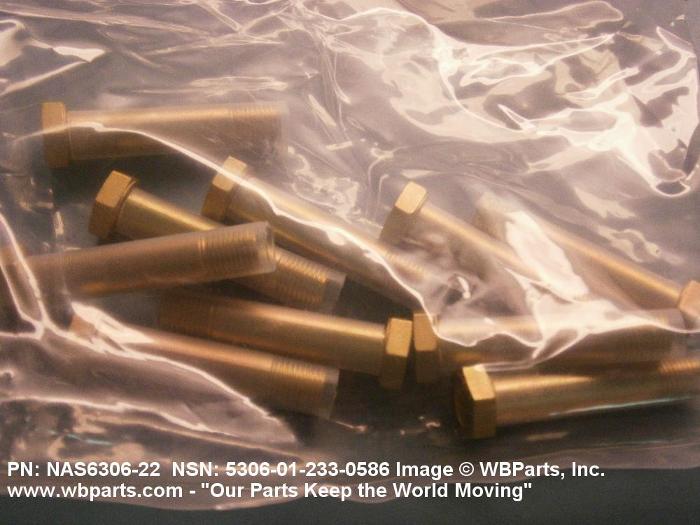

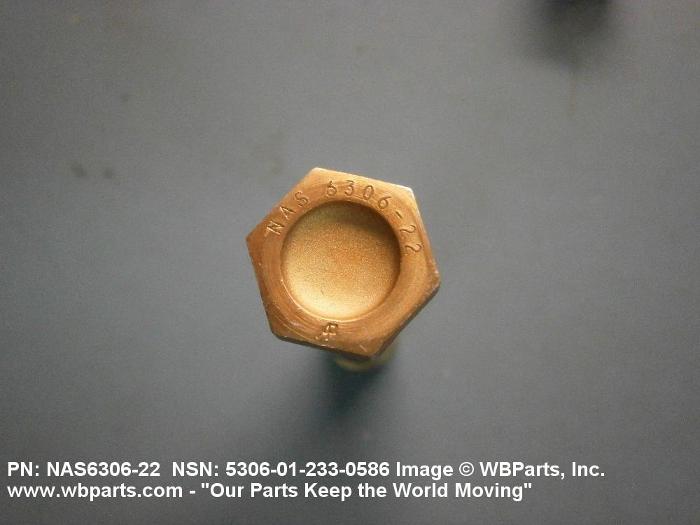

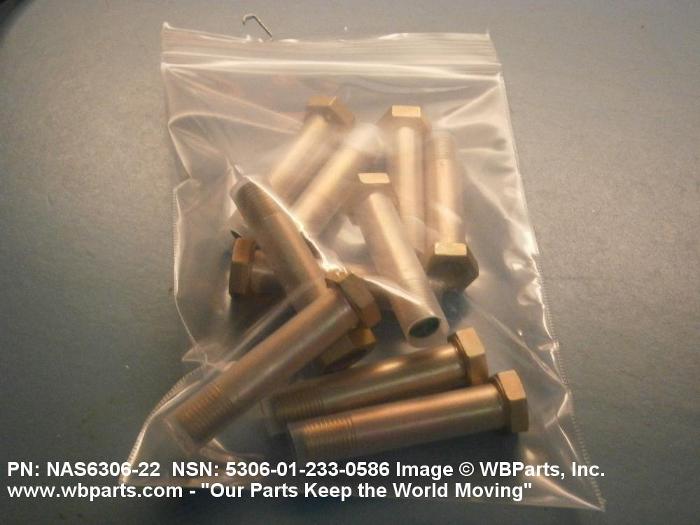

Drawings & Photos | NSN 5306-01-233-0586
Demand History | NSN 5306-01-233-0586
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-01-233-0586 | 2012-06-153 | 10 | Taiwan |
| 5306-01-233-0586 | 2012-06-153 | 10 | Taiwan |
Cross Reference | NSN 5306-01-233-0586
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS6306-22 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-233-0586
Technical Data | NSN 5306-01-233-0586
| Characteristic | Specifications |
|---|---|
| THREAD DIRECTION | RIGHT-HAND |
| SPECIFICATION/STANDARD DATA | 80205-NAS6306 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| GRIP LENGTH | 1.365 INCHES MINIMUM AND 1.385 INCHES MAXIMUM |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| NOMINAL THREAD DIAMETER | 0.375 INCHES |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 2 CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HEAD STYLE | DISHED HEXAGON |
| THREAD QUANTITY PER INCH | 24 |
| FASTENER LENGTH | 1.814 INCHES MINIMUM AND 1.844 INCHES MAXIMUM |
| HEAD HEIGHT | 0.188 INCHES MINIMUM AND 0.203 INCHES MAXIMUM |
| SURFACE FINISH | 32.0 MICROINCHES THREADS |
| THREAD SERIES DESIGNATOR | UNJF |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5731 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| WIDTH BETWEEN FLATS | 0.554 INCHES MINIMUM AND 0.564 INCHES MAXIMUM |
| SURFACE FINISH | 32.0 MICROINCHES BEARING SURFACE OF HEAD |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| MATERIAL | IRON ALLOY 660 OVERALL |
| GRIP DIAMETER | 0.3735 INCHES MINIMUM AND 0.3745 INCHES MAXIMUM |
| THREAD LENGTH | 0.429 INCHES MINIMUM AND 0.479 INCHES MAXIMUM |
| SURFACE FINISH | 32.0 MICROINCHES GRIP |
| THREAD CLASS | 3A |
Restrictions/Controls & Freight Information | NSN 5306-01-233-0586
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-01-233-0586
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
